conga-HPC/cPTL：COM-HPC Client Size A（インテル Core Ultra Series 3）データシート

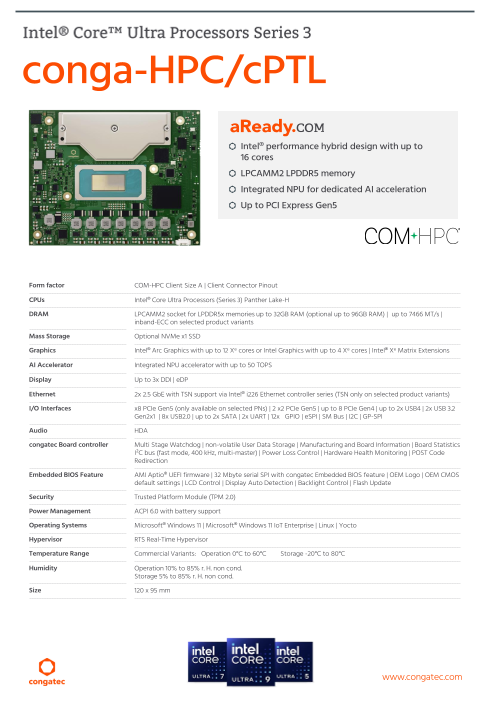

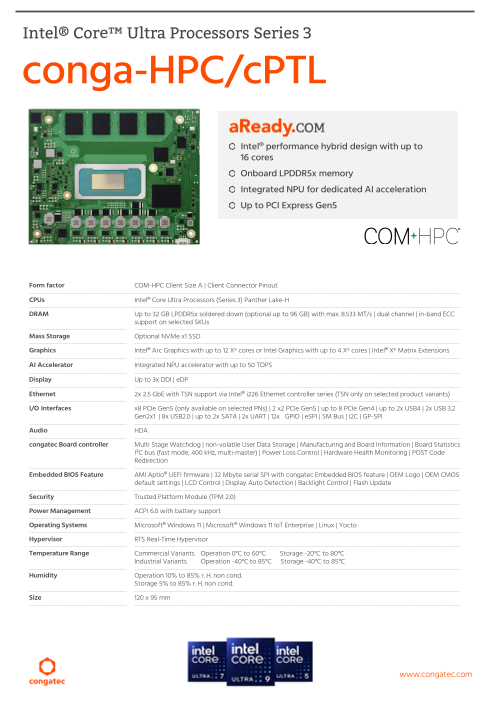

Intel® Core Ultra Processors Series 3 conga-HPC/cPTL Intel® performance hybrid design with up to 16 cores Onboard LPDDR5x memory Integrated NPU for dedicated AI acceleration Up to PCI Express Gen5 Form factor COM-HPC Client Size A | Client Connector Pinout CPUs Intel® Core Ultra Processors (Series 3) Panther Lake-H DRAM Up to 32 GB LPDDR5x soldered down (optional up to 96 GB) with max. 8.533 MT/s | dual channel | in-band ECC support on selected SKUs Mass Storage Optional NVMe x1 SSD Graphics Intel® Arc Graphics with up to 12 Xe cores or Intel Graphics with up to 4 Xe cores | Intel® Xe Matrix Extensions AI Accelerator Integrated NPU accelerator with up to 50 TOPS Display Up to 3x DDI | eDP Ethernet 2x 2.5 GbE with TSN support via Intel® i226 Ethernet controller series (TSN only on selected product variants) I/O Interfaces x8 PCIe Gen5 (only available on selected PNs) | 2 x2 PCIe Gen5 | up to 8 PCIe Gen4 | up to 2x USB4 | 2x USB 3.2 Gen2x1 | 8x USB2.0 | up to 2x SATA | 2x UART | 12x GPIO | eSPI | SM Bus | I2C | GP-SPI Audio HDA congatec Board controller Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control | Hardware Health Monitoring | POST Code Redirection Embedded BIOS Feature AMI Aptio® UEFI firmware | 32 Mbyte serial SPI with congatec Embedded BIOS feature | OEM Logo | OEM CMOS default settings | LCD Control | Display Auto Detection | Backlight Control | Flash Update Security Trusted Platform Module (TPM 2.0) Power Management ACPI 6.0 with battery support Operating Systems Microsoft® Windows 11 | Microsoft® Windows 11 IoT Enterprise | Linux | Yocto Hypervisor RTS Real-Time Hypervisor Temperature Range Commercial Variants Operation 0°C to 60°C Storage -20°C to 80°C Industrial Variants Operation -40°C to 85°C Storage -40°C to 85°C Humidity Operation 10% to 85% r. H. non cond. Storage 5% to 85% r. H. non cond. Size 120 x 95 mm www.congatec.com

conga-HPC/cPTL | Block Diagram LPDDR5x Intel® Core Ultra SOC (Series 3) congatec “Panther Lake-H” Board Controller Gen6 Assembly option x1 NVMe (opt.) *) COM-HPC Client Type Connectors *) - DDI2/USB4 port 1 is an either-or option (the standard configuration supports USB4 port 1 only. If instead DDI2 should be supported, a customer specific variant would be required for this option). - The x1 NVMe, SATA and PCIe 5 are either-or-options (standard configuration support PCIe 5 only. If instead SATA or NVMe should be supported, a customer specific variant would be required for this option). - The default configuration supports PCIe on lane 8 - 9 and on lane 12 – 13 only, with no support on lane 10 - 11. There is an option to support lane 8 - 11 instead, which would mean no support on PCIe 12 – 13 (a customer specific variant would be required for this option). Assembly option – only available on request www.congatec.com PCIe 0 - 3 PCIe 4 PCIe 5 *) PCIe 6 PCIe 7 PCIe 8-9 *) PCIe 10-11 opt. *) PCIe 12-13 *) PCIe 16-23 only on selected PNs SATA 0 opt *). SATA 1 opt. *) NBASE-T 0 I226 (TSN only on selected PNs) NBASE-T 1 I226 (TSN only on selected PNs) USB2.0 0-7 USB4 0 USB4 1 *) USB 3.2 2 USB 3.2 3 DDI 0 DDI 1 DDI 2 *) eDP HDA GP-SPI eSPI SM Bus FAN Control Lid#/Sleep# GPIO 0-11 I2C USB PD I2C UART0 UART1

conga-HPC/cPTL | Modules Order Information Article PN Description COM-HPC Size A module based on Intel® Core Ultra X9 388H processor with 4 P-cores, 8 E-cores conga-HPC/cPTL-X9-388H-32G and 4 LPE Cores | Integrated NPU | 18 MB Intel® Smart Cache LLC | Intel® Arc B390 Graphics with 055000 NVMe128 12Xe Cores | 32GB LPDDR5x system memory | 128GB onboard NVMe | Intel code name Panther Lake- H COM-HPC Size A module based on Intel® Core Ultra 9 386H processor with 4 P-cores, 8 E-cores conga-HPC/cPTL-9-386H-32G 055001 and 4 LPE Cores | Integrated NPU | 18 MB Intel® Smart Cache LLC | Intel Graphics with 4Xe Cores | 32GB LPDDR5x system memory | Intel code name Panther Lake-H COM-HPC Size A module based on Intel® Core Ultra 7 366H processor with 4 P-cores, 8 E-cores conga-HPC/cPTL-7-366H-16G 055002 and 4 LPE Cores | Integrated NPU | 18 MB Intel® Smart Cache LLC | Intel Graphics with 4Xe Cores | 16GB LPDDR5x system memory | Intel code name Panther Lake-H COM-HPC Size A module based on Intel® Core Ultra 7 356H processor with 4 P-cores, 8 E-cores conga-HPC/cPTL-7-356H-16G 055003 and 4 LPE Cores | Integrated NPU | 18 MB Intel® Smart Cache LLC | Intel Graphics with 4Xe Cores | 16GB LPDDR5x system memory | Intel code name Panther Lake-H COM-HPC Size A module based on Intel® Core Ultra 5 336H processor with 4 P-cores, 4 E-cores conga-HPC/cPTL-5-336H-16G 055004 and 4 LPE Cores | Integrated NPU | 18 MB Intel® Smart Cache LLC | Intel Graphics with 4Xe Cores | 16GB LPDDR5x system memory | Intel code name Panther Lake-H COM-HPC Size A module based on Intel® Core Ultra 5 325 processor with 4 P-cores and 4 LPE conga-HPC/cPTL-5-325-16G 055005 Cores | Integrated NPU | 12 MB Intel® Smart Cache LLC | Intel Graphics with 4Xe Cores | 16GB LPDDR5x system memory | Intel code name Panther Lake-H COM-HPC Size A module based on Intel® Core Ultra 7 366HRE processor with 4 P-cores, 8 E-cores and 4 LPE Cores | Integrated NPU | 18 MB Intel® Smart Cache LLC | Intel Graphics with 4Xe Cores | conga-HPC/cPTL-7-366HRE-32G 055010 32GB LPDDR5x system memory | 128GB onboard NVMe | Industrial grade temperature range from - 40°C to +85°C | Intel code name Panther Lake-H COM-HPC Size A module based on Intel® Core Ultra 7 365RE processor with 4 P-cores and 4 LPE Cores | Integrated NPU | 12 MB Intel® Smart Cache LLC | Intel Graphics with 4Xe Cores | 16GB conga-HPC/cPTL-7-365RE-16G 055011 LPDDR5x system memory | 128GB onboard NVMe | Industrial grade temperature range from -40°C to +85°C | Intel code name Panther Lake-H COM-HPC Size A module based on Intel® Core Ultra 5 336HRE processor with 4 P-cores, 4 E-cores and 4 LPE Cores | Integrated NPU | 18 MB Intel® Smart Cache LLC | Intel Graphics with 4Xe Cores | conga-HPC/cPTL-5-336HRE-32G 055012 32GB LPDDR5x system memory | 128GB onboard NVMe | Industrial grade temperature range from - 40°C to +85°C | Intel code name Panther Lake-H COM-HPC Size A module based on Intel® Core Ultra 5 335RE processor with 4 P-cores and 4 LPE Cores | Integrated NPU | 18 MB Intel® Smart Cache LLC | Intel Graphics with 4Xe Cores | 16GB conga-HPC/cPTL-5-335RE-16G 055013 LPDDR5x system memory | 128GB onboard NVMe | Industrial grade temperature range from -40°C to +85°C | Intel code name Panther Lake-H www.congatec.com

conga-HPC/cPTL | Accessories Order Information Article PN Description conga-HPC/EVAL-Client 065600 COM-HPC Evaluation Carrier Board for congatec COM-HPC Client type Modules. COM-HPC Client µATX Application Carrier Board suitable for congatec COM-HPC modules with Size conga-HPC/uATX-Client 065620 A,B and C. Standard active cooling solution for COM-HPC module conga-HPC/cPTL with integrated heat pipes, conga-HPC/cPTL-CSA-HP-B 055050 29mm height and integrated 12V fan. All standoffs are with 2.7mm bore hole. Standard active cooling solution for COM-HPC module conga-HPC/cPTL with integrated heat pipes, conga-HPC/cPTL-CSA-HP-T 055051 29mm height and integrated 12V fan. All standoffs are M2.5mm threaded. Standard passive cooling solution for COM-HPC module conga-HPC/cPTL with integrated heat conga-HPC/cPTL-CSP-HP-B 055052 pipes, 28.2mm height. All standoffs are with 2.7mm bore hole. Standard passive cooling solution for COM-HPC module conga-HPC/cPTL with integrated heat conga-HPC/cPTL-CSP-HP-T 055053 pipes, 28.2mm height. All standoffs are M2.5mm threaded. Standard heatspreader for COM-HPC module conga-HPC/cPTL with integrated heat pipes, 13mm conga-HPC/cPTL-HSP-HP-B 055054 height. All standoffs are with 2.7mm bore hole. Standard heatspreader for COM-HPC module conga-HPC/cPTL with integrated heat pipes, 13mm conga-HPC/cPTL-HSP-HP-T 055055 height. All standoffs are M2.5mm threaded. © 2026 congatec GmbH. All data is for information purposes only. Although all the information contained within this document is All rights reserved. carefully checked, no guarantee of correctness is implied or expressed. Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with congatec GmbH. Product not yet released for mass production. Revision 0.4 – July 2026 www.congatec.com
