conga-TC1000r：COM Express Type 6 Compact 堅牢版（インテル Core Ultra Series 3）データシート

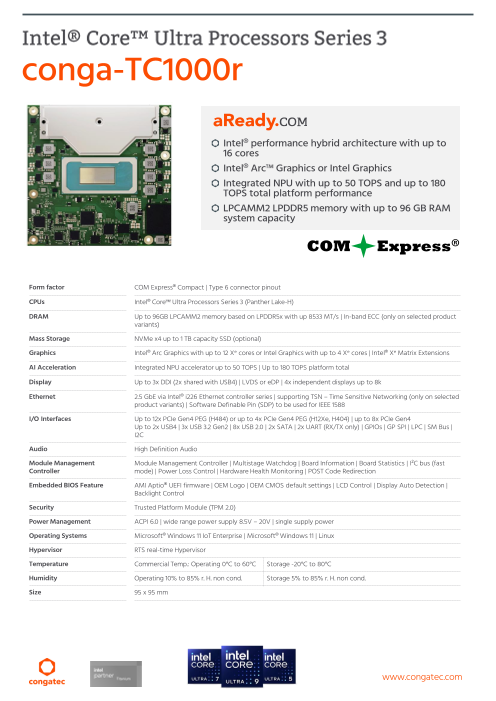

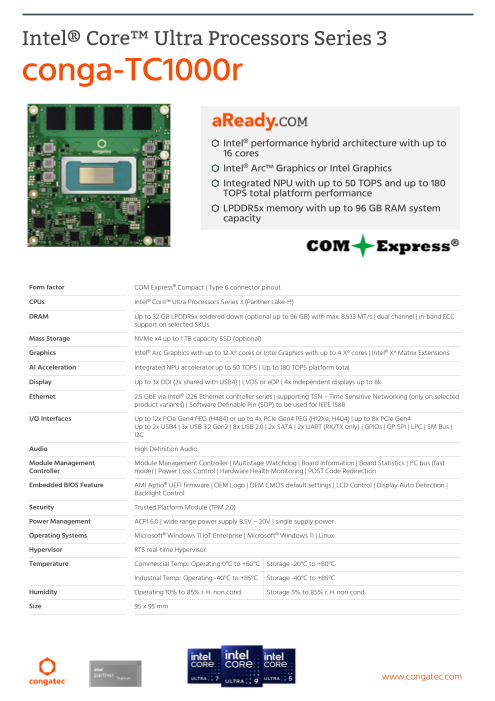

Intel® Core Ultra Processors Series 3 conga-TC1000r Intel® performance hybrid architecture with up to 16 cores Intel® Arc Graphics or Intel Graphics Integrated NPU with up to 50 TOPS and up to 180 TOPS total platform performance LPDDR5x memory with up to 96 GB RAM system capacity Form factor COM Express® Compact | Type 6 connector pinout CPUs Intel® Core Ultra Processors Series 3 (Panther Lake-H) DRAM Up to 32 GB LPDDR5x soldered down (optional up to 96 GB) with max. 8.533 MT/s | dual channel | in-band ECC support on selected SKUs Mass Storage NVMe x4 up to 1 TB capacity SSD (optional) Graphics Intel® Arc Graphics with up to 12 Xe cores or Intel Graphics with up to 4 Xe cores | Intel® Xe Matrix Extensions AI Acceleration Integrated NPU accelerator up to 50 TOPS | Up to 180 TOPS platform total Display Up to 3x DDI (2x shared with USB4) | LVDS or eDP | 4x independent displays up to 8k Ethernet 2.5 GbE via Intel® i226 Ethernet controller series | supporting TSN – Time Sensitive Networking (only on selected product variants) | Software Definable Pin (SDP) to be used for IEEE 1588 I/O Interfaces Up to 12x PCIe Gen4 PEG (H484) or up to 4x PCIe Gen4 PEG (H12Xe, H404) | up to 8x PCIe Gen4 Up to 2x USB4 | 3x USB 3.2 Gen2 | 8x USB 2.0 | 2x SATA | 2x UART (RX/TX only) | GPIOs | GP SPI | LPC | SM Bus | I2C Audio High Definition Audio Module Management Module Management Controller | Multistage Watchdog | Board Information | Board Statistics | I²C bus (fast Controller mode) | Power Loss Control | Hardware Health Monitoring | POST Code Redirection Embedded BIOS Feature AMI Aptio® UEFI firmware | OEM Logo | OEM CMOS default settings | LCD Control | Display Auto Detection | Backlight Control Security Trusted Platform Module (TPM 2.0) Power Management ACPI 6.0 | wide range power supply 8.5V – 20V | single supply power Operating Systems Microsoft® Windows 11 IoT Enterprise | Microsoft® Windows 11 | Linux Hypervisor RTS real-time Hypervisor Temperature Commercial Temp.: Operating 0°C to +60°C Storage -20°C to +80°C Industrial Temp.: Operating -40°C to +85°C Storage -40°C to +85°C Humidity Operating 10% to 85% r. H. non cond. Storage 5% to 85% r. H. non cond. Size 95 x 95 mm www.congatec.com

conga-TC1000r | Block Diagram Intel® Core Ultra SOC COM Express LPDDR5x (Series 3) 2x 220 pos “Panther Lake-H” Connector Type 6 eDP eDP to LVDS DDI MUX MUX eDP / LVDS bridge TCP DDI 1 (shared with USB4 TCP DDI 2 (shared with USB4 TCP DDI 3 USB 3.2 x2 USB 3.2 Port 0-(1) Assembly option USB 3.2 Port 1-3 USB hub H484 only PCIe x8 PEG PCIe Gen4 Port 0-7 PCIe x4 PEG PCIe Gen4 Port 8-11 Assembly option NVMe x4 4x PCIe x1 PCIe Gen 4 Port 0-3 2x PCIe x1 PCIe Gen 4 Port 4-5 Assembly Option PCIe MUX PCIe Gen 4 Port 6 Assembly Option PCIe Gen 4 Port 7 PCIe to SATA Gen 3 Port 0 SATA x2 SATA Gen 3 Port 1 Intel I226 Ethernet PCIe 2.5 GbE/TSN SDP USB 2.0 x8 USB 2.0 Port 0-7 HDA HDA/SNDW SMB SMB MGMNT GPIO FAN Control Module UART0 Management UART1 Controller embedded EEPROM I2C Assembly Option eSPI eSPI to LPC LPC / eSPI SPI SPI TPM 2.0 BIOS Flash Assembly Option www.congatec.com

conga-TC1000r | Modules Order Information Article PN Description COM Express Compact module based on Intel® Core Ultra X9 388H processor with 4 P-cores, 8 E-cores and 4 LPE-cores | Integrated NPU | 18MB Intel® Smart Cache conga-TC1000r-u9-388H 32GB 052100 LLC | Intel® Arc B390 Graphics with 12Xe cores | LPDDR5x memory with up to 8533 MT/s and 32 GB system memory capacity | commercial grade temperature range from 0°C to 60°C. COM Express Compact module based on Intel® Core Ultra 5 336H processor with 4 P-cores, 8 E-cores and 4 LPE-cores | Integrated NPU | 18MB Intel® Smart Cache conga-TC1000r/ultra5-336H-16G 052102 LLC | Intel Graphics with 4Xe cores | LPDDR5x memory with up to 8533 MT/s and 16 GB system memory capacity | commercial grade temperature range from 0°C to 60°C. COM Express Compact module based on Intel® Core Ultra X7 358H processor with 4 P-cores, 8 E-cores and 4 LPE-cores | Integrated NPU | 18MB Intel® Smart Cache conga-TC1000r/ultraX7-358H-32G 052104 LLC | Intel® Arc B390 Graphics with 12Xe cores | LPDDR5x memory module with up to 9600 MT/s and 32 GB system memory capacity | commercial grade temperature range from 0°C to 60°C. COM Express Compact module based on Intel® Core Ultra 7 366HRE processor with 4 P-cores, 8 E-cores and 4 LPE-cores | Integrated NPU | 18MB Intel® Smart conga-TC1000r/ultra7-366HRE-32G 052110 Cache LLC | Intel Graphics with 4Xe cores | 32 GB LPDDR5x onboard memory with up to 8533 MT/s | industrial grade temperature range from -40°C to 85°C. COM Express Compact module based on Intel® Core Ultra 7 365RE processor with 4 P-cores and 4 LPE-cores | Integrated NPU | 12MB Intel® Smart Cache LLC | Intel conga-TC1000r/ultra7-365RE-16G 052111 Graphics with 4Xe cores | 16 GB LPDDR5x onboard memory with up to 6800 MT/s | industrial grade temperature range from -40°C to 85°C. COM Express Compact module based on Intel® Core Ultra 5 336HRE processor with 4 P-cores, 4 E-cores and 4 LPE-cores | Integrated NPU | 18MB Intel® Smart conga-TC1000r/ultra5-336HRE-16G 052112 Cache LLC | Intel Graphics with 4Xe cores | 16 GB LPDDR5x onboard memory with up to 8533 MT/s | industrial grade temperature range from -40°C to 85°C. COM Express Compact module based on Intel® Core Ultra 5 335RE processor with 4 P-cores and 4 LPE-cores | Integrated NPU | 12MB Intel® Smart Cache LLC | Intel conga-TC1000r/ultra5-335RE-16G 052113 Graphics with 4Xe cores | 16 GB LPDDR5x onboard memory with up to 8533 MT/s | industrial grade temperature range from -40°C to 85°C. www.congatec.com

conga-TC1000r | Accessories Order Information Article PN Description Standard heatspreader for high performance COM Express module conga-TC1000r conga-TC1000r/HSP-B (H484) 052154 with H484. All standoffs are with 2.7mm bore hole. Standard heatspreader for high performance COM Express module conga-TC1000r conga-TC1000r/HSP-T (H484) 052155 with H484. All standoffs are M2.5mm threaded. Standard heatspreader for high performance COM Express module conga-TC1000r conga-TC1000r/HSP-B (H404) 052156 with H404. All standoffs are with 2.7mm bore hole. Standard heatspreader for high performance COM Express module conga-TC1000r conga-TC1000r/HSP-T (H404) 052157 with H404. All standoffs are M2.5mm threaded. conga-TEVAL/COMe 3.1 065820 Evaluation carrier board for COM Express Type 6 revision 3.1 modules. All data is for information purposes only. Although all the information contained within this document is carefully © 2025 congatec GmbH. checked, no guarantee of correctness is implied or expressed. Product names, logos, brands, and other trademarks All rights reserved. featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with congatec GmbH. Product not yet in mass production and subject to change. Draft Revision 0.2 – July 2026 www.congatec.com
