conga-TC1000：COM Express Type 6 Compact（インテル Core Ultra Series 3）データシート

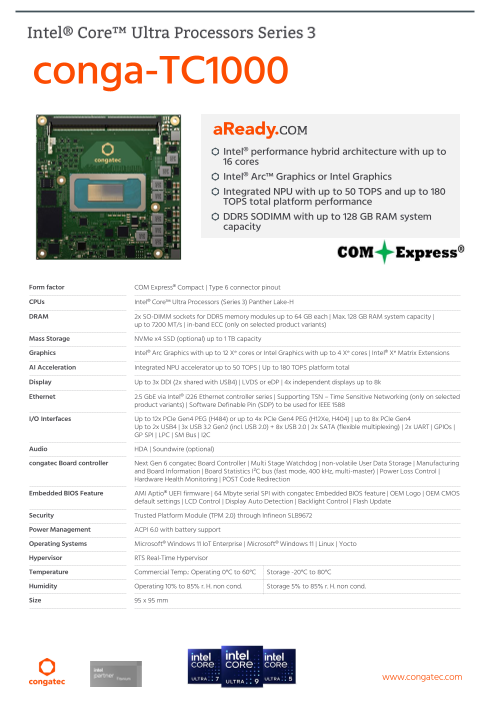

Intel® Core Ultra Processors Series 3 conga-TC1000 Intel® performance hybrid architecture with up to 16 cores Intel® Arc Graphics or Intel Graphics Integrated NPU with up to 50 TOPS and up to 180 TOPS total platform performance DDR5 SODIMM with up to 128 GB RAM system capacity Form factor COM Express® Compact | Type 6 connector pinout CPUs Intel® Core Ultra Processors (Series 3) Panther Lake-H DRAM 2x SO-DIMM sockets for DDR5 memory modules up to 64 GB each | Max. 128 GB RAM system capacity | up to 7200 MT/s | in-band ECC (only on selected product variants) Mass Storage NVMe x4 SSD (optional) up to 1 TB capacity Graphics Intel® Arc Graphics with up to 12 Xe cores or Intel Graphics with up to 4 Xe cores | Intel® Xe Matrix Extensions AI Acceleration Integrated NPU accelerator up to 50 TOPS | Up to 180 TOPS platform total Display Up to 3x DDI (2x shared with USB4) | LVDS or eDP | 4x independent displays up to 8k Ethernet 2.5 GbE via Intel® i226 Ethernet controller series | Supporting TSN – Time Sensitive Networking (only on selected product variants) | Software Definable Pin (SDP) to be used for IEEE 1588 I/O Interfaces Up to 12x PCIe Gen4 PEG (H484) or up to 4x PCIe Gen4 PEG (H12Xe, H404) | up to 8x PCIe Gen4 Up to 2x USB4 | 3x USB 3.2 Gen2 (incl. USB 2.0) + 8x USB 2.0 | 2x SATA (flexible multiplexing) | 2x UART | GPIOs | GP SPI | LPC | SM Bus | I2C Audio HDA | Soundwire (optional) congatec Board controller Next Gen 6 congatec Board Controller | Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control | Hardware Health Monitoring | POST Code Redirection Embedded BIOS Feature AMI Aptio® UEFI firmware | 64 Mbyte serial SPI with congatec Embedded BIOS feature | OEM Logo | OEM CMOS default settings | LCD Control | Display Auto Detection | Backlight Control | Flash Update Security Trusted Platform Module (TPM 2.0) through Infineon SLB9672 Power Management ACPI 6.0 with battery support Operating Systems Microsoft® Windows 11 IoT Enterprise | Microsoft® Windows 11 | Linux | Yocto Hypervisor RTS Real-Time Hypervisor Temperature Commercial Temp.: Operating 0°C to +60°C Storage -20°C to +80°C Industrial Temp.: Operating -40°C to +85°C Storage: -40°C to +85°C Humidity Operating 10% to 85% r. H. non cond. Storage 5% to 85% r. H. non cond. Size 95 x 95 mm www.congatec.com

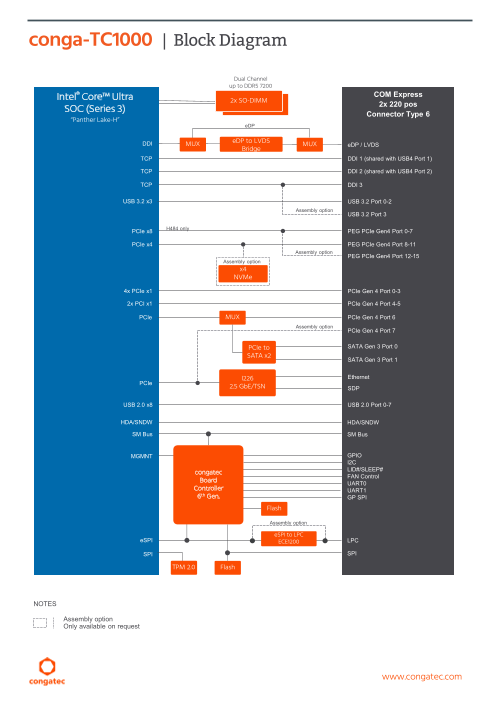

conga-TC1000 | Block Diagram Dual Channel up to DDR5 7200 MT/s Intel® Core Ultra COM Express 2x SO-DIMM 2x 220 pos SOC (Series 3) Connector Type 6 “Panther Lake-H” eDP DDI MUX eDP to LVDS MUX eDP / LVDS Bridge TCP DDI 1 (shared with USB4 Port 1) TCP DDI 2 (shared with USB4 Port 2) TCP DDI 3 USB 3.2 x3 USB 3.2 Port 0-2 Assembly option USB 3.2 Port 3 H484 only PCIe x8 PEG PCIe Gen4 Port 0-7 PCIe x4 PEG PCIe Gen4 Port 8-11 Assembly option PEG PCIe Gen4 Port 12-15 Assembly option x4 NVMe 4x PCIe x1 PCIe Gen 4 Port 0-3 2x PCI x1 PCIe Gen 4 Port 4-5 PCIe MUX PCIe Gen 4 Port 6 Assembly option PCIe Gen 4 Port 7 PCIe to SATA Gen 3 Port 0 SATA x2 SATA Gen 3 Port 1 I226 Ethernet PCIe 2.5 GbE/TSN SDP USB 2.0 x8 USB 2.0 Port 0-7 HDA/SNDW HDA/SNDW SM Bus SM Bus MGMNT GPIO I2C congatec LID#/SLEEP# FAN Control Board UART0 Controller UART1 6th Gen. GP SPI Flash Assembly option eSPI to LPC eSPI ECE1200 LPC SPI SPI TPM 2.0 Flash NOTES Assembly option Only available on request www.congatec.com

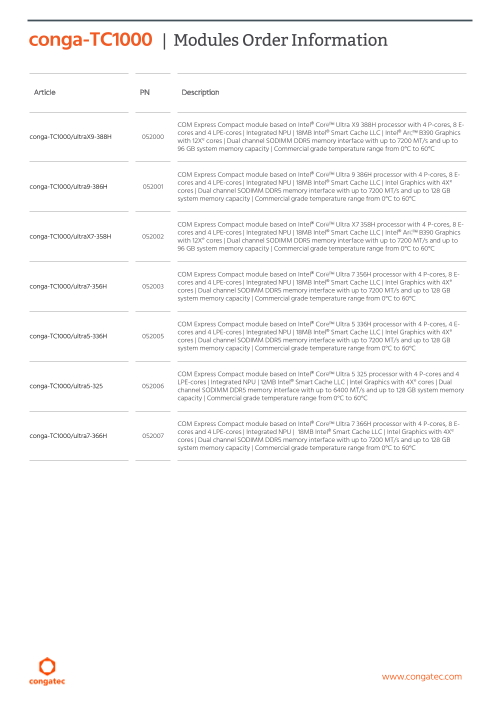

conga-TC1000 | Modules Order Information Article PN Description COM Express Compact module based on Intel® Core Ultra X9 388H processor with 4 P-cores, 8 E- cores and 4 LPE-cores | Integrated NPU | 18MB Intel® Smart Cache LLC | Intel® Arc B390 Graphics conga-TC1000/ultraX9-388H 052000 with 12Xe cores | Dual channel SODIMM DDR5 memory interface with up to 7200 MT/s and up to 96 GB system memory capacity | Commercial grade temperature range from 0°C to 60°C COM Express Compact module based on Intel® Core Ultra 9 386H processor with 4 P-cores, 8 E- cores and 4 LPE-cores | Integrated NPU | 18MB Intel® Smart Cache LLC | Intel Graphics with 4Xe conga-TC1000/ultra9-386H 052001 cores | Dual channel SODIMM DDR5 memory interface with up to 7200 MT/s and up to 128 GB system memory capacity | Commercial grade temperature range from 0°C to 60°C COM Express Compact module based on Intel® Core Ultra X7 358H processor with 4 P-cores, 8 E- cores and 4 LPE-cores | Integrated NPU | 18MB Intel® Smart Cache LLC | Intel® Arc B390 Graphics conga-TC1000/ultraX7-358H 052002 with 12Xe cores | Dual channel SODIMM DDR5 memory interface with up to 7200 MT/s and up to 96 GB system memory capacity | Commercial grade temperature range from 0°C to 60°C COM Express Compact module based on Intel® Core Ultra 7 356H processor with 4 P-cores, 8 E- cores and 4 LPE-cores | Integrated NPU | 18MB Intel® Smart Cache LLC | Intel Graphics with 4Xe conga-TC1000/ultra7-356H 052003 cores | Dual channel SODIMM DDR5 memory interface with up to 7200 MT/s and up to 128 GB system memory capacity | Commercial grade temperature range from 0°C to 60°C COM Express Compact module based on Intel® Core Ultra 5 336H processor with 4 P-cores, 4 E- cores and 4 LPE-cores | Integrated NPU | 18MB Intel® Smart Cache LLC | Intel Graphics with 4Xe conga-TC1000/ultra5-336H 052005 cores | Dual channel SODIMM DDR5 memory interface with up to 7200 MT/s and up to 128 GB system memory capacity | Commercial grade temperature range from 0°C to 60°C COM Express Compact module based on Intel® Core Ultra 5 325 processor with 4 P-cores and 4 LPE-cores | Integrated NPU | 12MB Intel® Smart Cache LLC | Intel Graphics with 4Xe cores | Dual conga-TC1000/ultra5-325 052006 channel SODIMM DDR5 memory interface with up to 6400 MT/s and up to 128 GB system memory capacity | Commercial grade temperature range from 0°C to 60°C COM Express Compact module based on Intel® Core Ultra 7 366H processor with 4 P-cores, 8 E- cores and 4 LPE-cores | Integrated NPU | 18MB Intel® Smart Cache LLC | Intel Graphics with 4Xe conga-TC1000/ultra7-366H 052007 cores | Dual channel SODIMM DDR5 memory interface with up to 7200 MT/s and up to 128 GB system memory capacity | Commercial grade temperature range from 0°C to 60°C www.congatec.com

conga-TC1000 | Modules Order Information II Article PN Description COM Express Compact module based on Intel® Core Ultra 7 366HRE processor with 4 P-cores, 8 E-cores and 4 LPE-cores | Integrated NPU | 18MB Intel® Smart Cache LLC | Intel Graphics with 4Xe conga-TC1000/ultra7-366HRE 052010 cores | Dual channel SODIMM DDR5 memory interface with up to 7200 MT/s and up to 128 GB system memory capacity | Industrial grade temperature range from -40°C to 85°C COM Express Compact module based on Intel® Core Ultra 7 365RE processor with 4 P-cores and 4 LPE-cores | Integrated NPU | 18MB Intel® Smart Cache LLC | Intel Graphics with 4Xe cores | Dual conga-TC1000/ultra7-365RE 052011 channel SODIMM DDR5 memory interface with up to 7200 MT/s and up to 128 GB system memory capacity | Industrial grade temperature range from -40°C to 85°C COM Express Compact module based on Intel® Core Ultra 5 336HRE processor with 4 P-cores, 4 E-cores and 4 LPE-cores | Integrated NPU | 18MB Intel® Smart Cache LLC | Intel Graphics with 4Xe conga-TC1000/ultra5-336HRE 052012 cores | Dual channel SODIMM DDR5 memory interface with up to 7200 MT/s and up to 128 GB system memory capacity | Industrial grade temperature range from -40°C to 85°C COM Express Compact module based on Intel® Core Ultra 5 335RE processor with 4 P-cores and 4 LPE-cores | Integrated NPU | 18MB Intel® Smart Cache LLC | Intel Graphics with 4Xe cores | Dual conga-TC1000/ultra5-335RE 052013 channel SODIMM DDR5 memory interface with up to 7200 MT/s and up to 128 GB system memory capacity | Industrial grade temperature range from -40°C to 85°C www.congatec.com

conga-TC1000 | Accessories Order Information Article PN Description Standard active cooling solution for high performance COM Express module conga-TC1000 with conga-TC1000/CSA-HP-B 052050 integrated heat pipes, 25.5mm height and integrated 12V fan. All standoffs are with 2.7mm bore hole. Standard active cooling solution for high performance COM Express module conga-TC1000 with conga-TC1000/CSA-HP-T 052051 integrated heat pipes, 25.5mm height and integrated 12V fan. All standoffs are M2.5mm threaded. Standard passive cooling solution for high performance COM Express module conga-TC1000 with conga-TC1000/CSP-HP-B 052052 integrated heat pipes, 24.7mm height. All standoffs are with 2.7mm bore hole. Standard passive cooling solution for high performance COM Express module conga-TC1000 with conga-TC1000/CSP-HP-T 052053 integrated heat pipes, 24.7mm height. All standoffs are M2.5mm threaded. Standard heatspreader for high performance COM Express module conga-TC1000 with integrated conga-TC1000/HSP-HP-B 052054 heat pipes, 11mm height. All standoffs are with 2.7mm bore hole. Standard heatspreader for high performance COM Express module conga-TC1000 with integrated conga-TC1000/HSP-HP-T 052055 heat pipes, 11mm height. All standoffs are M2.5mm threaded. conga-TEVAL/COMe 3.1 065820 Evaluation carrier board for COM Express Type 6 revision 3.1 modules. DDR5 SODIMM memory module with up to 7200 MT/s and 8GB RAM, commercial temp 0°C to DDR5-SODIMM-7200 (8GB) 068960 +60°C DDR5 SODIMM memory module with up to 7200 MT/s and 16GB RAM, commercial temp 0°C to DDR5-SODIMM-7200 (16GB) 068961 +60°C DDR5 SODIMM memory module with up to 7200 MT/s and 32GB RAM, commercial temp 0°C to DDR5-SODIMM-7200 (32GB) 068962 +60°C DDR5 SODIMM memory module with up to 7200 MT/s and 48GB RAM, commercial temp 0°C to DDR5-SODIMM-7200 (48GB) 068963 +60°C DDR5 SODIMM memory module with up to 7200 MT/s and 64GB RAM, commercial temp 0°C to DDR5-SODIMM-7200 (64GB) 068964 +60°C All data is for information purposes only. Although all the information contained within this document is carefully © 2025 congatec GmbH. checked, no guarantee of correctness is implied or expressed. Product names, logos, brands, and other trademarks All rights reserved. featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with congatec GmbH. Product not yet in mass production and subject to change. Revision 0.7 – July 2026 www.congatec.com
