アプリケーションレディ COM-HPC Client Size A モジュール: conga-aCOM/cRLP データシート
製品カタログ
ハイパーバイザーとOSを実装したアプリケーションレディ(aReady.COM)の COM-HPC Client Size A モジュール
conga-aCOM/cRLP は、aReady.COM 製品で第13世代 インテル Core プロセッサーを搭載した conga-HPC/cRLP-i5-1340PE モジュールをベースに、ハイパーバイザーとオペレーティング システムをプリインストールしたアプリケーションレディの COM-HPC Client Size A モジュールです。2つのコンフィグレーション済み仮想マシンを実装し、2つのコア上でリアルタイム Linux OSを、10個のコア上で Ubuntu Pro を実行するよう、あらかじめコンフィグレーションされており、さらにヒートパイプ付きアクティブ冷却ソリューションも付属しているため、すぐにアプリケーション開発が始められます。最新テクノロジーの人工知能(AI)や IoT 接続、セキュリティなどの実装と利用を簡素化します。
このカタログについて
ドキュメント名 | アプリケーションレディ COM-HPC Client Size A モジュール: conga-aCOM/cRLP データシート |
---|---|
ドキュメント種別 | 製品カタログ |
ファイルサイズ | 283.6Kb |
登録カテゴリ | |
取り扱い企業 | コンガテックジャパン株式会社 (この企業の取り扱いカタログ一覧) |
この企業の関連カタログ
このカタログの内容
Page1

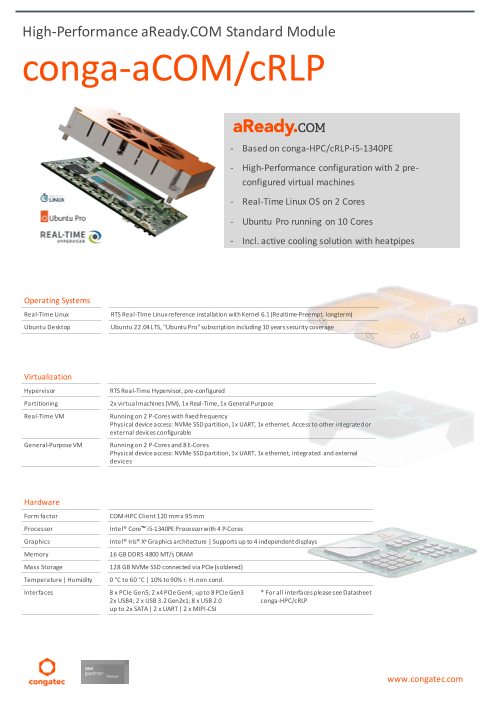

aCOM/cRLP、Slide 1
