COM-HPC Mini: conga-HPC/mRLP データシート

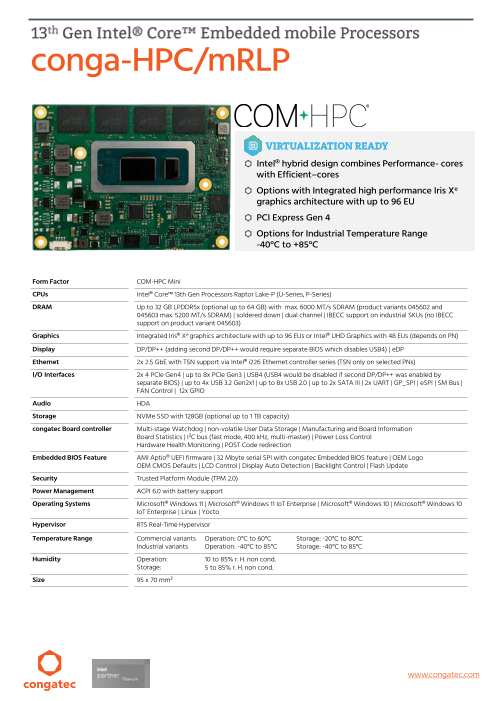

conga-HPC/mRLP Intel® hybrid design combines Performance- cores with Efficient–cores Options with Integrated high performance Iris Xe graphics architecture with up to 96 EU PCI Express Gen 4 Options for Industrial Temperature Range -40°C to +85°C Form Factor COM-HPC Mini CPUs Intel® Core™ 13th Gen Processors Raptor Lake-P (U-Series, P-Series) DRAM Up to 32 GB LPDDR5x (optional up to 64 GB) with max. 6000 MT/s SDRAM (product variants 045602 and 045603 max. 5200 MT/s SDRAM) | soldered down | dual channel | IBECC support on industrial SKUs (no IBECC support on product variant 045603) Graphics Integrated Iris® Xe graphics architecture with up to 96 EUs or Intel® UHD Graphics with 48 EUs (depends on PN) Display DP/DP++ (adding second DP/DP++ would require separate BIOS which disables USB4) | eDP Ethernet 2x 2.5 GbE with TSN support via Intel® i226 Ethernet controller series (TSN only on selected PNs) I/O Interfaces 2x 4 PCIe Gen4 | up to 8x PCIe Gen3 | USB4 (USB4 would be disabled if second DP/DP++ was enabled by separate BIOS) | up to 4x USB 3.2 Gen2x1 | up to 8x USB 2.0 | up to 2x SATA III | 2x UART | GP_SPI | eSPI | SM Bus | FAN Control | 12x GPIO Audio HDA Storage NVMe SSD with 128GB (optional up to 1 TB capacity) congatec Board controller Multi-stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information Board Statistics | I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control Hardware Health Monitoring | POST Code redirection Embedded BIOS Feature AMI Aptio® UEFI firmware | 32 Mbyte serial SPI with congatec Embedded BIOS feature | OEM Logo OEM CMOS Defaults | LCD Control | Display Auto Detection | Backlight Control | Flash Update Security Trusted Platform Module (TPM 2.0) Power Management ACPI 6.0 with battery support Operating Systems Microsoft® Windows 11 | Microsoft® Windows 11 IoT Enterprise | Microsoft® Windows 10 | Microsoft® Windows 10 IoT Enterprise | Linux | Yocto Hypervisor RTS Real-Time Hypervisor Temperature Range Commercial variants Operation: 0°C to 60°C Storage: -20°C to 80°C Industrial variants Operation: -40°C to 85°C Storage: -40°C to 85°C Humidity Operation: 10 to 85% r. H. non cond. Storage: 5 to 85% r. H. non cond. Size 95 x 70 mm² www.congatec.com

conga-HPC/mRLP | Dual Channel 2/4x LPDDR5x NVMe 128GB Intel® 13th Gen. Core™ SOC “Raptor Lake-P” congatec Raptor Lake CPU + GFX Raptor Lake PCH-P Board Controller COM-HPC Mini Connector *) adding second DP/DP++ would require separate BIOS which disables USB4 www.congatec.com USB4 / DDI1*) USB3 0 USB3 1 USB3 2 USB3 3 PCIe 8-11 PCIe 12-15 eDP DDI 0 NBASE-T i226/TSN on selected PNs NBASE-T i226/TSN on selected PNs PCIe 0-3 PCIe 4 PCIe 5 PCIe 6/SATA 1 PCIe 7/SATA 0 USB2 0-7 HDA Boot SPI SPI Flash 0 TPM 2.0 GP SPI eSPI SM Bus FAN Control Lid#/Sleep# GPIO 0-11 I2C 0-2 USB PD I2C UART0 UART1

conga-HPC/mRLP | Article PN Description COM-HPC Mini module based on Intel® Core™ i7-1365URE processor with 2 P-cores 1.7GHz up to conga-HPC/mRLP-i7-1365URE-32G 4.9GHz Turbo and 8 E-cores 1.2GHz up to 3.7GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® Xe NVMe128 045600 Graphics architecture with 96 EUs | 32GB onboard LPDDR5x memory | 128GB onboard NVMe | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (U-Series) COM-HPC Mini module based on Intel® Core™ i5-1345URE processor with 2 P-cores 1.4GHz up to conga-HPC/mRLP-i5-1345URE-16G 4.6GHz Turbo and 8 E-cores 1.1GHz up to 3.4GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® Xe NVMe128 045601 Graphics architecture with 80 EUs | 16GB onboard LPDDR5x memory | 128GB onboard NVMe | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (U-Series) COM-HPC Mini module based on Intel® Core™ i3-1315URE processor with 2 P-cores 1.2GHz up to conga-HPC/mRLP-i3-1315URE-16G NVMe128 045602 4.5GHz Turbo and 4 E-cores 0.9GHz up to 3.3GHz Turbo | 10MB Intel® Smart Cache | Intel® UHD Graphics with 64EUs | 16GB onboard LPDDR5x memory | 128GB onboard NVMe | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (U-Series) COM-HPC Mini module based on Intel® processor U300E with 1 P-core 1.1GHz up to 4.3GHz Turbo conga-HPC/mRLP-U300E-16G NVMe128 045603 and 4 E-cores 0.9GHz up to 3.2GHz Turbo | 8MB Intel® Smart Cache | Intel® UHD Graphics with 48 EUs | 16GB onboard LPDDR5x memory | 128GB onboard NVMe | Intel® code name Raptor Lake-P (U- Series) COM-HPC Mini module based on Intel® Core™ i7-1370PRE processor with 6 P-cores 1.9GHz up to conga-HPC/mRLP-i7-1370PRE-32G 4.8GHz Turbo and 8 E-cores 1.2GHz up to 3.7GHz Turbo | 24MB Intel® Smart Cache | Intel® Iris® Xe NVMe128 045604 Graphics architecture with 96 EUs | 32GB onboard LPDDR5x memory | 128GB onboard NVMe | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (P-Series) COM-HPC Mini module based on Intel® Core™ i5-1350PRE processor with 4 P-cores 1.8GHz up to conga-HPC/mRLP-i5-1350PRE-16G NVMe128 045605 4.6GHz Turbo and 8 E-cores 1.3GHz up to 3.4GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 80 EUs | 16GB onboard LPDDR5x memory | 128GB onboard NVMe | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (P-Series) COM-HPC Mini module based on Intel® Core™ i3-1320PRE processor with 4 P-cores 1.7GHz up to conga-HPC/mRLP-i3-1320PRE-16G NVMe128 045606 4.5GHz Turbo and 4 E-cores 1.2GHz up to 3.3GHz Turbo | 12MB Intel® Smart Cache | Intel® UHD Graphics with 48EUs | 16GB onboard LPDDR5x memory | 128GB onboard NVMe | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (P-Series) conga-HPC/EVAL-Mini 065640 Evaluation Carrier Board for COM-HPC Mini modules. conga-HPC/3.5-Mini 065630 3.5” Application Carrier Board suitable for congatec COM-HPC Mini Modules. conga-HPC/mRLP-CSA-B 049250 Standard active cooling solution for COM-HPC module conga-HPC/mRLP with 24.5mm overall heat sink height and integrated 12V fan. All standoffs are with 2.7mm bore hole. conga-HPC/mRLP-CSA-T 049251 Standard active cooling solution for COM-HPC module conga-HPC/mRLP with 24.5mm overall heat sink height and integrated 12V fan. All standoffs are M2.5mm threaded. conga-HPC/mRLP-CSP-B 049252 Standard passive cooling solution for COM-HPC module conga-HPC/mRLP with 23.7mm overall heat sink height. All standoffs are with 2.7mm bore hole. conga-HPC/mRLP-CSP-T 049253 Standard passive cooling solution for COM-HPC module conga-HPC/mRLP with 23.7mm overall heat sink height. All standoffs are M2.5mm threaded. conga-HPC/mRLP-HSP-B 049254 Standard heatspreader for COM-HPC module conga-HPC/mRLP. All standoffs are with 2.7mm bore hole. conga-HPC/mRLP-HSP-T 049255 Standard heatspreader for COM-HPC module conga-HPC/mRLP. All standoffs are M2.5mm threaded. © 2025 congatec GmbH. All data is for information purposes only. Although all the information contained within this document is All rights reserved. carefully checked, no guarantee of correctness is implied or expressed. Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with congatec GmbH.. Revision 1.1 – July 29th 2025 www.congatec.com
