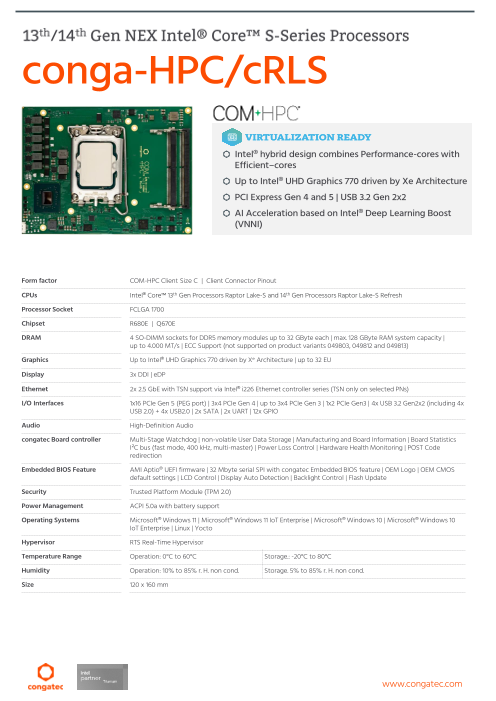

カタログの表紙
カタログの表紙

このカタログをダウンロードして
すべてを見る

ダウンロード(446.7Kb)

COM-HPC Client Size C: conga-HPC/cRLS データシート

製品カタログ

第13/14世代インテル Core (Raptor Lake-S) 搭載 COM-HPC Client Size C モジュール

conga-HPC/cRLS は、第13/14世代インテル Core プロセッサのLGAタイプ(以前のコードネームは Raptor Lake-S)を搭載した、COM-HPC Client Size C (120x160 mm) モジュールです。ハイブリッドアーキテクチャを搭載した新しいプロセッサは8種類(4〜24コア)から選択でき、4つのSODIMMソケットにより、最大128GBのDDR5メモリ(5600MT/s)を実装することができます。最高でPCIe Gen 5、Thunderboltをサポートし、インテル ディープラーニング・ブースト (VNNI) による AI アクセラレーションもサポートしています。

このカタログについて

ドキュメント名 COM-HPC Client Size C: conga-HPC/cRLS データシート
ドキュメント種別 製品カタログ
ファイルサイズ 446.7Kb
登録カテゴリ
取り扱い企業 コンガテックジャパン株式会社 (この企業の取り扱いカタログ一覧)

この企業の関連カタログ

この企業の関連カタログの表紙
COM-HPC Mini: conga-HPC/mRLP データシート
製品カタログ

コンガテックジャパン株式会社

この企業の関連カタログの表紙
COM Express Compact Type 6 モジュール: conga-TC700 データシート
製品カタログ

コンガテックジャパン株式会社

この企業の関連カタログの表紙
COM Express Compact Type 6 堅牢版: conga-TC675r データシート
製品カタログ

コンガテックジャパン株式会社

このカタログの内容

Page1

Folie 1

conga-HPC/cRLS - Intel® hybrid design combines Performance-cores with Efficient–cores - Intel® UHD Graphics 730/770 driven by Xe Architecture - PCI Express Gen 4/5 | USB 3.2 Gen 2x2 - AI Acceleration based on Intel® Deep Learning Form factor COM-HPC Client Size C | Client Connector Pinout CPUs Intel® Core™ 13th Gen Processors Raptor Lake-S and 14th Gen Processors Raptor Lake-S Refresh Processor Socket FCLGA 1700 DRAM 4 SO-DIMM sockets for DDR5 memory modules up to 32 GByte each | max. 128 GByte RAM system capacity | up to 4.000 MT/s Graphics Intel® UHD Graphics 730/770 driven by Xe Architecture | up to 32 EU Display 3x DDI | eDP Ethernet 2x 2.5 GbE with TSN support via Intel® i226 Ethernet controller series I/O Interfaces 1x16 PCIe Gen 5 (PEG port) | 3x4 PCIe Gen 4 | up to 3x4 PCIe Gen 3 | 1x2 PCIe Gen3 | 4x USB 3.2 Gen2x2 | 8x USB2.0 | 2x SATA | 2x UART | 12x GPIO Audio High-Definition Audio congatec Board controller Multi-Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control | Hardware Health Monitoring | POST Code redirection Embedded BIOS Feature AMI Aptio® UEFI firmware | 32 Mbyte serial SPI with congatec Embedded BIOS feature | OEM Logo | OEM CMOS default settings | LCD Control | Display Auto Detection | Backlight Control | Flash Update Security Trusted Platform Module (TPM 2.0) Power Management Modern Standby Operating Systems Microsoft® Windows 11 IoT Enterprise | Microsoft® Windows 10 | Microsoft® Windows 10 IoT Enterprise | Linux | Yocto Hypervisor RTS Real-Time Hypervisor Temperature Operation: 0°C to 60°C Storage.: -20°C to 80°C Humidity Operation: 10% to 90% r. H. non cond. Storage. 5% to 95% r. H. non cond. Size 120 x 160 mm www.congatec.com
Page2

Folie 2

conga-HPC/cRLS ual Channel SOS-OD-IDMIMMM SOS-OD-IDMIMMM D DDR5 congatec Intel® PCH-S 13th/14th Gen. Intel® Board Core™ LGA CPU Controller COM-HPC Client Type Connectors conga-HPC/cRLS www.congatec.com PCIe 0-3 PCIe 4-7 PCIe 8-11 PCIe 12-15 PCIe 16-31 PCIe 32-35 PCIe 36-37 PCIe 40-43 Not available on product variants 049803 and 049813 SATA 0 SATA 1 2.5 GbE i226/TSN 2.5 GbE i226/TSN USB2 0-7 USB3.2 0-3 UART 0 DDI 0 DDI 1 DDI 2 eDP HDA TPM 2.0 SPI Flash eSPI Boot SPI SM Bus G SPI UART 1 GPIO 0-11 I2C 0-1 Lid# Sleep# FAN Contr
Page3

Folie 3

conga-HPC/cRLS Article PN Description COM-HPC Client module based on Intel® Core™ i9-13900E LGA 1700 processor with 8 P-cores 1.8GHz up to 5.2GHz Turbo and 16 E-cores 1.3GHz up to 4.0GHz Turbo | conga-HPC/cRLS-i9-13900E 049800 36MB Intel® Smart Cache | Intel® UHD Graphics 770 with 32EUs | Dual channel DDR5 memory interface | Chipset R680E | Intel® code name: Raptor Lake-S COM-HPC Client module based on Intel® Core™ i7-13700E LGA 1700 processor with 8 P-cores 1.9GHz up to 5.1GHz Turbo and 8 E-cores 1.3GHz up to 3.9GHz Turbo | conga-HPC/cRLS-i7-13700E 049801 30MB Intel® Smart Cache | Intel® UHD Graphics 770 with 32EUs | Dual channel DDR5 memory interface | Chipset R680E | Intel® code name: Raptor Lake-S COM-HPC Client module based on Intel® Core™ i5-13400E LGA 1700 processor with 6 P-cores 2.4GHz up to 4.6GHz Turbo and 4 E-cores 1.5GHz up to 3.3GHz Turbo | conga-HPC/cRLS-i5-13400E 049802 20MB Intel® Smart Cache | Intel® UHD Graphics 730 with 24EUs | Dual channel DDR5 memory interface | Chipset R680E | Intel® code name: Raptor Lake-S COM-HPC Client module based on Intel® Core™ i3-13100E LGA 1700 processor with 4 P-cores 3.3GHz up to 4.4GHz Turbo | 12MB Intel® Smart Cache | Intel® UHD conga-HPC/cRLS-i3-13100E 049803 Graphics 730 with 24EUs | Dual channel DDR5 memory interface | Chipset Q670E | Intel® code name: Raptor Lake-S COM-HPC Client module based on Intel® Core™ i9-14900 LGA 1700 processor with 8 P-cores 2.0GHz up to 5.8GHz Turbo and 16 E-cores 1.5GHz up to 4.3GHz Turbo | conga-HPC/cRLS-i9-14900 049810 36MB Intel® Smart Cache | Intel® UHD Graphics 770 with 32EUs | Dual channel DDR5 memory interface | Chipset R680E | Intel® code name: Raptor Lake-S Refresh COM-HPC Client module based on Intel® Core™ i7-14700 LGA 1700 processor with 8 P-cores 2.1GHz up to 5.4GHz Turbo and 12 E-cores 1.5GHz up to 4.2GHz Turbo | 33MB conga-HPC/cRLS-i7-14700 049811 Intel® Smart Cache | Intel® UHD Graphics 770 with 32EUs | Dual channel DDR5 memory interface | Chipset R680E | Intel® code name: Raptor Lake-S Refresh COM-HPC Client module based on Intel® Core™ i5-14400 LGA 1700 processor with 6 P-cores 2.5GHz up to 4.7GHz Turbo and 4 E-cores 1.8GHz up to 3.5GHz Turbo | 20MB conga-HPC/cRLS-i5-14400 049812 Intel® Smart Cache | Intel® UHD Graphics 730 with 24EUs | Dual channel DDR5 memory interface | Chipset R680E | Intel® code name: Raptor Lake-S Refresh COM-HPC Client module based on Intel® Core™ i3-14100 LGA 1700 processor with 4 P-cores 3.5GHz up to 4.7GHz Turbo | 12MB Intel® Smart Cache | Intel® UHD Graphics conga-HPC/cRLS-i3-14100 049813 730 with 24EUs | Dual channel DDR5 memory interface | Chipset Q670E | Intel® code name: Raptor Lake-S Refresh www.congatec.com
Page4

Folie 4

conga-HPC/cRLS Article PN Description Standard active cooling solution for COM-HPC module conga-HPC/cRLS with conga-HPC/cRLS-CSA-HP-B 049650 integrated heat pipes, 30mm overall height and two integrated 12V fans. All standoffs are with 2.7mm bore hole. Standard active cooling solution for COM-HPC module conga-HPC/cRLS with conga-HPC/cRLS-CSA-HP-T 049651 integrated heat pipes, 30mm height and two integrated 12V fans. All standoffs are M2.5mm threaded. Standard heatspreader for COM-HPC module conga-HPC/cRLS with integrated heat conga-HPC/cRLS-HSP-HP-B 049652 pipes, 13mm height. All standoffs are with 2.7mm bore hole. Standard heatspreader for COM-HPC module conga-HPC/cRLS with integrated heat conga-HPC/cRLS-HSP-HP-T 049653 pipes, 13mm height. All standoffs are M2.5mm threaded. conga-HPC/cRLS-HPA 049654 Standard heatpipe adapter for COM-HPC module conga-HPC/cRLS. conga-HPC/EVAL-Client 065600 Evaluation Carrier Board for COM-HPC Client type Modules. DDR5 SODIMM memory module with up to 4800 MT/s and 8GB RAM, DDR5-SODIMM-4800 (8GB) 068901 commercial temp 0°C to +60°C DDR5 SODIMM memory module with up to 4800 MT/s and 16GB RAM, DDR5-SODIMM-4800 (16GB) 068902 commercial temp 0°C to +60°C DDR5 SODIMM memory module with up to 4800 MT/s and 32GB RAM, DDR5-SODIMM-4800 (32GB) 068903 commercial temp 0°C to +60°C DDR5 SODIMM memory module with up to 4800 MT/s and 8GB RAM with ECC, DDR5-SODIMM-4800 ECC (8GB) 068911 commercial temp 0°C to +60°C DDR5 SODIMM memory module with up to 4800 MT/s and 16GB RAM with ECC, DDR5-SODIMM-4800 ECC (16GB) 068912 commercial temp 0°C to +60°C DDR5 SODIMM memory module with up to 4800 MT/s and 32GB RAM with ECC, DDR5-SODIMM-4800 ECC (32GB) 068913 commercial temp 0°C to +60°C © 2024 congatec GmbH. All data is for information purposes only. Although all the information contained within this document is All rights reserved. carefully checked, no guarantee of correctness is implied or expressed. Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with congatec GmbH. Product not yet released for Mass Production. Preliminary Revision 1.5 – January 8th, 2024 www.congatec.com
