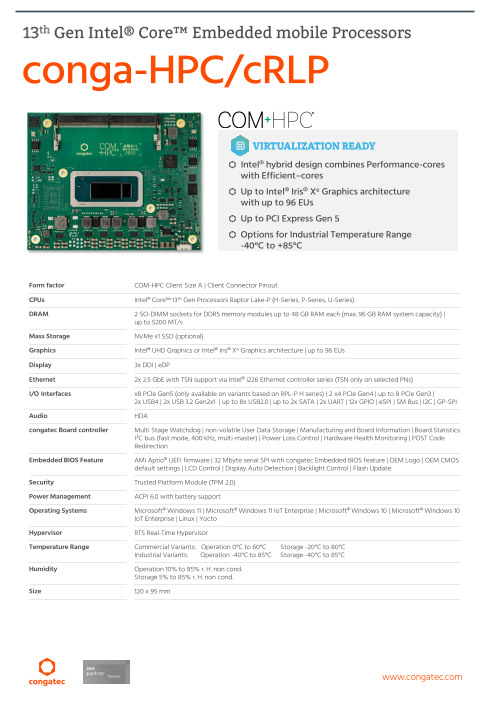

COM-HPC Client Size A: conga-HPC/cRLP データシート

conga-HPC/cRLP - Intel® hybrid design combines Performance- cores with Efficient–cores - UP to Intel® Iris® Xe Graphics architecture with up to 96 EUs - Up to PCI Express Gen 5 | Thunderbolt - AI Acceleration with Intel® Deep Learning Boost (VNNI) - Options for Industrial Temperature Range -40°C up to +85°C Form factor COM-HPC Client Size A | Client Connector Pinout CPUs Intel® Core™ 13th Gen Processors Raptor Lake-P (H-Series, P-Series, U-Series) DRAM 2 SO-DIMM sockets for DDR5 memory modules up to 32 GByte each (max. 64 GByte system capacity) | up to 4800 MT/s Mass Storage NVMe x1 SSD (optional) Graphics Intel® UHD Graphics or Intel® Iris® Xe Graphics architecture | up to 96 EUs Display 3x DDI (up to 8K support) | eDP Ethernet 2x 2.5 GbE with TSN support via Intel® i226 Ethernet controller series I/O Interfaces Up to x8 PCIe Gen4/Gen5 | 2 x4 PCIe Gen4 | up to 8 PCIe Gen3| 2x Thunderbolt | 2x USB 3.2 Gen2x1 | 8x USB2.0 | up to 2x SATA | 2x UART | 2x MIPI-CSI | 12x GPIO | eSPI | SM Bus | I2C | GSPI Audio 2x Soundwire fixed | 2x Soundwire or HDA or I2S (opt.) congatec Board controller Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control | Hardware Health Monitoring | POST Code Redirection Embedded BIOS Feature AMI Aptio® UEFI firmware | 32 Mbyte serial SPI with congatec Embedded BIOS feature | OEM Logo | OEM CMOS default settings | LCD Control | Display Auto Detection | Backlight Control | Flash Update Security Trusted Platform Module (TPM 2.0) Power Management ACPI 6.0 with battery support Operating Systems Microsoft® Windows 10 | Microsoft® Windows 10 IoT Enterprise | Linux | Yocto | Real Time Systems Hypervisor Temperature Embedded SKUs: Operating 0°C … +60°C Embedded SKUs: Storage -20°C … +70°C Industrial SKUs: Operating -40°C … +85°C Industrial SKUs: Storage -40°C … +85°C Humidity Operating.: 10% … 90% r. H. non cond. Storage.: 5% … 95% r. H. non cond. Size 120 x 95 mm www.congatec.com

conga-HPC/cRLP SO-DIMM SO-DIMM congatec 13th Gen. Intel® Core™ SOC Board “Raptor Lake-P” Controller 5th Gen. x1 NVMe (opt.) COM-HPC Client Type Connectors * available on selected SKUs conga-HPC/cRLP www.congatec.com PCIe 0 PCIe 1 PCIe 2 PCIe 3 PCIe 4-7 PCIe 8-11 PCIe 12-15 PCIe 16-23* SATA 0 SATA 1 GbE 0 2.5G i226/TSN GbE 1 2.5G i226/TSN USB2.0 0-7 USB4 0 USB4 1 USB 3.2 2 USB 3.2 3 DDI 0 DDI 1 DDI 2 eDP MIPI CSI 0 MIPI CSI 1 SNDW 0-1 SNDW 2-3 TMP 2.0 SPI Flash Boot SPI SM Bus GP SPI GPIO 0-11 UART 0-1 I2C 0-1

conga-HPC/cRLP Article PN Description COM-HPC Size A module based on Intel® Core™ i7-13800HE processor with 6 P- conga-HPC/cRLP-i7-13800HE 045500 cores 2.5GHz up to 5.0GHz Turbo and 8 E-cores 1.8GHz up to 4.0GHz Turbo | 24MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (H-Series) COM-HPC Size A module based on Intel® Core™ i7-1370PE processor with 6 P-cores conga-HPC/cRLP-i7-1370PE 045501 1.9GHz up to 4.8GHz Turbo and 8 E-cores 1.2GHz up to 3.7GHz Turbo | 24MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (P-Series) COM-HPC Size A module based on Intel® Core™ i7-1365UE processor with 2 P-cores conga-HPC/cRLP-i7-1365UE 045502 1.7GHz up to 4.9GHz Turbo and 8 E-cores 1.2GHz up to 3.7GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (U-Series) COM-HPC Size A module based on Intel® Core™ i5-1340PE processor with 4 P-cores conga-HPC/cRLP-i5-1340PE 045504 1.8GHz up to 4.5GHz Turbo and 8 E-cores 1.3GHz up to 3.3GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 80 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (P-Series) COM-HPC Size A module based on Intel® Core™ i3-13300HE processor with 4 P- conga-HPC/cRLP-i3-13300HE 045506 cores 2.1GHz up to 4.6GHz Turbo and 4 E-cores 1.5GHz up to 3.4GHz Turbo | 12MB Intel® Smart Cache | Intel® UHD Graphics with 48 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (H-Series) COM-HPC Size A module based on Intel® Core™ i3-1315UE processor with 2 P-cores conga-HPC/cRLP-i3-1315UE 045508 1.2GHz up to 4.5GHz Turbo and 4 E-cores 0.9GHz up to 3.3GHz Turbo | 10MB Intel® Smart Cache | Intel® UHD Graphics with 64EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (U-Series) COM-HPC Size A module based on Intel® U300E processor with 1 P-core 1.1GHz up conga-HPC/cRLP-U300E 045509 to 4.3GHz Turbo and 4 E-cores 0.9GHz up to 3.2GHz Turbo | 8MB Intel® Smart Cache | Intel® UHD Graphics with 48 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (U-Series) www.congatec.com

conga-HPC/cRLP Article PN Description COM-HPC Size A module based on Intel® Core™ i7-13800HRE processor with 6 P-cores 2.5GHz up to 5.0GHz Turbo and 8 E-cores 1.8GHz up to 4.0GHz Turbo | 24MB Intel® conga-HPC/cRLP-i7-13800HRE 045510 Smart Cache | Intel® Iris® Xe Graphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (H-Series) COM-HPC Size A module based on Intel® Core™ i7-1370PRE processor with 6 P-cores 1.9GHz up to 4.8GHz Turbo and 8 E-cores 1.2GHz up to 3.7GHz Turbo | 24MB Intel® conga-HPC/cRLP-i7-1370PRE 045511 Smart Cache | Intel® Iris® Xe Graphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (P-Series) COM-HPC Size A module based on Intel® Core™ i7-1365URE processor with 2 P-cores 1.7GHz up to 4.9GHz Turbo and 8 E-cores 1.2GHz up to 3.7GHz Turbo | 12MB Intel® Smart conga-HPC/cRLP-i7-1365URE 045512 Cache | Intel® Iris® Xe Graphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (U-Series) COM-HPC Size A module based on Intel® Core™ i5-1350PRE processor with 4 P-cores 1.8GHz up to 4.6GHz Turbo and 8 E-cores 1.3GHz up to 3.4GHz Turbo | 12MB Intel® conga-HPC/cRLP-i5-1350PRE 045514 Smart Cache | Intel® Iris® Xe Graphics architecture with 80 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (P-Series) COM-HPC Size A module based on Intel® Core™ i3-1320PRE processor with 4 P-cores 1.7GHz up to 4.5GHz Turbo and 4 E-cores 1.2GHz up to 3.3GHz Turbo | 12MB Intel® Smart conga-HPC/cRLP-i3-1320PRE 045517 Cache | Intel® UHD Graphics with 48EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (P-Series) www.congatec.com

conga-HPC/cRLP Article PN Description Standard active cooling solution for COM-HPC module conga-HPC/cALP and conga- conga-HPC/cALP-CSA-HP-B 049550 HPC/cRLP with integrated heat pipes, 29mm height and integrated 12V fan. All standoffs are with 2.7mm bore hole. Standard active cooling solution for COM-HPC module conga-HPC/cALP and conga- conga-HPC/cALP-CSA-HP-T 049551 HPC/cRLP with integrated heat pipes, 29mm height and integrated 12V fan. All standoffs are M2.5mm threaded. Standard passive cooling solution for COM-HPC module conga-HPC/cALP and conga-HPC/cALP-CSP-HP-B 049552 conga-HPC/cRLP with integrated heat pipes, 28.2mm height. All standoffs are with 2.7mm bore hole. Standard passive cooling solution for COM-HPC module conga-HPC/cALP and conga-HPC/cALP-CSP-HP-T 049553 conga-HPC/cRLP with integrated heat pipes, 28.2mm height. All standoffs are M2.5mm threaded. Standard heatspreader for COM-HPC module conga-HPC/cALP and conga- conga-HPC/cALP-HSP-HP-B 049554 HPC/cRLP with integrated heat pipes, 13mm height. All standoffs are with 2.7mm bore hole. Standard heatspreader for COM-HPC module conga-HPC/cALP and conga- conga-HPC/cALP-HSP-HP-T 049555 HPC/cRLP with integrated heat pipes, 13mm height. All standoffs are M2.5mm threaded. conga-HPC/EVAL-Client 065600 Evaluation Carrier Board for COM-HPC Client type Modules. © 2023 congatec GmbH. All data is for information purposes only. Although all the information contained within this document is All rights reserved. carefully checked, no guarantee of correctness is implied or expressed. Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with congatec GmbH. Product not yet released for Mass Production. Preliminary Revision 1.2– March 6th, 2023 www.congatec.com
