COM Express Compact Type 6: conga-TC675 データシート

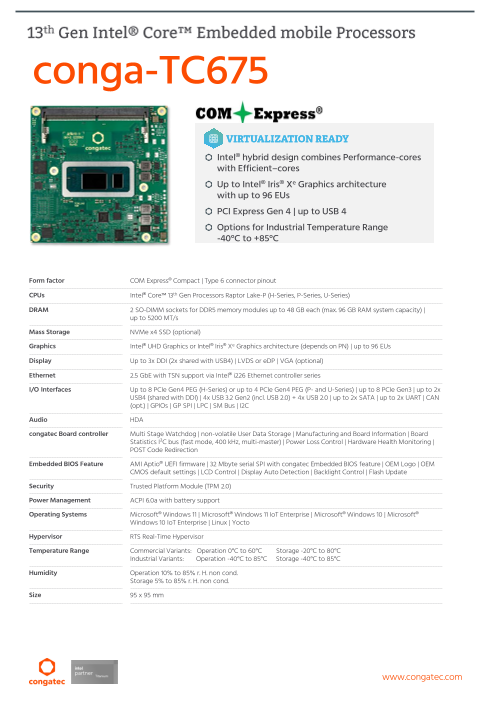

conga-TC675 - Intel® hybrid design combines Performance- cores with Efficient–cores - Up to Intel® Iris® Xe Graphics architecture with up to 96 EUs - PCI Express Gen 4 | USB 4 - AI Acceleration with Intel® Deep Learning Boost (VNNI) - Options for Industrial Temperature Range -40°C up to +85°C Form factor COM Express® Compact | Type 6 connector pinout CPUs Intel® Core™ 13th Gen Processors Raptor Lake-P (H-Series, P-Series, U-Series) DRAM 2 SO-DIMM sockets for DDR5 memory modules up to 32 GB each (max. 64 GB RAM system capacity) | up to 4800 MT/s Mass Storage NVMe x4 SSD (optional) Graphics Intel® UHD Graphics or Intel® Iris® Xe Graphics architecture | up to 96 EUs Display Up to 3x DDI (2x shared with USB4) | LVDS or eDP | VGA (optional) Ethernet 2.5 GbE with TSN support via Intel® i226 Ethernet controller series I/O Interfaces Up to 8 PCIe Gen4 PEG (H-Series) or up to 4 PCIe Gen4 PEG (P- and U-Series) | up to 8 PCIe Gen3 | up to 2x USB4 | 4x USB 3.2 Gen2 (incl. USB 2.0) + 4x USB 2.0 | up to 2x SATA | up to 2x UART | CAN (opt.) | GPIOs | GP SPI | LPC | SM Bus | I2C Audio HDA congatec Board controller Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control | Hardware Health Monitoring | POST Code Redirection Embedded BIOS Feature AMI Aptio® UEFI firmware | 32 Mbyte serial SPI with congatec Embedded BIOS feature | OEM Logo | OEM CMOS default settings | LCD Control | Display Auto Detection | Backlight Control | Flash Update Security Trusted Platform Module (TPM 2.0) Power Management Modern Standby Operating Systems Microsoft® Windows 11 IoT Enterprise | Microsoft® Windows 10 | Microsoft® Windows 10 IoT Enterprise | Linux | Yocto Hypervisor RTS Real-Time Hypervisor Temperature Commercial Variants: Operation 0°C to 60°C Storage -20°C to 80°C Industrial Variants: Operation -40°C to 85°C Storage -40°C to 85°C Humidity Operation 10% to 90% r. H. non cond. Storage 5% to 95% r. H. non cond. Size 95 x 95 mm www.congatec.com

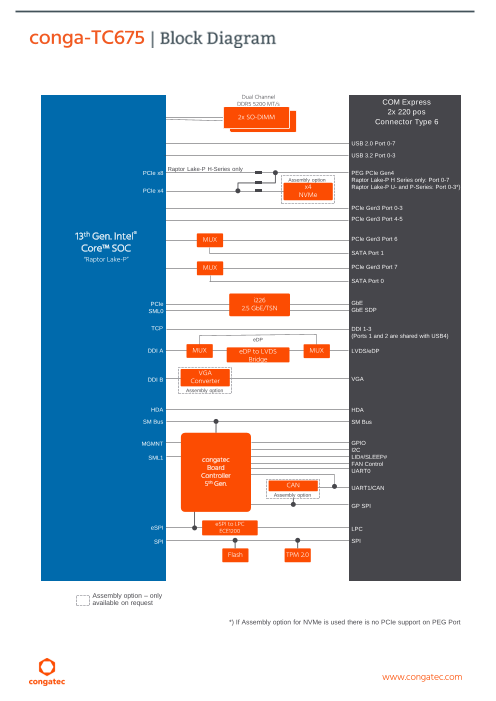

conga-TC675 Dual Channel DDR5 4800 MT/s COM Express 2x 220 pos 2x SO-DIMM Connector Type 6 USB 2.0 Port 0-7 USB 3.2 Port 0-3 Raptor Lake-P H-Series only PCIe x8 PEG PCIe Gen4 Assembly option Raptor Lake-P H Series: Port 0-7 x4 Raptor Lake-P U- and P-Series: Port 0-3*) PCIe x4 NVMe PCIe Gen3 Port 0-3 PCIe Gen3 Port 4-5 13th Gen. Intel® MUX PCIe Gen3 Port 6 Core™ SOC SATA Port 1 “Raptor Lake-P” MUX PCIe Gen3 Port 7 SATA Port 0 i226 PCIe Ethernet SML0 2.5 GBE/TSN SDP TCP DDI 1-3 (ports 1 and 2 are shared with USB4) eDP DDIA MUX eDP to LVDS MUX LVDS/eDP Bridge VGA DDIB Converter VGA Assembly option HDA HD Audio SM Bus SM Bus MGMNT GPIO I2C SML1 congatec LID#/SLEEP# Board FAN Control UART0 Controller 5th Gen. CAN UART1/CAN Assembly option GP SPI eSPI to LPC eSPI ECE1200 LPC SPI SPI Flash TPM 2.0 Assembly option – only available on request *) If Assembly option for NVMe is used there is no PCIe support on PEG Port www.congatec.com

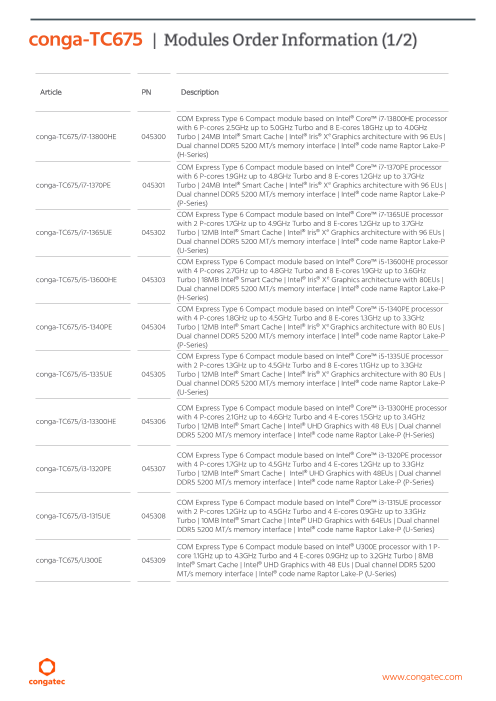

conga-TC675 Article PN Description COM Express Type 6 Compact module based on Intel® Core™ i7-13800HE processor with 6 P-cores 2.5GHz up to 5.0GHz Turbo and 8 E-cores 1.8GHz up to 4.0GHz conga-TC675/i7-13800HE 045300 Turbo | 24MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (H-Series) COM Express Type 6 Compact module based on Intel® Core™ i7-1370PE processor with 6 P-cores 1.9GHz up to 4.8GHz Turbo and 8 E-cores 1.2GHz up to 3.7GHz conga-TC675/i7-1370PE 045301 Turbo | 24MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (P-Series) COM Express Type 6 Compact module based on Intel® Core™ i7-1365UE processor with 2 P-cores 1.7GHz up to 4.9GHz Turbo and 8 E-cores 1.2GHz up to 3.7GHz conga-TC675/i7-1365UE 045302 Turbo | 12MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (U-Series) COM Express Type 6 Compact module based on Intel® Core™ i5-13600HE processor with 4 P-cores 2.7GHz up to 4.8GHz Turbo and 8 E-cores 1.9GHz up to 3.6GHz conga-TC675/i5-13600HE 045303 Turbo | 18MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 80EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (H-Series) COM Express Type 6 Compact module based on Intel® Core™ i5-1340PE processor with 4 P-cores 1.8GHz up to 4.5GHz Turbo and 8 E-cores 1.3GHz up to 3.3GHz conga-TC675/i5-1340PE 045304 Turbo | 12MB Intel® Smart Cache | Intel® Iris® XeGraphics architecture with 80 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (P-Series) COM Express Type 6 Compact module based on Intel® Core™ i5-1335UE processor with 2 P-cores 1.3GHz up to 4.5GHz Turbo and 8 E-cores 1.1GHz up to 3.3GHz conga-TC675/i5-1335UE 045305 Turbo | 12MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 80 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (U-Series) COM Express Type 6 Compact module based on Intel® Core™ i3-13300HE processor conga-TC675/i3-13300HE 045306 with 4 P-cores 2.1GHz up to 4.6GHz Turbo and 4 E-cores 1.5GHz up to 3.4GHz Turbo | 12MB Intel® Smart Cache | Intel® UHD Graphics with 48 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (H-Series) COM Express Type 6 Compact module based on Intel® Core™ i3-1320PE processor conga-TC675/i3-1320PE 045307 with 4 P-cores 1.7GHz up to 4.5GHz Turbo and 4 E-cores 1.2GHz up to 3.3GHz Turbo | 12MB Intel® Smart Cache | Intel® UHD Graphics with 48EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (P-Series) COM Express Type 6 Compact module based on Intel® Core™ i3-1315UE processor conga-TC675/i3-1315UE 045308 with 2 P-cores 1.2GHz up to 4.5GHz Turbo and 4 E-cores 0.9GHz up to 3.3GHz Turbo | 10MB Intel® Smart Cache | Intel® UHD Graphics with 64EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (U-Series) COM Express Type 6 Compact module based on Intel® U300E processor with 1 P- conga-TC675/U300E 045309 core 1.1GHz up to 4.3GHz Turbo and 4 E-cores 0.9GHz up to 3.2GHz Turbo | 8MB Intel® Smart Cache | Intel® UHD Graphics with 48 EUs | Dual channel DDR5 4800 MT/s memory interface | Intel® code name Raptor Lake-P (U-Series) www.congatec.com

conga-TC675 Article PN Description COM Express Type 6 Compact module based on Intel® Core™ i7-13800HRE processor with 6 P-cores 2.5GHz up to 5.0GHz Turbo and 8 E-cores 1.8GHz up to 4.0GHz Turbo | conga-TC675/i7-13800HRE 045310 24MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (H-Series) COM Express Type 6 Compact module based on Intel® Core™ i7-1370PRE processor with 6 P-cores 1.9GHz up to 4.8GHz Turbo and 8 E-cores 1.2GHz up to 3.7GHz Turbo | conga-TC675/i7-1370PRE 045311 24MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (P-Series) COM Express Type 6 Compact module based on Intel® Core™ i7-1365URE processor with 2 P-cores 1.7GHz up to 4.9GHz Turbo and 8 E-cores 1.2GHz up to 3.7GHz Turbo | conga-TC675/i7-1365URE 045312 12MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 96 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (U-Series) COM Express Type 6 Compact module based on Intel® Core™ i5-13600HRE processor with 4 P-cores 2.7GHz up to 4.8GHz Turbo and 8 E-cores 1.9GHz up to 3.6GHz Turbo | conga-TC675/i5-13600HRE 045313 18MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 80EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (H-Series) COM Express Type 6 Compact module based on Intel® Core™ i5-1350PRE processor with 4 P-cores 1.8GHz up to 4.6GHz Turbo and 8 E-cores 1.3GHz up to 3.4GHz Turbo | conga-TC675/i5-1350PRE 045314 12MB Intel® Smart Cache | Intel® Iris® XeGraphics architecture with 80 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (P-Series) COM Express Type 6 Compact module based on Intel® Core™ i5-1345URE processor with 2 P-cores 1.4GHz up to 4.6GHz Turbo and 8 E-cores 1.1GHz up to 3.4GHz Turbo | conga-TC675/i5-1345URE 045315 12MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 80 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (U-Series) COM Express Type 6 Compact module based on Intel® Core™ i3-13300HRE processor with 4 P-cores 2.1GHz up to 4.6GHz Turbo and 4 E-cores 1.5GHz up to 3.4GHz Turbo | conga-TC675/i3-13300HRE 045316 12MB Intel® Smart Cache | Intel® UHD Graphics with 48 EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (H-Series) COM Express Type 6 Compact module based on Intel® Core™ i3-1320PRE processor with 4 P-cores 1.7GHz up to 4.5GHz Turbo and 4 E-cores 1.2GHz up to 3.3GHz Turbo | conga-TC675/i3-1320PRE 045317 12MB Intel® Smart Cache | Intel® UHD Graphics with 48EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (P-Series) COM Express Type 6 Compact module based on Intel® Core™ i3-1315URE processor with 2 P-cores 1.2GHz up to 4.5GHz Turbo and 4 E-cores 0.9GHz up to 3.3GHz Turbo | conga-TC675/i3-1315URE 045318 10MB Intel® Smart Cache | Intel® UHD Graphics with 64EUs | Dual channel DDR5 4800 MT/s memory interface | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (U-Series) www.congatec.com

conga-TC675 Article PN Description Standard active cooling solution for high performance COM Express module conga- conga-TC670/CSA-HP-B 049750 TC670/675 with integrated heat pipes, 25.5mm height and integrated 12V fan. All standoffs are with 2.7mm bore hole. Standard active cooling solution for high performance COM Express module conga- conga-TC670/CSA-HP-T 049751 TC670/675 with integrated heat pipes, 25.5mm height and integrated 12V fan. All standoffs are M2.5mm threaded. Standard passive cooling solution for high performance COM Express module conga- conga-TC670/CSP-HP-B 049752 TC670/675 with integrated heat pipes, 24.7mm height. All standoffs are with 2.7mm bore hole. Standard passive cooling solution for high performance COM Express module conga- conga-TC670/CSP-HP-T 049753 TC670/675 with integrated heat pipes, 24.7mm height. All standoffs are M2.5mm threaded. conga-TC670/HSP-HP-B 049754 Standard heatspreader for high performance COM Express module conga-TC670 with integrated heat pipes, 11mm height. All standoffs are with 2.7mm bore hole. conga-TC670/HSP-HP-T 049755 Standard heatspreader for high performance COM Express module conga-TC670 with integrated heat pipes, 11mm height. All standoffs are M2.5mm threaded. conga-TEVAL2 065810 Evaluation carrier board for COM Express Type6 rev3.0 modules. conga-TEVAL/COMe 3.1 065820 Evaluation carrier board for COM Express Type6 rev3.1 modules. DDR5-SODIMM-4800 (8GB) 068901 DDR5 SODIMM memory module with up to 4800 MT/s and 8GB RAM, commercial temp 0°C to +60°C DDR5-SODIMM-4800 (16GB) 068902 DDR5 SODIMM memory module with up to 4800 MT/s and 16GB RAM, commercial temp 0°C to +60°C DDR5-SODIMM-4800 (32GB) 068903 DDR5 SODIMM memory module with up to 4800 MT/s and 32GB RAM, commercial temp 0°C to +60°C DDR5-SODIMM-4800 (8GB) / i-temp 068921 DDR5 SODIMM memory module with up to 4800 MT/s and 8GB RAM, industrial temp -40°C to +85°C DDR5-SODIMM-4800 (16GB) / i-temp 068922 DDR5 SODIMM memory module with up to 4800 MT/s and 16GB RAM, industrial temp -40°C to +85°C DDR5-SODIMM-4800 (32GB) / i-temp 068923 DDR5 SODIMM memory module with up to 4800 MT/s and 32GB RAM, industrial temp -40°C to +85°C © 2023 congatec GmbH. All data is for information purposes only. Although all the information contained within this document is All rights reserved. carefully checked, no guarantee of correctness is implied or expressed. Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with congatec GmbH. Product not yet released for Mass Production. Preliminary Revision 1.9 – December 21st ,2023 www.congatec.com
