COM-HPC Server Size D: conga-HPC/sILL データシート

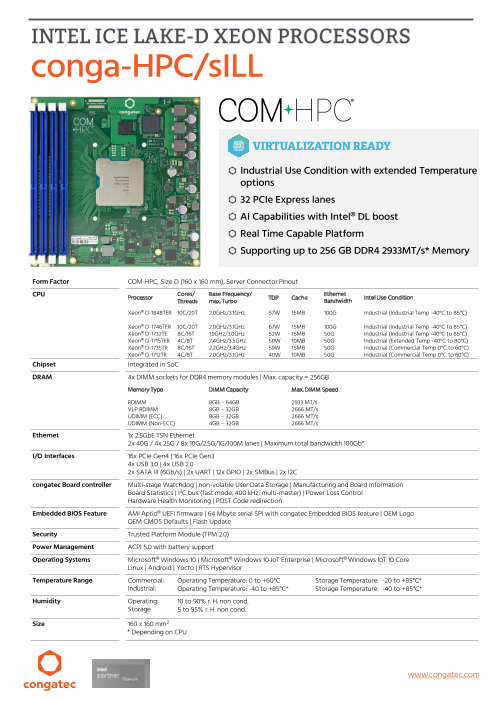

conga-HPC/sILL - Industrial Use Condition with extended Temperature options - 32 PCIe Express lanes - AI Capabilities with Intel® DL boost - Real Time Capable Platform - Supporting up to 256 GB DDR4 2933MT/s* Memory Form Factor COM-HPC, Size D (160 x 160 mm), Server Connector Pinout CPU Processor Cores/ Base Frequency/ Threads max. Turbo TDP Cache Ethernet Bandwidth Intel Use Condition Xeon® D-1848TER 10C/20T 2.0GHz/3.1GHz 57W 15MB 100G Industrial (Industrial Temp -40°C to 85°C) Xeon® D-1746TER 10C/20T 2.0GHz/3.1GHz 67W 15MB 100G Industrial (Industrial Temp -40°C to 85°C) Xeon® D-1732TE 8C/16T 1.9GHz/3.0GHz 52W 15MB 50G Industrial (Industrial Temp -40°C to 85°C) Xeon® D-1715TER 4C/8T 2.4GHz/3.5GHz 50W 10MB 50G Industrial (Extended Temp -40°C to 80°C) Xeon® D-1735TR 8C/16T 2.2GHz/3.4GHz 59W 15MB 50G Industrial (Commercial Temp 0°C to 60°C) Xeon® D-1712TR 4C/8T 2.0GHz/3.1GHz 40W 10MB 50G Industrial (Commercial Temp 0°C to 60°C) Chipset Integrated in SoC DRAM 4x DIMM sockets for DDR4 memory modules | Max. capacity = 256GB Memory Type DIMM Capacity Max. DIMM Speed RDIMM 8GB – 64GB 2933 MT/s VLP RDIMM 8GB – 32GB 2666 MT/s UDIMM (ECC) 8GB – 32GB 2666 MT/s UDIMM (Non-ECC) 4GB – 32GB 2666 MT/s Ethernet 1x 2.5GbE TSN Ethernet 2x 40G / 4x 25G / 8x 10G/2.5G/1G/100M lanes | Maximum total bandwidth 100Gb* I/O Interfaces 16x PCIe Gen4 | 16x PCIe Gen3 4x USB 3.0 | 4x USB 2.0 2x SATA III (6Gb/s) | 2x UART | 12x GPIO | 2x SMBus | 2x I2C congatec Board controller Multi-stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information Board Statistics | I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control Hardware Health Monitoring | POST Code redirection Embedded BIOS Feature AMI Aptio® UEFI firmware | 64 Mbyte serial SPI with congatec Embedded BIOS feature | OEM Logo OEM CMOS Defaults | Flash Update Security Trusted Platform Module (TPM 2.0) Power Management ACPI 5.0 with battery support Operating Systems Microsoft® Windows 10 | Microsoft® Windows 10 IoT Enterprise | Microsoft® Windows IoT 10 Core Linux | Android | Yocto | RTS Hypervisor Temperature Range Commercial: Operating Temperature: 0 to +60°C Storage Temperature: -20 to +85°C* Industrial: Operating Temperature: -40 to +85°C* Storage Temperature: -40 to +85°C* Humidity Operating: 10 to 90% r. H. non cond. Storage 5 to 95% r. H. non cond. Size 160 x 160 mm² * Depending on CPU www.congatec.com

conga-HPC/sILL DIMM 1 DIMM 3 DIMM 0 DIMM 2 DDR CH-A DDR CH-B congatec Intel® Xeon® D-1700 Processors Board Controller eMMC 5.1 option COM-HPC Server Type Connectors * Maximum total bandwidth 100Gb* conga-HPC/sILL PCIe 0-5 PCIe 6-7 PCIe 8-15 PCIe 16-31 option SATA 0-1 Ethernet 100G* Quad KR/SFI 100G* Quad KR/SFI USB SS 0-3 USB2 0-3 eSPI SPI TPM 2.0 SPI ROM Clock Ref CLK Generator SM Bus SW UART 0-1 option I2C Bus GPIO FAN Control

conga-HPC/sILL | Article PN Description conga-HPC/sILL-D1746TER 050400 COM-HPC Size D module based on Intel® Xeon® D1746TER 10-core processor with 2.0 GHz, 15MB cache and dual channel DDR4 up to 2667 MT/s memory interface (formerly Ice Lake-D LCC). Industrial temperature range from -40°C to 85°C. conga-HPC/sILL-D1732TE 050401 COM-HPC Size D module based on Intel® Xeon® D1732TE 8-core processor with 1.9 GHz, 15MB cache and dual channel DDR4 up to 2667 MT/s memory interface (formerly Ice Lake-D LCC). Industrial temperature range from -40°C to 85°C. conga-HPC/sILL-D1715TER 050402 COM-HPC Size D module based on Intel® Xeon® D1715TER 4-core processor with 2.4 GHz, 10MB cache and dual channel DDR4 up to 2667 MT/s memory interface (formerly Ice Lake-D LCC). Extended temperature range from -40°C to 80°C. conga-HPC/sILL-D1735TR 050410 COM-HPC Size D module based on Intel® Xeon® D1735TR 8-core processor with 2.2 GHz, 15MB cache and dual channel DDR4 up to 2933 MT/s memory interface (formerly Ice Lake-D LCC). Commercial temperature range from 0°C to 60°C. conga-HPC/sILL-D1712TR 050411 COM-HPC Size D module based on Intel® Xeon® D1712TR 4-core processor with 2.0 GHz, 10MB cache and dual channel DDR4 up to 2400 MT/s memory interface (formerly Ice Lake-D LCC). Commercial temperature range from 0°C to 60°C.. conga-HPC/sILL-D1848TER 050412 COM-HPC Size D module based on Intel® Xeon® D1746TER 10-core processor with 2.0 GHz, 15MB cache and dual channel DDR4 up to 2667 MT/s memory interface (formerly Ice Lake-D LCC). Industrial temperature range from -40°C to 85°C. conga-HPC/sILL-CSA-HP 050450 Standard active cooling solution for COM-HPC Server modules conga-HPC/sILL with integrated heat pipes, 35.2mm overall cooling height and integrated 12V fan. conga-HPC/sILL-CSP-HP 050451 Standard passive cooling solution for COM-HPC Server modules conga-HPC/sILL with integrated heat pipes, 18.2mm overall cooling height. conga-HPC/sILL-HSP-HP-B 050452 Standard heatspreader for COM-HPC Server modules conga-HPC/sILL with integrated heat pipes and 11mm overall cooling height. Through hole mounting with bore hole standoffs Ø2.7mm. conga-HPC/sILL-HSP-HP-T 050453 Standard heatspreader for COM-HPC Server modules conga-HPC/sILL with integrated heat pipes and 11mm overall cooling height. Threaded mounting with threaded standoffs M2.5. conga-HPC/sILL-HPA 050454 Heat pipe Adapter for COM-HPC Server modules conga-HPC/sILL. Suitable for standard 8 mm heat pipes to optimize heat distribution. conga-HPC/sILL-Retention Frame 050455 Retention frame for conga-HPC/sILL conga-HPC/EVAL-Server 065500 conga-HPC/EVAL-Server www.congatec.com

conga-HPC/sILL | Article PN Description DDR4-UDIMM-3200 (16GB) 069000 DDR4 UDIMM memory module with 3200 MT/s and 16GB RAM DDR4-UDIMM-3200 ECC (16GB) 069003 DDR4 ECC UDIMM memory module with 3200 MT/s and 16GB RAM DDR4-UDIMM-3200 (16GB) / i-temp 069002 Industrial DDR4 UDIMM memory module with 3200 MT/s and 16GB RAM DDR4-UDIMM-3200 ECC (16GB) / i-temp 069004 Industrial DDR4 ECC UDIMM memory module with 3200 MT/s and 16GB RAM DDR4-UDIMM-3200 (32GB) 069001 DDR4 UDIMM memory module with 3200 MT/s and 32GB RAM DDR4-UDIMM-3200 ECC (32GB) 069006 DDR4 ECC UDIMM memory module with 3200 MT/s and 32GB RAM DDR4-UDIMM-3200 (32GB) / i-temp 069005 Industrial DDR4 UDIMM memory module with 3200 MT/s and 32GB RAM DDR4-UDIMM-3200 ECC (32GB) / i-temp 069007 Industrial DDR4 ECC UDIMM memory module with 3200 MT/s and 32GB RAM DDR4-RDIMM-3200 ECC (16GB) 069200 DDR4 ECC RDIMM memory module with 3200 MT/s and 16GB RAM DDR4-RDIMM-3200 ECC (16GB) / i-temp 069210 Industrial DDR4 ECC RDIMM memory module with 3200 MT/s and 16GB RAM DDR4-RDIMM-3200 ECC (32GB) 069220 DDR4 ECC RDIMM memory module with 3200 MT/s and 32GB RAM DDR4-RDIMM-3200 ECC (32GB) / i-temp 069230 Industrial DDR4 ECC RDIMM memory module with 3200 MT/s and 32GB RAM DDR4-RDIMM-3200 ECC (64GB) 069240 DDR4 ECC RDIMM memory module with up to 3200 MT/s and 64GB RAM DDR4-RDIMM-3200 ECC (64GB) / i-temp 069250 Industrial DDR4 ECC RDIMM memory module with 3200 MT/s and 64GB RAM VLP DDR4-RDIMM-3200 ECC (16GB) 069600 DDR4 ECC VLP RDIMM memory module with up to 3200 MT/s and 16GB RAM VLP DDR4-RDIMM-3200 ECC (16GB) / i-temp 069610 Industrial DDR4 ECC VLP RDIMM memory module with up to 3200 MT/s and 16GB RAM VLP DDR4-RDIMM-3200 ECC (32GB) 069620 DDR4 ECC VLP RDIMM memory module with up to 3200 MT/s and 32GB RAM © 2024 congatec GmbH. All data is for information purposes only. Although all the information contained within this document is All rights reserved. carefully checked, no guarantee of correctness is implied or expressed. Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with congatec GmbH. Revision 1.3 – March 2024 www.congatec.com
