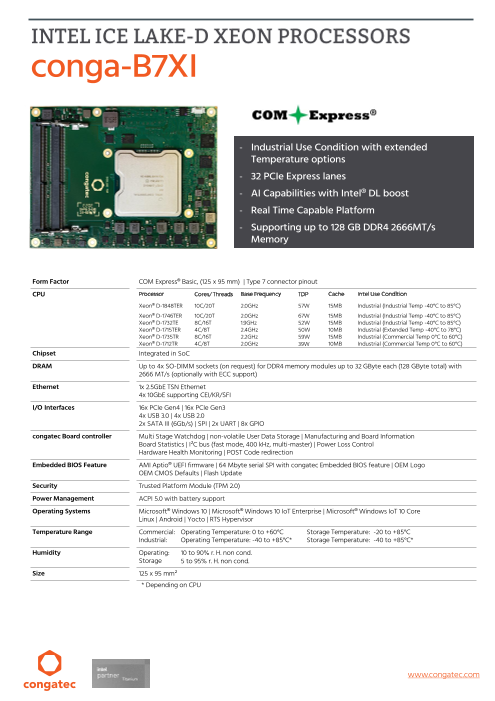

COM Express Basic Type 7: conga-B7Xl データシート

conga-B7XI - Industrial Use Condition with extended Temperature options - 32 PCIe Express lanes - AI Capabilities with Intel® DL boost - Real Time Capable Platform - Supporting up to 128 GB DDR4 2666MT/s Memory Form Factor COM Express® Basic, (125 x 95 mm) | Type 7 connector pinout CPU Processor Cores/ Threads Base Frequency TDP Cache Intel Use Condition Xeon® D-1848TER 10C/20T 2.0GHz 57W 15MB Industrial (Industrial Temp -40°C to 85°C) Xeon® D-1746TER 10C/20T 2.0GHz 67W 15MB Industrial (Industrial Temp -40°C to 85°C) Xeon® D-1732TE 8C/16T 1.9GHz 52W 15MB Industrial (Industrial Temp -40°C to 85°C) Xeon® D-1715TER 4C/8T 2.4GHz 50W 10MB Industrial (Extended Temp -40°C to 78°C) Xeon® D-1735TR 8C/16T 2.2GHz 59W 15MB Industrial (Commercial Temp 0°C to 60°C) Xeon® D-1712TR 4C/8T 2.0GHz 39W 10MB Industrial (Commercial Temp 0°C to 60°C) Chipset Integrated in SoC DRAM Up to 4x SO-DIMM sockets (on request) for DDR4 memory modules up to 32 GByte each (128 GByte total) with 2666 MT/s (optionally with ECC support) Ethernet 1x 2.5GbE TSN Ethernet 4x 10GbE supporting CEI/KR/SFI I/O Interfaces 16x PCIe Gen4 | 16x PCIe Gen3 4x USB 3.0 | 4x USB 2.0 2x SATA III (6Gb/s) | SPI | 2x UART | 8x GPIO congatec Board controller Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information Board Statistics | I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control Hardware Health Monitoring | POST Code redirection Embedded BIOS Feature AMI Aptio® UEFI firmware | 64 Mbyte serial SPI with congatec Embedded BIOS feature | OEM Logo OEM CMOS Defaults | Flash Update Security Trusted Platform Module (TPM 2.0) Power Management ACPI 5.0 with battery support Operating Systems Microsoft® Windows 10 | Microsoft® Windows 10 IoT Enterprise | Microsoft® Windows IoT 10 Core Linux | Android | Yocto | RTS Hypervisor Temperature Range Commercial: Operating Temperature: 0 to +60°C Storage Temperature: -20 to +85°C Industrial: Operating Temperature: -40 to +85°C* Storage Temperature: -40 to +85°C* Humidity Operating: 10 to 90% r. H. non cond. Storage 5 to 95% r. H. non cond. Size 125 x 95 mm² * Depending on CPU www.congatec.com

conga-B7XI option SO-DIMM 1 SO-DIMM 3 SO-DIMM 0 SO-DIMM 2 DDR CH-A DDR CH-B congatec Intel® Xeon® D-1700/D-1800 Processors Board Controller COM-Express Type 7 Connectors conga-B7XI 3x SODIMM sockets 4x SODIMM sockets (PN 050220) PCIe 0-5 PCIe 6-7 PCIe 8-15 PCIe 16-31 SATA 0-1 Ethernet 10 GbE 0-1 10 GbE 2-3 USB SS 0-3 USB2 0-3 SPI TPM 2.0 SPI ROM SM Bus SW LPC UART 0-1 option I2C Bus GPIO FAN Control

conga-B7XI | Article PN Description conga-B7XI/D1746TER 050200 COM Express Revision 3.0 Type 7 Basic module based on Intel® Xeon® D-1746TER 10-core processor with 2.0 GHz, 15MB cache and dual channel DDR4 2666 MT/s memory interface (formerly Ice Lake-D LCC). Industrial temperature range from -40°C to 85°C. conga-B7XI/D1732TE 050201 COM Express Revision 3.0 Type 7 Basic module based on Intel® Xeon® D-1732TE 8-core processor with 1.9 GHz, 15MB cache and dual channel DDR4 2666 MT/s memory interface (formerly Ice Lake-D LCC). Industrial temperature range from -40°C to 85°C. conga-B7XI/D1715TER 050202 COM Express Revision 3.0 Type 7 Basic module based on Intel® Xeon® D-1715TER 4-core processor with 2.4 GHz, 10MB cache and dual channel DDR4 2666 MT/s memory interface (formerly Ice Lake-D LCC). Industrial temperature range from -40°C to 78°C. conga-B7XI/D1735TR 050210 COM Express Revision 3.0 Type 7 Basic module based on Intel® Xeon® D-1735TR 8-core processor with 2.2 GHz, 15MB cache and dual channel DDR4 2666 MT/s memory interface (formerly Ice Lake-D LCC). Commercial temperature range from 0°C to 60°C. conga-B7XI/D1712TR 050211 COM Express Revision 3.0 Type 7 Basic module based on Intel® Xeon® D-1712TR 4-core processor with 2.0 GHz, 10MB cache and dual channel DDR4 2400 MT/s memory interface (formerly Ice Lake-D LCC). Commercial temperature range from 0°C to 60°C. conga-B7XI/D1746TER-4S 050220 COM Express Revision 3.0 Type 7 Basic module based on Intel® Xeon® D-1746TER 10-core processor with 2.0 GHz, 15MB cache and dual channel DDR4 2666 MT/s memory interface (formerly Ice Lake-D LCC). Industrial temperature range from -40°C to 85°C. 4x SODIMM sockets. conga-B7XI/D1848TER-4S 050221 COM Express Revision 3.1 Type 7 Basic module based on Intel® Xeon® D-1848TER 10-core processor with 2.0 GHz, 15MB cache and dual channel DDR4 2666 MT/s memory interface (formerly Ice Lake-D Refresh LCC). Industrial temperature range from -40°C to 85°C. 4x SODIMM sockets. conga-B7XI/CSA-HP 050250 Standard active cooling solution for COM Express Basic modules conga-B7XI with integrated heat pipes, 39.5mm overall cooling height and integrated 12V fan. conga-B7XI/CSP-HP 050252 Standard passive cooling solution for COM Express Basic modules conga-B7XI with integrated heat pipes, 23.3mm overall cooling height. conga-B7XI/HSP-HP-B 050254 Standard heatspreader for COM Express Basic modules conga-B7XI with integrated heat pipes and 11mm overall cooling height. Through hole mounting with bore hole standoffs Ø2.7mm. conga-B7XI/HSP-HP-T 050255 Standard heatspreader for COM Express Basic modules conga-B7XI with integrated heat pipes and 11mm overall cooling height. Threaded mounting with threaded standoffs M2.5. conga-B7XI/HPA 050256 Heat pipe Adapter for COM Express Basic modules conga-B7XI. Suitable for standard 8 mm heat pipes to optimize heat distribution. conga-X7EVAL 065420 Evaluation Carrier Board for COM Express Type 7 modules with up to four 10GbE SFP+ fiber/copper ports implemented via Intel Cortina 10GbE Phy’s. The carrier features an Aspeed AST2500 Board Management Controller (BMC). www.congatec.com

conga-B7XI | Article PN Description DDR4-SODIMM-2666 (4GB) 067780 DDR4 SODIMM memory module with 2666 MT/s and 4GB RAM DDR4-SODIMM-2666 (8GB) 067781 DDR4 SODIMM memory module with 2666 MT/s and 8GB RAM DDR4-SODIMM-2666 (16GB) 067782 DDR4 SODIMM memory module with 2666 MT/s and 16GB RAM DDR4-SODIMM-2666 (32GB) 068806 DDR4 SODIMM memory module with 2666 MT/s and 32GB RAM DDR4-SODIMM-2666 ECC (4GB) 067783 DDR4 ECC SODIMM memory module with 2666 MT/s and 4GB RAM DDR4-SODIMM-2666 ECC (8GB) 067784 DDR4 ECC SODIMM memory module with 2666 MT/s and 8GB RAM DDR4-SODIMM-2666 ECC (16GB) 067785 DDR4 ECC SODIMM memory module with 2666 MT/s and 16GB RAM DDR4-SODIMM-2666 ECC (32GB) 068805 DDR4 ECC SODIMM memory module with 2666 MT/s and 32GB RAM DDR4-SODIMM-2666 (4GB) / i-temp 068819 Industrial DDR4 SODIMM memory module with 2666 MT/s and 4GB RAM DDR4-SODIMM-2666 (8GB) / i-temp 068820 Industrial DDR4 SODIMM memory module with 2666 MT/s and 8GB RAM DDR4-SODIMM-2666 (16GB) / i-temp 068821 Industrial DDR4 SODIMM memory module with 2666 MT/s and 16GB RAM DDR4-SODIMM-2666 (32GB) / i-temp 068807 Industrial DDR4 SODIMM memory module with 2666 MT/s and 32GB RAM DDR4-SODIMM-2666 ECC (4GB) / i-temp 068822 Industrial DDR4 ECC SODIMM memory module with 2666 MT/s and 4GB RAM DDR4-SODIMM-2666 ECC (8GB) / i-temp 068823 Industrial DDR4 ECC SODIMM memory module with 2666 MT/s and 8GB RAM DDR4-SODIMM-2666 ECC (16GB) / i-temp 068824 Industrial DDR4 ECC SODIMM memory module with 2666 MT/s and 16GB RAM DDR4-SODIMM-2666 ECC (32GB) / i-temp 068808 Industrial DDR4 ECC SODIMM memory module with 2666 MT/s and 32GB RAM © 2024 congatec GmbH. All data is for information purposes only. Although all the information contained within this document is All rights reserved. carefully checked, no guarantee of correctness is implied or expressed. Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with congatec GmbH. Product not yet released for mass production. Revision 1.4 – March 2024 www.congatec.com
