Qseven: conga-QMX8-Plus データシート

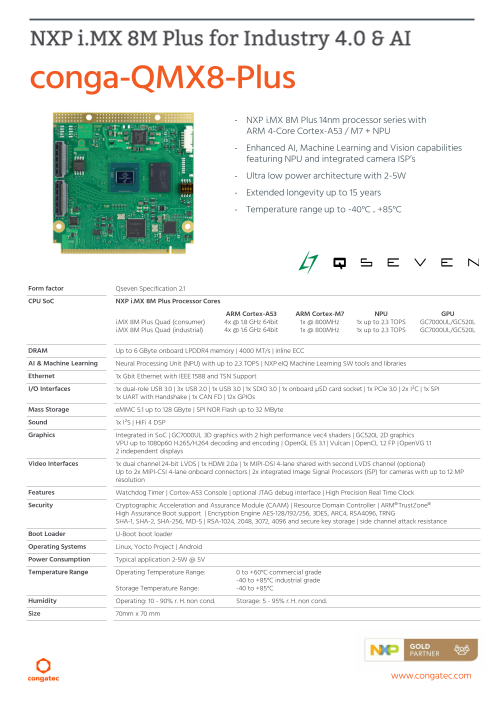

conga-QMX8-Plus - NXP i.MX 8M Plus 14nm processor series with ARM 4-Core Cortex-A53 / M7 + NPU - Enhanced AI, Machine Learning and Vision capabilities featuring NPU and integrated camera ISP’s - Ultra low power architecture with 2-5W - Extended longevity up to 15 years - Temperature range up to -40°C .. +85°C Form factor Qseven Specification 2.1 CPU SoC NXP i.MX 8M Plus Processor Cores ARM Cortex-A53 ARM Cortex-M7 NPU GPU i.MX 8M Plus Quad (consumer) 4x @ 1.8 GHz 64bit 1x @ 800MHz 1x up to 2.3 TOPS GC7000UL/GC520L i.MX 8M Plus Quad (industrial) 4x @ 1.6 GHz 64bit 1x @ 800MHz 1x up to 2.3 TOPS GC7000UL/GC520L DRAM Up to 6 GByte onboard LPDDR4 memory | 4000 MT/s | inline ECC AI & Machine Learning Neural Processing Unit (NPU) with up to 2.3 TOPS | NXP eIQ Machine Learning SW tools and libraries Ethernet 1x Gbit Ethernet with IEEE 1588 and TSN Support I/O Interfaces 1x dual-role USB 3.0 | 3x USB 2.0 | 1x USB 3.0 | 1x SDIO 3.0 | 1x onboard µSD card socket | 1x PCIe 3.0 | 2x I²C | 1x SPI 1x UART with Handshake | 1x CAN FD | 12x GPIOs Mass Storage eMMC 5.1 up to 128 GByte | SPI NOR Flash up to 32 MByte Sound 1x I²S | HiFi 4 DSP Graphics Integrated in SoC | GC7000UL 3D graphics with 2 high performance vec4 shaders | GC520L 2D graphics VPU up to 1080p60 H.265/H.264 decoding and encoding | OpenGL ES 3.1 | Vulcan | OpenCL 1.2 FP | OpenVG 1.1 2 independent displays Video Interfaces 1x dual channel 24-bit LVDS | 1x HDMI 2.0a | 1x MIPI-DSI 4-lane shared with second LVDS channel (optional) Up to 2x MIPI-CSI 4-lane onboard connectors | 2x integrated Image Signal Processors (ISP) for cameras with up to 12 MP resolution Features Watchdog Timer | Cortex-A53 Console | optional JTAG debug interface | High Precision Real Time Clock Security Cryptographic Acceleration and Assurance Module (CAAM) | Resource Domain Controller | ARM® TrustZone® High Assurance Boot support | Encryption Engine AES-128/192/256, 3DES, ARC4, RSA4096, TRNG SHA-1, SHA-2, SHA-256, MD-5 | RSA-1024, 2048, 3072, 4096 and secure key storage | side channel attack resistance Boot Loader U-Boot boot loader Operating Systems Linux, Yocto Project | Android Power Consumption Typical application 2-5W @ 5V Temperature Range Operating Temperature Range: 0 to +60°C commercial grade -40 to +85°C industrial grade Storage Temperature Range: -40 to +85°C Humidity Operating: 10 - 90% r. H. non cond. Storage: 5 - 95% r. H. non cond. Size 70mm x 70 mm www.congatec.com

conga-QMX8-Plus | Block Diagram Qseven Connector Onboard LPDDR4 LPDDR4 LVDS0 LVDS 0 Memory LVDS1 MUX LVDS 1 / 4L DSI* MIPI-DSI* HDMI 2.0a HDMI JTAG* JTAG GBE0 / TSN PHY Ethernet 0 / TSN Console Driver UART PCIe PCIe Gen 3 NXP i.MX 8M Plus Processor SDIO SDIO Series I2S I2S Audio USB 3.0 1x USB 3.0 dual role eMMC 5.1 eMMC 1x USB 3.0 / 2.0 USB 3.0 USB Hub 3x USB 2.0 µSD socket SDIO QSPI Flash QSPI CAN FD 1x CAN Bus Precision RTC I2C UART 1x UART 4-wire 2x I2C 2x I2C SPI SPI MIPI-CSI FFC MIPI-CSI 1, 4-lane GPIO GPIO [0:7] GPI GPI [0:2] MIPI-CSI FFC* MIPI CSI 2, 4-lane GPO GPO [0] Power Rail Power PMIC Control * Assembly Option www.congatec.com

conga-QMX8-Plus | Order Information Article PN Description conga-QMX8-Plus/QC-4G eMMC16 016600 Qseven module with low-power 14nm NXP i.MX 8M Plus Quad processor. Features 4x ARM® Cortex®-A53 @ 1.8GHz +1x ARM® Cortex®-M7 + NPU, 4GB onboard LPDDR4 memory and 16GB onboard eMMC. Commercial temperature range from 0°C to 60°C. conga-QMX8-Plus/QC-2G eMMC16 016601 Qseven module with low-power 14nm NXP i.MX 8M Plus Quad processor. Features 4x ARM® Cortex®-A53 @ 1.8GHz +1x ARM® Cortex®-M7 + NPU, 2GB onboard LPDDR4 memory and 16GB onboard eMMC. Commercial temperature range from 0°C to 60°C. conga-QMX8-Plus/i-QC-4G eMMC16 016620 Qseven module with low-power 14nm NXP i.MX 8M Plus Quad processor. Features 4x ARM® Cortex®-A53 @ 1.6GHz +1x ARM® Cortex®-M7 + NPU, 4GB onboard LPDDR4 memory and 16GB onboard eMMC. Industrial grade temperature range from -40°C to 85°C. conga-QMX8-Plus/i-QC-2G eMMC16 016621 Qseven module with low-power 14nm NXP i.MX 8M Plus Quad processor. Features 4x ARM® Cortex®-A53 @ 1.6GHz +1x ARM® Cortex®-M7 + NPU, 2GB onboard LPDDR4 memory and 16GB onboard eMMC. Industrial grade temperature range from -40°C to 85°C. QMX8-Plus/HSP-T 016650 Standard heatspreader for Qseven module conga-QMX8-Plus with NXP i.MX 8M Plus ARM processor. All standoffs are 2.5mm thread. QMX8-Plus/HSP-B 016651 Standard heatspreader for Qseven module conga-QMX8-Plus with NXP i.MX 8M Plus ARM processor. All standoffs are with 2.7mm bore hole. conga-QEVAL/Qseven 2.0 ARM 007005 Evaluation carrier board for Qseven ARM modules. conga-HDMI add-on card 500025 conga-HDMI add-on card is used for evaluation of the HDMI graphics interface of Qseven modules in combination with the congatec evaluation carrier board conga- QEVAL. RS232 adapter cable for conga-ARM 48000023 RS232 adapter cable for congatec ARM modules console debug application. modules Basler dart camera daA3840-30mc 44500041 Basler dart BCON for MIPI camera module daA3840-30mc, 8Mpx, 30fps, 4 CSI2-Lanes, S- Mount. FFC Basler dart BCON for MIPI, 200mm 10000399 FFC 28 pin cable for Basler BCON dart cameras, 0,5mm pitch. compatible with 28 pin Hirose ZIF connector (PN: FH41-28S-0.5SH(05) Evetar Lens M118B0418IR F1.8 f4mm 1/1.8" - 10000429 Evetar Lens M118B0418IR F1.8 f4mm 1/1.8" - Lens for Basler dart camera module daA3840- Lens 30mc © 2022 congatec GmbH. All data is for information purposes only. Although all the information contained within this document is All rights reserved. carefully checked, no guarantee of correctness is implied or expressed. Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with congatec GmbH. Rev. 1.1, March 14, 2022 www.congatec.com
