COM Express Compact Type 6
conga-TCA7 は、低消費電力の10nmテクノロジーをベースとするIntel Atom x6000E、Celeron、およびPentium Jシリーズプロセッサ(以前のコードネームはElkhart Lake)を搭載したCOM Express Compact Type 6 (95 x 95 mm) モジュールです。信頼性が要求されるアプリケーションにおいても、インバンドのエラーコレクションコードによって、ECCメモリを使わなくても標準的なメモリで信頼性を上げられると同時に、-40°C~+85°Cの拡張温度範囲に対応することで、過酷な環境の産業市場向け製品に採用することができます。リアルタイムアプリケーションのために、TSNや、インテル TCCをサポートし、リアルタイムシステムズがサポートするハイパーバイザや、Linux、Windows、などの主要なOSに対して、包括的なボード・サポート・パッケージが提供されます。
このカタログについて
ドキュメント名 | COM Express Compact Type 6: conga-TCA7 データシート |
---|---|
ドキュメント種別 | 製品カタログ |
ファイルサイズ | 296.9Kb |
登録カテゴリ | |
取り扱い企業 | コンガテックジャパン株式会社 (この企業の取り扱いカタログ一覧) |
この企業の関連カタログ
このカタログの内容
Page1

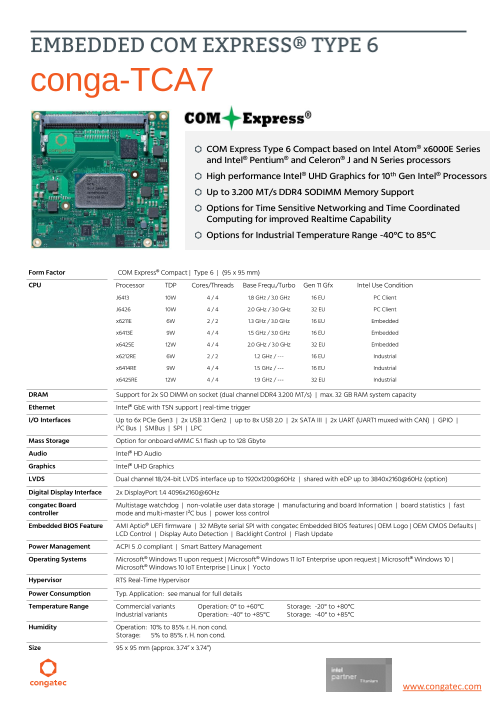

Folie 1: EMBEDDED COM Express® Type 6 conga-TCA7
conga-TCA7
- COM Express Type 6 Compact based on Intel® Atom® x6000E Series
and Intel® Pentium® and Celeron® J and N Series processors
- High performance Intel® UHD Graphics
- Options for Industrial Temperature Range -40°C to 85°C
- Options for Time Sensitive Networking and Time Coordinated
Computing for improved Realtime Capability
- 3.200 MT/s DDR4 SODIMM Memory Support
Form Factor COM Express® Compact | Type 6 | (95 x 95 mm)
CPU Processor TDP Cores/Threads Base Frequ./Turbo Gen 11 Gfx Intel Use Condition
J6413 10W 4 / 4 1.8 GHz / 3.0 GHz 16 EU PC Client
J6426 10W 4 / 4 2.0 GHz / 3.0 GHz 32 EU PC Client
x6211E 6W 2 / 2 1.3 GHz / 3.0 GHz 16 EU Embedded
x6413E 9W 4 / 4 1.5 GHz / 3.0 GHz 16 EU Embedded
x6425E 12W 4 / 4 2.0 GHz / 3.0 GHz 32 EU Embedded
x6212RE 6W 2 / 2 1.2 GHz / --- 16 EU Industrial
x6414RE 9W 4 / 4 1.5 GHz / --- 16 EU Industrial
x6425RE 12W 4 / 4 1.9 GHz / --- 32 EU Industrial
DRAM Support for 2x SO DIMM on socket (dual channel DDR4 3.200 MT/s) | max. 32 GB RAM system capacity
Ethernet Intel® GbE with TSN support | real-time trigger
I/O Interfaces Up to 6x PCIe Gen3 | 2x USB 3.1 Gen2 | up to 8x USB 2.0 | 2x SATA III | 2x UART (UART1 muxed with CAN) | GPIO |
I²C Bus | SMBus | SPI | LPC
Mass Storage Option for onboard eMMC 5.1 flash up to 128 Gbyte
Audio Intel® HD Audio
Graphics Intel® UHD Graphics
LVDS Dual channel 18/24-bit LVDS interface up to 1920x1200@60Hz | shared with eDP up to 3840x2160@60Hz (option)
Digital Display Interface 2x DisplayPort 1.4 4096x2160@60Hz
congatec Board Multistage watchdog | non-volatile user data storage | manufacturing and board Information | board statistics | fast
controller mode and multi-master I²C bus | power loss control
Embedded BIOS Feature AMI Aptio® UEFI firmware | 32 MByte serial SPI with congatec Embedded BIOS features | OEM Logo | OEM CMOS Defaults |
LCD Control | Display Auto Detection | Backlight Control | Flash Update
Power Management ACPI 5 .0 compliant | Smart Battery Management
Operating Systems Microsoft® Windows 11 IoT Enterprise | Microsoft® Windows 10 | Microsoft® Windows 10 IoT Enterprise | Linux | Yocto
Hypervisor RTS Real-Time Hypervisor
Power Consumption Typ. Application: see manual for full details
Temperature Range Commercial variants Operation: 0° to +60°C Storage: -20° to +80°C
Industrial variants Operation: -40° to +85°C Storage: -40° to +85°C
Humidity Operation: 10% to 90% r. H. non cond.
Storage: 5% to 95% r. H. non cond.
Size 95 x 95 mm (approx. 3.74” x 3.74”)
www.congatec.com
Page2
Folie 2: conga-TCA7 | Block Diagram
conga-TCA7
COM Express 2.1 COM Express 2.1
220 pin A-B 220 pin C-D
Connector Type 6 Connector Type 6
* eDP Assembly Option
eDP
LCD I/F (LVDS) eDP to LVDS DDI0 DDI1 DDI1
Bridge
DDI2 DDI2
PCIIe 0 HSIO2
Dual Channel
PCIe 1 HSIO3 DDR4 3200 MT/s
PCIe 2 HSIO4
PCIe 3 HSIO5
PCIe 4 HSIO6 HSIO0 USB 3.0 Port 0
PCIe 5 HSIO7 HSIO1 USB 3.0 Port 1
GBE PHY
Ethernet RGM
DP83867XS
HDA HDA
USB Port 0…7 8x USB 2.0
SATA Port 0 HSIO10
SATA Port 1 HSIO11 Assembly option
CS2#
TPM 2.0 eMMC
eMMC 5.1
CS0#
BIOS
SPI FSPI 0
SM Bus
UART 0 MUX UART0
BC UART0
UART1
UART 1/CAN MUX CAN Intel Atom® x6000E
eSPI
LPC Bus eSPI to LPC and
Intel® Pentium® and
Celeron® N and J
GPIOs MUX Series processors
I2C Bus congatec (“Elkhart Lake”)
LID#/SLEEP# Board
FAN control LPC Controller
MEC1705
Note:: Assembly options on request only
www.congatec.com
Page3
Folie 3
conga-TCA7 | Order Information
Article PN Description
COM Express Compact module with Intel Atom® x6425E quad core processor with
conga-TCA7/x6425E 049300 2.0GHz core frequency up to 3.0GHz, 1.5MB cache and up to 32GB 3200MT/s DDR4
SODIMM memory support
COM Express Compact module with Intel Atom® x6413E quad core processor with
conga-TCA7/x6413E 049301 1.5GHz core frequency up to 3.0GHz, 1.5MB cache and up to 32GB 3200MT/s DDR4
SODIMM memory support
COM Express Compact module with Intel Atom® x6211E dual core processor with
conga-TCA7/x6211E 049302 1.3GHz core frequency up to 3.0GHz, 1.5MB cache and up to 32GB 3200MT/s DDR4
SODIMM memory support
COM Express Compact module with Intel Atom® x6425RE quad core processor with
conga-TCA7/i-x6425RE 049310 1.9GHz core frequency, 1.5MB cache and up to 32GB 3200MT/s DDR4 SODIMM
memory support. Industrial grade temperature range from -40°C to 85°C.
COM Express Compact module with Intel Atom® x6414RE quad core processor with
conga-TCA7/i-x6414RE 049311 1.5GHz core frequency, 1.5MB cache and up to 32GB 3200MT/s DDR4 SODIMM
memory support. Industrial grade temperature range from -40°C to 85°C.
COM Express Compact module with Intel Atom® x6212RE dual core processor with
conga-TCA7/i-x6212RE 049312 1.2GHz core frequency, 1.5MB cache and up to 32GB 3200MT/s DDR4 SODIMM
memory support. Industrial grade temperature range from -40°C to 85°C.
COM Express Compact module with Intel® Pentium® J6426 quad core processor with
conga-TCA7/J6426 049320 2.0GHz core frequency up to 3.0GHz, 1.5MB cache and up to 32GB 3200MT/s DDR4
SODIMM memory support.
COM Express Compact module with Intel® Celeron® J6413 quad core processor with
conga-TCA7/J6413 049321 1.8GHz core frequency up to 3.0GHz, 1.5MB cache and up to 32GB 3200MT/s DDR4
SODIMM memory support
conga-TCA7/i-HSP-B Standard heatspreader for COM Express Compact module conga-TCA7 with lidded
049350 Intel Atom x6000E processors. All standoffs are with 2.7mm bore hole.
conga-TCA7/i-HSP-T Standard heatspreader for COM Express Compact module conga-TCA7 with lidded
049351 Intel Atom x6000E processors. All standoffs are M2.5mm thread.
conga-TCA7/i-CSP-B Passive cooling solution for COM Express Compact module conga-TCA7 with lidded
049352 Intel Atom x6000E processors. All standoffs are with 2.7mm bore hole.
conga-TCA7/i-CSP-T Passive cooling solution for COM Express Compact module conga-TCA7 with lidded
049353 Intel Atom x6000E processors. All standoffs are M2.5mm thread.
Standard heatspreader for COM Express Compact module conga-TCA7 with open
conga-TCA7/HSP-B 049354 silicon Intel Pentium/Celeron J and N processors. All standoffs are with 2.7mm bore
hole.
conga-TCA7/HSP-T Standard heatspreader for COM Express Compact module conga-TCA7 with open
049355 silicon Intel Pentium/Celeron J and N processors. All standoffs are M2.5mm thread.
Passive cooling solution for COM Express Compact module conga-TCA7 with open
conga-TCA7/CSP-B 049356 silicon Intel Pentium/Celeron J and N processors. All standoffs are with 2.7mm bore
hole.
conga-TCA7/CSP-T Passive cooling solution for COM Express Compact module conga-TCA7 with open
049357 silicon Intel Pentium/Celeron J and N processors. All standoffs are M2.5mm thread.
www.congatec.com
Page4
Folie 4
conga-TCA7 | Order Information
Article PN Description
DDR4-SODIMM-3200 (4GB) 068793 DDR4 SODIMM memory module with up to 3200 MT/s and 4GB RAM,
commercial temp 0°C to +60°C
DDR4-SODIMM-3200 (8GB) 068794 DDR4 SODIMM memory module with up to 3200 MT/s and 8GB RAM,
commercial temp 0°C to +60°C
DDR4-SODIMM-3200 (16GB) 068798 DDR4 SODIMM memory module with up to 3200 MT/s and 16GB RAM,
commercial temp 0°C to +60°C
DDR4-SODIMM-3200 (4GB) / i-temp 068825 DDR4 SODIMM memory module with up to 3200 MT/s and 4GB RAM,
industrial temp -40°C to +85°C
DDR4-SODIMM-3200 (8GB) / i-temp 068826 DDR4 SODIMM memory module with up to 3200 MT/s and 8GB RAM,
industrial temp -40°C to +85°C
DDR4-SODIMM-3200 (16GB) / i-temp 068827 DDR4 SODIMM memory module with up to 3200 MT/s and 16GB RAM,
industrial temp -40°C to +85°C
DDR4-SODIMM-3200 (32GB) / i-temp 068837 DDR4 SODIMM memory module with up to 3200 MT/s and 32GB RAM,
industrial temp -40°C to +85°C
© 2023 congatec GmbH All data is for information purposes only. Although all the information contained within this document is
All rights reserved. carefully checked, no guarantee of correctness is implied or expressed. Product names, logos, brands, and
other trademarks featured or referred are the property of their respective trademark holders. These trademark
holders are not affiliated with congatec GmbH. Revision 1.3 – December 18th,2023
