COM Express Basic Type 7: conga-B7E3 データシート

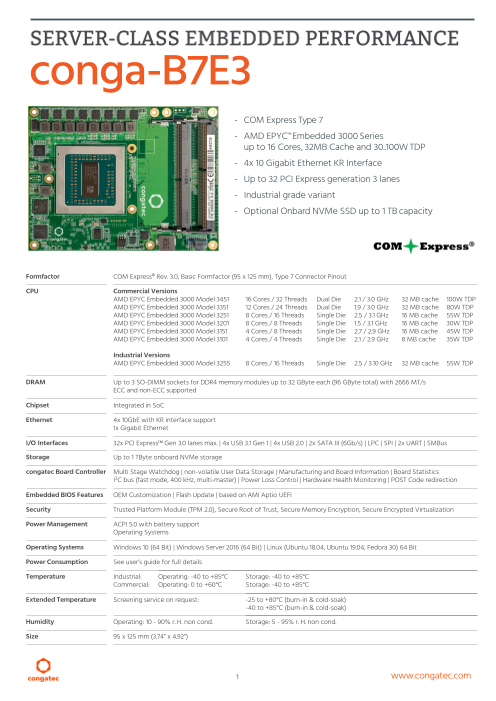

conga-B7E3 - COM Express Type 7 - AMD EPYC™Embedded 3000 Series up to 16 Cores, 32MB Cache and 30..100W TDP - 4x 10 Gigabit Ethernet KR Interface - Up to 32 PCI Express generation 3 lanes - Industrial grade variant - Optional Onbard NVMe SSD up to 1 TB capacity Formfactor COM Express® Rev. 3.0, Basic Formfactor (95 x 125 mm), Type 7 Connector Pinout CPU Commercial Versions AMD EPYC Embedded 3000 Model 3451 16 Cores / 32 Threads Dual Die 2.1 / 3.0 GHz 32 MB cache 100W TDP AMD EPYC Embedded 3000 Model 3351 12 Cores / 24 Threads Dual Die 1.9 / 3.0 GHz 32 MB cache 80W TDP AMD EPYC Embedded 3000 Model 3251 8 Cores / 16 Threads Single Die 2.5 / 3.1 GHz 16 MB cache 55W TDP AMD EPYC Embedded 3000 Model 3201 8 Cores / 8 Threads Single Die 1.5 / 3.1 GHz 16 MB cache 30W TDP AMD EPYC Embedded 3000 Model 3151 4 Cores / 8 Threads Single Die 2.7 / 2.9 GHz 16 MB cache 45W TDP AMD EPYC Embedded 3000 Model 3101 4 Cores / 4 Threads Single Die 2.1 / 2.9 GHz 8 MB cache 35W TDP Industrial Versions AMD EPYC Embedded 3000 Model 3255 8 Cores / 16 Threads Single Die 2.5 / 3.10 GHz 32 MB cache 55W TDP DRAM Up to 3 SO-DIMM sockets for DDR4 memory modules up to 32 GByte each (96 GByte total) with 2666 MT/s ECC and non-ECC supported Chipset Integrated in SoC Ethernet 4x 10GbE with KR interface support 1x Gigabit Ethernet I/O Interfaces 32x PCI Express™ Gen 3.0 lanes max. | 4x USB 3.1 Gen 1 | 4x USB 2.0 | 2x SATA III (6Gb/s) | LPC | SPI | 2x UART | SMBus Storage Up to 1 TByte onboard NVMe storage congatec Board Controller Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control | Hardware Health Monitoring | POST Code redirection Embedded BIOS Features OEM Customization | Flash Update | based on AMI Aptio UEFI Security Trusted Platform Module (TPM 2.0), Secure Root of Trust, Secure Memory Encryption, Secure Encrypted Virtualization Power Management ACPI 5.0 with battery support Operating Systems Operating Systems Windows 10 (64 Bit) | Windows Server 2016 (64 Bit) | Linux (Ubuntu 18.04, Ubuntu 19.04, Fedora 30) 64 Bit Power Consumption See user’s guide for full details Temperature Industrial: Operating: -40 to +85°C Storage: -40 to +85°C Commercial: Operating: 0 to +60°C Storage: -40 to +85°C Extended Temperature Screening service on request: -25 to +80°C (burn-in & cold-soak) -40 to +85°C (burn-in & cold-soak) Humidity Operating: 10 - 90% r. H. non cond. Storage: 5 - 95% r. H. non cond. Size 95 x 125 mm (3.74” x 4.92”) 1 www.congatec.com

conga-B7E3 | Block diagram 2 www.congatec.com

conga-B7E3 | Order Information – COM Express® Module Article PN Description conga-B7E3/3451 048600 COM Express Type 7 Basic module based on AMD embedded EPYC 3451 16-core processor (dual die) with 2.15GHz up to 3.0 GHz turbo boost, 32MB L3 cache and quad channel DDR4 2666 MT/s memory interface (formerly Snowy Owl). conga-B7E3/3351 048602 COM Express Type 7 Basic module based on AMD embedded EPYC 3351 12-core processor (dual die) with 1.9GHz up to 3.0 GHz turbo boost, 32MB L3 cache and quad channel DDR4 2666 MT/s memory interface (formerly Snowy Owl). conga-B7E3/i-3255 048604 COM Express Type 7 Basic module based on AMD embedded EPYC 3255 8-core processor (single die) with 2.5GHz up to 3.1 GHz turbo boost, 16MB L3 cache and dual channel DDR4 2666 MT/s memory interface (formerly Snowy Owl). conga-B7E3/3251 048605 COM Express Type 7 Basic module based on AMD embedded EPYC 3251 8-core processor (single die) with 2.5GHz up to 3.1 GHz turbo boost, 16MB L3 cache and dual channel DDR4 2666 MT/s memory interface (formerly Snowy Owl). conga-B7E3/3201 048606 COM Express Type 7 Basic module based on AMD embedded EPYC 3201 8-core processor (single die) with 1.5GHz up to 3.1 GHz turbo boost, 16MB L3 cache and dual channel DDR4 2133 MT/s memory interface (formerly Snowy Owl). conga-B7E3/3151 048607 COM Express Type 7 Basic module based on AMD embedded EPYC 3151 4-core processor (single die) with 2.7GHz up to 2.9 GHz turbo boost, 16MB L3 cache and dual channel DDR4 2666 MT/s memory interface (formerly Snowy Owl). conga-B7E3/3101 048608 COM Express Type 7 Basic module based on AMD embedded EPYC 3101 4-core processor (single die) with 2.1GHz up to 2.9 GHz turbo boost, 8MB L3 cache and dual channel DDR4 2666 MT/s memory interface (formerly Snowy Owl). 3 www.congatec.com

conga-B7E3 | Order Information – Accessory Article PN Description conga-B7E3/HSP-HP-B 048652 Standard heat spreader for high performance COM Express Type 7 module conga-B7E3 with integrated heat pipes. All stand-offs are bore hole. Suitable for all single die variants. conga-B7E3/HSP-HP-T 048653 Standard heat spreader for high performance COM Express Type 7 module conga-B7E3 with integrated heat pipes. All stand-offs are M2.5 threaded. Suitable for all single die variants. conga-B7E3/SP4-HSP-HP-B 048656 Standard heat spreader for high performance COM Express Type 7 module conga-B7E3 with integrated heat pipes. All stand-offs are bore hole. Suitable for all dual die variants. conga-B7E3/SP4-HSP-HP-T 048657 Standard heat spreader for high performance COM Express Type 7 module conga-B7E3 with integrated heat pipes. All stand-offs are M2.5 threaded. Suitable for all dual die variants. conga-B7E3/HPA 048660 Heat pipe Adapter for conga-B7E3 COM Express Type 7 module. This adapter can be used in combination with standard 8 mm heat pipes to optimize heat distribution. Suitable for all single die variants. conga-B7E3/HPA SP4 048662 Heat pipe Adapter for conga-B7E3 COM Express Type 7 module. This adapter can be used in combination with standard 8 mm heat pipes to optimize heat distribution. Suitable for all dual die variants. DDR4-SODIMM-2666 (4GB) 067780 DDR4 SODIMM memory module with 2666 MT/s and 4GB RAM DDR4-SODIMM-2666 (8GB) 067781 DDR4 SODIMM memory module with 2666 MT/s and 8GB RAM DDR4-SODIMM-2666 (16GB) 067782 DDR4 SODIMM memory module with 2666 MT/s and 16GB RAM DDR4-SODIMM-2666 (32GB) 068806 DDR4 SODIMM memory module with 2666 MT/s and 32GB RAM DDR4-SODIMM-2666 ECC (4GB) 067783 DDR4 ECC SODIMM memory module with 2666 MT/s and 4GB RAM DDR4-SODIMM-2666 ECC (8GB) 067784 DDR4 ECC SODIMM memory module with 2666 MT/s and 8GB RAM DDR4-SODIMM-2666 ECC (16GB) 067785 DDR4 ECC SODIMM memory module with 2666 MT/s and 16GB RAM DDR4-SODIMM-2666 ECC (32GB) 068805 DDR4 ECC SODIMM memory module with 2666 MT/s and 32GB RAM DDR4-SODIMM-2666 (4GB) / i-temp 068819 Industrial DDR4 SODIMM memory module with 2666 MT/s and 4GB RAM DDR4-SODIMM-2666 (8GB) / i-temp 068820 Industrial DDR4 SODIMM memory module with 2666 MT/s and 8GB RAM DDR4-SODIMM-2666 (16GB) / i-temp 068821 Industrial DDR4 SODIMM memory module with 2666 MT/s and 16GB RAM DDR4-SODIMM-2666 (32GB) / i-temp 068807 Industrial DDR4 SODIMM memory module with 2666 MT/s and 32GB RAM DDR4-SODIMM-2666 ECC (4GB) / i-temp 068822 Industrial DDR4 ECC SODIMM memory module with 2666 MT/s and 4GB RAM DDR4-SODIMM-2666 ECC (8GB) / i-temp 068823 Industrial DDR4 ECC SODIMM memory module with 2666 MT/s and 8GB RAM DDR4-SODIMM-2666 ECC (16GB) / i-temp 068824 Industrial DDR4 ECC SODIMM memory module with 2666 MT/s and 16GB RAM DDR4-SODIMM-2666 ECC (32GB) / i-temp 068808 Industrial DDR4 ECC SODIMM memory module with 2666 MT/s and 32GB RAM conga-X7EVAL 065420 Evaluation Carrier Board for COM Express Type 7 modules with up to four 10GbE SFP+ fiber/copper ports implemented via Intel Cortina 10GbE Phy’s. The carrier features an Aspeed AST2500 Board Management Controller (BMC). © 2022 congatec AG. All rights reserved. All data is for information purposes only. Although all the information contained within this document is carefully checked, no guarantee of correctness is implied or expressed. Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with congatec AG. Rev. Nov, 2022 4 www.congatec.com
