COM-HPC Client用Micro-ATX キャリアボード
標準Micro-ATXフォームファクターのCOM-HPC Client モジュール(Sizes A, B, C)用キャリアボードです。アプリケーションにそのまま組み込むことができるように設計されているため、インダストリアルグレードのCOM-HPCと、カスタマイズされた冷却ソリューション、そしてすべての主要なRTOS用の包括的なBSPやリアルタイムシステムズのリアルタイムハイパーバイザなどを組み合わせることで、早期市場投入を可能にすると同時にNREコストを最小限に抑えて、市場要求の変化に迅速に対応することができます。また、COM-HPCモジュールを交換することでアプリケーションをさらにハイパフォーマンスにしたり、コストダウンをおこなうなど、スケーリングが容易になるため、一種類のキャリアボードをベースとしてフルレンジの製品ポートフォリオを作成することができます。
このカタログについて
ドキュメント名 | COM-HPC Client用Micro-ATX キャリアボード: conga-HPC/uATX データシート |
---|---|
ドキュメント種別 | 製品カタログ |
ファイルサイズ | 590.6Kb |
登録カテゴリ | |
取り扱い企業 | コンガテックジャパン株式会社 (この企業の取り扱いカタログ一覧) |
この企業の関連カタログ
このカタログの内容

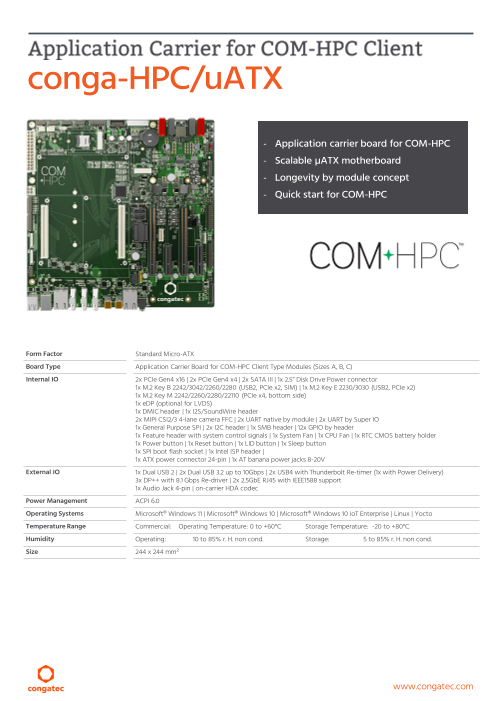

Page1
Folie 1
conga-HPC/uATX
- Application carrier board for COM-HPC
- Scalable µATX motherboard
- Longevity by module concept
- Quick start for COM-HPC
Form Factor Standard Micro-ATX
Board Type Application Carrier Board for COM-HPC Client Type Modules (Sizes A, B, C)
Internal IO 2x PCIe Gen4 x16 | 2x PCIe Gen4 x4 | 2x SATA III | 1x 2.5” Disk Drive Power connector
1x M.2 Key B 2242/3042/2260/2280 (USB2, PCIe x2, SIM) | 1x M.2 Key B 2230/3030/2242/3042 (USB2, PCIe x2)
1x M.2 Key M 2242/2260/2280/22110 (PCIe x4, bottom side)
1x eDP (optional for LVDS)
1x DMIC header | 1x I2S/SoundWire header
2x MIPI CSI2/3 4-lane camera FFC | 2x UART native by module | 2x UART by Super IO
1x General Purpose SPI | 2x I2C header | 1x SMB header | 12x GPIO by header
1x Feature header with system control signals | 1x System Fan | 1x CPU Fan | 1x RTC CMOS battery holder
1x Power button | 1x Reset button | 1x LID button | 1x Sleep button
1x SPI boot flash socket | 1x Intel ISP header |
1x ATX power connector 24-pin | 1x AT banana power jacks 8-20V
External IO 1x Dual USB 2 | 2x Dual USB 3.2 up to 10Gbps | 2x USB4 with Thunderbolt Re-timer (1x with Power Delivery)
3x DP++ with 8.1 Gbps Re-driver | 2x 2.5GbE RJ45 with IEEE1588 support
1x Audio Jack 4-pin | on-carrier HDA codec
Power Management ACPI 6.0
Operating Systems Microsoft® Windows 11 | Microsoft® Windows 10 | Microsoft® Windows 10 IoT Enterprise | Linux | Yocto
Temperature Range Commercial: Operating Temperature: 0 to +60°C Storage Temperature: -20 to +80°C
Humidity Operating: 10 to 90% r. H. non cond. Storage: 5 to 95% r. H. non cond.
Size 244 x 244 mm²
www.congatec.com
Page2
Folie 2
conga-HPC/uATX |
AT wide-range
UART UART UART UART GSPI Backlight eDP power 8-20V PWR Button
CPU Fan
LID Button
System Fan
M.2 Key B Sleep Button
M.2 SIM RTC Battery
ATX Power Power Ctrl.
24-pin
I2S / SoundWire
M.2 Key B
Reset button
ATX Power ESPI
4-pin (12V) I2C 1
GPIO I2C 0
SATA 0
M.2 Key M SATA 1
(bottom)
SPI BIOS Flash
COM-HPC
Connector Intel ISP
MIPI-CSI 2
Feature Conn
MIPI-CSI 2 PCIe x4
PCIe x16
PCIe x4
PCIe x16
DMIC
SATA PWR
conga-HPC/uATX |
USB 2.0 USB 3.2 LAN DP++ DP++ DP++ USB 4 USB 4 LAN Audio
www.congatec.com
Page3
Folie 3
conga-HPC/uATX |
Article PN Description
conga-HPC/uATX-Client 065620 COM-HPC Client µATX carrier board suitable for congatec COM-HPC modules with Size A,B and C.
conga-HPC/uATX |
conga-HPC/cRLS conga-HPC/cRLP
COM-HPC Client Size C high COM-HPC Client Size A high
performance module based performance module based
on 13th Gen Intel® Core™ on 13th Gen Intel® Core™
processor series (code processor series (code
name “Raptor Lake") name “Raptor Lake")
conga-HPC/cTLH conga-HPC/cTLU
COM-HPC Client Size B high COM-HPC Client Size A high
performance module based performance module based
on 11th Gen Intel® Core™ on 11th Gen Intel® Core™
processor series (code processor series (code
name "Tiger Lake-H") name "Tiger Lake")
© 2024 congatec GmbH. All data is for information purposes only. Although all the information contained within this document is
All rights reserved. carefully checked, no guarantee of correctness is implied or expressed. Product names, logos, brands, and other
trademarks featured or referred are the property of their respective trademark holders. These trademark
holders are not affiliated with congatec GmbH. Product not yet released for Mass Production.
Revision 1.0 February 8, 2023
