Qualcomm Dragonwing IQ-X シリーズ搭載 COM-HPC Mini: conga-HPC/mIQ-X
【conga-HPC/mIQ-X】は、Qualcomm Dragonwing IQ-X シリーズ プロセッサーを搭載した COM-HPC Mini モジュールで、最大64 GBのLPDDR5Xメモリーを直付け実装可能です。最大12個の Oryonコアにより卓越した演算性能をクラス最高の電力効率で実現し、ローカル機械学習（ML）や大規模言語モデル（LLM）の実行を含むエッジAIアプリケーションは、Qualcomm Hexagon プロセッサーを搭載した専用NPUにより、最大45 TOPSのAI性能を実現します。また、DSPやQualcomm Spectra ISPを搭載しビデオや画像、音声データを超高効率で処理します。 内蔵の Qualcomm Adreno GPUは、最大3台のディスプレイと8K解像度をサポートします。 2つの 2.5 Gbイーサネット、最大16レーンのPCIe Gen3/Gen4、2つのUSB4、2つのUSB3.2 Gen2x1、8つのUSB2.0 を備えています。 グラフィックス出力は2つのDDIとeDPで、MIPI CSI経由で最大4台のカメラを直接接続することができます。過酷な環境向けに -40℃～+85℃の産業用温度範囲をサポートします。
関連メディア
このカタログについて
| ドキュメント名 | COM-HPC Mini: conga-HPC/mIQ-X データシート |
|---|---|
| ドキュメント種別 | 製品カタログ |
| ファイルサイズ | 273.1Kb |
| 登録カテゴリ | |
| 取り扱い企業 | コンガテックジャパン株式会社 (この企業の取り扱いカタログ一覧) |
この企業の関連カタログ
このカタログの内容

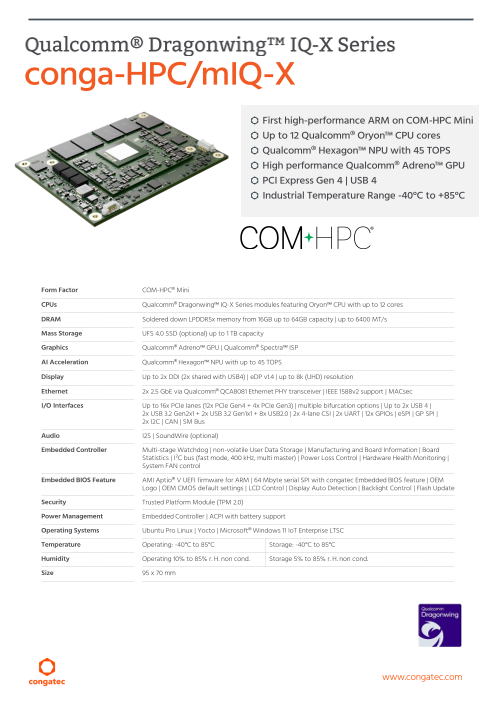

Page1
Folie 1
conga-HPC/mIQ-X
First high-performance ARM on COM-HPC Mini
Up to 12 Qualcomm® Oryon CPU cores
Qualcomm® Hexagon NPU with 45 TOPS
High performance Qualcomm® Adreno GPU
PCI Express Gen 4 | USB 4
Industrial Temperature Range -40°C to +85°C
Form Factor COM-HPC® Mini
CPUs Qualcomm® Dragonwing IQ-X Series modules featuring Oryon CPU with up to 12 cores
DRAM Soldered down LPDDR5x memory from 16GB up to 64GB capacity | up to 6400 MT/s
Mass Storage UFS 4.0 SSD (optional) up to 1 TB capacity
Graphics Qualcomm® Adreno GPU | Qualcomm® Spectra ISP
AI Acceleration Qualcomm® Hexagon NPU with up to 45 TOPS
Display Up to 2x DDI (2x shared with USB4) | eDP v1.4 | up to 8k (UHD) resolution
Ethernet 2x 2.5 GbE via Qualcomm® QCA8081 Ethernet PHY transceiver | IEEE 1588v2 support | MACsec
I/O Interfaces Up to 16x PCIe lanes (12x PCIe Gen4 + 4x PCIe Gen3) | multiple bifurcation options | Up to 2x USB 4 |
2x USB 3.2 Gen2x1 + 2x USB 3.2 Gen1x1 + 8x USB2.0 | 2x 4-lane CSI | 2x UART | 12x GPIOs | eSPI | GP SPI |
2x I2C | CAN | SM Bus
Audio I2S | SoundWire (optional)
Embedded Controller Multi-stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board
Statistics | I²C bus (fast mode, 400 kHz, multi master) | Power Loss Control | Hardware Health Monitoring |
System FAN control
Embedded BIOS Feature AMI Aptio® V UEFI firmware for ARM | 64 Mbyte serial SPI with congatec Embedded BIOS feature | OEM
Logo | OEM CMOS default settings | LCD Control | Display Auto Detection | Backlight Control | Flash Update
Security Trusted Platform Module (TPM 2.0)
Power Management Embedded Controller | ACPI with battery support
Operating Systems Ubuntu Pro Linux | Yocto | Microsoft® Windows 11 IoT Enterprise LTSC
Temperature Operating: -40°C to 85°C Storage: -40°C to 85°C
Humidity Operating 10% to 85% r. H. non cond. Storage 5% to 85% r. H. non cond.
Size 95 x 70 mm
www.congatec.com
Page2
Folie 2
conga-HPC/mIQ-X
16 COM HPC Mini
16-6-6464
GGBB L PLPDDDRR5x
1616--644G GB BLPDDDDDR
55x LP Rx5x Connector
Qualcomm® CSI 0 MIPI-CSI 4-lane
Dragonwing CSI 1 MIPI-CSI 4-lane
IQ-X Series
System-in-Package
UFS 4.0
UFS 4.0 128 GB to 1 TB
eDP eDP
DDI / USB 4 DDI / USB 4
DDI / USB 4 DDI / USB 4
4x USB 2.0 4x USB 2.0
USB 3.2 Gen 2 USB 3.2 Gen 2
USB 3.2 Gen 2 USB 3.2 Gen 2
USB 3.2 Gen1 USB 3.2 Gen1
USB 3.2 Gen1
USB 3.2 Gen1 USB 3 Hub USB 3.2 Gen1
USB 2
PCIe 8-15 Gen 4 PCIe 8-15
PCIe 4-7 Gen 4 PCIe 4-7
QPS615 Ethernet Phy 2.5 GbE
PCIe 2-3 Gen 3 Bridge
PCIe 2-3
QPS615 PCIe 0-1
PCIe 0-1 Gen 3 Bridge Ethernet Phy 2.5 GbE
3x I2C
2x UART
QSPI
SMB
12x GPIO
I2S / SNDW
SNDW / DMIC
SNDW / DMIC
SPI
SPI Flash Boot SPI
I2C RST#,Sus
ACPI Int Board RSMRST#,
Sleep Int Controller Wake, LID,
Reset Sys Fan
Sys Therm Temp Sens
SPI TPM 2.0
SPI SPI to CAN
CAN
Assembly Option
www.congatec.com
Page3
Folie 3
conga-HPC/mIQ-X
Article PN Description
COM-HPC Mini module based on Qualcomm® Dragonwing IQ-X7 with 12
Oryon CPU cores up to 3.4GHz | 64GB soldered down LPDDR5x memory |
conga-HPC/mIQ-X7-64G UFS128 053100 Adreno GPU up to 1.25GHz | Hexagon NPU with 45 TOPS | Adreno DPU |
Spectra ISP | 6MB system cache | 28-45W TDP | Industrial grade
temperature range from -40°C to 85°C.
COM-HPC Mini module based on Qualcomm® Dragonwing IQ-X7 with 12
Oryon CPU cores up to 3.4GHz | 32GB soldered down LPDDR5x memory |
conga-HPC/mIQ-X7-32G UFS128 053101 Adreno GPU up to 1.25GHz | Hexagon NPU with 45 TOPS | Adreno DPU |
Spectra ISP | 6MB system cache | 28-45W TDP | Industrial grade
temperature range from -40°C to 85°C.
COM-HPC Mini module based on Qualcomm® Dragonwing IQ-X7 with 12
Oryon CPU cores up to 3.4GHz | 16GB soldered down LPDDR5x memory |
conga-HPC/mIQ-X7-16G UFS128 053102 Adreno GPU up to 1.25GHz | Hexagon NPU with 45 TOPS | Adreno DPU |
Spectra ISP | 6MB system cache | 28-45W TDP | Industrial grade
temperature range from -40°C to 85°C.
COM-HPC Mini module based on Qualcomm® Dragonwing IQ-X5 with 8
Oryon CPU cores up to 3.4GHz | 32GB soldered down LPDDR5x memory |
conga-HPC/mIQ-X5-32G UFS128 053106 Adreno GPU up to 1.25GHz | Hexagon NPU with 45 TOPS | Adreno DPU |
Spectra ISP | 6MB system cache | 28-45W TDP | Industrial grade
temperature range from -40°C to 85°C.
COM-HPC Mini module based on Qualcomm® Dragonwing IQ-X5 with 8
Oryon CPU cores up to 3.4GHz | 16GB soldered down LPDDR5x memory |
conga-HPC/mIQ-X5-16G UFS128 053107 Adreno GPU up to 1.25GHz | Hexagon NPU with 45 TOPS | Adreno DPU |
Spectra ISP | 6MB system cache | 28-45W TDP | Industrial grade
temperature range from -40°C to 85°C.
www.congatec.com
Page4
Folie 4
conga-HPC/mIQ-X
Article PN Description
conga-HPC/mIQ-X-HSP-B 053154 Standard heatspreader for COM-HPC module conga-HPC/mIQX. All standoffs are with
2.7mm bore hole.
conga-HPC/mIQ-X-HSP-T 053155 Standard heatspreader for COM-HPC module conga-HPC/mIQX. All standoffs are
M2.5mm threaded.
© 2025 congatec GmbH. All data is for information purposes only. Although all the information contained within this document is
All rights reserved. carefully checked, no guarantee of correctness is implied or expressed. Product names, logos, brands, and
other trademarks featured or referred are the property of their respective trademark holders. These trademark
holders are not affiliated with congatec GmbH. Product not yet released for Mass Production.
Revision 0.1 – November 2025
