conga-SMX95：SMARC（NXP i.MX 95）データシート

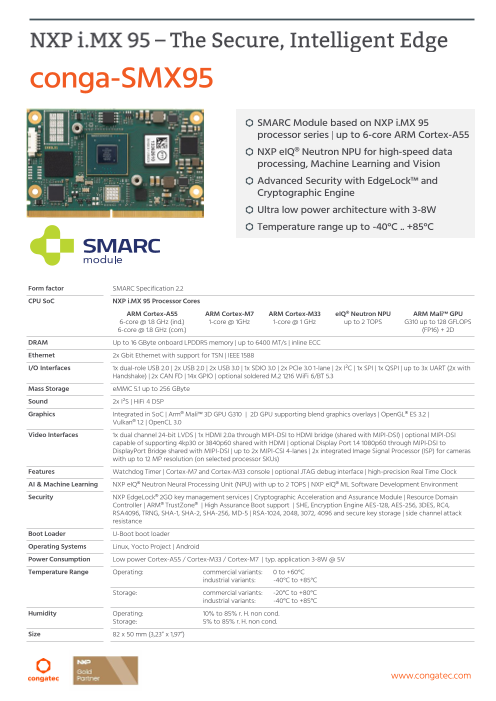

conga-SMX95 SMARC Module based on NXP i.MX 95 processor series | up to 6-core ARM Cortex-A55 NXP eIQ® Neutron NPU for high-speed data processing, Machine Learning and Vision Advanced Security with EdgeLock and Cryptographic Engine Ultra low power architecture with 3-8W Temperature range up to -40°C .. +85°C Form factor SMARC Specification 2.2 CPU SoC NXP i.MX 95 Processor Cores ARM Cortex-A55 ARM Cortex-M7 ARM Cortex-M33 eIQ® Neutron NPU ARM Mali GPU 6-core @ 1.8 GHz (ind.) 1-core @ 1GHz 1-core @ 1 GHz up to 2 TOPS G310 up to 128 GFLOPS 6-core @ 1.8 GHz (com.) (FP16) + 2D DRAM Up to 16 GByte onboard LPDDR5 memory | up to 6400 MT/s | inline ECC Ethernet 2x Gbit Ethernet with support for TSN | IEEE 1588 I/O Interfaces 1x dual-role USB 2.0 | 2x USB 2.0 | 2x USB 3.0 | 1x SDIO 3.0 | 2x PCIe 3.0 1-lane | 2x I²C | 1x SPI | 1x QSPI | up to 3x UART (2x with Handshake) | 2x CAN FD | 14x GPIO | optional soldered M.2 1216 WiFi 6/BT 5.3 Mass Storage eMMC 5.1 up to 256 GByte Sound 2x I²S | HiFi 4 DSP Graphics Integrated in SoC | Arm® Mali 3D GPU G310 | 2D GPU supporting blend graphics overlays | OpenGL® ES 3.2 | Vulkan® 1.2 | OpenCL 3.0 Video Interfaces 1x dual channel 24-bit LVDS | 1x HDMI 2.0a through MIPI-DSI to HDMI bridge (shared with MIPI-DSI) | optional MIPI-DSI capable of supporting 4kp30 or 3840p60 shared with HDMI | optional Display Port 1.4 1080p60 through MIPI-DSI to DisplayPort Bridge shared with MIPI-DSI | up to 2x MIPI-CSI 4-lanes | 2x integrated Image Signal Processor (ISP) for cameras with up to 12 MP resolution (on selected processor SKUs) Features Watchdog Timer | Cortex-M7 and Cortex-M33 console | optional JTAG debug interface | high-precision Real Time Clock AI & Machine Learning NXP eIQ® Neutron Neural Processing Unit (NPU) with up to 2 TOPS | NXP eIQ® ML Software Development Environment Security NXP EdgeLock® 2GO key management services | Cryptographic Acceleration and Assurance Module | Resource Domain Controller | ARM® TrustZone® | High Assurance Boot support | SHE, Encryption Engine AES-128, AES-256, 3DES, RC4, RSA4096, TRNG, SHA-1, SHA-2, SHA-256, MD-5 | RSA-1024, 2048, 3072, 4096 and secure key storage | side channel attack resistance Boot Loader U-Boot boot loader Operating Systems Linux, Yocto Project | Android Power Consumption Low power Cortex-A55 / Cortex-M33 / Cortex-M7 | typ. application 3-8W @ 5V Temperature Range Operating: commercial variants: 0 to +60°C industrial variants: -40°C to +85°C Storage: commercial variants: -20°C to +80°C industrial variants: -40°C to +85°C Humidity Operating: 10% to 85% r. H. non cond. Storage: 5% to 85% r. H. non cond. Size 82 x 50 mm (3,23” x 1,97”) www.congatec.com

conga-SMX95 | Block Diagram SMARC Connector Onboard LVDS0 LVDS 0 LPDDR5 LPDDR5 Memory LVDS1 / MIPI-DSI LVDS 1 4-lane DSI* DSI to DP* DP 1.4* DSI to HDMI HDMI JTAG* JTAG GBE0 / TSN PHY Ethernet 0 / TSN GBE1 / TSN PHY Ethernet 1 / TSN COM Driver Console M7 PCIe 0 PCIe Gen 3 PCIe 1 PCIe Gen 3 COM Driver Console M33 MIPI-CSI 0 MIPI-CSI 4-lane MIPI-CSI 1 MIPI-CSI 2-lane * eMMC eMMC 5.1 NXP i.MX 95 SDIO SDIO Processor I2S 0 2x I2S Audio * Series I2S 1 I2S Audio Precision RTC I2C USB 2.0 1x USB 2.0 dual-role 2 to 6 core Cortex A55 NXP Neutrino NPU 2x USB 3.0 USB 3.0 USB hub SDIO 2x USB 2.0 1x Cortex M7 & M33 CAN FD 2x CAN FD SDIO* 1x UART 2-wire** M.2 1216 2x UART 4-wire industrial WiFi/ BT* UART* 3x I2C UART3 2x SPI GPIO GPIO [0:13] Power Rail Power Control 3x PMIC * Assembly Option ** Shared with Console www.congatec.com

conga-SMX95 | Order Information Article PN Description SMARC Module with NXP i.MX 9596 6-core processor. Features 6x ARM Cortex-A55 @ 2 GHz, ARM Cortex-M7, ARM Cortex-M33, eIQ Neutron NPU, 8GB onboard LPDDR5 memory and conga-SMX95/MX959-6C-8G eMMC64 051600 64GB onboard eMMC. Commercial grade temperature range from 0°C to 60°C. SMARC Module with NXP i.MX 9596 6-core processor. Features 6x ARM Cortex-A55 @ 1.8 GHz, ARM Cortex-M7, ARM Cortex-M33, eIQ Neutron NPU, 4GB onboard LPDDR5 memory and conga-SMX95/MX959-6C-4G eMMC64 051601 64GB onboard eMMC. Commercial grade temperature range from 0°C to 60°C. SMARC Module with NXP i.MX 9596 6-core processor. Features 6x ARM Cortex-A55 @ 1.8 GHz, ARM Cortex-M7, ARM Cortex-M7, eIQ Neutron NPU, 8GB onboard LPDDR5 memory and conga-SMX95/i-MX959-6C-8G eMMC64 051610 64GB onboard eMMC. Industrial grade temperature range from -40°C to 85°C. SMARC Module with NXP i.MX 9596 6-core processor. Features 6x ARM Cortex-A55 @ 1.8 GHz, ARM Cortex-M7, ARM Cortex-M33, eIQ Neutron NPU, 4GB onboard LPDDR5 memory and conga-SMX95/i-MX959-6C-4G eMMC64 051611 64GB onboard eMMC. Industrial grade temperature range from -40°C to 85°C. SMARC Module with NXP i.MX 9596 6-core processor. Features 6x ARM Cortex-A55 @ 1.8 GHz, ARM Cortex-M7, ARM Cortex-M7, eIQ Neutron NPU, 8GB onboard LPDDR5 memory and 64GB onboard eMMC. Industrial grade temperature range from -40°C to 85°C. With DSI to conga-SMX95/i-MX959-6C-8G eMMC64 DP 051612 DisplayPort bridge. SMARC Module with NXP i.MX 9596 6-core processor. Features 6x ARM Cortex-A55 @ 1.8 GHz, ARM Cortex-M7, ARM Cortex-M33, eIQ Neutron NPU, 8GB onboard LPDDR5 memory and 64GB onboard eMMC. Industrial grade temperature range from -40°C to 85°C. With Wifi6 conga-SMX95/i-MX959-6C-8G eMMC64 NX611 051620 module based on NXP NX611. Passive cooling solution for SMARC module conga-SMX95 based on non-lidded NXP i.MX 95 conga-SMX95/CSP-B 051652 ARM processor. All standoffs are with 2.7mm bore hole. Heat spreader solution for SMARC module conga-SMX95 based on non-lidded NXP i.MX 95 conga-SMX95/HSP-B 051653 ARM processor. All standoffs are with 2.7mm bore hole. Active heatsink cooling adapter for SMARC modules used in combination with module heat SMARC/CSA Adapter 050060 spreader. conga-SEVAL 007010 Evaluation carrier board for SMARC modules. conga-SMC1/SMARC-ARM 020750 3.5’’ carrier board for congatec SMARC modules based on NXP i.MX ARM architecture. © 2025 congatec GmbH. All data is for information purposes only. Although all the information contained within this document is carefully All rights reserved. checked, no guarantee of correctness is implied or expressed. Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with congatec GmbH. Draft Rev. 0.6, August 5th, 2025 www.congatec.com
