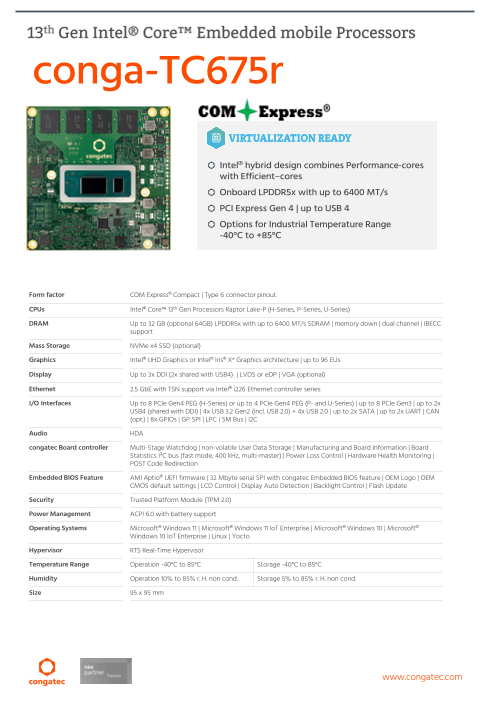

カタログの表紙
カタログの表紙

このカタログをダウンロードして
すべてを見る

ダウンロード(275.5Kb)

COM Express Compact Type 6 堅牢版: conga-TC675r データシート

製品カタログ

耐衝撃性と耐振動性に優れ、第13世代 インテル Core (Raptor Lake) プロセッサーを搭載

conga-TC675rは、第13世代 インテル Core プロセッサー(以前のコードネームは Raptor Lake)のBGAタイプを搭載した、耐衝撃性と耐振動性に優れた堅牢版のCOM Express Compact Type 6(95x95 mm)モジュールです。ハイブリッドアーキテクチャーを搭載した新しいプロセッサーは6種類(8〜14コア)から選択でき、最大32GBのLPDDR5x(最大6400 MT/s)SDRAMを直付けで搭載しています。PCIe Gen 4、USB 3.2をサポートし、インテル ディープラーニング・ブースト(VNNI)による AI アクセラレーションもサポートしています。産業用動作温度範囲 -40℃~+85℃をサポートします。

このカタログについて

ドキュメント名 COM Express Compact Type 6 堅牢版: conga-TC675r データシート
ドキュメント種別 製品カタログ
ファイルサイズ 275.5Kb
登録カテゴリ
取り扱い企業 コンガテックジャパン株式会社 (この企業の取り扱いカタログ一覧)

この企業の関連カタログ

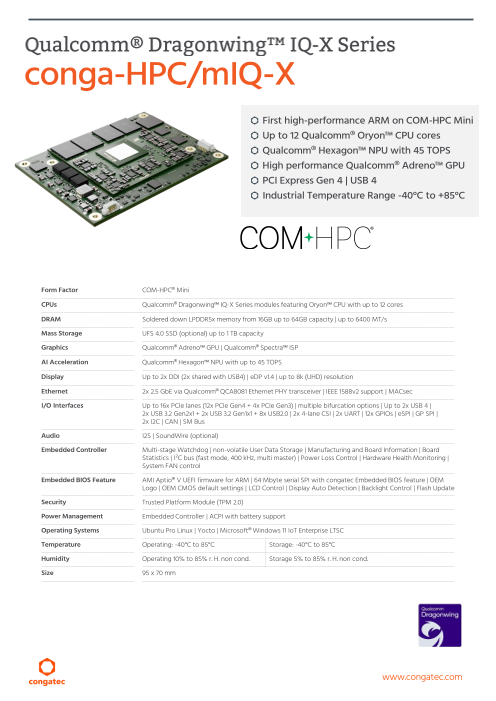

この企業の関連カタログの表紙
SMARC: conga-SMX95 データシート
製品カタログ

コンガテックジャパン株式会社

この企業の関連カタログの表紙
【製品ハイライト】 コンガテック ハイライト2024
製品カタログ

コンガテックジャパン株式会社

この企業の関連カタログの表紙
COM Express Compact Type 6 モジュール: conga-TC700 データシート
製品カタログ

コンガテックジャパン株式会社

このカタログの内容

Page1

Folie 1

conga-TC675r - Intel® hybrid design combines Performance- cores with Efficient–cores - Up to Intel® Iris® Xe Graphics architecture with up to 96 EUs - PCI Express Gen 4 | USB 4 - AI Acceleration with Intel® Deep Learning Boost (VNNI) - Options for Industrial Temperature Range -40°C up to +85°C Form factor COM Express® Compact | Type 6 connector pinout CPUs Intel® Core™ 13th Gen Processors Raptor Lake-P (H-Series, P-Series, U-Series) DRAM Up to 32 GB (optional 64GB) LPDDR5x with up to 6000 MT/s SDRAM | memory down | dual channel | IBECC Mass Storage NVMe x4 SSD (optional) Graphics Intel® UHD Graphics or Intel® Iris® Xe Graphics architecture | up to 96 EUs Display Up to 3x DDI (2x shared with USB4) | LVDS or eDP | VGA (optional) Ethernet 2.5 GbE with TSN support via Intel® i226 Ethernet controller series I/O Interfaces Up to 8 PCIe Gen4 PEG (H-Series) or up to 4 PCIe Gen4 PEG (P- and U-Series) | up to 8 PCIe Gen3 | up to 2x USB4 | 4x USB 3.2 Gen2 (incl. USB 2.0) + 4x USB 2.0 | up to 2x SATA | up to 2x UART | CAN (opt.) | 8x GPIOs | GP SPI | LPC | SM Bus | I2C Audio HDA congatec Board controller Multi-Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control | Hardware Health Monitoring | POST Code Redirection Embedded BIOS Feature AMI Aptio® UEFI firmware | 32 Mbyte serial SPI with congatec Embedded BIOS feature | OEM Logo | OEM CMOS default settings | LCD Control | Display Auto Detection | Backlight Control | Flash Update Security Trusted Platform Module (TPM 2.0) Power Management Modern Standby Operating Systems Microsoft® Windows 11 IoT Enterprise | Microsoft® Windows 10 | Microsoft® Windows 10 IoT Enterprise | Linux | Yocto Hypervisor RTS Real-Time Hypervisor Temperature Operation -40°C to 85°C Storage -40°C to 85°C Humidity Operation 10% to 90% r. H. non cond. Storage 5% to 95% r. H. non cond. Size 95 x 95 mm www.congatec.com
Page2

Folie 2

conga-TC675r Dual Channel up to LPDDR5x 6400 MT/s COM Express 2x 220 pos 4x LPDDR5x Connector Type 6 USB 2.0 Port 0-7 USB 3.2 Port 0-3 Raptor Lake-P H-Series only! PCIe x8 PEG PCIe Gen4 Assembly option Raptor Lake-P H Series: Port 0-7 x4 Raptor Lake-P U- and P-Series: Port 0-3*) PCIe x4 NVMe PCIe Gen3 Port 0-3 PCIe Gen3 Port 4-5 13th Gen. Intel® MUX PCIe Gen3 Port 6 Core™ SOC SATA Port 1 “Raptor Lake-P” MUX PCIe Gen3 Port 7 SATA Port 0 i226 PCIe Ethernet SML0 2.5 GBE/TSN SDP TCP DDI 1-3 (ports 1 and 2 are shared with USB4) eDP DDIA MUX eDP to LVDS MUX LVDS/eDP Bridge VGA DDIB Converter VGA Assembly option HDA HD Audio SM Bus SM Bus MGMNT GPIO I2C SML1 congatec LID#/SLEEP# Board FAN Control UART0 Controller 5th Gen. CAN UART1/CAN Assembly option GP SPI eSPI to LPC eSPI ECE1200 LPC SPI SPI Flash TPM 2.0 Assembly option – only available on request *) If Assembly option for NVMe is used there is no PCIe support on PEG Port www.congatec.com
Page3

Folie 3

conga-TC675r Article PN Description COM Express Type 6 Compact module based on Intel® Core™ i7-13800HRE processor with 6 P-cores 2.5GHz up to 5.0GHz Turbo and 8 E-cores 1.8GHz up conga-TC675r/i7-13800HRE-32G 045330 to 4.0GHz Turbo | 24MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 96 EUs | 32 GByte dual channel LPDDR5x memory down | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (H-Series) COM Express Type 6 Compact module based on Intel® Core™ i7-1370PRE processor with 6 P-cores 1.9GHz up to 4.8GHz Turbo and 8 E-cores 1.2GHz up conga-TC675r/i7-1370PRE-16G 045331 to 3.7GHz Turbo | 24MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 96 EUs | 16 GByte dual channel LPDDR5x memory down | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (P-Series) COM Express Type 6 Compact module based on Intel® Core™ i7-1365URE processor with 2 P-cores 1.7GHz up to 4.9GHz Turbo and 8 E-cores 1.2GHz up conga-TC675r/i7-1365URE-16G 045332 to 3.7GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 96 EUs | 16 GByte dual channel LPDDR5x memory down | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (U-Series) COM Express Type 6 Compact module based on Intel® Core™ i5-13600HRE processor with 4 P-cores 2.7GHz up to 4.8GHz Turbo and 8 E-cores 1.9GHz up conga-TC675r/i5-13600HRE-16G 045333 to 3.6GHz Turbo | 18MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 80EUs | 16 GByte dual channel LPDDR5x memory down | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (H-Series) COM Express Type 6 Compact module based on Intel® Core™ i5-1350PRE processor with 4 P-cores 1.8GHz up to 4.6GHz Turbo and 8 E-cores 1.3GHz up conga-TC675r/i5-1350PRE-16G 045334 to 3.4GHz Turbo | 12MB Intel® Smart Cache | Intel® Iris® Xe Graphics architecture with 80 EUs | 16 GByte dual channel LPDDR5x memory down | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (P-Series) COM Express Type 6 Compact module based on Intel® Core™ i3-1320PRE processor with 4 P-cores 1.7GHz up to 4.5GHz Turbo and 4 E-cores 1.2GHz up conga-TC675r/i3-1320PRE-16G 045337 to 3.3GHz Turbo | 12MB Intel® Smart Cache | Intel® UHD Graphics with 48EUs | 16 GByte dual channel LPDDR5x memory down | Industrial grade temperature range from -40°C to +85°C | Intel® code name Raptor Lake-P (P-Series) www.congatec.com
Page4

Folie 4

conga-TC675r Article PN Description Standard active cooling solution for high performance COM Express module conga- conga-TC675/CSA-HP-B 049750 TC675 with integrated heat pipes, 25.5mm height and integrated 12V fan. All standoffs are with 2.7mm bore hole. Standard active cooling solution for high performance COM Express module conga- conga-TC675/CSA-HP-T 049751 TC675 with integrated heat pipes, 25.5mm height and integrated 12V fan. All standoffs are M2.5mm threaded. Standard passive cooling solution for high performance COM Express module conga- conga-TC675/CSP-HP-B 049752 TC675 with integrated heat pipes, 24.7mm height. All standoffs are with 2.7mm bore hole. conga-TC675/CSP-HP-T 049753 Standard passive cooling solution for high performance COM Express module conga- TC675 with integrated heat pipes, 24.7mm height. All standoffs are M2.5mm threaded. conga-TC675/HSP-HP-B 049754 Standard heatspreader for high performance COM Express module conga-TC675 with integrated heat pipes, 11mm height. All standoffs are with 2.7mm bore hole. conga-TC675/HSP-HP-T 049755 Standard heatspreader for high performance COM Express module conga-TC675 with integrated heat pipes, 11mm height. All standoffs are M2.5mm threaded. conga-TEVAL2 065810 Evaluation carrier board for COM Express Type6 rev3.0 modules. conga-TEVAL/COMe 3.1 065820 Evaluation carrier board for COM Express Type6 rev3.1 modules. © 2023 congatec GmbH. All data is for information purposes only. Although all the information contained within this document is All rights reserved. carefully checked, no guarantee of correctness is implied or expressed. Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with congatec GmbH. Product not yet released for Mass Production. Preliminary Revision 1.5 – December 21st ,2023 www.congatec.com
