Intel Atom x7000RE（Amston Lake）、インテル Core i3、インテル Core 3 プロセッサー搭載 SMARC モジュール
conga-SA8は、Intel Atom プロセッサー（x7000RE シリーズ）、インテル Core i3、および最新の インテル Core 3 プロセッサーを搭載した産業グレードの SMARCモジュールです。 最大 8コアで、最大 16 GB の直付け LPDDR5 を実装し、RTS ハイパーバイザーによる仮想化に対応しています。
新しくインテグレートされた AI機能により、 最適化されたインテル AVX2 や、インテル VNNI 命令セットを使ってディープラーニング推論の処理を加速します。Wi-Fi 6E をサポートし、 Wi-Fi 5 の製品と比較して、混雑した環境や過負荷の状況においても、ほぼ 3倍のデータレートとより安定した接続性を提供します。 また、Wi-Fi 経由の TSN をサポートしているため、プライベート 5G ネットワーキングや新しいイーサネットケーブルに代わる、費用対効果の高い選択肢が提供されます。産業用途向けに設計されており、-40℃〜+85℃の産業用温度範囲オプションも用意されています。
このカタログについて
| ドキュメント名 | conga-SA8：SMARC（Intel Atom x7000RE）データシート |
|---|---|
| ドキュメント種別 | 製品カタログ |
| ファイルサイズ | 460.4Kb |
| 登録カテゴリ | |
| 取り扱い企業 | コンガテックジャパン株式会社 (この企業の取り扱いカタログ一覧) |
この企業の関連カタログ
このカタログの内容
Page1

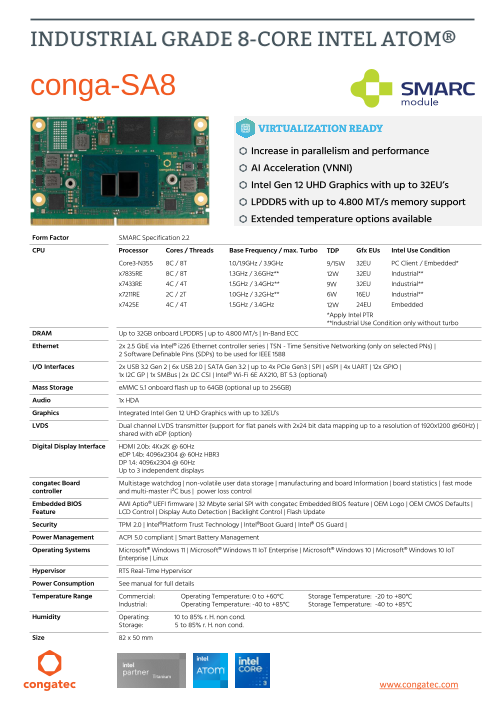

Folie 1: industrial grade 8-Core INTEL ATOM® conga-SA8
conga-SA8
Increase in parallelism and performance
AI Acceleration (VNNI)
Intel Gen 12 UHD Graphics with up to 32EU’s
LPDDR5 with up to 4.800 MT/s memory support
Extended temperature options available
Form Factor SMARC Specification 2.2
CPU Processor Cores / Threads Base Frequency / max. Turbo TDP Gfx EUs Intel Use Condition
Core3-N355 8C / 8T 1.0/1.9GHz / 3.9GHz 9/15W 32EU PC Client / Embedded*
x7835RE 8C / 8T 1.3GHz / 3.6GHz** 12W 32EU Industrial**
x7433RE 4C / 4T 1.5GHz / 3.4GHz** 9W 32EU Industrial**
x7211RE 2C / 2T 1.0GHz / 3.2GHz** 6W 16EU Industrial**
x7425E 4C / 4T 1.5GHz / 3.4GHz 12W 24EU Embedded
*Apply Intel PTR
**Industrial Use Condition only without turbo
DRAM Up to 32GB onboard LPDDR5 | up to 4.800 MT/s | In-Band ECC
Ethernet 2x 2.5 GbE via Intel® i226 Ethernet controller series | TSN - Time Sensitive Networking (only on selected PNs) |
2 Software Definable Pins (SDPs) to be used for IEEE 1588
I/O Interfaces 2x USB 3.2 Gen 2 | 6x USB 2.0 | SATA Gen 3.2 | up to 4x PCIe Gen3 | SPI | eSPI | 4x UART | 12x GPIO |
1x I2C GP | 1x SMBus | 2x I2C CSI | Intel® Wi-Fi 6E AX210, BT 5.3 (optional)
Mass Storage eMMC 5.1 onboard flash up to 64GB (optional up to 256GB)
Audio 1x HDA
Graphics Integrated Intel Gen 12 UHD Graphics with up to 32EU’s
LVDS Dual channel LVDS transmitter (support for flat panels with 2x24 bit data mapping up to a resolution of 1920x1200 @60Hz) |
shared with eDP (option)
Digital Display Interface HDMI 2.0b: 4Kx2K @ 60Hz
eDP 1.4b: 4096x2304 @ 60Hz HBR3
DP 1.4: 4096x2304 @ 60Hz
Up to 3 independent displays
congatec Board Multistage watchdog | non-volatile user data storage | manufacturing and board Information | board statistics | fast mode
controller and multi-master I²C bus | power loss control
Embedded BIOS AMI Aptio® UEFI firmware | 32 Mbyte serial SPI with congatec Embedded BIOS feature | OEM Logo | OEM CMOS Defaults |
Feature LCD Control | Display Auto Detection | Backlight Control | Flash Update
Security TPM 2.0 | Intel®Platform Trust Technology | Intel®Boot Guard | Intel® OS Guard |
Power Management ACPI 5.0 compliant | Smart Battery Management
Operating Systems Microsoft® Windows 11 | Microsoft® Windows 11 IoT Enterprise | Microsoft® Windows 10 | Microsoft® Windows 10 IoT
Enterprise | Linux
Hypervisor RTS Real-Time Hypervisor
Power Consumption See manual for full details
Temperature Range Commercial: Operating Temperature: 0 to +60°C Storage Temperature: -20 to +80°C
Industrial: Operating Temperature: -40 to +85°C Storage Temperature: -40 to +85°C
Humidity Operating: 10 to 85% r. H. non cond.
Storage: 5 to 85% r. H. non cond.
Size 82 x 50 mm
www.congatec.com
Page2
Folie 2
conga-SA8 | Block Diagram
SMARC
Assembly Option eDP*
Connector
Onboard
LPDDR5 eDP to LVDS LVDSA / eDP0
memory LPDDR5 DDI0 Bridge LVDSB
Intel Atom® x7000 DDI1 DP++
Series processors HDMI Level
DDI2 DDI/DP++
Shifter
(“Alder Lake-N”
“Amston Lake” Assembly Option*
“Twin Lake”) PCIe Gen3 PCIe0
PCIe Gen3 PCIe1
eMMC 5.1 PCIe Gen3 PCIe2
eMMC
PCIe Gen3 PCIe3
x1 x2
SATA SATA
Intel i226 Eth
PCIe Ethernet 0
Controller
Intel i226 Eth
WiFi/BT PCIe Ethernet 1
PCIe Gen3 Controller
M.2
1216* USB 2.0 USB 3.2 USB 3.2
USB 3.2 USB 3.2
Assembly Option* USB 2.0 6x USB 2.0
HDA/I2S HDA/I2S
UART SER 1 / SER 2
SER 0 / SER 3
SMBus
I2C_GP
GPIO
eSPI FSPI SPI0
eSPI
Note: * Assembly options on request only.
BIOS TPM 2.0
congatec
Board Controller
Multistage Watchdog
Board Information
HW Monitoring
Power Control / GPIO
SER0 / SER3 / I2C
www.congatec.com
Page3
Folie 3
conga-SA8 | Order Information (1/2)
Article PN Description
SMARC 2.2 module with Intel Atom® x7835RE 8-core processor with 1.3GHz
conga-SA8/i-x7835RE-16G-eMMC64 051410 core frequency up to 3.6GHz (turbo), 16GB 4800MT/s LPDDR5 onboard
memory and 64GB eMMC 5.1 onboard flash. Supports TSN.
Industrial grade temperature range from -40°C to 85°C.
SMARC 2.2 module with Intel Atom® x7835RE 8-core processor with 1.3GHz
conga-SA8/i-x7835RE-8G-eMMC32 051411 core frequency up to 3.6GHz (turbo), 8GB 4800MT/s LPDDR5 onboard
memory and 32GB eMMC 5.1 onboard flash. Supports TSN.
Industrial grade temperature range from -40°C to 85°C.
SMARC 2.2 module with Intel Atom® x7433RE 4-core processor with 1.5GHz
conga-SA8/i-x7433RE-16G-eMMC64 051418 core frequency up to 3.4GHz (turbo), 16GB 4800MT/s LPDDR5 onboard
memory and 64GB eMMC 5.1 onboard flash. Supports TSN.
Industrial grade temperature range from -40°C to 85°C.
SMARC 2.2 module with Intel Atom® x7433RE 4-core processor with 1.5GHz
conga-SA8/i-x7433RE-8G-eMMC32 051412 core frequency up to 3.4GHz (turbo), 8GB 4800MT/s LPDDR5 onboard
memory and 32GB eMMC 5.1 onboard flash. Supports TSN.
Industrial grade temperature range from -40°C to 85°C.
SMARC 2.2 module with Intel Atom® x7433RE 4-core processor with 1.5GHz
conga-SA8/i-x7433RE-4G-eMMC32 051413 core frequency up to 3.4GHz (turbo), 4GB 4800MT/s LPDDR5 onboard
memory and 32GB eMMC 5.1 onboard flash. Supports TSN.
Industrial grade temperature range from -40°C to 85°C.
SMARC 2.2 module with Intel Atom® x7211RE 2-core processor with 1.0GHz
conga-SA8/i-x7211RE-4G-eMMC32 051417 core frequency up to 3.2GHz (turbo), 4GB 4800MT/s LPDDR5 onboard
memory and 32GB eMMC 5.1 onboard flash. Supports TSN.
Industrial grade temperature range from -40°C to 85°C.
SMARC 2.2 module with Intel Atom® x7425E 4-core processor with 1.5GHz
conga-SA8/x7425E-16G-eMMC64 051419 core frequency up to 3.4GHz (turbo), 16GB 4800MT/s LPDDR5 onboard
memory and 64GB eMMC 5.1 onboard flash.
Commercial grade temperature range from 0°C to 60°C.
SMARC 2.2 module with Intel Atom® x7425E 4-core processor with 1.5GHz
conga-SA8/x7425E-8G-eMMC32 051415 core frequency up to 3.4GHz (turbo), 8GB 4800MT/s LPDDR5 onboard
memory and 32GB eMMC 5.1 onboard flash.
Commercial grade temperature range from 0°C to 60°C.
SMARC 2.2 module with Intel Core™ 3 N355 8-core processor with 1.9GHz
conga-SA8/core3-N355-16G-eMMC64 051416 core frequency up to 3.9GHz (turbo), 16GB 4800MT/s LPDDR5 onboard
memory and 64GB eMMC 5.1 onboard flash.
Commercial grade temperature range from 0°C to 60°C.
SMARC 2.2 module with Intel Atom® x7835RE 8-core processor with 1.3GHz
core frequency up to 3.6GHz (turbo), 8GB 4800MT/s LPDDR5 onboard
conga-SA8/i-x7835RE-8G-eMMC32 AX210 051420 memory and 32GB eMMC 5.1 onboard flash. Supports TSN.
Industrial grade temperature range from -40°C to 85°C.
Intel AX210 Wifi6E.
www.congatec.com
Page4
Folie 4
conga-SA8 | Order Information (2/2)
