COM Express Basic Type 6: conga-TS370 データシート

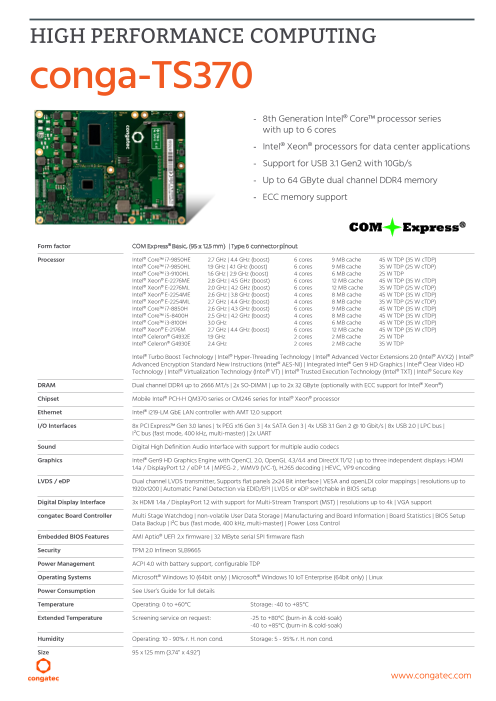

HIGH PERFORMANCE COMPUTING conga-TS370 - 8th Generation Intel® Core™ processor series with up to 6 cores - Intel® Xeon® processors for data center applications - Support for USB 3.1 Gen2 with 10Gb/s - Up to 64 GByte dual channel DDR4 memory - ECC memory support Form factor COM Express® Basic, (95 x 125 mm) | Type 6 connector pinout Processor Intel® Core™ i7-9850HE 2.7 GHz | 4.4 GHz (boost) 6 cores 9 MB cache 45 W TDP (35 W cTDP) Intel® Core™ i7-9850HL 1.9 GHz | 4.1 GHz (boost) 6 cores 9 MB cache 35 W TDP (25 W cTDP) Intel® Core™ i3-9100HL 1.6 GHz | 2.9 GHz (boost) 4 cores 6 MB cache 25 W TDP Intel® Xeon® E-2276ME 2.8 GHz | 4.5 GHz (boost) 6 cores 12 MB cache 45 W TDP (35 W cTDP) Intel® Xeon® E-2276ML 2.0 GHz | 4.2 GHz (boost) 6 cores 12 MB cache 35 W TDP (25 W cTDP) Intel® Xeon® E-2254ME 2.6 GHz | 3.8 GHz (boost) 4 cores 8 MB cache 45 W TDP (35 W cTDP) Intel® Xeon® E-2254ML 2.7 GHz | 4.4 GHz (boost) 4 cores 8 MB cache 35 W TDP (25 W cTDP) Intel® Core™ i7-8850H 2.6 GHz | 4.3 GHz (boost) 6 cores 9 MB cache 45 W TDP (35 W cTDP) Intel® Core™ i5-8400H 2.5 GHz | 4.2 GHz (boost) 4 cores 8 MB cache 45 W TDP (35 W cTDP) Intel® Core™ i3-8100H 3.0 GHz 4 cores 6 MB cache 45 W TDP (35 W cTDP) Intel® Xeon® E-2176M 2.7 GHz | 4.4 GHz (boost) 6 cores 12 MB cache 45 W TDP (35 W cTDP) Intel® Celeron® G4932E 1.9 GHz 2 cores 2 MB cache 25 W TDP Intel® Celeron® G4930E 2.4 GHz 2 cores 2 MB cache 35 W TDP Intel® Turbo Boost Technology | Intel® Hyper-Threading Technology | Intel® Advanced Vector Extensions 2.0 (Intel® AVX2) | Intel® Advanced Encryption Standard New Instructions (Intel® AES-NI) | Integrated Intel® Gen 9 HD Graphics | Intel® Clear Video HD Technology | Intel® Virtualization Technology (Intel® VT) | Intel® Trusted Execution Technology (Intel® TXT) | Intel® Secure Key DRAM Dual channel DDR4 up to 2666 MT/s | 2x SO-DIMM | up to 2x 32 GByte (optionally with ECC support for Intel® Xeon®) Chipset Mobile Intel® PCH-H QM370 series or CM246 series for Intel® Xeon® processor Ethernet Intel® i219-LM GbE LAN controller with AMT 12.0 support I/O Interfaces 8x PCI Express™ Gen 3.0 lanes | 1x PEG x16 Gen 3 | 4x SATA Gen 3 | 4x USB 3.1 Gen 2 @ 10 Gbit/s | 8x USB 2.0 | LPC bus | I²C bus (fast mode, 400 kHz, multi-master) | 2x UART Sound Digital High Definition Audio Interface with support for multiple audio codecs Graphics Intel® Gen9 HD Graphics Engine with OpenCL 2.0, OpenGL 4.3/4.4 and DirectX 11/12 | up to three independent displays: HDMI 1.4a / DisplayPort 1.2 / eDP 1.4 | MPEG-2 , WMV9 (VC-1), H.265 decoding | HEVC, VP9 encoding LVDS / eDP Dual channel LVDS transmitter, Supports flat panels 2x24 Bit interface | VESA and openLDI color mappings | resolutions up to 1920x1200 | Automatic Panel Detection via EDID/EPI | LVDS or eDP switchable in BIOS setup Digital Display Interface 3x HDMI 1.4a / DisplayPort 1.2 with support for Multi-Stream Transport (MST) | resolutions up to 4k | VGA support congatec Board Controller Multi Stage Watchdog | non-volatile User Data Storage | Manufacturing and Board Information | Board Statistics | BIOS Setup Data Backup | I²C bus (fast mode, 400 kHz, multi-master) | Power Loss Control Embedded BIOS Features AMI Aptio® UEFI 2.x firmware | 32 MByte serial SPI firmware flash Security TPM 2.0 Infineon SLB9665 Power Management ACPI 4.0 with battery support, configurable TDP Operating Systems Microsoft® Windows 10 (64bit only) | Microsoft® Windows 10 IoT Enterprise (64bit only) | Linux Power Consumption See User’s Guide for full details Temperature Operating: 0 to +60°C Storage: -40 to +85°C Extended Temperature Screening service on request: -25 to +80°C (burn-in & cold-soak) -40 to +85°C (burn-in & cold-soak) Humidity Operating: 10 - 90% r. H. non cond. Storage: 5 - 95% r. H. non cond. Size 95 x 125 mm (3.74” x 4.92”) www.congatec.com

conga-TS370 | Block Diagram www.congatec.com

conga-TS370 | Order Information – COM Express® Module Article PN Description conga-TS370/i7-9850HE 049102 COM Express Type 6 Basic module based on Intel® Core™ i7-9850HE 6-core processor with 2.7GHz up to 4.4GHz turbo boost, 12MB Intel® Smart Cache, Intel® UHD Graphics 630 and dual channel DDR4 2666 MT/s memory interface (formerly Coffee Lake-H Refresh). Chipset QM370. conga-TS370/i7-9850HL 049112 COM Express Type 6 Basic module based on Intel® Core™ i7-9850LE 6-core processor with 1.9GHz up to 4.1GHz turbo boost, 12MB Intel® Smart Cache, Intel® UHD Graphics 630 and dual channel DDR4 2666 MT/s memory interface (formerly Coffee Lake-H Refresh). Chipset QM370. conga-TS370/i3-9100HL 049113 COM Express Type 6 Basic module based on Intel® Core™ i3-9100HL 4-core processor with 1.6GHz up to 2.9GHz turbo boost, 12MB Intel® Smart Cache, Intel® UHD Graphics 630 and dual channel DDR4 2666 MT/s memory interface (formerly Coffee Lake-H Refresh). Chipset HM370. conga-TS370/E-2276ME 049100 COM Express Type 6 Basic module based on Intel® Xeon® E-2276ME 6-core processor with 2.8GHz up to 4.5GHz turbo boost, 12MB Intel® Smart Cache, Intel® UHD Graphics P630 and dual channel DDR4 2666 MT/s ECC memory interface (formerly Coffee Lake-H Refresh). Chipset CM246. conga-TS370/E-2276ML 049110 COM Express Type 6 Basic module based on Intel® Xeon® E-2276ML 6-core processor with 2.0GHz up to 4.2GHz turbo boost, 12MB Intel® Smart Cache, Intel® UHD Graphics P630 and dual channel DDR4 2666 MT/s ECC memory interface (formerly Coffee Lake-H Refresh). Chipset CM246. conga-TS370/E-2254ME 049101 COM Express Type 6 Basic module based on Intel® Xeon® E-2254ME 4-core processor with 2.6GHz up to 3.8GHz turbo boost, 8MB Intel® Smart Cache, Intel® UHD Graphics P630 and dual channel DDR4 2666 MT/s ECC memory interface (formerly Coffee Lake-H Refresh). Chipset CM246. conga-TS370/E-2254ML 049111 COM Express Type 6 Basic module based on Intel® Core™ E-2254ML 4-core processor with 1.7GHz up to 3.5GHz turbo boost, 8MB Intel® Smart Cache, Intel® UHD Graphics P630 and dual channel DDR4 2666 MT/s ECC memory interface (formerly Coffee Lake-H Refresh). Chipset CM246. conga-TS370/G4930E 049104 COM Express Type 6 Basic module based on Intel® Celeron® Processor G4930E 2-core processor with 2.4GHz, 2MB Intel® Smart Cache, Intel® UHD Graphics 610 and dual channel DDR4 2400 MT/s memory interface (formerly Coffee Lake-H Refresh). Chipset HM370. conga-TS370/G4932E 049114 COM Express Type 6 Basic module based on Intel® Celeron® Processor G4832E 2-core processor with 1.9GHz, 2MB Intel® Smart Cache, Intel® UHD Graphics 610 and dual channel DDR4 2400 MT/s memory interface (formerly Coffee Lake-H Refresh). Chipset HM370. conga-TS370/i7-8850H 049000 COM Express Type 6 Basic module based on Intel® Core™ i7-8850H 6-core processor with 2.6GHz up to 4.3GHz turbo boost, 9MB Intel® Smart Cache, Intel® UHD Graphics 630 and dual channel DDR4 2666 MT/s memory interface (formerly Coffee Lake-H). Chipset QM370. conga-TS370/i5-8400H 049001 COM Express Type 6 Basic module based on Intel® Core™ i5-8400H 4-core processor with 2.5GHz up to 4.2GHz turbo boost, 8MB Intel® Smart Cache, Intel® UHD Graphics 630 and dual channel DDR4 2666 MT/s memory interface (formerly Coffee Lake-H). Chipset QM370. conga-TS370/i3-8100H 049003 COM Express Type 6 Basic module based on Intel® Core™ i3-8100H 4-core processor with 3.0GHz, 6MB Intel® Smart Cache, Intel® UHD Graphics 630 and dual channel DDR4 2666 MT/s memory interface (formerly Coffee Lake-H). Chipset HM370. conga-TS370/E-2176M 049002 COM Express Type 6 Basic module based on Intel® Xeon® E-2176M 6-core processor with 2.7GHz up to 4.4GHz turbo boost, 12MB Intel® Smart Cache, Intel® UHD Graphics P630 and dual channel DDR4 2666 MT/s ECC memory interface (formerly Coffee Lake-H). Chipset CM246. © 2019 congatec AG. All rights reserved. All data is for information purposes only. Although all the information contained within this document is carefully checked, no guarantee of correctness is implied or expressed. Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with congatec AG. Rev. August 09, 2019 MR www.congatec.com

conga-TS370 | Order Information – Accessory Article PN Description conga-TS170/CSA-HP-B 045930 Standard active cooling solution for high performance COM Express modules conga-TS170/TS175 with integrated heat pipes, 15mm silver fins, 21mm overall heat sink height and integrated 12V fan. All standoffs are with 2.7mm bore hole. conga-TS170/CSA-HP-T 045931 Standard active cooling solution for high performance COM Express modules conga-TS170/TS175 with integrated heat pipes, 15mm silver fins, 21mm overall heat sink height and integrated 12V fan. All standoffs are M2.5mm thread. conga-TS170/CSP-HP-B 045932 Standard passive cooling solution for high performance COM Express modules conga-TS170/TS175 with integrated heat pipes, 15mm silver fins and 21mm overall heat sink height. All standoffs are with 2.7mm bore hole. conga-TS170/CSP-HP-T 045933 Standard passive cooling solution for high performance COM Express modules conga-TS170/TS175 with integrated heat pipes, 15mm silver fins and 21mm overall heat sink height. All standoffs are M2.5mm thread. conga-TS170/HSP-HP-B 045934 Standard heat spreader for high performance COM Express modules conga-TS170/TS175 with integrated heat pipes. All standoffs are with 2.7mm bore hole. conga-TS170/HSP-HP-T 045935 Standard heat spreader for high performance COM Express modules conga-TS170/TS175 with integrated heat pipes. All standoffs are M2.5mm thread. DDR4-SODIMM-2666 (4GB) 067780 DDR4 SODIMM memory module with 2666 MT/s and 4GB RAM DDR4-SODIMM-2666 (8GB) 067781 DDR4 SODIMM memory module with 2666 MT/s and 8GB RAM DDR4-SODIMM-2666 (16GB) 067782 DDR4 SODIMM memory module with 2666 MT/s and 16GB RAM DDR4-SODIMM-2666 (32GB) 068806 DDR4 SODIMM memory module with 2666 MT/s and 32GB RAM DDR4-SODIMM-2666 ECC (4GB) 067783 DDR4 ECC SODIMM memory module with 2666 MT/s and 4GB RAM DDR4-SODIMM-2666 ECC (8GB) 067784 DDR4 ECC SODIMM memory module with 2666 MT/s and 8GB RAM DDR4-SODIMM-2666 ECC (16GB) 067785 DDR4 ECC SODIMM memory module with 2666 MT/s and 16GB RAM DDR4-SODIMM-2666 ECC (32GB) 068805 DDR4 ECC SODIMM memory module with 2666 MT/s and 32GB RAM © 2019 congatec AG. All rights reserved. All data is for information purposes only. Although all the information contained within this document is carefully checked, no guarantee of correctness is implied or expressed. Product names, logos, brands, and other trademarks featured or referred are the property of their respective trademark holders. These trademark holders are not affiliated with congatec AG. Rev. September 02, 2019 MR www.congatec.com
