COM-HPC Server用Micro-ATX キャリアボード: conga-HPC/uATX-Server データシート
製品カタログ
COM-HPC Server モジュール用 Micro-ATX アプリケーション キャリアボード
標準Micro-ATXフォームファクターのCOM-HPC Server モジュール(Sizes D)用キャリアボードです。アプリケーションにそのまま組み込むことができるように設計されているため、インダストリアルグレードのCOM-HPCと、カスタマイズされた冷却ソリューション、そしてすべての主要なRTOS用の包括的なBSPやリアルタイムシステムズのリアルタイムハイパーバイザなどを組み合わせることで、早期市場投入を可能にすると同時にNREコストを最小限に抑えて、市場要求の変化に迅速に対応することができます。また、COM-HPCモジュールを交換することでアプリケーションをさらにハイパフォーマンスにしたり、コストダウンをおこなうなど、スケーリングが容易になるため、一種類のキャリアボードをベースとしてフルレンジの製品ポートフォリオを作成することができます。
このカタログについて
ドキュメント名 | COM-HPC Server用Micro-ATX キャリアボード: conga-HPC/uATX-Server データシート |
---|---|
ドキュメント種別 | 製品カタログ |
ファイルサイズ | 652.8Kb |
登録カテゴリ | |
取り扱い企業 | コンガテックジャパン株式会社 (この企業の取り扱いカタログ一覧) |
この企業の関連カタログ
このカタログの内容

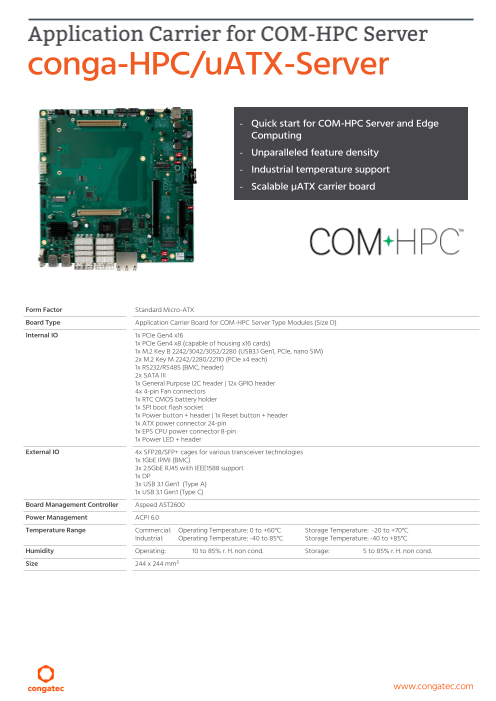

Page1
Folie 1
conga-HPC/uATX-Server
- Quick start for COM-HPC Server and Edge
Computing
- Unparalleled feature density
- Industrial temperature support
- Scalable µATX carrier board
Form Factor Standard Micro-ATX
Board Type Application Carrier Board for COM-HPC Server Type Modules (Size D)
Internal IO 1x PCIe Gen4 x16
1x PCIe Gen4 x8 (capable of housing x16 cards)
1x M.2 Key B 2242/3042/3052/2280 (USB3.1 Gen1, PCIe, nano SIM)
2x M.2 Key M 2242/2280/22110 (PCIe x4 each)
1x RS232/RS485 (BMC, header)
2x SATA III
1x General Purpose I2C header | 12x GPIO header
4x 4-pin Fan connectors
1x RTC CMOS battery holder
1x SPI boot flash socket
1x Power button + header | 1x Reset button + header
1x ATX power connector 24-pin
1x EPS CPU power connector 8-pin
1x Power LED + header
External IO 4x SFP28/SFP+ cages for various transceiver technologies
1x 1GbE IPMI (BMC)
3x 2.5GbE RJ45 with IEEE1588 support
1x DP
3x USB 3.1 Gen1 (Type A)
1x USB 3.1 Gen1 (Type C)
Board Management Controller Aspeed AST2600
Power Management ACPI 6.0
Temperature Range Commercial: Operating Temperature: 0 to +60°C Storage Temperature: -20 to +70°C
Industrial: Operating Temperature: -40 to 85°C Storage Temperature: -40 to +85°C
Humidity Operating: 10 to 90% r. H. non cond. Storage: 5 to 95% r. H. non cond.
Size 244 x 244 mm²
www.congatec.com
Page2
Folie 2
conga-HPC/uATX-Server |
4x Fan Header 2x SATA M.2 SIM
Discharge Power
Button Button
ATX Power
24-pin
M.2 Key B
EPS Power Reset
8-Pin Button
RTC Battery
M.2 Key M
SMBus
USB 2.0 2x I2C
Header
PCIe x16
BMC Console
COM-HPC Server
Connector PCIe x8
UART GPSPI Header
Feature
Connector GPIO Header
M.2 Key M
conga-HPC/uATX-Server |
DP USB3.2 2x USB 3.2 4x SFP28 cages 3x 2.5GbE (RJ45)
USB-C 1x IPMI (RJ45)
www.congatec.com
Page3
Folie 3
conga-HPC/uATX-Server |
Article PN Description
conga-HPC/uATX-Server 065620 COM-HPC Server µATX carrier board
conga-HPC/i-uATX-Server 065521 Industrial temperature COM-HPC Server µATX carrier board
conga-HPC/uATX-Server I/O Shield 065529 I/O shield accessory for COM-HPC Server µATX carrier board
conga-HPC/uATX-Server |
conga-HPC/sILL conga-HPC/sILH
COM-HPC Server Size D
COM-HPC Server Size D
high performance module
high performance module
based on Intel® Xeon™ D-
based on Intel® Xeon™ D-
1700 and D-1800
2700 and D-2800 processor
processor series (code
series (code name “Ice
name “Ice Lake-D / Refresh
Lake-D / Refresh HCC")
LCC")
© 2024 congatec GmbH. All data is for information purposes only. Although all the information contained within this document is
All rights reserved. carefully checked, no guarantee of correctness is implied or expressed. Product names, logos, brands, and other
trademarks featured or referred are the property of their respective trademark holders. These trademark
holders are not affiliated with congatec GmbH. Product not yet released for Mass Production.
Rev 0.5, March 2024
www.congatec.com
