MODULA CLEAN ROOM

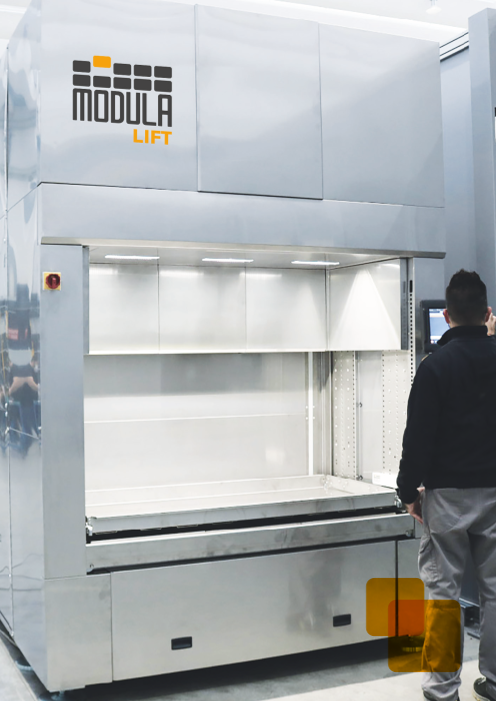

MODULA CLEAN ROOM THE STORAGE SYSTEM FOR CLEAN ROOMS ENSURES THE MINIMUM QUANTITY OF PARTICLES IN THE AIR IDEAL FOR THE PHARMACEUTICAL, ELECTRONICS AND FOOD SECTORS Modula CLEAN ROOM 44

MODULA CLEAN ROOM Modula CLEAN ROOM 45

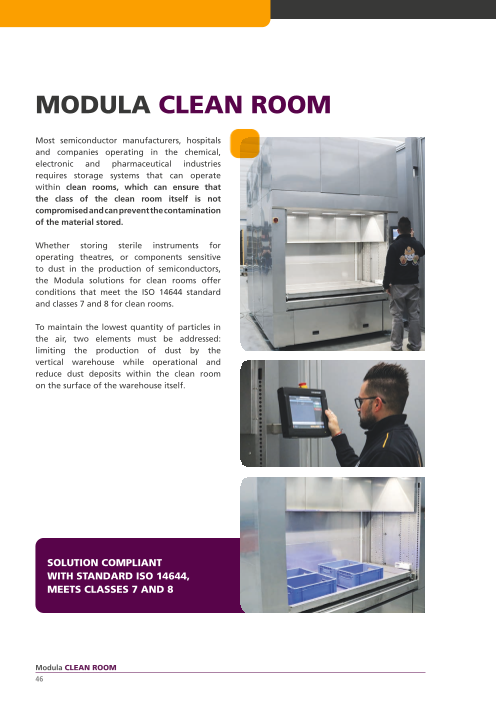

MODULA CLEAN ROOM Most semiconductor manufacturers, hospitals and companies operating in the chemical, electronic and pharmaceutical industries requires storage systems that can operate within clean rooms, which can ensure that the class of the clean room itself is not compromised and can prevent the contamination of the material stored. Whether storing sterile instruments for operating theatres, or components sensitive to dust in the production of semiconductors, the Modula solutions for clean rooms offer conditions that meet the ISO 14644 standard and classes 7 and 8 for clean rooms. To maintain the lowest quantity of particles in the air, two elements must be addressed: limiting the production of dust by the vertical warehouse while operational and reduce dust deposits within the clean room on the surface of the warehouse itself. SOLUTION COMPLIANT WITH STANDARD ISO 14644, MEETS CLASSES 7 AND 8 Modula CLEAN ROOM 46

TECHNICAL SPECIFICATIONS Height: from 2,900 mm to 16,100 mm Unit height increment: 200 mm Tray storage pitch: 25 mm Tray width: from 1,500 mm to 4,100 mm Tray depth: 654 mm - 857 mm Net tray payload: 250 - 500 - 750 - 990 kg Total net payload: from 40,000 kg to 80,000 kg (depending on model and configuration) Total gross unit payload: from 50,000 kg to 90,000 kg (depending on model and configuration) Throughput: up to 120 trays per hour (depending on the configuration) Operator interface: industrial console with 10.4” touchscreen technology Type of bay: internal Maximum product height: 695 mm (bay S) MODULA CLEAN ROOM CAN BE INTEGRATED WITH: Modula WMS Modula OPTIONS Software that can be combined with a Modula To draw the maximum benefit from the Modula VLM or used standalone, to manage all ware- automated warehouse and increase the produc- house operations. tivity of the proposed solution, a full range of dedicated options is available. Find out more on page 82 Find out more on page 98 Modula CLEAN ROOM 47

CLEAN ROOM MODELS ME - MED Tray Tray Tray wall Net tray Unit footprint with Unit footprint with Model width depth height payload INTERNAL bay EXTERNAL bay (mm) (mm) (mm) (kg) (Width x Depth mm) (Width x Depth mm) ME25 1,500 654 45/70/120 250 1,917x2,556 1,917x3,246 ME25D 1,500 857 45/70/120 250 1,917x3,165 1,917x4,058 ME50 1,500 654 45/70/120 500 1,917x2,556 1,917x3,246 ME50D 1,500 857 45/70/120 500 1,917x3,165 1,917x4,058 ME75 1,500 654 70/120 750 1,917x2,556 1,917x3,246 ME75D 1,500 857 70/120 750 1,917x3,165 1,917x4,058 ME1000 1,460 654 70/120 990 1,917x2,556 1,917x3,246 1,917 mm ME1000D 1,460 857 70/120 990 1,917x3,165 1,917x4,058 MA - MAD Tray Tray Tray wall Net tray Unit footprint with Unit footprint with Model width depth height payload INTERNAL bay EXTERNAL bay (mm) (mm) (mm) (kg) (Width x Depth mm) (Width x Depth mm) MA25 1,900 654 45/70/120 250 2,317x2,556 2,317x3,246 MA25D 1,900 857 45/70/120 250 2,317x3,165 2,317x4,058 MA50 1,900 654 70/120 500 2,317x3,165 2,317x4,058 MA50D 1,900 857 70/120 500 2,317x2,556 2,317x3,246 MA75 1,900 654 70/120 750 2,317x2,556 2,317x3,246 MA75D 1,900 857 70/120 750 2,317x3,165 2,317x4,058 MA1000 1,860 654 120 990 2,3176x2,556 2,317x3,246 2,317 mm MA1000D 1,860 857 120 990 2,317x3,165 2,317x4,058 MC - MCD Tray Tray Tray wall Net tray Unit footprint with Unit footprint with Model width depth height payload INTERNAL bay EXTERNAL bay (mm) (mm) (mm) (kg) (Width x Depth mm) (Width x Depth mm) MC25 2,500 654 45/70/120 250 2,917x2,556 2,917x3,246 MC25D 2,500 857 45/70/120 250 2,917x3,165 2,917x4,058 MC50 2,500 654 70/120 500 2,917x2,556 2,917x3,246 MC50D 2,500 857 70/120 500 2,917x3,165 2,917x4,058 MC75 2,500 654 70/120 750 2,917x2,556 2,917x3,246 MC75D 2,500 857 70/120 750 2,917x3,165 2,917x4,058 MC1000 2,460 654 120 990 2,917x2,556 2,917x3,246 2,917 mm MC1000D 2,460 857 120 990 2,917x3,165 2,917x4,058 Modula CLEAN ROOM 48

MX - MXD Tray Tray Tray wall Net tray Unit footprint with Unit footprint with Model width depth height payload INTERNAL bay EXTERNAL bay (mm) (mm) (mm) (kg) (Width x Depth mm) (Width x Depth mm) MX25 3,100 654 45/70/120 250 3,517x2,556 3,517x3,246 MX25D 3,100 857 45/70/120 250 3,517x3,165 3,517x4,058 MX50 3,100 654 70/120 500 3,517x2,556 3,517x3,246 MX50D 3,100 857 70/120 500 3,517x3,165 3,517x4,058 MX75 3,100 654 70/120 750 3,517x2,556 3,517x3,246 MX75D 3,100 857 120 750 3,517x3,165 3,517x4,058 MX1000 3,060 654 120 990 3,517x2,556 3,517x3,246 3,517 mm MX1000D 3,060 857 120 990 3,517x3,165 3,517x4,058 ML - MLD Tray Tray Tray wall Net tray Unit footprint with Unit footprint with Model width depth height payload INTERNAL bay EXTERNAL bay (mm) (mm) (mm) (kg) (Width x Depth mm) (Width x Depth mm) ML25 4,100 654 70/120 250 4,517x2,556 4,517x3,246 ML25D 4,100 857 70/120 250 4,517x3,165 4,517x4,058 ML50 4,100 654 120 500 4,517x2,556 4,517x3,246 ML50D 4,100 857 120 500 4,517x3,165 4,517x4,058 ML75 4,100 654 120 750 4,517x2,556 4,517x3,246 ML75D 4,100 857 120 750 4,517x3,165 4,517x4,058 ML1000 4,060 654 145 990 4,517x2,556 4,517x3,246 4,517 mm ML1000D 4,060 857 145 990 4,517x3,165 4,517x4,058 Modula CLEAN ROOM 49
