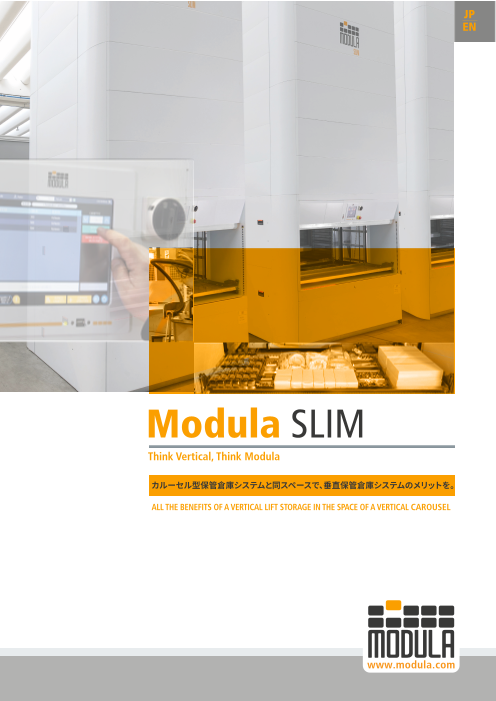

JP EN Modula SLIM Think Vertical, Think Modula ALL THE BENEFITS OF A VERTICAL LIFT STORAGE IN THE SPACE OF A VERTICAL CAROUSEL www.modula.com

Modula / Modula SLIM Minimum depth, maximum efficiency Modula Slim is the smart choice for anyone looking for a vertical storage solution with complete flexibility. The best of the SLIM technology built in a: 3 m2 of floor space • 1.6 m depth ... ... and so flexible? You can store all sorts of materials and products in your Modula Slim: loose materials, containers (box- es, bins, packs, cartons, cases), small items, spare parts, coils, flasks. What Modula SLIM can do for you? • Recovers floor space, making the most of storage density • Reduces picking times • Makes materials accessible to all operators, quickly and ergonomically • Keeps stock levels and all warehouse items under control • Integrates easily into your company processes by communicating with all ERP systems • Tracks picking and refilling operations, identifying who did what and controls every access • Eliminates picking and refilling errors by guiding the operator through the process 2

V-SHAPE STEEL REINFORCED TOOTHED BELT Easy, Fast, Ergonomic UP TO 7 METERS INTEGRATED ERGONOMIC TOUCH SCREEN INTERFACE EMERGENCY BUTTON LED ALPHANUMERIC BAR END OF PICKING BUTTON 1.6 M DEPTH Technical Specifications Unit height: from 2,400 mm to 7,000 mm Operator interface: 10.4” touch screen industrial console (Copilot) Unit height increment: 100 mm Number of bays: 1 Tray storage pitch: 25 mm Types of bay: internal with single delivery level Tray widths: 1,300 - 1,900 - 2,500 mm Low energy consumption: 1.2 kW/h for SLIM 1.3 model, H=7,000 mm Tray depth: 425 mm Power supply: 230V single-phase or 400V three-phase Net tray payload: 350 kg Certification: TÜV-GS Total gross payload: 25,000 kg V-Shape steel reinforced toothed belt transmission (4 belts) Maximum storage height: 650 mm Bay delivery level height: 835 mm Tray wall height: 45 mm 1 685 2,285 2,885 Throughput: up to 190 trays/hr (depending on the configuration) 3 1,674

Modula / Modula SLIM Quick to install, easy to use Modula Slim is built on a pre-assembled base mod- ule which is easy to move and quick to install. This means that the Vertical Lift Storage can be set up in your plant and ready in 48 hours. Modula Slim also integrates quickly with your company ERP system thanks to Modula WMS (Warehouse Management System). Not just easy and quick to install but also to use. It’s really easy for your operators to interact with Modula Slim. They can use the user-friendly touch screen interface and simple controls integrated into the bay like the end of picking button, EKS reader, LED bar etc. In just a few days, your Modula Slim can be used by anyone and you will see an incredibile picking speed increase. PLUG & PLAY Installation in 48 hours Touch screen console and integrated electrical panel End of picking button With subdividing accessories 4

Have you ever seen such flexibility? Make use of all the space inside your Modula SLIM without limits or constraints. Choose dynamic stor- age without fixed heights and with a truly SLIM depth. • Total payload is up to 25,000 kg with 7 metres in height and no more than 1.6 m in depth • You can make use of all the availabe space in your Vertical Lift Storage thanks to dynamic tray height storage: there are no fixed heights as the Modula Slim calculates the best place to put the trays and eliminates any wasted space between them • With Lift technology and the way the elevator moves, there are no issues with unbalanced loads unlike with carousel systems • Energy consumption is relatively low: less than 1.2 kW/h • You can choose to power the warehouse with a three-phase (400V) or a single-phase (230V) supply • Maintenance is limited: the V-Shape toothed belt transmission system is super quiet, requires no lubrication and its self-aligning pulley system me- ans it’s super easy to install and adjust • You can add all options from the Modula range such as visual aids, Put to light, access control sy- stems, partitions, dividers and slotted tray walls to subdivide the trays. Typical indicative load 12,500 kg VS Maximum load 25,000 kg 5

Modula / Modula SLIM Modula Options / Alphanumeric bar /EKS Reader Trays can be fitted with options such as partitions and dividers to create compartments, meaning you can store materials or containers which might be very different from each other. / Laser Pointer These options mean that the OPTIONS WHICH INCREASE layout of materials in the trays PRODUCTIVITY is incredibly flexible and easy to 1D/2D barcode readers can quick- modify. ly scan the product and avoid any manual checks, integrated Put to Light increases the number of or- der lines processed at the same time or handles multiple orders simultaneously, electrostatic dis- charge protection systems (ESD) protect sensitive items. ACCESS CONTROL These devices protect stored ma- / Tray acces- terials from unauthorised access. You can give different users ac- cess to different trays/materials or compartments based on their permissions. Access can be grant- ed using a login and password en- tered into the console, or it can be / ESD protection system achieved using a strictly personal device which makes the operation VISUAL AIDS very quick. These give a visual indication of the location of the requested item and speed up picking and refilling operations. They guide the operator to the location of the items within the tray and noticeably reduce errors. / 1D/2D barcode / RFID Reader / LED bar /Magnetic badge Reader / Put-to-Light 6

Some Modula references AFFILIATED HOSPITAL OF GUANGXI MEDI UNIVERSITY China BMW China, Germany,Austria,UK, Belgium, USA,Mexico,Canada XI’AN INTERNATION MEDICAL CENTER China VOLKSWAGEN China, Germany, Spain, Argentina TCI China DAIMLER China, Italy , Germany, Mexico ABBOTT Italy, France, USA F E R R ARI Italy AKZO NOBEL Italy CHEMICAL AUTOMOBILI LAMBORGHINI Italy BAYER Germany, Argentina, Mexico AUTOMOTIVE M ASERATI Italy PHARMACEUTICAL DUPONT USA INDUSTRIAL J AGUAR Netherlands GLAXO SMITH KLINE Italy, UK, USA A UDI Spain,Mexico, Belgium JOHNSON & JOHNSON USA, Brasil FORD USA, Canada, Spain, Mexico, Turkey HAWE HYDRAULIC China P EUGEOT-CITROEN France PEM PENN ENGINEERING China OPEL Spain GEA BOCK COMPRESSORS China R ENAULT Spain, France, UK BITZER REFRIGERATION China FIAT Italy, Poland, Brasil, Serbia BOSCH REXROTH Italy, Germany, USA, Mexico, India GENERAL MOTORS USA HYDRAULIC VAILLANT GROUP France, UK TATA MOTORS LIMITED India H ARLEY DAVIDSON USA DUCATI MOTOR Italy CRRC China B REMBO Italy, Poland, USA, Czech Republic DHL Spain, Australia TRW AUTOMOTIVE Italy, USA FEDEX USA GKN DRIVELINE Italy, Spain, USA, UK, Poland CONTITECH Germany, Romania, Hungary, Serbia, Mexico TRANSPORT ROBERT BOSCH USA, Germany, Mexico, Spain, Hungary LUFTHANSA TECHNIK China, Germany THYSSENKRUPP ENGINE China, Brasil CHINA ACADEMY OF SPACE TECHNOLOGY China VALEO Italy, Spain, France, Belgium, Turkey, India BEIJING SATELLITE China FAURECIA Italy, Spain, France, USA SICHUAN AIRLINES China MAGNETI MARELLI Italy CHINA EASTERN AIRLINES China MUBEA Germany,Poland,Czech Republic,USA,Mexico AERONAUTICS/ AIRBUS USA, France CATERPILLAR Italy, USA, Belgium AEROSPACE BOEING USA BOMBARDIER Germany China CONTINENTAL Germany, USA BYD China EMBRAER Brasil EUTRON China GE AVIATION USA GREAT WALL PC China, India LOCKHEED MARTIN USA, UK COMMSCOPE China, Italy UNITED AIRLINES USA ELECTRONIC SPIRAXSARCO SCHNEIDER ELECTRIC China, Spain, Indonesia SIEMENS China, Spain, USA, Serbia, India TETRA PAK China PROFACE China PROVOL PACKING China BSH ELECTRICAL China CELESTICA China, Spain, Mexico,Romania, Malaysia PACKAGING BARCO VISUAL China UNISTEEL China China MINGHUA MOULD&PLASTICS China HAIER GROUP INTERNATIONAL PAPER USA INFINEON Portugal, Singapore, Malaysia KIMBERLEY-CLARK USA GARMIN USA SAINT-GOBAIN China,USA GENERAL ELECTRIC France, Israel PLASTIC / PAPER EATON CORPORATION USA, Mexico, Singapore FOXCONN Czech Republic DELL USA IKEA China LYRECO Italy, Spain, Germany, Poland, Belgium FURNITURE AGCO China,Italy,Spain,USA BONFIGLIOLI RIDUTTORI China, Italy, Germany, USA, Slovakia, India HONEYWELL China, Italy, Romania, Mexico, Slovakia, South Korea DANIELI China, Italy, Russia, Thailand DECATHLON Canada MACHINERY PRIMA POWER China, Italy USA SUPAEMR-AZON MARPOSS China, Italy, Germany BOLLHOFF China MARKET/ GETRAG TRANSMISSION China E-COMMERCE BITZER China, Germany KROHNE China OISHI - LIWAYWAY China LAEPPLE China YILI GROUP China COCA COLA Germany, UK, USA, Chile, Malaysia GUHRING China FERRERO Italy, France, Turkey TIANHONG MACHINERY China FOOD PEPSICO USA, Australia SCHAEFFLER China, Romania DRINKS DEUTZ FAHR MACHINERY China IRO - WUX I China 3M USA, Poland PRADA Italy ABB Italy, Poland, Argentina LOUIS VUITTON Italy BLACK & DECKER USA, Canada GIORGIO ARMANI Italy ELECTROLUX Italy, USA, Hungary HERMES Italy FANUC Italy, Hungary, Russia CLOTHING/ LUXOTTICA Italy ROLLON Italy, Germany FASHION DIOR Italy SEW France VALENTINO Italy NIKE USA, Belgium, Netherlands 7

Modula Modula World Modula is present in 5 continents with dealers and branches located in over 50 countries MODULA (CHINA) AUTOMATION EQUIPMENT CO.,LTD 製品に関するお問い合わせは以下の担当者にお気軽に N.7, Fangzhou Road, Suzhou Industrial Park, Jiangsu Province, China ご連絡お願いします。 Tel. Modula（モジューラ）日本連絡事務所 　佐竹智宏 　Tel. 070-1585-0106 　email: tomohiro.satake@modula.com All information provided on this catalogue is for informative purposes only and is not binding. Modula reserves the right to change information on this catalogue at any time. Modula will not accept liability for or guarantee the accuracy of the information contained herein. SLIM / MAY 2024
