Page1
Because speed
counts
KeMotion
The automation solution for boosting
robot and machine productivity

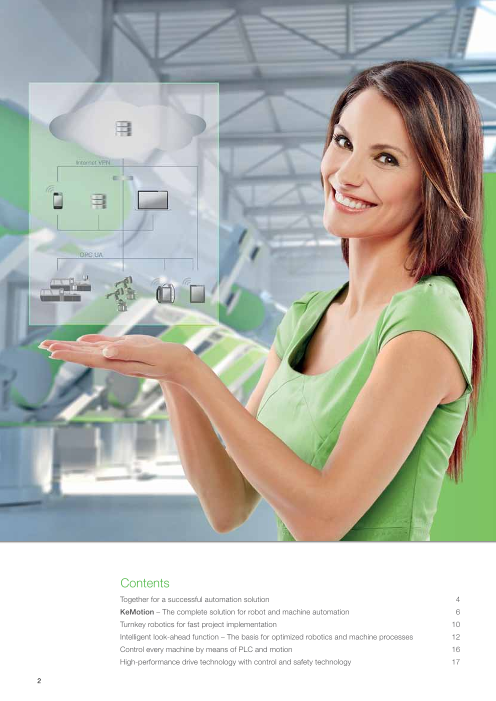

Page2
Robotics and automation
in the Industry 4.0 era
Contents
Together for a successful automation solution 4
KeMotion – The complete solution for robot and machine automation 6
Turnkey robotics for fast project implementation 10
Intelligent look-ahead function – The basis for optimized robotics and machine processes 12
Control every machine by means of PLC and motion 16
High-performance drive technology with control and safety technology 17
2

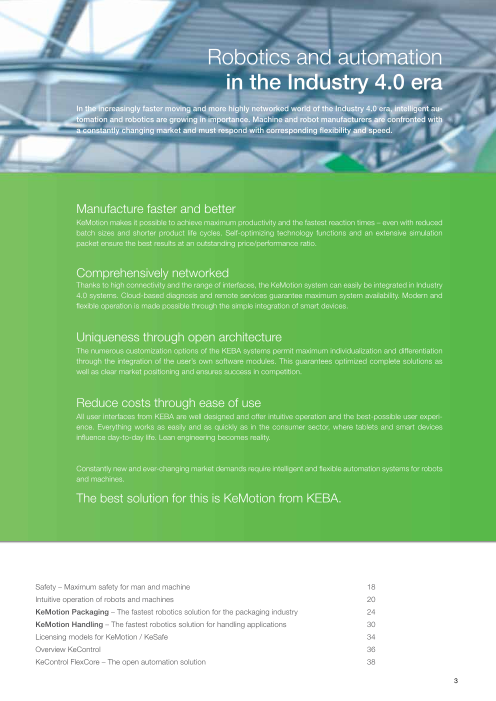

Page3
Robotics and automation
in the Industry 4.0 era
In the increasingly faster moving and more highly networked world of the Industry 4.0 era, intelligent au-
tomation and robotics are growing in importance. Machine and robot manufacturers are confronted with
a constantly changing market and must respond with corresponding flexibility and speed.
Manufacture faster and better
KeMotion makes it possible to achieve maximum productivity and the fastest reaction times – even with reduced
batch sizes and shorter product life cycles. Self-optimizing technology functions and an extensive simulation
packet ensure the best results at an outstanding price/performance ratio.
Comprehensively networked
Thanks to high connectivity and the range of interfaces, the KeMotion system can easily be integrated in Industry
4.0 systems. Cloud-based diagnosis and remote services guarantee maximum system availability. Modern and
flexible operation is made possible through the simple integration of smart devices.
Uniqueness through open architecture
The numerous customization options of the KEBA systems permit maximum individualization and differentiation
through the integration of the user’s own software modules. This guarantees optimized complete solutions as
well as clear market positioning and ensures success in competition.
Reduce costs through ease of use
All user interfaces from KEBA are well designed and offer intuitive operation and the best-possible user experi-
ence. Everything works as easily and as quickly as in the consumer sector, where tablets and smart devices
influence day-to-day life. Lean engineering becomes reality.
Constantly new and ever-changing market demands require intelligent and flexible automation systems for robots
and machines.
The best solution for this is KeMotion from KEBA.
Safety – Maximum safety for man and machine 18
Intuitive operation of robots and machines 20
KeMotion Packaging – The fastest robotics solution for the packaging industry 24
KeMotion Handling – The fastest robotics solution for handling applications 30
Licensing models for KeMotion / KeSafe 34
Overview KeControl 36
KeControl FlexCore – The open automation solution 38
3
Page4
The best support
in every phase of a project
We know the market requirements for successful automation solutions and speak the same language as our
customers. The basis for this is more than 40 years of international experience on the market and profound
application know-how. 100 % of development and production of all hardware and software components takes
place in house at KEBA. All technologies and services for KeMotion are optimally adapted to one another.
Our experienced experts offer the best-possible support during every phase of the machine life cycle. Maxi-
mum customer benefits and highest productivity have top priority here. That is our understanding of long-term
and successful cooperation.
Together
for a successful automation solution
Commissioning
Product development Customer project & acceptance
Shortest development Optimized machines & Fastest commissioning &
times & best-possible accurate offers changeovers
differentiation
KeMotion is based on more The specialists from KEBA Intelligent wizards and tem-
than 40 years of market provide support during pro- plates simplify and speed up
experience and profound ject work and sales and the processes. Furthermore,
knowledge of the industry. prepare profound feasibility extensive on-site support
It is a turnkey and customiz- studies. For optimization, a and comprehensive support
able automation system. user-friendly 3D simulation from experts are offered.
tool is available.
4
Page5
Machine operation Service
& after sales
Best machine performance Maximum availability
& highest process quality
The long-lasting systems KEBA supports its customers
from KEBA are known for top with a global network of
quality and very high reliabi- subsidiaries and offers 24/7
lity. KeMotion’s high-end ro- service. User-friendly logging
botics technologies guarantee and diagnosis tools help
maximum productivity. with process optimization.
5
Page6
KeMotion – The complete solution
for robot and machine automation
Robot dimensions
Artarm geometry Illustration
Distance base axis 1-2 in X
Rotation base axis 1
Distance base axis 1-2 in Z
Rotation base axis 2
Distance base axis 2-3
Distance base 3 to wrist 1
Rotation base axis 3
Rotation wrist axis 1
Rotation wrist axis 2
Distance wrist axis 2 to TCP
Distance base axis 2-3 in Z
Safety monitoring
KeMotion stands for the fast, open and customizable automation of robots and machines in
the Industry 4.0 era. Thanks to the scalable hardware in combination with many high-perfor-
mance technology functions and turnkey software packages, the user can quickly and easily
find the optimum solution.
The all-in-one automation system
PLC, motion, robotics, drive technology, safety technology and HMI are combined in a compact sys-
tem with KeMotion. This is the ideal basis for implementing all automation tasks on a single common
hardware and software platform. KeMotion stands for both turnkey complete solutions as well as
individually adaptable systems with a variety of customization possibilities.
A control for every robot
More than 30 types of robots are preconfigured in the system. Furthermore, customer-specific kine-
matics can be easily integrated and configured. Grinding • Metal Bending • Painting • Welding • Pick & Place • Palletizing • Handling • CNC
Wafer Handling • Glueing • Service Robotics • Textile Printing • Die Casting • Plastics • etc.
6
Page7
The user-friendly multi-robot control
Up to 16 robots can be efficiently operated simultaneously with one KeMotion control. A common
user interface for operation and programming is available for this purpose. The multi-robot control is
ideal for applications with cooperating robots and the control of entire production lines.
The proven solution for a wide range of applications
and processes
Typical application cases for KeMotion range from machine automation to multi-robot applications.
For the packaging sector and for handling applications, the special solutions KeMotion Packaging
and KeMotion Handling are available with an expanded range of functions.
Active Contactflange
by FerRobotics © Trumpf © Dürr
© IGM
Grinding • Metal Bending • Painting • Welding • Pick & Place • Palletizing • Handling • CNC
Wafer Handling • Glueing • Service Robotics • Textile Printing • Die Casting • Plastics • etc.
7
Options KeMotion Handling KeMotion Packaging KeMotion
Page8
Hardware and software
perfectly matched
KeMotion consists of five core components. At the heart of this high-performance combination is a single control system.
Processes only need to be written in a single program; communication takes place directly and without delay. Numerous
standardized interfaces facilitate networking with other Industry-4.0-ready devices.
Configuration Robotic HMI
Diagnosis Teach-in
Programming environment Online programming
Wizards
S I/O
Master SCP
3rd party I/Os
Motors
SCADA and/or
MES system
Control Supply Drives
incl. safety
8
Page9
Real robotics
Robotics The turnkey robotics solution from KeMotion scores with unique high-end technologies for maxi-
mum performance and precision.
PLC + Motion Full-fledged PLC + motion
KeMotion is more than a robotics solution, it can be used to control the entire machine.
Compact control and drive technology
Control + Drives The modular, all-in-one KeDrive for Motion system with optionally integrated safety controller is
only half as big as comparable systems.
Scalable safety technology
Safety KeSafe is a space-saving safety solution for PLC, single axes and robotics that guarantees
maximum safety for man and machine.
Intuitive operation
HMI
The ready-to-use robot HMI from KeMotion and the wide range of KeTop devices facilitate
simple and fast operation.
9
Options KeMotion Handling KeMotion Packaging KeMotion
Page10
Implement projects more easily and faster
thanks to turnkey robotics
Short development times, application-optimized machine design as well as easy and fast commissioning are the funda-
mental requirements of machine manufacturers. The extensive software package from KeMotion provides support with
convenient features as well as intelligent wizards and templates.
User-friendly tool set
with more than 30 predefined types of robot
For user-friendly configuration and programming of robots and ma-
chines, an extensive tool set is available with KeMotion – including easy
CAD import.
A variety of robot types are available preconfigured in the system. After
entering mechanical parameters such as dimensions, gear ratios, etc.,
in ready-made masks, the programming of the application already can
begin.
Robotic applications
with up to 10x less code
All robot applications are created easily and quickly with the intuitive
TeachView programming system using the extensive KAIRO robot com-
mand set – either online on a KeTop handheld operating device or offline
on a PC. Compared to conventional systems, up to 10x less code needs
to be programmed. Through the use of easy-to-understand instructions,
KAIRO supports the user in programming the desired robot paths and
the entire process.
Simple machine optimization
by means of 3D simulation
The Real World Simulation Package is a user-friendly 3D simulation tool
for the easy creation, optimization, validation and visualization of robot
programs and machine processes. Users benefit from an Industry-4.0-
compliant virtualization with numerous adjustment options for the design
of machines, robots and robot cells – even before commissioning.
10
Page11
Robotics
4x faster commissioning thanks to
intelligent wizards and templates
Make things as easy as possible for the user – that is the meaning of the
KEBA motto “parametrizing instead of programming.” Commissioning of
machines and robots takes place noticeably faster; modifications can be
done much more easily.
Easy integration of robot tools
Using a predefined program sequence, a wizard facilitates the auto-
matic detection of geometries of end-of-arm tools – e.g., with grippers,
welding devices, grinding devices, etc. Users do not need to program
a single line of code and can fully concentrate their resources on the
actual process.
Freely definable working areas, blocking
areas and signal areas
Working, blocking and signal areas define where a robot may move and
where it may not move. They serve to protect man and machine. With
KeMotion, these zones are freely definable and are created step-by-step
with the help of an intelligent wizard.
Create palletizing patterns in just a few steps
Without needing to program a single line of code, intelligent palletizing
wizards guide the user to the best-possible solution for all palletizing
tasks in just a few steps, for everything from the placement of a single
type of product in a carton to mixed pallets.
11
Options KeMotion Handling KeMotion Packaging KeMotion
Page12
Intelligence and look-ahead function –
The basis for optimized robotic and machine
processes
Highest economic efficiency is a must for modern production systems. The key factors here are maximum machine per-
formance with minimal energy consumption. KeMotion offers numerous high-end technologies for achieving these goals.
Path blending
P1
Know the future
Robot paths automatically planned
KeMotion generates a list of movement commands on TCP
basis of the robot program created with KAIRO. Every
movement command corresponds to a path segment. Be-
ginning with this list, the path of the robot is planned over
all segments. In doing so, smooth blending movements
are automatically calculated from one path segment to the
next. P2
Optimized movements
by means of look-ahead function
While traveling the planned robot path, a so-called look-ahead function
moves in advance of the actual robot by precalculating the movements of the
robot for a defined period of time. KeMotion can thereby automatically cal-
culate the optimum dynamics on a desired path and respond in good time.
Automatic dynamic limiting
Special limiter functions guarantee that the robot does not exceed the dy-
namic limits at a desired speed, thereby ensuring that the motors are not
overloaded. This makes possible fast, precise and, at the same time, smooth
robot movements.
Path planning and the look-ahead function are the basis for a wide range of
technological functions, which are described in further detail on the following
pages.
12
Page13
Robotics
Fast and gentle on the mechanics
Fast and energy-saving thanks to Intelligent Motion
Without additional programming effort, Intelligent Motion automatically adapts the
robot movements to other robots and processes. Based on the automatic plan-
ning of the robot path, movements are optimized and abrupt start/stop actions
eliminated.
With high-speed pick & place applications, parts are picked up immediately upon
entry into the working area and the robot is moved only as fast as necessary thanks
to Intelligent Motion. This increases the performance, extends the lifetime of the
mechanical parts and ensures the energy-saving use of the robot.
Process control without dead time
Look-ahead trigger points for maximum
productivity and process quality
The exact synchronization of robot movements and processes is a decisive quality
factor for many robot applications. Path trigger points ensure this. Thanks to the
look-ahead function, with KeMotion the dead times in the process are also com-
pensated. For example, the build-up of the vacuum for a gripper starts even before
the path trigger point is reached so that the vacuum is available precisely at the path
trigger point.
No vacuum Vacuum build-
present up begins Vacuum
built up
Grip part
Path trigger point
P0 Prewarning P1
point
Build-up time for
vacuum Offset
13
Options KeMotion Handling KeMotion Packaging KeMotion
Page14
Unique features
for more productivity and quality
Robotics
Collision avoidance with foresight
Working and blocking areas for more safety
To avoid collisions, a robot may only move within specified limits (working area) and may not move into certain areas (blocking area).
With KeMotion, working areas and blocking areas can be freely defined. Thanks to the look-ahead function for the robot path, for
example, exiting the working area or entering a blocking area, will be detected early and the robot will be braked automatically.
If multiple robots are working together, then a common working area can be defined as well. It is thereby ensured that only one
robot is active in this area at a given time. The second robot adjusts its speed so that it then enters the common working area
exactly when the first robot leaves this area.
14
Page15
Traveling the ideal line
Fastest movements with maximum precision
thanks to the dynamic torque model
The dynamic torque model is the modeled representation of the actual robot. It takes into account masses, inertias, elasticities and
frictions of the individual robot components. It also compensates for mechanical fluctuations by means of elasticity compensation.
In addition to the geometric properties of the robot, the physical properties are thereby also taken into account in the path interpola-
tion. Not only are position, speed and acceleration calculated, the torque is determined as well.
The dynamic torque model is the basis for the torque
feed forward control on the drive. Taking into account
the calculated torque, the path accuracy is maximized
and the contouring error reduced.
with torque feed forward control
without torque feed forward control
15
Options KeMotion Handling KeMotion Packaging KeMotion
Page16
Control every machine with PLC and motion
Robotics as well as PLC and motion are combined in a single control with KeMotion. This simplifies the system and
facilitates faster commissioning. Cabling requirements are greatly reduced; interfaces between PLC, motion and robot
control are eliminated. System cycle and all program sequences are always perfectly synchronized. Furthermore, us-
ers benefit from a standardized programming interface and special extensions for the machine control.
PLC + Motion
Simple and powerful
PLC programming
The integrated PLC based on CODESYS 3.5 is programmable
in accordance with IEC 61131-3. It supports all standardized
PLC programming languages: Instruction List (IL), Structured
Text (ST), Sequential Function Chart (SFC), Function Block Full-fledged machine control
Diagram (FBD) and Ladder Diagram (LD). included
In addition to the powerful robot control functions, the PLC
and the motion function blocks, which are PLCOpen compli-
ant, can also be used to control the entire machine. Standard
modules, such as flying saw, cam disc and line shaft, are avail-
able for this purpose.
Special technology modules for the packaging industry are
also already integrated, e.g., for controlling multi belts, intel-
ligent infeed systems and indexing belts.
16
Page17
KeDrive for Motion – High-performance
drive technology compactly combined with
control and safety technology
The KeDrive for Motion platform is an ideally matched combination of control, safety controller and multi-axis
drives. It is highly flexible and allows optimum solutions to be found for a wide range of control and drive
tasks.
Control + Drives
Modular, scalable system setup Cost-saving multi-axis drives
Thanks to the well-designed system setup, it is also possible The highly dynamic drive modules are overload resistant to
to use just individual modules of the system depending on the 300 % and are available in 1-, 2-, and 3-axis versions.
automation task. For example, with a decentral control cabi-
net concept, the drive modules can be used remotely from
the control. Integrated safety controller
The multi-axis KeSafe safety controller together with its safety
I/Os can optionally be integrated directly in the control mod-
A more than 50 % space saving ule. KeSafe is scalable and offers safety functions for logic,
Compared to standard system configurations, the compact single axes and robotics.
KeDrive for Motion system takes less than half as much space
in the control cabinet.
All-in-one Modular Decentral
Motion control + Safety + Drives Motion Motion Drives
control control
+ Safety
17
Options KeMotion Handling KeMotion Packaging KeMotion
Page18
KeSafe – Maximum safety
for man and machine
The freely programmable KeSafe safety controller makes machines and robots with
serial kinematics safe. All safety-relevant standards and directives are taken into ac-
count; extensive certification work is eliminated. In addition, space-saving design of
the robot cells is made possible. Moreover, the integration of the safety controller in
the KeDrive for Motion system results in space-savings in the control cabinet.
&
>1 Robotics
–
& Safe operation
>– 1 Motion
• Safe TCP speed
• Safe guard speed
&
>1 PLC
–
Suitable for all kinematics
• Freely selectable monitoring points on robot and tool
• Including additional axes
Scalable safety technology The following standards are met:
KeSafe is available in 3 functional configuration levels: • Complete solution up to category 4, PLe according to
• KeSafe PLC: safe logic EN ISO 13849-1 and SIL3 according to EN 62061
• KeSafe Motion: safe single axes and EN 61508
• KeSafe Robotics: safe robotics and safe • Safe single-axis functions according to EN 61800-5-2
robot axes (KeSafe Motion)
• Safe robot modules according to EN ISO 10218
(KeSafe Robotics)
18
Page19
Safety
Safe cooperation
• Safe workspace
• Safe tool orientation
• Safe tool change
Space-saving
Smaller robot cells through
intelligent safety functions
KeSafe guarantees the safe monitoring of the robot working
areas, the speed at the TCP and freely definable robot points.
Uncontrolled robot movements are reliably prevented. Safety
guards for safe enclosure can be mounted closer to the ro-
bot, which makes possible space-saving cells with minimal
footprint.
19
Options KeMotion Handling KeMotion Packaging KeMotion
Page20
KeTop – Intuitive operation
of robot and machine
Best ergonomics and an intuitive user interface are key factors for efficient operation and monitoring. With the KeTop
devices, high-performance, application-optimized hardware is available. The turnkey TeachView robotics user interface
enables fast and easy teach-in. User-friendly HMIs are created with the easy-to-operate KeView visualization software; an
optimum user experience is guaranteed.
The sophisticated operating concept
for working efficiently with robots
The turnkey TeachView robotics user interface enables the time-saving creation of robot programs. In do-
ing so, the user can make use of the extensive KAIRO robot command set as well as numerous intelligent
wizards and templates. This guarantees optimum results in record time.
Moreover, various KeTop handheld operating devices for intuitive teach-in are available. Modern features,
such as gyro sensors for easy pointing the desired direction of robot movements, additional rear side key-
boards for simultaneously moving multiple axes and targeted user guidance – such as by displaying and
hiding buttons – results in an optimized complete package for user-friendly and error-free robot program-
ming.
Versatile customization possibilities for hardware and software
Perfect integration of the KeTop operating devices in existing customer solutions is easily possible thanks
to extensive customization possibilities with respect to housing construction, operating elements, keyboard
layout and machine visualization.
20
