IP66完全防塵防水ステンレス筐体Intel-Ultra5搭載版ファンレス21.5型タッチパネルPC『WTP-9K66-22』

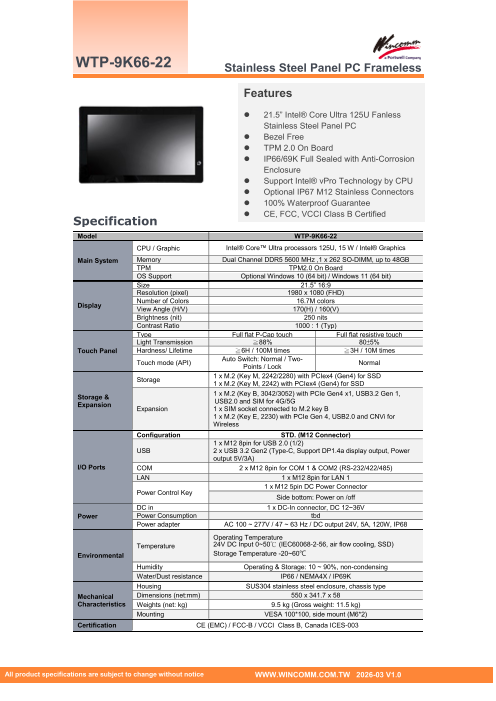

WTP-9K66-22 Stainless Steel Panel P C Frameless Features  21.5” Intel® Core Ultra 125U Fanless Stainless Steel Panel PC  Bezel Free  TPM 2.0 On Board  IP66/69K Full Sealed with Anti-Corrosion Enclosure  Support Intel® vPro Technology by CPU  Optional IP67 M12 Stainless Connectors  100% Waterproof Guarantee  CE, FCC, VCCI Class B Certified /S pecification Model WTP-9K66-22 CPU / Graphic Intel® Core™ Ultra processors 125U, 15 W / Intel® Graphics Main System Memory Dual Channel DDR5 5600 MHz ,1 x 262 SO-DIMM, up to 48GB TPM TPM2.0 On Board OS Support Optional Windows 10 (64 bit) / Windows 11 (64 bit) Size 21.5” 16:9 Resolution (pixel) 1980 x 1080 (FHD) Display Number of Colors 16.7M colors View Angle (H/V) 170(H) / 160(V) Brightness (nit) 250 nits Contrast Ratio 1000 : 1 (Typ) Type Full flat P-Cap touch Full flat resistive touch Light Transmission ≧88% 80±5% Touch Panel Hardness/ Lifetime ≧6H / 100M times ≧3H / 10M times Touch mode (API) Auto Switch: Normal / Two- Points / Lock Normal Storage 1 x M.2 (Key M, 2242/2280) with PCIex4 (Gen4) for SSD 1 x M.2 (Key M, 2242) with PCIex4 (Gen4) for SSD Storage & 1 x M.2 (Key B, 3042/3052) with PCIe Gen4 x1, USB3.2 Gen 1, Expansion USB2.0 and SIM for 4G/5G Expansion 1 x SIM socket connected to M.2 key B 1 x M.2 (Key E, 2230) with PCIe Gen 4, USB2.0 and CNVi for Wireless Configuration STD. (M12 Connector) 1 x M12 8pin for USB 2.0 (1/2) USB 2 x USB 3.2 Gen2 (Type-C, Support DP1.4a display output, Power output 5V/3A) I/O Ports COM 2 x M12 8pin for COM 1 & COM2 (RS-232/422/485) LAN 1 x M12 8pin for LAN 1 1 x M12 5pin DC Power Connector Power Control Key Side bottom: Power on /off DC in 1 x DC-In connector, DC 12~36V Power Power Consumption tbd Power adapter AC 100 ~ 277V / 47 ~ 63 Hz / DC output 24V, 5A, 120W, IP68 Operating Temperature Temperature 24V DC Input 0~50℃ (IEC60068-2-56, air flow cooling, SSD) Environmental Storage Temperature -20~60℃ Humidity Operating & Storage: 10 ~ 90%, non-condensing Water/Dust resistance IP66 / NEMA4X / IP69K Housing SUS304 stainless steel enclosure, chassis type Mechanical Dimensions (net:mm) 550 x 341.7 x 58 Characteristics Weights (net: kg) 9.5 kg (Gross weight: 11.5 kg) Mounting VESA 100*100, side mount (M6*2) Certification CE (EMC) / FCC-B / VCCI Class B, Canada ICES-003 All product specifications are subject to change without notice WWW.WINCOMM.COM.TW 2026-03 V1.0

WTP-9K66-22 Stainless Steel Panel PC Frameless Dim ensions Units (mm) Major Options 1. Full flat PCT touch screen IP69K 2. IP67 (STD M12 type) 3. Windows 10 (64 bit) or Windows 11 (64 bit) 4. 802.11 BE WLAN + Bluetooth module (WiFi 7) 5. 2 External LAN (2 X USB Type-C, 2 X LAN, 1 X COM) 6. SUS316 Enclosure 7. M12 (female) to M12 (male) DC power extension cable (2 meters length) Options 8. M12 (female) to stripped and tinned wires DC extension cable (1.2 meters length) 9. Barcode Reader 10. RFID 11. 500M Pixels Webcam (For PCP m ode) 12. 2 x 2W speaker (IP66) 13. Waterproof Type-C cable, cable length is 2 meter (male to male) 14. Wall mount (New for WTP-9K66) 15. Table mount bracket (New for WTP-9K66) 1. Waterproof USB cable, cable length is 2 meters Accessory 2. Waterproof LAN cable, cable length is 2 meters 3. Waterproof COM cable, cable length is 2 meters 4. DC input cable 1. Optical bonding (for normal brightness LCD) Customization 2. Wide operation temperature: -20 ~ 50 ℃ 3. Panel Mount Kits (Rubber) O rder Information Item Cooling Description WTP-9K66-22-MAPAN Fanless 21.5” Core Ultra i5-125U 1.3-4.3 GHz / 8G RAM/ 128G SSD/ Full Flat P- cap Touch/ 2 USB, 2 COM, 1 LAN, 2 Type-C WTP-9K66-22-MAFAN Fanless 21.5” Core Ultra i5-125U 1.3-4.3 GHz / 8G RAM/ 128G SSD/ Full Flat Resistive Touch / 2 USB, 2 COM, 1 LAN, 2 Type-C I/O ports All product specifications are subject to change without notice WWW.WINCOMM.COM.TW 2026-03 V1.0
