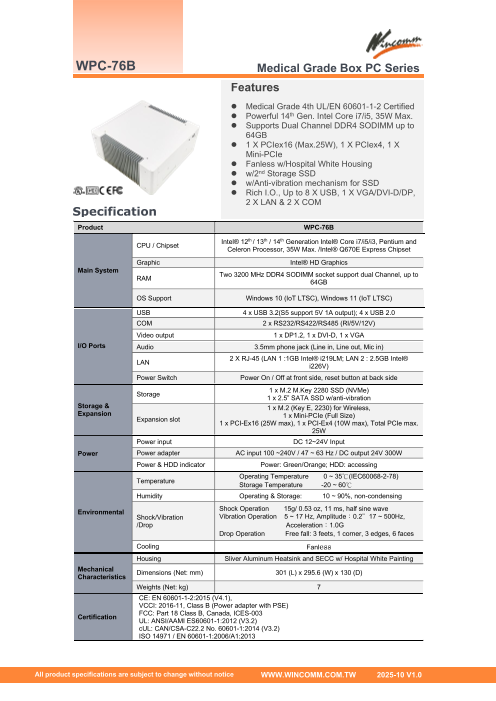

WPC-76B Medical Grade Box PC Series
Features
⚫ Medical Grade 4th UL/EN 60601-1-2 Certified
⚫ Powerful 14th Gen. Intel Core i7/i5, 35W Max.
⚫ Supports Dual Channel DDR4 SODIMM up to
64GB
⚫ 1 X PCIex16 (Max.25W), 1 X PCIex4, 1 X
Mini-PCIe
⚫ Fanless w/Hospital White Housing
⚫ w/2nd Storage SSD
⚫ w/Anti-vibration mechanism for SSD
⚫ Rich I.O., Up to 8 X USB, 1 X VGA/DVI-D/DP,
2 X LAN & 2 X COM
Specification
Product WPC-76B
Intel® 12th / 13th / 14th Generation Intel® Core i7/i5/i3, Pentium and
CPU / Chipset
Celeron Processor, 35W Max. /Intel® Q670E Express Chipset
Graphic Intel® HD Graphics
Main System
Two 3200 MHz DDR4 SODIMM socket support dual Channel, up to
RAM
64GB
OS Support Windows 10 (IoT LTSC), Windows 11 (IoT LTSC)
USB 4 x USB 3.2(S5 support 5V 1A output); 4 x USB 2.0
COM 2 x RS232/RS422/RS485 (RI/5V/12V)
Video output 1 x DP1.2, 1 x DVI-D, 1 x VGA
I/O Ports Audio 3.5mm phone jack (Line in, Line out, Mic in)
2 X RJ-45 (LAN 1 :1GB Intel® i219LM; LAN 2 : 2.5GB Intel®
LAN
i226V)
Power Switch Power On / Off at front side, reset button at back side
1 x M.2 M.Key 2280 SSD (NVMe)
Storage
1 x 2.5” SATA SSD w/anti-vibration
Storage & 1 x M.2 (Key E, 2230) for Wireless,
Expansion 1 x Mini-PCIe (Full Size)
Expansion slot
1 x PCI-Ex16 (25W max), 1 x PCI-Ex4 (10W max), Total PCIe max.
25W
Power input DC 12~24V Input
Power Power adapter AC input 100 ~240V / 47 ~ 63 Hz / DC output 24V 300W
Power & HDD indicator Power: Green/Orange; HDD: accessing
Operating Temperature 0 ~ 35℃(IEC60068-2-78)
Temperature
Storage Temperature -20 ~ 60℃
Humidity Operating & Storage: 10 ~ 90%, non-condensing
Shock Operation 15g/ 0.53 oz, 11 ms, half sine wave
Environmental
Shock/Vibration Vibration Operation 5 ~ 17 Hz, Amplitude：0.2”17 ~ 500Hz,
/Drop Acceleration：1.0G
Drop Operation Free fall: 3 feets, 1 corner, 3 edges, 6 faces
Cooling Fanless
Housing Sliver Aluminum Heatsink and SECC w/ Hospital White Painting
Mechanical
Dimensions (Net: mm) 301 (L) x 295.6 (W) x 130 (D)
Characteristics
Weights (Net: kg) 7
CE: EN 60601-1-2:2015 (V4.1),
VCCI: 2016-11, Class B (Power adapter with PSE)
FCC: Part 18 Class B, Canada, ICES-003
Certification
UL: ANSI/AAMI ES60601-1:2012 (V3.2)
cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.2)
ISO 14971 / EN 60601-1:2006/A1:2013
All product specifications are subject to change without notice WWW.WINCOMM.COM.TW 2025-10 V1.0
WPC-76B Medical Grade Box PC Series
Dimensions Units (mm)
Major Options
① WiFi 7 + BT module
② Equipotential terminal pin
Options ③ 2.5” SSD
④ Windows 10 (IoT LTSC), Window 11 (IoT LTSC)
⑤ TPM 2.0 module
① 65W CPU
Customizations ② Easy Removable 2.5” HDD Drive Bay
③ Remote Power Control Button (DB9)
Order Information
Item Cooling Description
WPC-76B Fanless Core i5-14400T 1.5Ghz, DDR4 8G RAM, 128G SSD
I.O.
