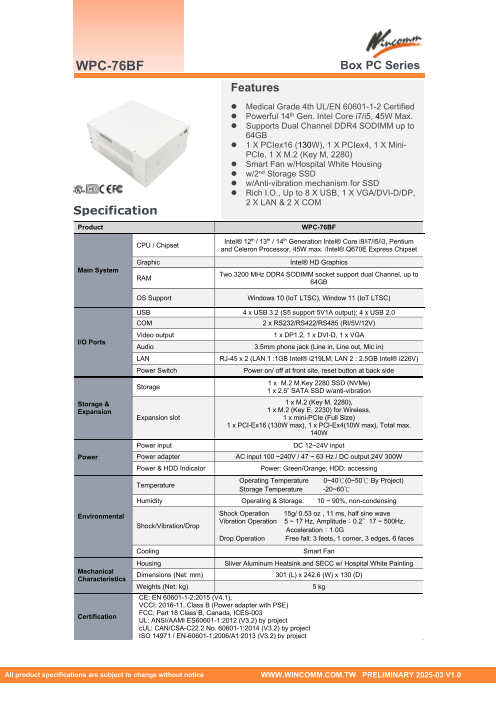

WPC-76BF Box PC Series
Features
⚫ Medical Grade 4th UL/EN 60601-1-2 Certified
⚫ Powerful 14th Gen. Intel Core i7/i5, 45W Max.
⚫ Supports Dual Channel DDR4 SODIMM up to
64GB
⚫ 1 X PCIex16 (130W), 1 X PCIex4, 1 X Mini-
PCIe, 1 X M.2 (Key M, 2280)
⚫ Smart Fan w/Hospital White Housing
⚫ w/2nd Storage SSD
⚫ w/Anti-vibration mechanism for SSD
⚫ Rich I.O., Up to 8 X USB, 1 X VGA/DVI-D/DP,
2 X LAN & 2 X COM
Specification
Product WPC-76BF
Intel® 12th / 13th / 14th Generation Intel® Core i9/i7/i5/i3, Pentium
CPU / Chipset
and Celeron Processor, 45W max. /Intel® Q670E Express Chipset
Graphic Intel® HD Graphics
Main System
Two 3200 MHz DDR4 SODIMM socket support dual Channel, up to
RAM
64GB
OS Support Windows 10 (IoT LTSC), Window 11 (IoT LTSC)
USB 4 x USB 3.2 (S5 support 5V1A output); 4 x USB 2.0
COM 2 x RS232/RS422/RS485 (RI/5V/12V)
Video output 1 x DP1.2, 1 x DVI-D, 1 x VGA
I/O Ports
Audio 3.5mm phone jack (Line in, Line out, Mic in)
LAN RJ-45 x 2 (LAN 1 :1GB Intel® i219LM; LAN 2 : 2.5GB Intel® i226V)
Power Switch Power on/ off at front site, reset button at back side
1 x M.2 M.Key 2280 SSD (NVMe)
Storage
1 x 2.5” SATA SSD w/anti-vibration
Storage & 1 x M.2 (Key M, 2280),
Expansion 1 x M.2 (Key E, 2230) for Wireless,
Expansion slot 1 x mini-PCIe (Full Size)
1 x PCI-Ex16 (130W max), 1 x PCI-Ex4(10W max), Total max.
140W
Power input DC 12~24V input
Power Power adapter AC input 100 ~240V / 47 ~ 63 Hz / DC output 24V 300W
Power & HDD Indicator Power: Green/Orange; HDD: accessing
Operating Temperature 0~40℃(0~50℃ By Project)
Temperature
Storage Temperature -20~60℃
Humidity Operating & Storage: 10 ~ 90%, non-condensing
Environmental Shock Operation 15g/ 0.53 oz , 11 ms, half sine wave
Vibration Operation 5 ~ 17 Hz, Amplitude：0.2”17 ~ 500Hz,
Shock/Vibration/Drop
Acceleration：1.0G
Drop Operation Free fall: 3 feets, 1 corner, 3 edges, 6 faces
Cooling Smart Fan
Housing Sliver Aluminum Heatsink and SECC w/ Hospital White Painting
Mechanical
Dimensions (Net: mm) 301 (L) x 242.6 (W) x 130 (D)
Characteristics
Weights (Net: kg) 5 kg
CE: EN 60601-1-2:2015 (V4.1),
VCCI: 2016-11, Class B (Power adapter with PSE)
FCC: Part 18 Class B, Canada, ICES-003
Certification
UL: ANSI/AAMI ES60601-1:2012 (V3.2) by project
cUL: CAN/CSA-C22.2 No. 60601-1:2014 (V3.2) by project
ISO 14971 / EN-60601-1;2006/A1:2013 (V3.2) by project
All product specifications are subject to change without notice WWW.WINCOMM.COM.TW PRELIMINARY 2025-03 V1.0
WPC-76BF Medical Grade Box PC Series
Dimensions Units (mm)
Major Options
① WiFi 7 + Bluetooth Module
② Equipotential Terminal Pin
Options ③ 2.5” SSD
④ Windows 10 (IoT LTSC) & Window 11 (IoT LTSC)
⑤ TPM 2.0 module
① Easy Removable Bay
Customizations
② Remote Power Control Button (DB9)
Order Information
Item Cooling Description
WPC-76BF Fan Core i5-14400 2.5Ghz, DDR4 8G RAM, 128G SSD
I.O.
