小型・薄型・軽量の10型ワイド医療用タッチパネルPC-Intel Alder Lake N97『WMP-109』

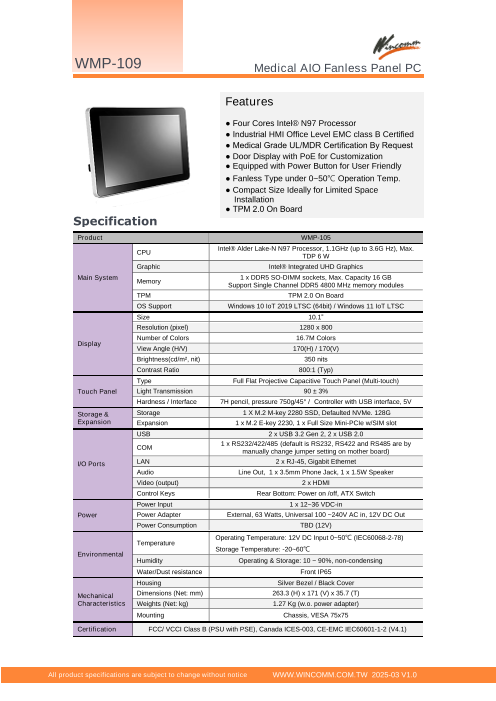

WMP-109 Medical AIO Fanless Panel PC Features ● Four Cores Intel® N97 Processor ● Industrial HMI Office Level EMC class B Certified ● Medical Grade UL/MDR Certification By Request ● Door Display with PoE for Customization ● Equipped with Power Button for User Friendly ● Fanless Type under 0~50℃ Operation Temp. ● Compact Size Ideally for Limited Space Installation ● TPM 2.0 On Board Specification Product WMP-105 Intel® Alder Lake-N N97 Processor, 1.1GHz (up to 3.6G Hz), Max. CPU TDP 6 W Graphic Intel® Integrated UHD Graphics Main System 1 x DDR5 SO-DIMM sockets, Max. Capacity 16 GB Memory Support Single Channel DDR5 4800 MHz memory modules TPM TPM 2.0 On Board OS Support Windows 10 IoT 2019 LTSC (64bit) / Windows 11 IoT LTSC Size 10.1” Resolution (pixel) 1280 x 800 Number of Colors 16.7M Colors Display View Angle (H/V) 170(H) / 170(V) Brightness(cd/m², nit) 350 nits Contrast Ratio 800:1 (Typ) Type Full Flat Projective Capacitive Touch Panel (Multi-touch) Touch Panel Light Transmission 90 ± 3% Hardness / Interface 7H pencil, pressure 750g/45° / Controller with USB interface, 5V Storage & Storage 1 X M.2 M-key 2280 SSD, Defaulted NVMe. 128G Expansion Expansion 1 x M.2 E-key 2230, 1 x Full Size Mini-PCIe w/SIM slot USB 2 x USB 3.2 Gen 2, 2 x USB 2.0 1 x RS232/422/485 (default is RS232, RS422 and RS485 are by COM manually change jumper setting on mother board) I/O Ports LAN 2 x RJ-45, Gigabit Ethernet Audio Line Out, 1 x 3.5mm Phone Jack, 1 x 1.5W Speaker Video (output) 2 x HDMI Control Keys Rear Bottom: Power on /off, ATX Switch Power Input 1 x 12~36 VDC-in Power Power Adapter External, 63 Watts, Universal 100 ~240V AC in, 12V DC Out Power Consumption TBD (12V) Operating Temperature: 12V DC Input 0~50℃ (IEC60068-2-78) Temperature Storage Temperature: -20~60℃ Environmental Humidity Operating & Storage: 10 ~ 90%, non-condensing Water/Dust resistance Front IP65 Housing Silver Bezel / Black Cover Mechanical Dimensions (Net: mm) 263.3 (H) x 171 (V) x 35.7 (T) Characteristics Weights (Net: kg) 1.27 Kg (w.o. power adapter) Mounting Chassis, VESA 75x75 Certification FCC/ VCCI Class B (PSU with PSE), Canada ICES-003, CE-EMC IEC60601-1-2 (V4.1) All product specifications are subject to change without notice WWW.WINCOMM.COM.TW 2025-03 V1.0

WMP-109 Medical AIO Fanless Panel PC Dimensions Units (mm) Major Options 1. 802.11 ac/a/b/g/n WLAN + Bluetooth 5.0 Module (802.11 ac/a/b/g/n WLAN antenna at top, bluetooth 5.0 antenna at I/O side) 2. Ethernet RJ45 male to female right angle adapter x 2 Options 3. Operation system: Windows 10 IoT 2019 LTSC (64bit) / Windows 11 IoT LTSC 4. 128G M.2 NVMe SSD storage 5. 8G RAM module 1. Webcam (Can’t co-exist with RFID) 2. RFID (Can’t co-exist with Webcam) 3. COM x 2 (total) 4. Panel mount kit 5. White rear cover Customization 6. PoE function follows IEEE802.3at (30 Watt), supports wake on LAN function (not coexist with wireless, COM port, remove AC-DC power adapter and DC input connector) 7. In wall mount bracket 8. 3G/4G module 9. Car ignition power control Order Information Item Touch Description WMP-109 Chassis P-Cap.Touch 10.1” N97 3.6GHz, DDR5 8G RAM, 128G SSD, Full Flat P-Cap Touch I/O ports Power over Ethernet for Embedded Applications Rear view All product specifications are subject to change without notice WWW.WINCOMM.COM.TW 2025-03 V1.0
