医療用の抗菌プラスチック筐体ファンレス21.5型フルHD版Intel第12世代Core-i搭載タッチパネルPC『WMP-22P』
製品カタログ
MDR最新版（含む医療用60601-1安全総則）認証。21.5型抗菌筐体パネルPC。第12世代Core-i版、HDMI入力あり。
MDR最新版（含む医療用60601-1安全総則の第3.1版）及び60601-1-2 EMC第4版等を取得した医療用の21.5型フルHD液晶一体型のファンレス・パネルPCです。医療機器へも応用可能です。IP65防塵・防滴のフロントベゼル、抗菌素材のプラスチック筐体を採用。
■CPU: Intel Core-i5-1235U-4.40GHz（10-Core, インテル Iris Xe グラフィックス内蔵）
■投影型静電容量10ポイントのマルチ・タッチを標準搭載（ラテックス手袋の利用可）
■Display PortとHDMIを各1ポート標準装備されているため、2台の外部モニターへ独立画像を出力可能となり、本体の画面と合わせて3画面表示も可。
■HDMI映像入力標準装備： 別の機器からのHDMI映像を表示することが可能
■UBS3.2 gen2 x 4ポート、シリアルポート x 2ポートを標準装備
■ファンクションキーと画面清掃時にタッチ機能を一時停止するボタンあり
■暗い部屋での資料参照を容易とする「LEDライトバー」も標準装備
■RoHS2宣言、VCCI Class B認証
関連メディア
このカタログについて
| ドキュメント名 | 医療用の抗菌プラスチック筐体ファンレス21.5型フルHD版Intel第12世代Core-i搭載タッチパネルPC『WMP-22P』 |
|---|---|
| ドキュメント種別 | 製品カタログ |
| ファイルサイズ | 338Kb |
| 登録カテゴリ | |
| 取り扱い企業 | Wincommジャパン株式会社 (この企業の取り扱いカタログ一覧) |
この企業の関連カタログ
このカタログの内容

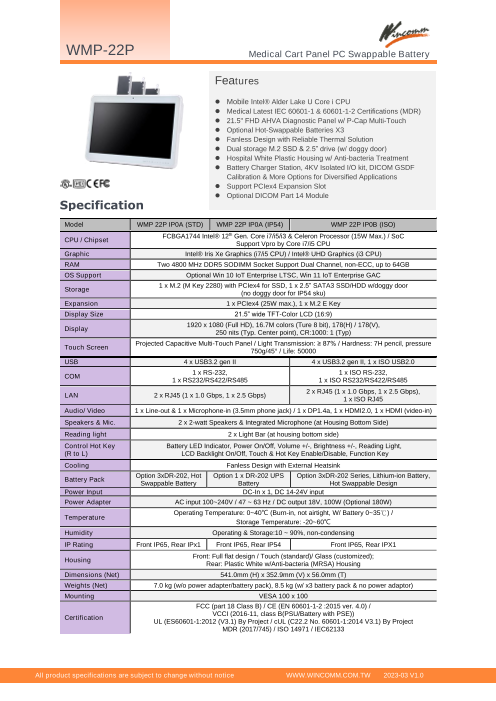

Page1
WMP-22P Medical Cart Panel PC Swappable Battery
Features
⚫ Mobile Intel® Alder Lake U Core i CPU
⚫ Medical Latest IEC 60601-1 & 60601-1-2 Certifications (MDR)
⚫ 21.5" FHD AHVA Diagnostic Panel w/ P-Cap Multi-Touch
⚫ Optional Hot-Swappable Batteries X3
⚫ Fanless Design with Reliable Thermal Solution
⚫ Dual storage M.2 SSD & 2.5” drive (w/ doggy door)
⚫ Hospital White Plastic Housing w/ Anti-bacteria Treatment
⚫ Battery Charger Station, 4KV Isolated I/O kit, DICOM GSDF
Calibration & More Options for Diversified Applications
⚫ Support PCIex4 Expansion Slot
⚫ Optional DICOM Part 14 Module
S pecification
Model WMP 22P IP0A (STD) WMP 22P IP0A (IP54) WMP 22P IP0B (ISO)
FCBGA1744 Intel® 12th Gen. Core i7/i5/i3 & Celeron Processor (15W Max.) / SoC
CPU / Chipset
Support Vpro by Core i7/i5 CPU
Graphic Intel® Iris Xe Graphics (i7/i5 CPU) / Intel® UHD Graphics (i3 CPU)
RAM Two 4800 MHz DDR5 SODIMM Socket Support Dual Channel, non-ECC, up to 64GB
OS Support Optional Win 10 IoT Enterprise LTSC, Win 11 IoT Enterprise GAC
1 x M.2 (M Key 2280) with PCIex4 for SSD, 1 x 2.5” SATA3 SSD/HDD w/doggy door
Storage
(no doggy door for IP54 sku)
Expansion 1 x PCIex4 (25W max.), 1 x M.2 E Key
Display Size 21.5” wide TFT-Color LCD (16:9)
1920 x 1080 (Full HD), 16.7M colors (Ture 8 bit), 178(H) / 178(V),
Display
250 nits (Typ. Center point), CR:1000: 1 (Typ)
Projected Capacitive Multi-Touch Panel / Light Transmission: ≥ 87% / Hardness: 7H pencil, pressure
Touch Screen
750g/45° / Life: 50000
USB 4 x USB3.2 gen II 4 x USB3.2 gen II, 1 x ISO USB2.0
1 x RS-232, 1 x ISO RS-232,
COM
1 x RS232/RS422/RS485 1 x ISO RS232/RS422/RS485
2 x RJ45 (1 x 1.0 Gbps, 1 x 2.5 Gbps),
LAN 2 x RJ45 (1 x 1.0 Gbps, 1 x 2.5 Gbps)
1 x ISO RJ45
Audio/ Video 1 x Line-out & 1 x Microphone-in (3.5mm phone jack) / 1 x DP1.4a, 1 x HDMI2.0, 1 x HDMI (video-in)
Speakers & Mic. 2 x 2-watt Speakers & Integrated Microphone (at Housing Bottom Side)
Reading light 2 x Light Bar (at housing bottom side)
Control Hot Key Battery LED Indicator, Power On/Off, Volume +/-, Brightness +/-, Reading Light,
(R to L) LCD Backlight On/Off, Touch & Hot Key Enable/Disable, Function Key
Cooling Fanless Design with External Heatsink
Option 3xDR-202, Hot Option 1 x DR-202 UPS Option 3xDR-202 Series, Lithium-ion Battery,
Battery Pack
Swappable Battery Battery Hot Swappable Design
Power Input DC-In x 1, DC 14-24V input
Power Adapter AC input 100~240V / 47 ~ 63 Hz / DC output 18V, 100W (Optional 180W)
Operating Temperature: 0~40℃ (Burn-in, not airtight, W/ Battery 0~35℃) /
Temperature
Storage Temperature: -20~60℃
Humidity Operating & Storage:10 ~ 90%, non-condensing
IP Rating Front IP65, Rear IPx1 Front IP65, Rear IP54 Front IP65, Rear IPX1
Front: Full flat design / Touch (standard)/ Glass (customized);
Housing
Rear: Plastic White w/Anti-bacteria (MRSA) Housing
Dimensions (Net) 541.0mm (H) x 352.9mm (V) x 56.0mm (T)
Weights (Net) 7.0 kg (w/o power adapter/battery pack), 8.5 kg (w/ x3 battery pack & no power adaptor)
Mounting VESA 100 x 100
FCC (part 18 Class B) / CE (EN 60601-1-2 :2015 ver. 4.0) /
VCCI (2016-11, class B(PSU/Battery with PSE))
Certification
UL (ES60601-1:2012 (V3.1) By Project / cUL (C22.2 No. 60601-1:2014 V3.1) By Project
MDR (2017/745) / ISO 14971 / IEC62133
All product specifications are subject to change without notice WWW.WINCOMM.COM.TW 2023-03 V1.0
Page2
WMP-22P Medical Cart Panel PC Swappable Battery
Dimensions Units (mm)
Major Options & Customization
Battery & ① Battery Pack: 3xDR-202 Series, Hot-Swappable Battery, or 1 x DR-202 UPS Battery for IP54 Sku
Charger ② Battery Charger Station: JW202W2 3-Slot w/200W Power Adaptor
① 5MP Auto Focus Webcam
② TPM 2.0 module
③ Smart Card Reader at side or CAC / PIV Reader (FIPS-201) (different rear housing)
④ RFID Reader (13.56MHz)
⑤ AG Film
⑥ Wifi WLAN + Bluetooth w/ 2x antenna
⑦ M.2 Type 2280 Module
⑧ 2.5” SATA3 Storage
⑨ Equipotential Terminal Pin
Options ⑩ Full HD Capture Card or 4K SC710N1 12G SDI Capture Card
⑪ USB 2.0 x 2 at Side (different rear housing)
⑫ 5V1A Power Jack (for Standard Type)
⑬ Light Sensor for Auto Brightness (can’t co-exist with webcam)
⑭ DICOM Part 14 Compliance (can’t co-exist with light sensor)
⑮ DC-DC Extension Cable (2 meter)
⑯ I/O Cover (for better cables management)
⑰ White Color Metal Desktop Stand w/ Anti-bacterial Treatment
⑱ 30 watt power output card for external device
⑲ USB 5/6 (USB 2.0 can’t co-exist with side USB)
① Tempered Glass
Customization ② Touch Panel with Anti-glare Coating
③ COM Ports Support 5V1A Output
Order Information
Item Configuration
WMP-22P-IP0A-i5 Core i5-1235U 4.40GHz / DDR5 8G RAM / M.2 128G SSD / P.cap touch / Support Vpro
WMP-22P-IP0A-i7 Core i7-1255U 4.70GHz / DDR5 8G RAM / M.2 128G SSD / P.cap touch / Support Vpro
WMP-22P-IP0A-i5UE Core i5-1245UE 4.40GHz / DDR5 8G RAM / M.2 128G SSD / P.cap touch / Support Vpro
WMP-22P-IP0B-i5-ISO Core i5-1235U 4.40GHz / DDR5 8G RAM / M.2 128G SSD / P.cap touch / Support Vpro / ISO
WMP-22P-IP0B-i5-IP54 Core i5-1235U 4.40GHz / DDR5 8G RAM / M.2 128G SSD / P.cap touch / Support Vpro / IP54
I/O ports
Hot-Swappable Batteries Charger Station
Medical Cart Application
All product specifications are subject to change without notice WWW.WINCOMM.COM.TW 2023-03 V1.0
