OPTIONS

OPTIONS WE ALWAYS HAVE THE RIGHT CHOICE FOR YOU! DIVERSIFIED SOLUTIONS PRODUCTIVITY OPTIMISATION PICKING AND REFILLING OPERATIONS MADE EASIER AND MORE EFFICIENT OPERATOR SAFETY Modula OPTIONS 98

OPTIONS Modula OPTIONS 99

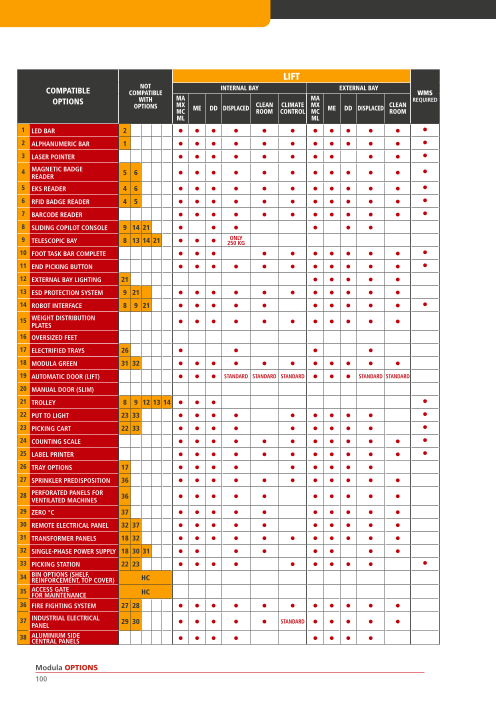

LIFT NOT COMPATIBLE INTERNAL BAY EXTERNAL BAY COMPATIBLE WMS OPTIONS WITH MA MA REQUIRED OPTIONS MX MC ME DD DISPLACED CLEAN CLIMATE MX ROOM CONTROL MC ME DD DISPLACED CLEAN ROOM ML ML 1 LED BAR 2 • • • • • • • • • • • • 2 ALPHANUMERIC BAR 1 • • • • • • • • • • • • 3 LASER POINTER • • • • • • • • • • • 4 MAGNETIC BADGE READER 5 6 • • • • • • • • • • • • 5 EKS READER 4 6 • • • • • • • • • • • • 6 RFID BADGE READER 4 5 • • • • • • • • • • • • 7 BARCODE READER • • • • • • • • • • • • 8 SLIDING COPILOT CONSOLE 9 14 21 • • • • • • 9 TELESCOPIC BAY 8 13 14 21 • • • ONLY 250 KG 10 FOOT TASK BAR COMPLETE • • • • • • • • • • • 11 END PICKING BUTTON • • • • • • • • • • • • 12 EXTERNAL BAY LIGHTING 21 • • • • • 13 ESD PROTECTION SYSTEM 9 21 • • • • • • • • • • • 14 ROBOT INTERFACE 8 9 21 • • • • • • • • • • • 15 WEIGHT DISTRIBUTION PLATES • • • • • • • • • • • 16 OVERSIZED FEET 17 ELECTRIFIED TRAYS 26 • • • • 18 MODULA GREEN 31 32 • • • • • • • • • • • 19 AUTOMATIC DOOR (LIFT) • • • STANDARD STANDARD STANDARD • • • STANDARD STANDARD 20 MANUAL DOOR (SLIM) 21 TROLLEY 8 9 12 13 14 • • • • 22 PUT TO LIGHT 23 33 • • • • • • • • • • 23 PICKING CART 22 33 • • • • • • • • • • 24 COUNTING SCALE • • • • • • • • • • • • 25 LABEL PRINTER • • • • • • • • • • • • 26 TRAY OPTIONS 17 • • • • • • • • • 27 SPRINKLER PREDISPOSITION 36 • • • • • • • • • • • 28 PERFORATED PANELS FOR VENTILATED MACHINES 36 • • • • • • • • • • 29 ZERO °C 37 • • • • • • • • • • 30 REMOTE ELECTRICAL PANEL 32 37 • • • • • • • • • • 31 TRANSFORMER PANELS 18 32 • • • • • • • • • • • 32 SINGLE-PHASE POWER SUPPLY 18 30 31 • • • • • • • • 33 PICKING STATION 22 23 • • • • • • • • • • 34 BIN OPTIONS (SHELF, REINFORCEMENT, TOP COVER) HC 35 ACCESS GATE FOR MAINTENANCE HC 36 FIRE FIGHTING SYSTEM 27 28 • • • • • • • • • • • 37 INDUSTRIAL ELECTRICAL PANEL 29 30 • • • • • STANDARD • • • • • 38 ALUMINIUM SIDE CENTRAL PANELS • • • • • • • • Modula OPTIONS 100

ANTI-SEISMIC IS2/IS3 NOT COMPATIBLE COMPATIBLE OPTIONS WITH SLIM ONEPICK HC WMS INTERNAL EXTERNAL REQUIRED OPTIONS BAY BAY 1 LED BAR • • • DEDICATED VERSION • 2 ALPHANUMERIC BAR • • • • 3 LASER POINTER • • • • 4 MAGNETIC BADGE READER 6 • • • • • 5 EKS READER 6 • • • • • 6 RFID BADGE READER 5 • • • • • 7 BARCODE READER • • • • • 8 SLIDING COPILOT CONSOLE 14 21 • • 9 TELESCOPIC BAY 13 14 21 ONLY 250 KG 10 FOOT TASK BAR COMPLETE • • 11 END PICKING BUTTON • • STANDARD STANDARD • 12 EXTERNAL BAY LIGHTING • 13 ESD PROTECTION SYSTEM 21 • • • 14 ROBOT INTERFACE 9 21 • • STANDARD • 15 WEIGHT DISTRIBUTION PLATES • • 16 OVERSIZED FEET 17 ELECTRIFIED TRAYS 18 MODULA GREEN 32 • • 19 AUTOMATIC DOOR (LIFT) • • • 20 MANUAL DOOR (SLIM) 21 TROLLEY 9 12 13 14 • • 22 PUT TO LIGHT 33 • • • • • • 23 PICKING CART 33 • • • • • • 24 COUNTING SCALE • • • • • • 25 LABEL PRINTER • • • • • • 26 TRAY OPTIONS • • • STANDARD 27 SPRINKLER PREDISPOSITION • • • 28 PERFORATED PANELS FOR VENTILATED MACHINES • 29 ZERO °C • • 30 REMOTE ELECTRICAL PANEL 37 • 31 TRANSFORMER PANELS 32 • • CONFIG/ EDICATED VERS. SERIES • D (575 VAC) 32 SINGLE-PHASE POWER SUPPLY 30 31 • • 33 PICKING STATION • • • • 34 BIN OPTIONS (SHELF, REINFORCEMENT, TOP COVER) HC • • • 35 ACCESS GATE FOR MAINTENANCE HC • 36 FIRE FIGHTING SYSTEM 28 • • 37 INDUSTRIAL ELECTRICAL PANEL 30 • 38 ALUMINIUM SIDE CENTRAL PANELS • Modula OPTIONS 101

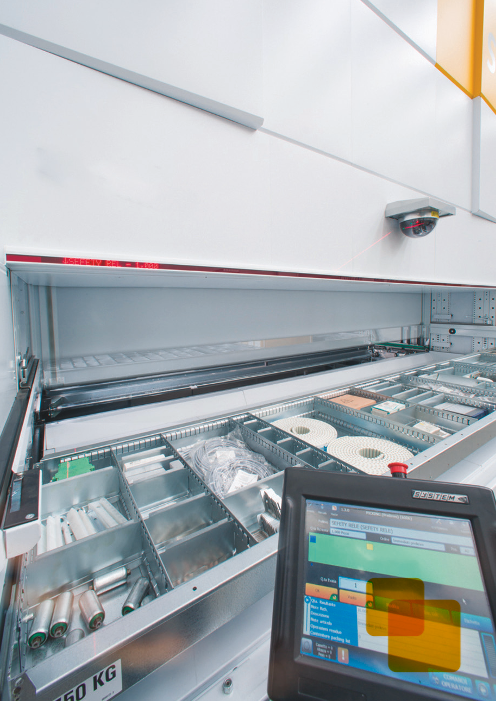

VISUAL PICKING AIDS These aids reduce the chance of operator error by making the picking and filling process more efficient and precise. LED BAR The LED bar is installed on the upper part of the operator bay. By indicating the position of an item on the tray’s X axis (width), the operator can quickly identify the correct compartment, reducing errors and picking time. Automated vertical warehouse (VLM) ALPHANUMERIC Horizontal automated warehouse (HC) LED BAR With improved features over the LED Bar, the Alphanumeric Bar displays quantity, code and description of the selected material on the Y-axis (depth) of a tray using a system of coordinates. LASER POINTER Using a two-axis pointer, the laser selects material using holographic laser lines. The red holographic laser line marks the material along the X-axis (width) and the green spot marks the product location on the Y-axis (depth). Modula OPTIONS 102

USER AUTHENTICATION BADGE READER This magnetic badge reader makes machine access easier. It allows the operator(s) to use their personal badges to access the machine and prevents any unauthorised use. The reader connects directly to the Copilot console via USB port. RFID READER The RFID Reader adds an increased level of security beyond the standard access method. The reader is easily mountable near or on the Copilot console and reads RFID cards with a quick swipe to gain machine access. For more protective measures, an additional level of security can be added to user accounts with a confirmation of a user password. MODULA WMS SOFTWARE REQUIRED. EKS READER Perfect for industrial applications, the Electronic Key Reader (EKS) has a sturdy structure and an IP67 protection rating. The key itself is equipped with a memory chip and transponder; and can be programmed using dedicated software. The advantages are the same as those with the Badge Reader, but adds the benefit of automatic control logout when the key is removed from the reader. The device is fitted with an Ethernet interface for connections to the control PC on which Modula WMS is installed. EKS KEYS CAN BE PURCHASED SEPARATELY. Modula OPTIONS 103

OPTIONS FOR INCREASING PRODUCTIVITY COUNTING SCALE LABEL PRINTER An ideal tool for counting the number of During picking and filling operations, the objects placed on the plate, based on unit operator can enter the required information weight of each individual piece. The counting via the Copilot console and print the desired scale can quickly measure precise amounts of labels in an instant. small objects (bolts, nuts, screws, etc.). Scales can be supplied with a single plate with load capacities of 3/6/15/30/60 kg or with a dou- ble plate combination of 3 & 15 kg or 6 & 30 kg. SLIDING CONSOLE The Sliding Console lets the operator move the Copilot touchscreen along the length of the picking bay. BARCODE READER This makes every operation easier, more com- fortable and more efficient, even saving your Supplied in wireless standard or industrial operator “walking” time. models, the barcode reader improves material identification. Barcodes can be used to confirm orders, decipher complex codes, and log in a user. Modula OPTIONS 104

BAY OPTIONS AUTOMATIC DOOR The motorised door secures stored materials, reduces noise in the operator’s workspace, and keeps out pollutants so the stored materials stay cleaner. The automatic door is mandato- ry for some specific configurations (dual inter- nal bay or displaced bays) in order to increase operator safety. TROLLEY Available for internal bay Lift machines, this device allows the operator to fully extract a tray from inside the machine and transfer it onto the “Trolley” for transport. Maximum tray weight is 500 kg and standard height off ground is 700 mm. TELESCOPIC BAY The Telescopic bay is a device used for extracting trays. Available for internal bay Modula Lift machines (height from ground 700 mm). Once the tray is located in the bay, the operator can manually pull it out and load in heavy materials. For trays rated 500, 750 and 1,000 kg the telescopic bay is fitted with support feet with wheels to make it easier to extract heavy loads. Versions with support feet cannot be installed where there is a displaced bay due to the gap between the Modula and the operator workstation. Modula OPTIONS 105

TRAY OPTIONS PARTITIONS, DIVIDERS, It is possible to increase the height of the tray TRAY EXTENSIONS, walls using tray extensions, thus increasing the compartment volume, to hold looser materials SLOTTED TRAY WALLS or prevent tall and bulky goods from spilling out of the trays. In order to perfectly arrange the material inside the trays, different metal partitions and Tray layout can be changed at any time dividers are available. To divide the trays, you according to specific needs, by simply moving use the slotted tray walls to then split them into these options around manually. compartments of various sizes. SLOTTED TRAY WALLS TRAY EXTENSIONS PARTITIONS DIVIDERS Modula OPTIONS 106

ADDITIONAL OPTIONS END PICKING BUTTON Used to signify the completion of an order, the End Picking Button provides a practical alternative to the Copilot Console. It must be placed within 10 metres of the machine. The button does not require hardware modifications to the bay. FOOT TASK BAR COMPLETE Located on the ground in front of the bay, completed picking operations can be confirmed with just a tap of the foot. This way, picking operations can be confirmed even when the operator has their hands full (e.g. when lifting cartons or boxes).   EXTERNAL BAY LIGHTING Supplemental LED light fixtures can be installed above the bay. The LEDs switch on when the tray is in the picking zone, illuminating the stored material for a better operator’s view. THE Copilot Console can set the duration of the lights and other requested lighting configurations. ELECTRIFIED TRAY Allows for the trays to be powered for the use of any materials that require electricity (e.g. rechargeable lamps, computers, radios, etc.). The tray comes with a 240 V power supply. There is a 10-tray installation limit on each machine. Modula OPTIONS 107

ESD PROTECTION Warehouses can be fitted with an ESD (Electro Static Discharge) protection system, which can help protect against any electrostatic charges accumulated during operations. The ESD protection system ensures that the operator area in the bay is effectively protected. The system is equipped with three mobile connection points and one fixed connection point, which all connect to an This way, between the operator antistatic appropriate grounding point that has a total wristband connection to the EBP (earth bonding resistance of 1MΩ. point) and the tray connection via the tray The ESD protection system provides special contact points to the EBP, any electrical charges tray contacts that are installed on the left-hand accumulated are effectively dissipated in order side of the bay. to prevent serious damage caused by static The incoming tray comes into contact with these electricity. points before reaching the operator. The tray contact points are connected to the system’s EBP (earth bonding point), providing a total resistance value of: 1 MΩ. WEIGHT DISTRIBUTION PLATES AND SPECIAL MACHINE OVERSIZED FEET Steel foot plates designed with a larger surface area help distribute the Modula’s weight load over a wider area. These plates are required for machines with payloads of 750-1,000 kg and at least two bays to anchor these plates to the ground. The SLIM warehouses are equipped with special oversized feet. These particular foot plates were designed with a larger contact floor area in order to distribute the Modula’s floor load evenly. Modula OPTIONS 108

ROBOT INTERFACE Modula warehouses can interface with anthropomorphous robots. The prerequisites are as follows: • WMS Premium is needed in order to use the standard protocol for integration between the Modula unit and the robot. Communication takes place via Siemens PLC or Sockets, with the same command structure used for both solutions. • The Robot Interface Kit installed on the electrical panel is for the management of three output signals from the Modula to the robot and two input signals from the robot to the Modula. MODULA GREEN Installed between the machine’s main switch and the electrical panel, this device converts kinetic energy (from the descending elevator) into electricity, feeding back into the grid and improving the process’s environmental sustainability. Up to 30% energy saving. SPRINKLER PREDISPOSITION The guards can be supplied ready for the installation of sprinklers, devices to discharge water specifically at the point where a fire has developed. The cuts for their subsequent installation are made according to the dimensions of the sprinklers themselves. Modula OPTIONS 109

SINGLE-PHASE POWER ZERO °C SUPPLY The Single-Phase Power Supply is a transformer The Zero °C device is a heating system for consisting of an electrical panel able to convert electrical panels, made up of a heating cable 230 Vac single-phase mains power supply to and a support plate pre-installed inside the 575 Vdc and 440 Vac, enabling the machines electrical panel. to be installed and operate even where a 400 The device only turns on if required before Vac three-phase power supply is not available. and during machine operations to heat the The device cannot be installed after the electrical panel, enabling the machine to machine is installed. It therefore must be operate at a temperature of 0°C. purchased together with the machine on which The device is located inside the electrical panel it will be installed. and activated by a special system supplied with the unit. This device must be installed at the same time as the machine. Modula OPTIONS 110
