Blue-IR hybrid Scanning Head
Product Catalog
High-quality welding that realizes "spatterless" and "deep penetration" by irradiating Blue + IR laser together
Features
Two types of kW-class lasers, blue and infrared, are available
A wide range of remote welding is possible (field size : 100 x 100 mm)
2D Scanning Head with chromatic aberration correction
Document Information
| Document Title | Blue-IR hybrid Scanning Head |
|---|---|
| Document Type | Product Catalog |
| File size | 441.6Kb |
| Company | Panasonic Production Engineering Co.,Ltd. (Documents List) |
Documents related to this company
Product Catalog
Panasonic Production Engineering Co.,Ltd.
Product Catalog
Panasonic Production Engineering Co.,Ltd.
Document Contents

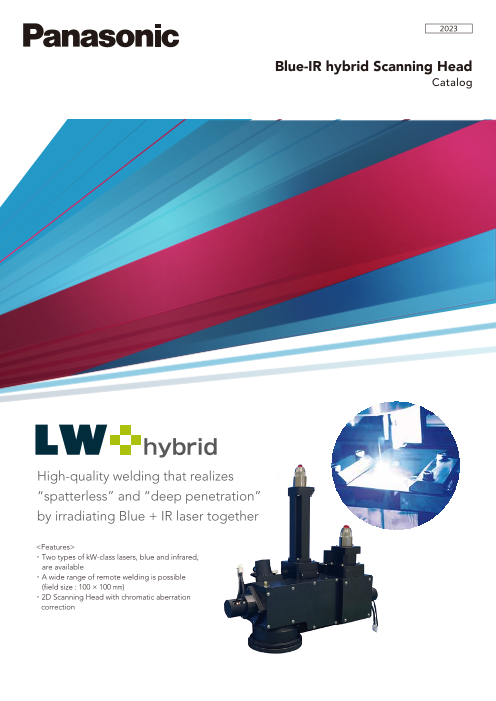

Page1
2023
Blue-IR hybrid Scanning Head
Catalog
High-quality welding that realizes
“spatterless” and “deep penetration”
by irradiating Blue + IR laser together
<Features>
・Two types of kW-class lasers, blue and infrared,
are available
・A wide range of remote welding is possible
(field size : 100 × 100 mm)
・2D Scanning Head with chromatic aberration
correction
Page2
Your advantages
Achieves both spatterless welding and deep penetration welding
0.90 mm
1.74 mm
①Realization of spatterless welding ②Realization of deep penetration welding
Applications
Motors and inverters for automobiles Secondary battery for automobiles
Specification
IR laser Blue laser
Wavelength 1,030 ～ 1,070 nm Wavelength 425 ～ 465 nm(Consult us for customization)
Laser power Max.6 kW Laser power Max.2 kW
Frequency ～ CW Frequency ～ CW
field size 100 × 100 mm(F255) field size 100 × 100 mm(F255)
Beam profile DOE can be installed (customization available) Chromatic aberration correction function Dual Scanning system
Connecting fiber QBH Connecting fiber QBH
Size/Weight 174 × 358 × 535 mm / 13 kg Size/Weight 192 × 190 × 310 mm / 7 kg
Safety Cautions
●Please read the User's Manual carefully to familiarize yourself with safe and effective usage procedures.
●To ensure safety when using this equipment, all work should be performed according to that as stated
in the supplied Operating Instructions. Read your operating instruction manual thoroughly.
Panasonic Group products are built with the environment in mind.
For more information,please visit our website https://www.panasonic.com/jp/company/ppe/laserwelding.html
Inquiries… Panasonic
Production Engineering Co., Ltd.
Zip code 571-8502
2-7 Matsubacho, Kadoma,Osaka,Japan;
TEL :（+81）6-6905-4882
mail : business.dev@gg.jp.panasonic.com
The contents of this
catalog are as of November 1, 2023.
Ver.November 1, 2023
© Panasonic Production Engineering Co.,Ltd. 2023
●The color of the product is printed matter and may differ slightly from the actual color. ●The rating and design of the product are subject to change without notice for the purpose of improvement.
●This product is designed for use in Japan.Consult your dealer for overseas use. ●Be sure to read the instruction manual carefully before using the product.
▲
