Scanning Head with OCT

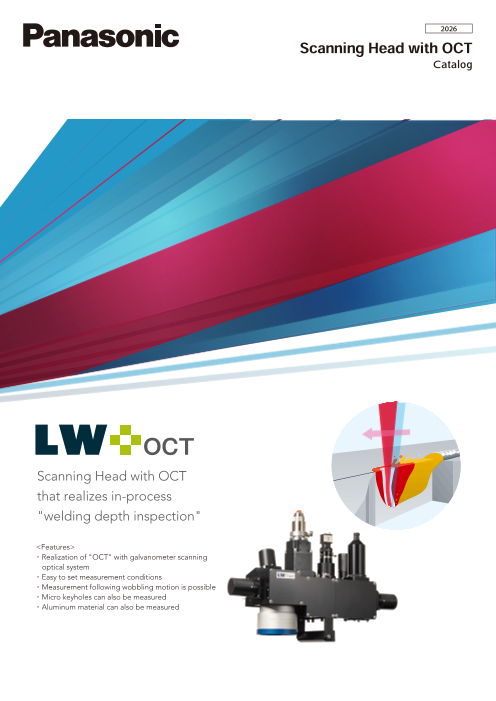

2026 Scanning Head with OCT Catalog Scanning Head with OCT that realizes in-process "welding depth inspection" <Features> ・Realization of "OCT" with galvanometer scanning optical system ・Easy to set measurement conditions ・Measurement following wobbling motion is possible ・Micro keyholes can also be measured ・Aluminum material can also be measured

Your advantages Process flow Before After OCT inspection can be expanded from "sampling destructive inspection" to Welding Welding "real-time non-destructive 100% inspection" ＋ OCT inspection Visual Check (Weld depth inspection) １ In-process welding assurance possible ２ Total cost reduction effect Sampling inspection *Cross-section inspection ３ Traceability possible *Tensile inspection Finished Products Finished Products Measurement example Experimental conditions Top view ･Material: C1020 ･Welding conditions 　Welding speed ： 6 mm / s 　Wobbling diameter ： φ1 mm Cu 　Wobbling frequency ： 100 Hz *Laser scanning speed: 314 mm/s Cross section Approx. 1.4 mm Cu Material ： 2 × 4 mm C1020 Approx. 1.4 mm OCT result Specification Scanning Head unit OCT measurement unit Wavelength 1,030 ～ 1,070 nm Measurement method SS-OCT Laser Power Max ： 6 kW Measurement wavelength 1,310 nm Frequency ～ CW Sampling frequency 100 kHz field size 100 × 100 mm(F255) Measurement resolution 10 μm Beam profile DOE can be installed (customization available) Measurement depth range 0.1 ～ 6 mm Connecting fiber QBH Measurement field size 100 × 100 mm(F255) Size/Weight W 547 × H 383 × D217/16 ㎏ Linearity ±0.7 % of F.S./℃ （Including the OCT measurement unit) Safety Cautions ●Please read the User's Manual carefully to familiarize yourself with safe and effective usage procedures. ●To ensure safety when using this equipment, all work should be performed according to that as stated in the supplied Operating Instructions. Read your operating instruction manual thoroughly. Panasonic Group products are built with the environment in mind. For more information,please visit our website https://www.panasonic.com/jp/company/ppe/laserwelding.html Inquiries… Panasonic Production Engineering Co., Ltd. Zip code 571-8502 2-7 Matsubacho, Kadoma,Osaka,Japan; TEL :（+81）6-6905-4882 mail : business.dev@gg.jp.panasonic.com The contents of this catalog are as of January 1, 2026. Ver.January 1, 2026 © Panasonic Production Engineering Co.,Ltd. 2026 ●The color of the product is printed matter and may differ slightly from the actual color. ●The rating and design of the product are subject to change without notice for the purpose of improvement. ●This product is designed for use in Japan.Consult your dealer for overseas use. ●Be sure to read the instruction manual carefully before using the product. ▲
