17インチ 高輝度液晶モニター VGA,DVI入力
■17" SXGA TFT LCD
■太陽光の下でも見える高輝度(1000NIT)液晶パネル採用
■超寿命LEDバックライト採用(MTBF:70,000時間)
■低消費電力 39W
■VESA75/100取付対応
■ワイド動作温度 0～50℃
仕様
・画面サイズ 17インチ
・表示エリア 水平337.9 x 垂直270.3 mm
・LCDパネル輝度 1000 cd/m2
・表示解像度 1280 x 1024(SXGA)
・アスペクト比 5:4
・コントラスト比 1000:1
・視野角 水平 170度/垂直 160度
・入力コネクタ VGAx1,DVIx1
・電源 DC 12V
・寸法(WxHx D) 436 x 373 x 61.6mm
・重量 6.33Kg
・動作温度 0 ～ 50℃
・無償保障期間 1年間
このカタログについて
| ドキュメント名 | LITEMAX液晶モニタ Durapixel SLD1744-E |
|---|---|
| ドキュメント種別 | 製品カタログ |
| ファイルサイズ | 185.2Kb |
| 登録カテゴリ | |
| 取り扱い企業 | サンテックス株式会社 (この企業の取り扱いカタログ一覧) |
この企業の関連カタログ
このカタログの内容

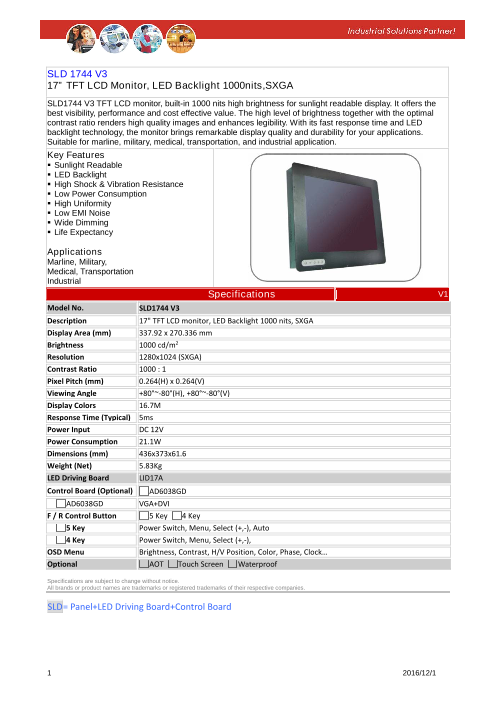

Page1
SLD 1744 V3
17” TFT LCD Monitor, LED Backlight 1000nits,SXGA
SLD1744 V3 TFT LCD monitor, built-in 1000 nits high brightness for sunlight readable display. It offers the
best visibility, performance and cost effective value. The high level of brightness together with the optimal
contrast ratio renders high quality images and enhances legibility. With its fast response time and LED
backlight technology, the monitor brings remarkable display quality and durability for your applications.
Suitable for marline, military, medical, transportation, and industrial application.
Key Features
Sunlight Readable
LED Backlight
High Shock & Vibration Resistance
Low Power Consumption
High Uniformity
Low EMI Noise
Wide Dimming
Life Expectancy
Applications
Marline, Military,
Medical, Transportation
Industrial
Specifications V1
Model No. SLD1744 V3
Description 17" TFT LCD monitor, LED Backlight 1000 nits, SXGA
Display Area (mm) 337.92 x 270.336 mm
Brightness 1000 cd/m2
Resolution 1280x1024 (SXGA)
Contrast Ratio 1000 : 1
Pixel Pitch (mm) 0.264(H) x 0.264(V)
Viewing Angle +80°~-80°(H), +80°~-80°(V)
Display Colors 16.7M
Response Time (Typical) 5ms
Power Input DC 12V
Power Consumption 21.1W
Dimensions (mm) 436x373x61.6
Weight (Net) 5.83Kg
LED Driving Board LID17A
Control Board (Optional) AD6038GD
AD6038GD VGA+DVI
F / R Control Button 5 Key 4 Key
5 Key Power Switch, Menu, Select (+,-), Auto
4 Key Power Switch, Menu, Select (+,-),
OSD Menu Brightness, Contrast, H/V Position, Color, Phase, Clock…
Optional AOT Touch Screen Waterproof
Specifications are subject to change without notice.
All brands or product names are trademarks or registered trademarks of their respective companies.
SLD= Panel+LED Driving Board+Control Board
1 2016/12/1
Page2
Mechanical Drawing
Outline Dimensions Unit:mm
2 2016/12/1
Page3
Ordering Information
Part Number Description
SLD1744-ENA-I21 17",1000nits,SXGA,LID17A.AD6038GD,O/F,DC 12V,V03
Optional Accessories
Part Number Description
840612051100 ADAPTER.12V.5A.60W.EA1050A,P
810618301010 CABLE.POWER.AC.1830mm USA type
810618301090 CABLE,POWER,AC,1830mm Europe type
810618301050 CABLE.POWER.AC.1830mm UK type
810618301170 CABLE.POWER,AC,1830mm Australia type
810618301030 CABLE.POWER.AC.1830mm Japan type
3 2016/12/1
