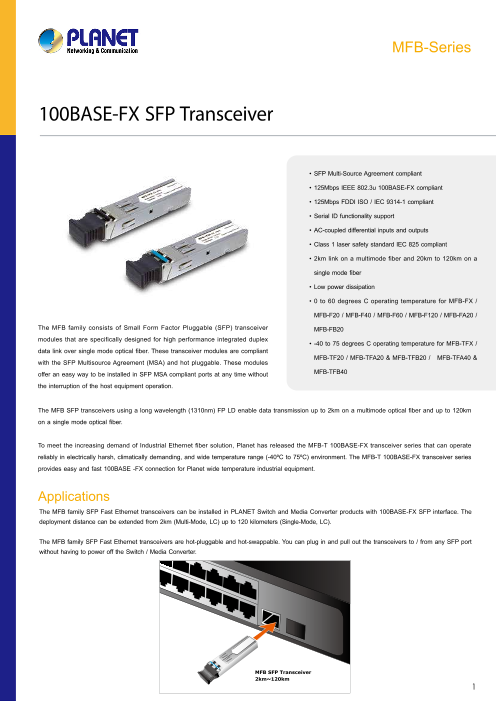

MFB-Series 100BASE-FX SFP Transceiver Key Feat•u SrFeP sMulti-Source Agreement compliant • 125Mbps IEEE 802.3u 100BASE-FX compliant • 125Mbps FDDI ISO / IEC 9314-1 compliant • Serial ID functionality support • AC-coupled differential inputs and outputs • Class 1 laser safety standard IEC 825 compliant • 2km link on a multimode fiber and 20km to 120km on a single mode fiber • Low power dissipation • 0 to 60 degrees C operating temperature for MFB-FX / MFB-F20 / MFB-F40 / MFB-F60 / MFB-F120 / MFB-FA20 / The MFB family consists of Small Form Factor Pluggable (SFP) transceiver MFB-FB20 modules that are specifically designed for high performance integrated duplex • -40 to 75 degrees C operating temperature for MFB-TFX / data link over single mode optical fiber. These transceiver modules are compliant MFB-TF20 / MFB-TFA20 & MFB-TFB20 / MFB-TFA40 & with the SFP Multisource Agreement (MSA) and hot pluggable. These modules offer an easy way to be installed in SFP MSA compliant ports at any time without MFB-TFB40 the interruption of the host equipment operation. The MFB SFP transceivers using a long wavelength (1310nm) FP LD enable data transmission up to 2km on a multimode optical fiber and up to 120km on a single mode optical fiber. To meet the increasing demand of Industrial Ethernet fiber solution, Planet has released the MFB-T 100BASE-FX transceiver series that can operate reliably in electrically harsh, climatically demanding, and wide temperature range (-40ºC to 75ºC) environment. The MFB-T 100BASE-FX transceiver series provides easy and fast 100BASE -FX connection for Planet wide temperature industrial equipment. Applications The MFB family SFP Fast Ethernet transceivers can be installed in PLANET Switch and Media Converter products with 100BASE-FX SFP interface. The deployment distance can be extended from 2km (Multi-Mode, LC) up to 120 kilometers (Single-Mode, LC). The MFB family SFP Fast Ethernet transceivers are hot-pluggable and hot-swappable. You can plug in and pull out the transceivers to / from any SFP port without having to power off the Switch / Media Converter. Data Sheet MFB SFP Transceiver 2km~120km 1 1

MFB-Series The MFB-T 100BASE-FX transceiver series is an ideal solution for -40ºC to 75ºC wide temperature industrial equipment with 100BASE-FX SFP interfaces. The deployment distance can be extended from 2km (Multi-Mode, LC) up to 40km (Single-Mode, LC). -40℃ 75℃ MFB-T series Mini-GBIC Transceiver 2Km~40Km Specifications Fast Ethernet Transceiver (100BASE-X SFP) Model Speed (Mbps) Connector Interface Fiber Mode Distance Wavelength (nm) Operating Temp. MFB-FX 100 LC Multi-Mode 2km 1310nm 0 ~ 60OC MFB-F20 100 LC Single Mode 20km 1310nm 0 ~ 60OC MFB-F40 100 LC Single Mode 40km 1310nm 0 ~ 60OC MFB-F60 100 LC Single Mode 60km 1310nm 0 ~ 60OC MFB-F120 100 LC Single Mode 120km 1550nm 0 ~ 60OC MFB-TFX 100 LC Multi-Mode 2km 1310nm -40 ~ 75OC MFB-TF20 100 LC Single Mode 20km 1310nm -40 ~ 75OC Fast Ethernet Transceiver (100BASE-BX, Single Fiber Bi-directional SFP) Model Speed (Mbps) Connector Interface Fiber Mode Distance Wavelength (TX) Wavelength (RX) Operating Temp. MFB-FA20 1310nm 1550nm 100 WDM (LC) Single Mode 20km 0 ~ 60OC MFB-FB20 1550nm 1310nm MFB-TFA20 1310nm 1550nm 100 WDM (LC) Single Mode 20km -40~75OC MFB-TFB20 1550nm 1310nm MFB-TFA40 1310nm 1550nm 100 WDM (LC) Single Mode 40km -40~75OC MFB-TFB40 1550nm 1310nm Ordering Information MFB-FX SFP-Port 100BASE -FX Transceiver (1310nm) -2km MFB-F20 SFP-Port 100BASE -FX Transceiver (1310nm) - 20km MFB-F40 SFP-Port 100BASE -FX Transceiver (1310nm) - 40km MFB-F60 SFP-Port 100BASE -FX Transceiver (1310nm) - 60km MFB-F120 SFP-Port 100BASE -FX Transceiver (1550nm) - 120km MFB-FA20 SFP-Port 100BASE -BX Transceiver (WDM,TX:1310nm) -20km MFB-FB20 SFP-Port 100BASE -BX Transceiver (WDM,TX:1550nm) -20km MFB-TFX SFP-Port 100BASE -FX Transceiver (1310nm) -2km (-40~75ºC) MFB-TF20 SFP-Port 100BASE -FX Transceiver (1310nm) - 20km (-40~75ºC) MFB-TFA20 SFP-Port 100Base-BX (WDM, TX:1310nm) mini-GBIC module-20km (-40~75ºC) MFB-TFA40 SFP-Port 100Base-BX (WDM, TX:1310nm) mini-GBIC module-40km (-40~75ºC) MFB-TFB20 SFP-Port 100Base-BX (WDM, TX:1550nm) mini-GBIC module-20km (-40~75ºC) MFB-TFB40 SFP-Port 100Base-BX (WDM, TX:1550nm) mini-GBIC module-40km (-40~75ºC) PLANET Technology Corporation 11F., No.96, Minquan Rd., Xindian Dist., New Taipei City MFB-Series 231, Taiwan (R.O.C.) PLANET reserves the right to change specifications without prior notice. All brand names and trademarks are property of Tel: 886-2-2219-9518 Fax: 886-2-2219-9528 their respective owners. Copyright © 2015 PLANET Technology Corp. All rights reserved. Email: sales@planet.com.tw www.planet.com.tw 2
