工業用イーサネットスイッチ PLANET ISW-621TF

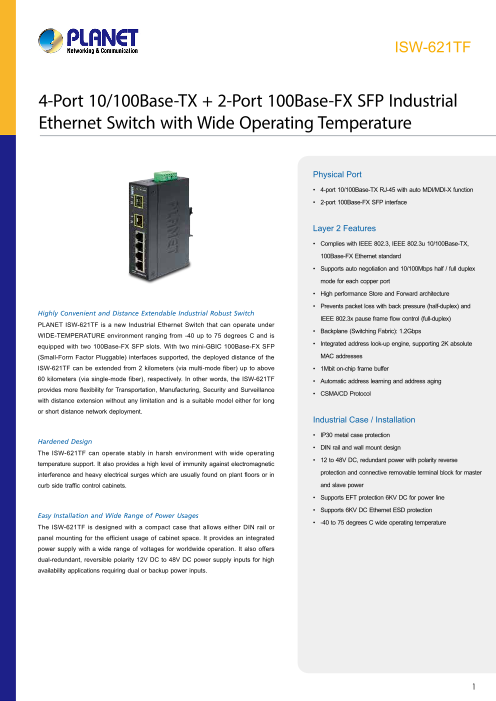

ISW-621TF 4-Port 10/100Base-TX + 2-Port 100Base-FX SFP Industrial Ethernet Switch with Wide Operating Temperature Physical Port • 4-port 10/100Base-TX RJ-45 with auto MDI/MDI-X function • 2-port 100Base-FX SFP interface Layer 2 Features • Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX Ethernet standard • Supports auto negotiation and 10/100Mbps half / full duplex mode for each copper port • High performance Store and Forward architecture • Prevents packet loss with back pressure (half-duplex) and Highly Convenient and Distance Extendable Industrial Robust Switch IEEE 802.3x pause frame flow control (full-duplex) PLANET ISW-621TF is a new Industrial Ethernet Switch that can operate under • Backplane (Switching Fabric): 1.2Gbps WIDE-TEMPERATURE environment ranging from -40 up to 75 degrees C and is equipped with two 100Base-FX SFP slots. With two mini-GBIC 100Base-FX SFP • Integrated address look-up engine, supporting 2K absolute (Small-Form Factor Pluggable) interfaces supported, the deployed distance of the MAC addresses ISW-621TF can be extended from 2 kilometers (via multi-mode fiber) up to above • 1Mbit on-chip frame buffer 60 kilometers (via single-mode fiber), respectively. In other words, the ISW-621TF • Automatic address learning and address aging provides more flexibility for Transportation, Manufacturing, Security and Surveillance • CSMA/CD Protocol with distance extension without any limitation and is a suitable model either for long or short distance network deployment. Industrial Case / Installation • IP30 metal case protection Hardened Design • DIN rail and wall mount design The ISW-621TF can operate stably in harsh environment with wide operating temperature support. It also provides a high level of immunity against electromagnetic • 12 to 48V DC, redundant power with polarity reverse interference and heavy electrical surges which are usually found on plant floors or in protection and connective removable terminal block for master curb side traffic control cabinets. and slave power • Supports EFT protection 6KV DC for power line • Supports 6KV DC Ethernet ESD protection Easy Installation and Wide Range of Power Usages • -40 to 75 degrees C wide operating temperature The ISW-621TF is designed with a compact case that allows either DIN rail or panel mounting for the efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 48V DC power supply inputs for high availability applications requiring dual or backup power inputs. Data Sheet 1 1

ISW-621TF Applications Industrial Switch for High Performance Data Collection and Forwarding The ISW-621TF is equipped with four 10/100Mbps ports offering auto MDI / MDIX feature, and two 100Base-FX SFP slots providing 1.2Gps non-blocking switch fabric and the 2K MAC address table so that they can perform wire-speed packets transfer without risk of packet loss. The ISW-621TF, which come in the slim type IP30 metal case, is ideal for the most heavy industrial demanding environments. IP Camera Weather Station IP Camera Desert IP Camera 20km IP Camera (Single mode) 100 ISW-621TF ISW-621TF 100 Fiber 20km Switch (Single mode) 100 2km 60km (Multi-mode) (Single mode) Data Center 100 ISW-621TF IP Camera IP Camera 2km (Multi-mode) 2km (Multi-mode) 100 100 ISW-621TF ISW-621TF Winter season of Country Steel Factory ISW-621TF 100 100Base-FX Fiber-optic 100Base-TX UTP Specifications Model ISW-621TF Hardware Specifications Ports 4 x 10/100Base-TX, auto negotiation, auto-MDI/MDI-X Copper Interface 10Base-T: 2-pair UTP Cat. 3, 4, 5 cable (100 meters, max.) Cable 100Base-TX: 2-pair UTP Cat. 5, 5e, 6 cable (100 meters, max.) Port / Type 2 x 100Base-FX / LC interfaces Optical Interface Multi-mode: 50/125μm / 62.5/125μm fiber Cable Single-mode: 9/125μm fiber Dimensions (W x D x H) Cable Weight 442g 12~48V DC, Power Requirements Redundant power with polarity reverse protection Power Consumption / Dissipation Max. 16 watts / 54 BTU Installation DIN rail kit / wall mount ear Provides one relay output for power failure Alarm Alarm relay current carry ability: 1A @ DC 24V Switch Specifications Switch Processing Scheme Store-and-Forward Address Table 2K entries Buffer 1Mbit Back pressure for half duplex Flow Control IEEE 802.3x pause frame for full duplex Switch Fabric 1.2Gbps Throughput 0.89Mpps @ 64Bytes (Packet Per Second) 2

ISW-621TF Standards Conformance IEEE 802.3 Ethernet, 10Base-T Standards Compliance IEEE 802.3u Fast Ethernet, 100Base-TX, 100Base-FX IEEE 802.3x Flow Control Regulation Compliance FCC Part 15 Class A, CE IEC60068-2-32 (Free fall) Stability Testing IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration) Environment Operating: -40~75 degrees C Temperature Storage: -40~85 degrees C Operating: 5~90% Humidity Storage: 5~90% (non-condensing) Dimensions ISW-621TF: Side View Front View Bottom View Top View Rear View P1 P2 FAULT 100 6 Mounting Kit LNK/ ACT 100 5 LNK/ ACT DIN-Rail Kit 4 3 2 1 10/100 LNK/ACT ISW-621TF Mounting Kit Dimensions ( unit = mm ) Ordering Information 4-Port 10/100Base-TX + 2-Port 100Base-FX SFP Industrial Ethernet Switch ISW-621TF (-40 ~ 75 degrees C operating temperature) Related Product ISW-621T 4+2 100FX Port Multi-mode Industrial Ethernet Switch ─ 2km (-40~75 degrees C operating temperature ) ISW-621TS15 4+2 100FX Port Single-mode Industrial Ethernet Switch ─ 15km (-40~75 degrees C operating Temperature ) ISW-511T 4+1 100FX Port Multi-mode Industrial Ethernet Switch ─ 2km (-40~75 degrees C operating Temperature ) ISW-511TS15 4+1 100FX Port Single-mode Industrial Ethernet Switch ─ 15km (-40~75 degrees C operating Temperature ) PLANET Technology Corporation 11F., No.96, Minquan Rd., Xindian Dist., New Taipei City C-ISW621TF 231, Taiwan (R.O.C.) PLANET reserves the right to change specifications without prior notice. All brand names and trademarks are property of Tel: 886-2-2219-9518 Fax: 886-2-2219-9528 their respective owners. Copyright © 2014 PLANET Technology Corp. All rights reserved. Email: sales@planet.com.tw www.planet.com.tw 3 40.00 28.00 48.80 28.00 18.00 28.00 53.50 53.50 18.00 46.50 48.80 39.70 97.10 87.80 11.83 53.74 9.20 135.00 87.80 7.00 15.20 32.00 30.00
