工業用イーサネットスイッチ PLANET ISW-621T/621TS15

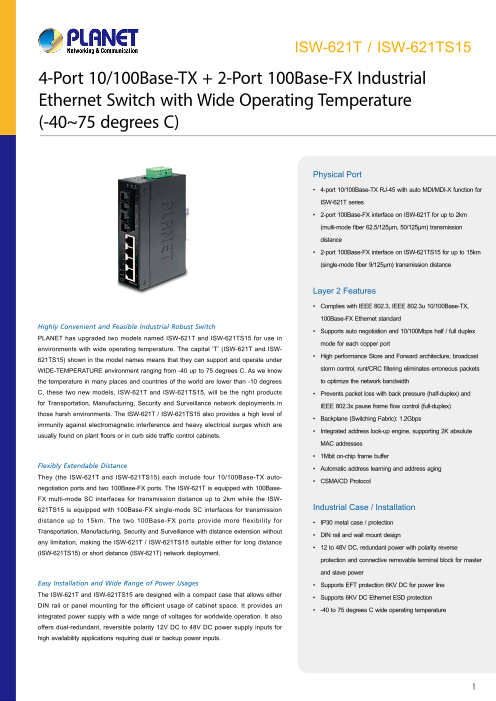

ISW-621T / ISW-621TS15 4-Port 10/100Base-TX + 2-Port 100Base-FX Industrial Ethernet Switch with Wide Operating Temperature (-40~75 degrees C) Physical Port • 4-port 10/100Base-TX RJ-45 with auto MDI/MDI-X function for ISW-621T series • 2-port 100Base-FX interface on ISW-621T for up to 2km (multi-mode fiber 62.5/125μm, 50/125µm) transmission distance • 2-port 100Base-FX interface on ISW-621TS15 for up to 15km (single-mode fiber 9/125µm) transmission distance Layer 2 Features • Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 100Base-FX Ethernet standard Highly Convenient and Feasible Industrial Robust Switch • Supports auto negotiation and 10/100Mbps half / full duplex PLANET has upgraded two models named ISW-621T and ISW-621TS15 for use in mode for each copper port environments with wide operating temperature. The capital ‘T’ (ISW-621T and ISW- 621TS15) shown in the model names means that they can support and operate under • High performance Store and Forward architecture, broadcast WIDE-TEMPERATURE environment ranging from -40 up to 75 degrees C. As we know storm control, runt/CRC filtering eliminates erroneous packets the temperature in many places and countries of the world are lower than -10 degrees to optimize the network bandwidth C, these two new models, ISW-621T and ISW-621TS15, will be the right products • Prevents packet loss with back pressure (half-duplex) and for Transportation, Manufacturing, Security and Surveillance network deployments in IEEE 802.3x pause frame flow control (full-duplex) those harsh environments. The ISW-621T / ISW-621TS15 also provides a high level of • Backplane (Switching Fabric): 1.2Gbps immunity against electromagnetic interference and heavy electrical surges which are • Integrated address look-up engine, supporting 2K absolute usually found on plant floors or in curb side traffic control cabinets. MAC addresses • 1Mbit on-chip frame buffer Flexibly Extendable Distance • Automatic address learning and address aging They (the ISW-621T and ISW-621TS15) each include four 10/100Base-TX auto- • CSMA/CD Protocol negotiation ports and two 100Base-FX ports. The ISW-621T is equipped with 100Base- FX multi-mode SC interfaces for transmission distance up to 2km while the ISW- 621TS15 is equipped with 100Base-FX single-mode SC interfaces for transmission Industrial Case / Installation distance up to 15km. The two 100Base-FX ports provide more flexibility for • IP30 metal case / protection Transportation, Manufacturing, Security and Surveillance with distance extension without • DIN rail and wall mount design any limitation, making the ISW-621T / ISW-621TS15 suitable either for long distance • 12 to 48V DC, redundant power with polarity reverse (ISW-621TS15) or short distance (ISW-621T) network deployment. protection and connective removable terminal block for master and slave power Easy Installation and Wide Range of Power Usages • Supports EFT protection 6KV DC for power line The ISW-621T and ISW-621TS15 are designed with a compact case that allows either • Supports 6KV DC Ethernet ESD protection DIN rail or panel mounting for the efficient usage of cabinet space. It provides an • -40 to 75 degrees C wide operating temperature integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 48V DC power supply inputs for high availability applications requiring dual or backup power inputs. Data Sheet 1 1

ISW-621T / ISW-621TS15 Applications Industrial Switch for High Performance Data Collection and Forwarding The ISW-621T and ISW-621TS15 are equipped with four 10/100Mbps ports offering auto MDI / MDIX feature, and two 100Base-FX optic-fiber SC interfaces providing 1.2Gps non-blocking switch fabric and the 2K MAC address table so that they can perform wire-speed packets transfer without risk of packet loss. The ISW-621T / ISW-621TS15, which come in the slim type IP30 metal case, is ideal for the most Heavy Industrial demanding environments. IP Camera Weather Station IP Camera Desert IP Camera IP Camera 15km 100 ISW-621TS15 ISW-621TS15 15km 100 Fiber Switch 100 15km 15km Data Center 100 ISW-621TS15 IP Camera IP Camera 15km 100 15km 15km 15km 100 100 100 ISW-621TS15 ISW-621TS15 Winter season of Country Steel Factory ISW-621TS15 100 100Base-FX Fiber-optic Specifications 100Base-TX UTP Model ISW-621T / ISW-621TS15 Hardware Specifications Ports 4 x 10/100Base-TX, auto negotiation, auto-MDI / MDI-X Copper Interface 10Base-T : 2-pair UTP Cat. 3, 4, 5 cable (100 meters, max.) Cable 100Base-TX : 2-pair UTP Cat. 5 cable (100 meters, max.) Port 2 x 100Base-FX ISW-621T: 50/125μm / 62.5/125μm fiber Cable ISW-621TS15: 9/125μm fiber ISW-621T: Multi-mode Mode ISW-621TS15: Single-mode ISW-621T: 2km Distance ISW-621TS15: 15km Optical Interface ISW-621T: 1310nm Wavelength ISW-621TS15: 1310nm ISW-621T: Max. -14dBm, Min. -20dBm Launch Power ISW-621TS15: Max. 0dBm, Min. -20dBm ISW-621T: -32dBm Receive Sensitivity ISW-621TS15: -32dBm ISW-621T: -14dBm Max. Input Power ISW-621TS15: 0dBm Dimensions (W x D x H) 135 x 97 x 32 mm Weight 442g 12~48V DC Power Requirements Redundant power with polarity reverse protection function Power Consumption / Dissipation Max. 16 watts / 54 BTU Installation DIN rail kit and wall mount ear 12~48V DC Alarm Redundant power with polarity reverse protection function Switch Specifications Switch Processing Scheme Store-and-Forward Address Table 2K entries Buffer 1Mbit Provides one relay output for power failure Flow Control Alarm relay current carry ability: 1A @ DC 24V 2

ISW-621T / ISW-621TS15 Switch Fabric 1.2Gbps Throughput (Packet Per Second) 0.89Mpps @ 64Bytes Standards Conformance IEEE 802.3 Ethernet, 10Base-T Standards Compliance IEEE 802.3u Fast Ethernet, 100Base-TX, 100Base-FX IEEE 802.3x Flow Control Operating: -40~75 degrees C Temperature Storage: -40~85 degrees C Operating: 5~90% Operating Humidity Storage: 5~90% (Non-condensing) Regulation Compliance FCC Part 15 Class A, CE IEC60068-2-32(Free fall) Stability Testing IEC60068-2-27(Shock) IEC60068-2-6(Vibration) Dimensions Side View ISW-621T / ISW-621TS15 Front View Bottom View Top View Rear View P1 P2 FAULT TX 100 6 Mounting Kit LNK/ACT RX TX 100 5 LNK/ACT RX DIN-Rail Kit 4 3 2 1 10/100 LNK/ACT ISW-621T Mounting Kit Ordering Information ISW-621T 4+2 100FX Port Multi-mode Industrial Ethernet Switch - 2km (-40 ~ 75 degrees C operating temperature) ISW-621TS15 4+2 100FX Port Single-mode Industrial Ethernet Switch - 15km (-40 ~ 75 degrees C operating temperature) Related Products Dimensions ( unit = mm ) 4-Port 10/100Base-TX + 1-Port 100Base-FX Industrial Ethernet Switch with Wide Operating Temperature (-40~75 ISW-511T / ISW-511TS15 degrees C) 4-Port 10/100Base-TX + 2-Port 100Base-FX Industrial Ethernet Switch with Wide Operating Temperature (-40~75 ISW-621TF degrees C) PLANET Technology Corporation 11F., No.96, Minquan Rd., Xindian Dist., New Taipei City C-ISW-621T / ISW-621TS15 231, Taiwan (R.O.C.) PLANET reserves the right to change specifications without prior notice. All brand names and trademarks are property of Tel: 886-2-2219-9518 Fax: 886-2-2219-9528 their respective owners. Copyright © 2014 PLANET Technology Corp. All rights reserved. Email: sales@planet.com.tw www.planet.com.tw 3 40.00 28.00 48.80 28.00 18.00 28.00 53.50 53.50 18.00 46.50 48.80 39.70 97.10 87.80 11.83 53.74 9.20 135.00 87.80 7.00 15.20 32.00 30.00
