工業用イーサネットスイッチ PLANET ISW-621/621S15

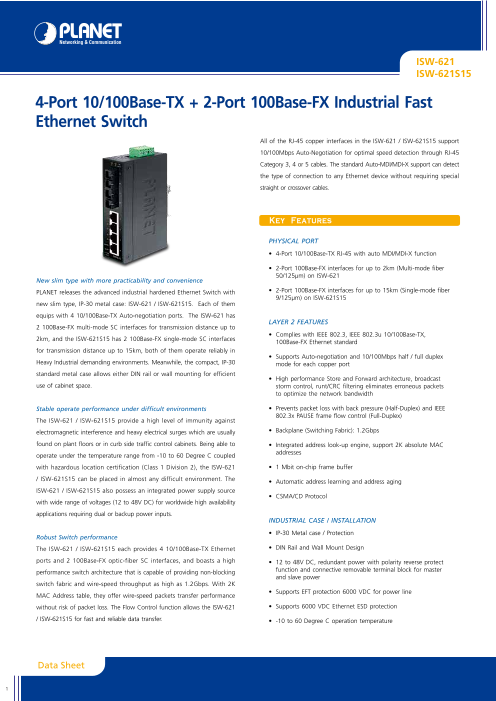

ISW-621 ISW-621S15 4-Port 10/100Base-TX + 2-Port 100Base-FX Industrial Fast Ethernet Switch All of the RJ-45 copper interfaces in the ISW-621 / ISW-621S15 support 10/100Mbps Auto-Negotiation for optimal speed detection through RJ-45 Category 3, 4 or 5 cables. The standard Auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. Key Features PhySical PoRt • 4-Port 10/100Base-TX RJ-45 with auto MDI/MDI-X function • 2-Port 100Base-FX interfaces for up to 2km (Multi-mode fiber 50/125µm) on ISW-621 New slim type with more practicability and convenience PLANET releases the advanced industrial hardened Ethernet Switch with • 2-Port 100Base-FX interfaces for up to 15km (Single-mode fiber 9/125µm) on ISW-621S15 new slim type, IP-30 metal case: ISW-621 / ISW-621S15. Each of them equips with 4 10/100Base-TX Auto-negotiation ports. The ISW-621 has layeR 2 FeatuReS 2 100Base-FX multi-mode SC interfaces for transmission distance up to • Complies with IEEE 802.3, IEEE 802.3u 10/100Base-TX, 2km, and the ISW-621S15 has 2 100Base-FX single-mode SC interfaces 100Base-FX Ethernet standard for transmission distance up to 15km, both of them operate reliably in • Supports Auto-negotiation and 10/100Mbps half / full duplex Heavy Industrial demanding environments. Meanwhile, the compact, IP-30 mode for each copper port standard metal case allows either DIN rail or wall mounting for efficient • High performance Store and Forward architecture, broadcast use of cabinet space. storm control, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth Stable operate performance under difficult environments • Prevents packet loss with back pressure (Half-Duplex) and IEEE 802.3x PAUSE frame flow control (Full-Duplex) The ISW-621 / ISW-621S15 provide a high level of immunity against electromagnetic interference and heavy electrical surges which are usually • Backplane (Switching Fabric): 1.2Gbps found on plant floors or in curb side traffic control cabinets. Being able to • Integrated address look-up engine, support 2K absolute MAC operate under the temperature range from -10 to 60 Degree C coupled addresses with hazardous location certification (Class 1 Division 2), the ISW-621 • 1 Mbit on-chip frame buffer / ISW-621S15 can be placed in almost any difficult environment. The • Automatic address learning and address aging ISW-621 / ISW-621S15 also possess an integrated power supply source • CSMA/CD Protocol with wide range of voltages (12 to 48V DC) for worldwide high availability applications requiring dual or backup power inputs. iNduStRial caSe / iNStallatioN • IP-30 Metal case / Protection Robust Switch performance The ISW-621 / ISW-621S15 each provides 4 10/100Base-TX Ethernet • DIN Rail and Wall Mount Design ports and 2 100Base-FX optic-fiber SC interfaces, and boasts a high • 12 to 48V DC, redundant power with polarity reverse protect performance switch architecture that is capable of providing non-blocking function and connective removable terminal block for master and slave power switch fabric and wire-speed throughput as high as 1.2Gbps. With 2K • Supports EFT protection 6000 VDC for power line MAC Address table, they offer wire-speed packets transfer performance without risk of packet loss. The Flow Control function allows the ISW-621 • Supports 6000 VDC Ethernet ESD protection / ISW-621S15 for fast and reliable data transfer. • -10 to 60 Degree C operation temperature Data Sheet 1

ISW-621 ISW-621S15 Applications industrial area Switch for data collect and forward The ISW-621 / ISW-621S15 equip with 4 10/100Mbps ports that offers auto MDI / MDIX feature, 2 100Base-FX optic-fiber SC interfaces, 1.2Gbps non-blocking switch fabric, and the 2K MAC Address table so that they can perform wire-speed packets transfer without risk of packet loss. The ISW-621 / ISW-621S15 with the slim type IP 30 metal shape is ideal for most Heavy Industrial demanding environments. Fiber Switch ISW-621S15 ISW-621S15 ICS-2100 100 15km Serial over Ethernet15km device 15km ICA-601 100 100 ICA-525 I/O ICS-2100 I/O Control Center PLC PLC I/O I/O I/O Robot I/O Device ISW-621S15 Robot R I/O OBOT ROBOT Subway 2 Maintenance Shop ICA-310 100Base-TX UTP 100 100Base-FX Fiber-optic I/O DI/DO Subway 1 Data Sheet PLANET Technology Corporation11F, No. 96, Min Chuan Road, Hsin Tien, Taipei, Taiwan, R.O.C. Tel: 886-2-2219-9518 Fax: 886-2-2219-9528 Email: sales@planet.com.tw www.planet.com.tw PLANET reserves the right to change specifications without prior notice. All brand names and trademarks are property of 2 VoIP Gateway: vip.planet.com.tw their respective owners. Copyright © 2008 PLANET Technology Corp. All rights reserved.

ISW-621 ISW-621S15 Specification Product 4-Port 10/100Base-TX + 2-Port 100Base-FX Industrial Fast Ethernet Switch Model ISW-621 ISW-621S15 Hardware Specification Ports 4 x 10/100Base-TX, Auto-negotiation, Auto-MDI/MDI-X Copper 10Base-T : 2-pair UTP Cat. 3, 4, 5 cable (100meters, max.) Cable 100Base-TX : 2-pair UTP Cat. 5 cable (100meters, max.) Port 2 x 100Base-FX Cable 50/125µm fiber 9/125µm fiber Mode Multi-mode Single-mode Distance 2km 15km Optical Frequency 1310nm 1310nm Launch Power Max. -14dBm, Min. -19dBm Max. -7dBm, Min. -20dBm Receive Sensitivity -34.5dBm -28dBm Max. Input Power -14dBm -8dBm Dimension (W x D x H) 135 x 97 x 32 mm Weight 442g 12~48V DC, Power Requirement Redundant power with polarity reverse protection function Power Consumption / Dissipation 11.6 Watts / 40BTU Installation DIN rail kit / wall mount ear Provides one relay output for power fail Alarm Alarm Relay current carry ability: 1A @ DC 24V Switch Specification Switch Processing Scheme Store-and-Forward Address Table 2K entries Buffer 1Mbit Back pressure for half duplex Flow Control IEEE 802.3x Pause Frame for full duplex Switch Fabric 1.2Gbps Throughput (Packet Per Second) 0.89Mpps @ 64Bytes Standards Conformance IEEE 802.3 Ethernet, 10Base-T Standards Compliance IEEE 802.3u Fast Ethernet, 100Base-TX, 100Base-FX IEEE 802.3x Full-duplex flow control Operating: -10~60 Degree C Temperature Storage: -40~85 Degree C Operating: 5~90%, Humidity Operating Storage: 5~90% (Non-condensing) Regulation Compliance FCC Part 15 Class A, CE IEC60068-2-32(Free fall) Stability Testing IEC60068-2-27(Shock) IEC60068-2-6(Vibration) Ordering Information iSW-621 4+2 100FX Port Multi-mode Industrial Ethernet Switch - 2km (-10~60 Degree C operate temperature) iSW-621S15 4+2 100FX Port Single-mode Industrial Ethernet Switch - 15km (-10~60 Degree C operate temperature) Related Products iSW-511 4+1 100FX Port Multi-mode Industrial Ethernet Switch - 2km (-10~60 Degree C operate temperature) iSW-511S15 4+1 100FX Port Single-mode Industrial Ethernet Switch - 15km (-10~60 Degree C operate temperature) iSW-511t 4+1 100FX Port Multi-mode Industrial Ethernet Switch - 2km (-40~75 Degree C operate temperature) iSW-511tS15 4+1 100FX Port Single-mode Industrial Ethernet Switch - 15km (-40~75 Degree C operate temperature) iSW-621t 4+2 100FX Port Multi-mode Industrial Ethernet Switch - 2km (-40~75 Degree C operate temperature) iSW-621tS15 4+2 100FX Port Single-mode Industrial Ethernet Switch - 15km (-40~75 Degree C operate temperature) Data Sheet PLANET Technology Corporation11F, No. 96, Min Chuan Road, Hsin Tien, Taipei, Taiwan, R.O.C. Tel: 886-2-2219-9518 Fax: 886-2-2219-9528 02-09 C-ISW621 Email: sales@planet.com.tw www.planet.com.tw PLANET reserves the right to change specifications without prior notice. All brand names and trademarks are property of 3 VoIP Gateway: vip.planet.com.tw their respective owners. Copyright © 2009 PLANET Technology Corp. All rights reserved.
