産業用PoEスイッチ PLANET ISW-504PT

ISW-504PT Industrial 5-Port 10/100TX Ethernet Switch with 4-Port 802.3at PoE+ Interface • 4 10/100BASE-TX Fast Ethernet IEEE 802.3at PoE+ RJ45 copper ports (Port-1 to Port-4) • 1 10/100BASE-TX Fast Ethernet non-PoE RJ45 copper port • One terminal block for master and slave power input (Power Range: 12 ~ 48V DC redundant power) • Hardware DIP switch for Standard, VLAN and Extend mode selection; the Extend mode features 25-watt PoE transmission distance of 250m at speed of 10Mbps (Only for Port-1 to Port-4) Power over Ethernet • Complies with IEEE 802.3at Power over Ethernet Plus, end- span PSE Cost-effective Full PoE+ Power Solution Ideal for Hardened Environment Featuring Plug and Play designed to be installed in heavy industrial demanding • Backward compatible with IEEE 802.3af Power over Ethernet environments, the ISW-504PT is a PLANET Industrial-grade, DIN-rail type • Up to 4 ports of IEEE 802.3af/at devices powered Unmanaged Fast Ethernet PoE+ Switch with 4 10/100BASE-TX PoE+ ports, and 1 • Up to 120-watt PoE budget additional Fast Ethernet interface for video uplink. • Supports PoE power up to 36 watts for each PoE port • Each port supports 54V DC power to PoE powered device The ISW-504PT is designed with redundant power system and is able to operate • Auto detects powered device (PD) reliably, stably and quietly in any hardened environment without affecting its • Circuit protection prevents power interference between ports performance. It comes with a total power budget of up to 120 watts for different • Remote power feeding up to 100m in standard mode with 250m kinds of PoE applications and operating temperature ranging from -40 to 75 in extend mode degrees C in a rugged IP40 metal housing. Switching • Hardware-based 10/100Mbps (half/full duplex), auto-negotiation and auto MDI/MDI-X • Features Store-and-Forward mode with wire-speed filtering and forwarding rates • IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation • 1K MAC address table size • 1536 Bytes jumbo frame • IEEE 802.1Q VLAN transparency Extension of Ethernet Data Transmission Distance • Automatic address learning and address aging The ISW-504PT has a built-in solid DIP switch providing “Standard”, "VLAN" and • Supports CSMA/CD protocol “Extend” operation modes. By default, the ISW-504PT operates as a normal IEEE 802.3af/at PoE+ Switch in the “Standard” operation mode. Industrial Case and Installation • IP40 metal case Standard Mode (default) • DIN-rail, wall-mount design or side wall-mount design ISW-504PT/ISW-514PTF PoE IP Camera • 12~48V DC redundant power with polarity reverse protect function PoE • Fault alarm for power input failed • Supports 5KV DC Ethernet ESD protection 100 meters (328 feet) • -40 to 75 degrees C operating temperature PoE 100BASE-TX UTP with PoE • 4 real-time PoE power usage indicators Data Sheet 1 1 1 2 3 4 5

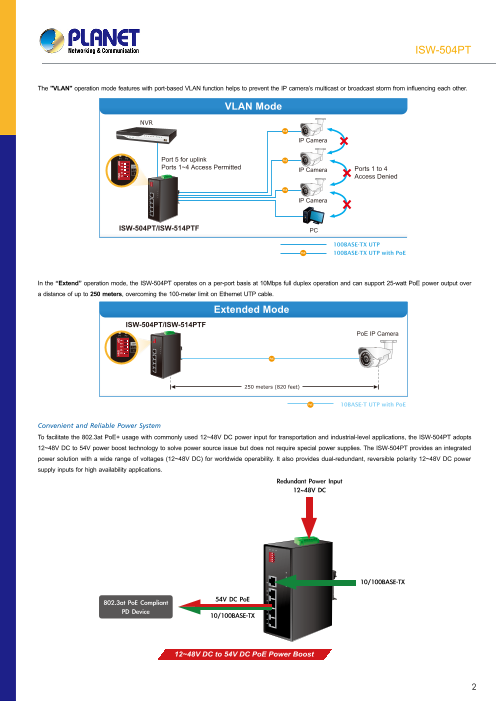

ISW-504PT The "VLAN" operation mode features with port-based VLAN function helps to prevent the IP camera’s multicast or broadcast storm from influencing each other. VLAN Mode NVR PoE IP Camera Port 5 for uplink PoE Ports 1~4 Access Permitted IP Camera Ports 1 to 4 Access Denied PoE IP Camera ISW-504PT/ISW-514PTF PC 100BASE-TX UTP PoE 100BASE-TX UTP with PoE In the “Extend” operation mode, the ISW-504PT operates on a per-port basis at 10Mbps full duplex operation and can support 25-watt PoE power output over a distance of up to 250 meters, overcoming the 100-meter limit on Ethernet UTP cable. Extended Mode ISW-504PT/ISW-514PTF PoE IP Camera PoE 250 meters (820 feet) PoE 10BASE-T UTP with PoE Convenient and Reliable Power System To facilitate the 802.3at PoE+ usage with commonly used 12~48V DC power input for transportation and industrial-level applications, the ISW-504PT adopts 12~48V DC to 54V power boost technology to solve power source issue but does not require special power supplies. The ISW-504PT provides an integrated power solution with a wide range of voltages (12~48V DC) for worldwide operability. It also provides dual-redundant, reversible polarity 12~48V DC power supply inputs for high availability applications. Redundant Power Input 12~48V DC 10/100BASE-TX 802.3at PoE Compliant 54V DC PoE PD Device 10/100BASE-TX 12~48V DC to 54V DC PoE Power Boost 2 1 2 3 4 5 1 2 3 4 5 1 2 3 4 5

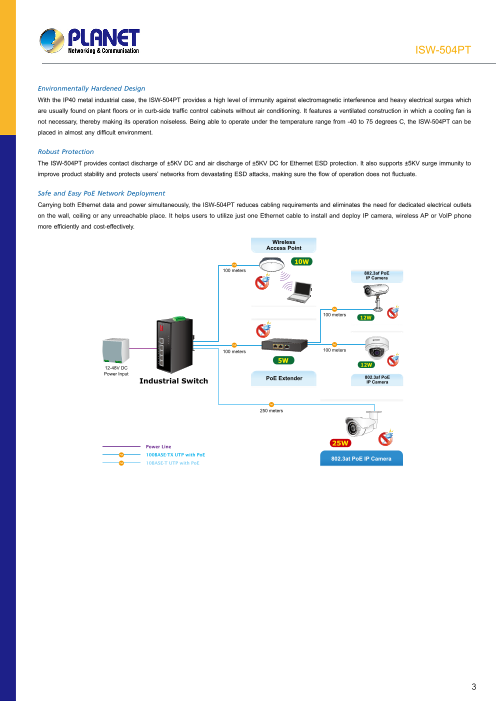

ISW-504PT Environmentally Hardened Design With the IP40 metal industrial case, the ISW-504PT provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets without air conditioning. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Being able to operate under the temperature range from -40 to 75 degrees C, the ISW-504PT can be placed in almost any difficult environment. Robust Protection The ISW-504PT provides contact discharge of ±5KV DC and air discharge of ±5KV DC for Ethernet ESD protection. It also supports ±5KV surge immunity to improve product stability and protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate. Safe and Easy PoE Network Deployment Carrying both Ethernet data and power simultaneously, the ISW-504PT reduces cabling requirements and eliminates the need for dedicated electrical outlets on the wall, ceiling or any unreachable place. It helps users to utilize just one Ethernet cable to install and deploy IP camera, wireless AP or VoIP phone more efficiently and cost-effectively. Wireless Access Point PoE 100 meters 802.3af PoE IP Camera PoE 100 meters 12W PoE PoE 100 meters 100 meters 12-48V DC 12W Power Input Industrial Switch PoE Extender 802.3af PoEIP Camera PoE 250 meters 25W Power Line PoE 100BASE-TX UTP with PoE 802.3at PoE IP Camera PoE 10BASE-T UTP with PoE 3 1 2 3 4 5

ISW-504PT Applications Industrial-grade PoE+ Switch for Building Automation and Security Suitable for buildings where security is strictly enforced, the ISW-504PT, with four Fast Ethernet 802.3at PoE+, in-line power interfaces, can easily build a power that can centrally control an IP phone system, IP surveillance system, and wireless AP group in the harsh Industrial environment. For instance, 4 PoE IP cameras or PoE wireless APs can be easily installed for surveillance demands or a wireless roaming environment in the industrial area can be built. Without the power-socket limitation, the ISW-504PT makes the installation of IP cameras or wireless APs easier and more efficient. PoE Wireless AP PoE VoIP PoE PoE Internet Core Switch ISW-504PT PoE |O|O| 100BASE-TX UTP Security Serial Server PoE IP Camera PoE 100BASE-TX UTP with PoE Gate |O|O| Serial Line (RS-XXX) Perfect Integration Solution for IP PoE Camera and NVR System The ISW-504PT provides four 10/100BASE-TX 802.3at PoE+ ports which can offer sufficient PoE power to 4 PoE IP cameras at the same time. In addition, with the 10/100BASE-TX interfaces, the ISW-504PT can connect to a core fiber switch and send video streams to an NVR and monitoring center. Through the high-performance switch architecture, the ISW-504PT facilitates the recorded video files from the 4 PoE+ IP cameras to be saved in the NVR systems. Furthermore, the NVR systems can be controlled and monitored in both the local LAN and the remote site via Internet. The ISW-504PT undoubtedly brings an ideal secure surveillance system at a lower total cost. Port 1~Port 4 PoE IP Cameras PoE PoE PoE PoE ISW-504PT 12-48V DC Power Input 4-channel NVR Ethernet Switch Port 5 Uplink Port Power Line 100BASE-TX UTP PoE 100BASE-TX UTP with PoE 4 1 2 3 4 5 1 2 3 4 5

ISW-504PT Specifications Product ISW-504PT Hardware Specifications Fast Ethernet Copper Ports Five 10/100BASE-TX RJ45 auto-MDI/MDI-X ports (Port-1 to Port-5) PoE Injector Port Four ports with 802.3af/at PoE+ injector function (Port-1 to Port-4) Switch Architecture Store-and-Forward Switch Fabric 1Gbps/non-blocking Switch Throughput@64 bytes 0.74Mpps @64 bytes MAC Address Table 1K entries IEEE 802.3x pause frame for full duplex Flow Control Back pressure for half duplex Jumbo Frame 1536 Bbytes Standard mode: 30-watt PoE transmission distance of 100m at speed of 10/100Mbps VLAN mode: "Port-based VLAN Protection" where ports can be isolated from each other via one DIP switch. DIP Switch (Port-1 to Port-4) Only Port-5 can visit other ports. Extend mode: 25-watt PoE transmission distance of 250m at speed of 10Mbps 3 x LED for System and Power: ■ Green: DC Power 1 ■ Green: DC Power 2 ■ Red: Power Fault Alarm 2 x LED for PoE Copper Port (Port-1~Port-4): LED Indicators ■ Green: LNK/ACT (10/100Mbps) ■ Orange: PoE-in-Use 1 x LED for 10/100TX Copper Port (Port-5): ■ Green: LNK/ACT 4 x LED for PoE Usage ■ Orange Removable 6-pin terminal block ■ Pin 1/2 for Power 1 Connector ■ Pin 3/4 for power fault alarm ■ Pin 5/6 for Power 2 One relay output for power failure. Alarm Alarm relay current carry ability: 1A @ 24V AC Power Requirements 12~48V DC, 7A (max.) 3.7 watts, 12.6 BTU (Standby without PoE function) at DC 12V power input 70 watts, 238.8 BTU (Full loading with PoE function) at DC 12V power input 4.6 watts, 15.7 BTU (Standby without PoE function) at DC 24V power input Power Consumption/ Dissipation 105.1 watts, 358.6 BTU (Full loading with PoE function) at DC 24V power input 4.8 watts, 16.4 BTU (Standby without PoE function) at DC 48V power input 136.8 watts, 466.8 BTU (Full loading with PoE function) at DC 48V power input Dimensions (W x D x H) 50 x 85.1 x 135 mm Weight 596g ESD Protection 5KV DC Enclosure IP40 metal case Installation DIN-rail kit and wall-mount kit Power over Ethernet PoE Standard IEEE 802.3af Power over Ethernet / PSE PoE Power Supply Type End-Span PoE Power Output Per port 54V DC, max. 36 watts Power Pin Assignment 1/2 (+), 3/6 (-) 60W @12V DC input PoE Power Budget (max.) 90W @24V DC input 120W @48V DC input Max. Number of Class 2 PDs 4 Max. Number of Class 3 PDs 4 Max. Number of Class 4 PDs 4 Standards Conformance Regulatory Compliance FCC Part 15 Class A, CE IEC 60068-2-32 (free fall) Stability Testing IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) 5

ISW-504PT IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX Standards Compliance IEEE 802.3x Flow Control and Back Pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus Environment Operating Temperature -40 ~ 75 degrees C Storage Temperature -40 ~ 85 degrees C Humidity 5 ~ 95% (non-condensing) Ordering Information ISW-504PT Industrial 5-Port 10/100TX Ethernet Switch with 4-Port 802.3at PoE+ (-40~75 degrees C) Related Product ISW-514PTF Industrial 4-Port 10/100TX 802.3at PoE+ plus 1-Port 100FX Ethernet Switch IPOE-E202 Industrial 1-Port 802.3at PoE+ to 2-Port 802.3af PoE Extender POE-E101 IEEE 802.3af Power over Ethernet Extender POE-E201 IEEE 802.3at Power over Gigabit Ethernet Extender POE-E202 Industrial 1-Port 802.3at PoE+ to 2-Port 802.3af PoE Extender IPOE-162S Industrial IEEE 802.3at High Power over Ethernet Splitter (12V & 24V) POE-161S IEEE 802.3at High Power over Ethernet Splitter POE-162S IEEE 802.3at High Power over Ethernet Splitter (12V & 24V) ICA-E3550V 5 Mega-pixel Bullet IR PoE IP Camera with Extended Support VIP-2140PT High Definition Color PoE IP Phone with Dual Display Accessories PWR-240-48 240W 48V DC Single Output Industrial DIN-rail Power Supply (-20 ~ 70 degrees C) PWR-480-48 480W 48V DC Single Output Industrial DIN-rail Power Supply (-20 ~ 70 degrees C) PLANET Technology Corporation 11F., No.96, Minquan Rd., Xindian Dist., New Taipei City ISW-504PT 231, Taiwan (R.O.C.) PLANET reserves the right to change specifications without prior notice. All brand names and trademarks are property of Tel: 886-2-2219-9518 Fax: 886-2-2219-9528 their respective owners. Copyright © 2019 PLANET Technology Corp. All rights reserved. Email: sales@planet.com.tw www.planet.com.tw 6
