PoEエクステンダー PLANET IPOE-E174

IPOE-E174 Industrial 1-Port Ultra PoE to 4-Port 802.3af/at Gigabit PoE Extender Physical Port • Five 10/100/1000BASE-T Gigabit RJ45 interfaces • 1-port data + power input • 4-port data + power output Power over Ethernet • 1-port data + power input • Complies with ultra Power over Ethernet end-span and mid- span PD • Complies with IEEE 802.3at Power over Ethernet Plus end- span/mid-span PD PoE Solution for Long-reach Distance • Supports PoE input power up to 75 watts PLANET IPOE-E174 is an industrial 1-Port Ultra PoE (IEEE 802.3bt) to 4-Port • 4-port data + power output • Complies with IEEE 802.3af/at PoE/end-span PSE 802.3af/at Gigabit PoE Extender designed especially for the point to multipoint PoE • Up to 4 IEEE 802.3af/at devices powered application. The IPOE-E174 can obtain a maximum of 75-watt PoE power from ultra • Supports PoE power up to 30 watts for each PoE port PoE (IEEE 802.3bt) input port and supplies a maximum of 60-watt PoE power budget • Auto detects powered device (PD) for 4 PoE output ports, extending both the reach of Gigabit Ethernet Data and IEEE • Extends the range of PoE to an additional 100 meters (328ft.) • Forwards both Ethernet data and PoE power to remote device 802.3at/802.3af Power over Ethernet over the standard 100m (328 ft.) Cat. 5/5e/6 UTP cable to 200m where up to 4 powered devices (PDs) can be powered at the same time. Layer 2 Features The IPOE-E174 provides a simple solution for adding PoE ports without running more • Features Store-and-Forward mode with wire-speed filtering and forwarding rates cabling and achieves more flexible network applications without requiring an external • Integrates address look-up engine, supporting 2K absolute MAC power adapter. addresses • 9K jumbo frame support in 1000Mbps duplex mode • Automatic address learning and address aging Power Industrial Case and Installation Ultra PoE (60W) • IP30 metal case Data • DIN rail and wall-mount design • Supports 6000V DC Ethernet ESD protection IEEE 802.3at (25W) • -40 to 75 degrees C operating temperature • No external power cable required for installation • Plug and Play installation IEEE 802.3at (25W) PoE PTZ IP Cemera Power Ultra PoE (60W) Data IEEE 802.3at (15W) IEEE 802.3at (15W) IEEE 802.3at (15W) IEEE 802.3at (15W) PoE Dome IP Camera 1

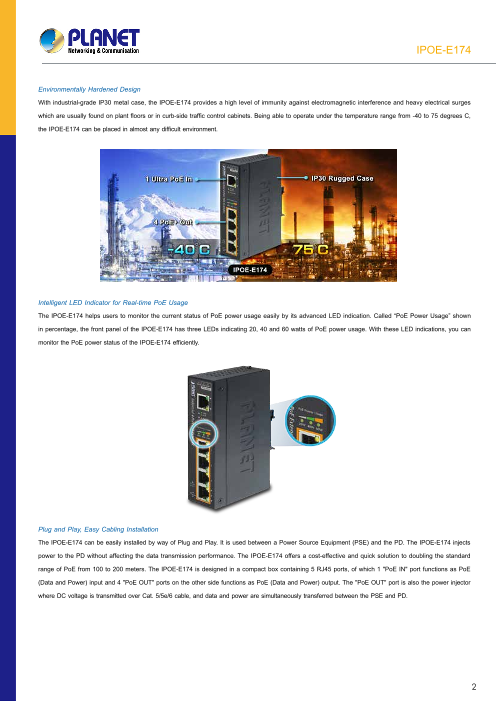

IPOE-E174 Environmentally Hardened Design With industrial-grade IP30 metal case, the IPOE-E174 provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C, the IPOE-E174 can be placed in almost any difficult environment. Intelligent LED Indicator for Real-time PoE Usage The IPOE-E174 helps users to monitor the current status of PoE power usage easily by its advanced LED indication. Called “PoE Power Usage” shown in percentage, the front panel of the IPOE-E174 has three LEDs indicating 20, 40 and 60 watts of PoE power usage. With these LED indications, you can monitor the PoE power status of the IPOE-E174 efficiently. Plug and Play, Easy Cabling Installation The IPOE-E174 can be easily installed by way of Plug and Play. It is used between a Power Source Equipment (PSE) and the PD. The IPOE-E174 injects power to the PD without affecting the data transmission performance. The IPOE-E174 offers a cost-effective and quick solution to doubling the standard range of PoE from 100 to 200 meters. The IPOE-E174 is designed in a compact box containing 5 RJ45 ports, of which 1 "PoE IN" port functions as PoE (Data and Power) input and 4 "PoE OUT" ports on the other side functions as PoE (Data and Power) output. The "PoE OUT" port is also the power injector where DC voltage is transmitted over Cat. 5/5e/6 cable, and data and power are simultaneously transferred between the PSE and PD. 2

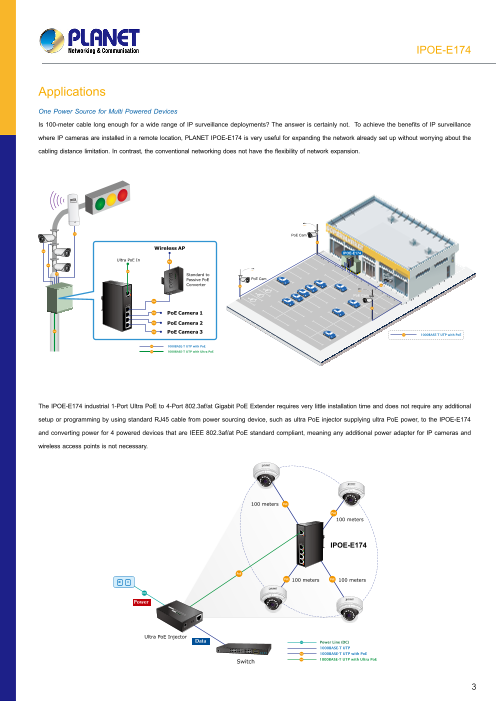

IPOE-E174 Applications One Power Source for Multi Powered Devices Is 100-meter cable long enough for a wide range of IP surveillance deployments? The answer is certainly not. To achieve the benefits of IP surveillance where IP cameras are installed in a remote location, PLANET IPOE-E174 is very useful for expanding the network already set up without worrying about the cabling distance limitation. In contrast, the conventional networking does not have the flexibility of network expansion. PoE PoE Cam PoE Wireless AP PoE IPOE-E174 Ultra PoE In PoE PoE PoE PoE Standard to PoE Passive PoE PoE Cam Switch Converter PoEPoE PoE Cam PoE PoE PoE PoE Camera 1 PoE PoE Camera 2 PoE PoE PoE Camera 3 PoE 1000BASE-T UTP with PoE PoE 1000BASE-T UTP with PoE PoE 1000BASE-T UTP with Ultra PoE The IPOE-E174 industrial 1-Port Ultra PoE to 4-Port 802.3af/at Gigabit PoE Extender requires very little installation time and does not require any additional setup or programming by using standard RJ45 cable from power sourcing device, such as ultra PoE injector supplying ultra PoE power, to the IPOE-E174 and converting power for 4 powered devices that are IEEE 802.3af/at PoE standard compliant, meaning any additional power adapter for IP cameras and wireless access points is not necessary. 100 meters PoE PoE 100 meters IPOE-E174 PoE PoE 100 meters PoE 100 meters DC Power Ultra PoE Injector Data DC Power Line (DC) 1000BASE-T UTP PoE 1000BASE-T UTP with PoE Switch PoE 1000BASE-T UTP with Ultra PoE 3

IPOE-E174 Specifications Model IPOE-E174 Hardware Specifications PoE In Port 1 x 10/100/1000BASE-T Ethernet with ultra PoE “Data + DC” in, auto MDI/MDI-X, auto-negotiation RJ45 Network Connector connectorPoE Out Port 4 x 10/100/1000BASE-T Ethernet with IEEE 802.3af/at PoE “Data + DC” out, auto MDI/MDI-X, auto-negotiation RJ45 connector Switch Architecture Store-and-Forward switch architecture MAC Address Table 2K MAC address table with auto learning function Switch Fabric 10Gbps Switch Throughput 7.44Mpps @ 64Bytes Flow Control IEEE 802.3x pause frame for full duplexBack pressure for half duplex Jumbo Frame 9Kbytes ESD Protection 6KV DC Enclosure IP30 metal case Installation DIN rail kit and wall-mount ear Twisted-pair cable : Cable 10BASE-T: 2-pair UTP Cat. 3,4,5, up to 100 meters100BASE-TX: 2-pair UTP Cat. 5, 5e up to 100 meters 1000BASE-T: 4-pair UTP Cat. 5e,6 up to 100 meters Dimensions (W x D x H) 32 x 85 x 135 mm Weight 424g 4.1 watts/13.9 BTU (Power On) Power Consumption 64.7 watts/220.6 BTU (Full PoE loading without data transfers) 66.1 watts/225.4 BTU (Full loading with PoE function) System: PWR (Green) Power Input: 30W, 2-pair 802.3at PoE in (Green) Power Input: 60W+, 4-pair 802.3bt, Ultra PoE or UPOE in (Green) LED Display HPoE Power usage: 20W, 40W and 60WPoE Input Port: PoE in (Orange) PoE Input Port: LNK/ACT (Green) Per PoE Output Port: LNK/ACT (Green) Per PoE Output Port: PoE-in-Use (Orange) Power over Ethernet PoE in Port IEEE 802.3bt Higher Power over Ethernet end-span/mid-span PD class 4 PD PoE Standard Per PoE Out Port IEEE 802.3at Power over Ethernet Plus end-span PSE IEEE 802.3af Power over Ethernet end-span PSE PoE in Port PoE Power 50~57V DC, max. 72 wattsPer PoE Out Port 44~55V DC, max. 30.8 watts PoE in Port Power Pin Assignment 1/2(-), 3/6(+); 4/5(+), 7/8(-)Per PoE out Port 1/2(+), 3/6(-) POE-171A-60 Compatible PoE Injectors POE-171A-95IPOE-171-60 IPOE-171-95 64 watts (max.) @ PoE Type 3 input (Ultra PoE input) PoE Power Budget 30 watts (max.) @ PoE Type 2 input (802.3at input) 15 watts (max.) @ PoE Type 1 input (802.3af input) Environment Operating Temperature: -40 ~ 75 degrees CRelative Humidity: 5 ~ 95% (non-condensing) Storage Temperature: -40 ~ 85 degrees CRelative Humidity: 5 ~ 95% (non-condensing) 4

IPOE-E174 Top View Side View Front View Side View Rear View PWR 30W 60W+ PoE Input Mounting Kit LNK ACT PoE IN PoE Power Usage 20W 40W 60W 1 DIN-Rail Kit 2 3 LNK AC T 4 PoE IN-Use Mounting Kit Dimensions ( unit = mm ) Ordering Information IPOE-E174 Industrial 1-Port Ultra PoE to 4-Port 802.3af/at Gigabit PoE Extender Related Products POE-172 Single-Port 10/100/1000Mbps Ultra PoE Injector (60 watts, internal PWR) POE-E201 IEEE 802.3at Power over Gigabit Ethernet Extender POE-E101 IEEE 802.3af Power over Ethernet Extender GSW-1222VUP 8-Port 10/100/1000T Ultra PoE + 2-Port 10/100/1000T + 2-Port 1000X SFP Gigabit Ethernet Switch with LCD PoE Monitor (380W) GS-4210-16UP4C 16-Port 10/100/1000T Ultra PoE + 4-Port Gigabit TP/SFP Combo Managed Switch GS-4210-24UP4C 24-Port 10/100/1000T Ultra PoE + 4-Port Gigabit TP/SFP Combo Managed Switch GS-5220-24UP4XV/GS-5220-24UP4XVR L2+ 24-Port 10/100/1000T Ultra PoE + 4-Port 10G SFP+ Managed Switch with LCD touch screen GS-5220-24UP4X/GS-5220-24UP4XR L2+ 24-Port 10/100/1000T Ultra PoE + 4-Port 10G SFP+ Managed Switch IGS-5225-4UP1T2S Industrial L2+ 4-Port 10/100/1000T Ultra PoE + 1-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch UPOE-800G 8-Port Gigabit 60W Ultra PoE Managed Injector Hub (400W) UPOE-1600G 16-Port Gigabit 60W Ultra PoE Managed Injector Hub (600W) UPOE-2400G 24-Port Gigabit 60W Ultra PoE Managed Injector Hub (800W) PLANET Technology Corporation 11F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, IPOE-E174v2 Taiwan (R.O.C.) PLANET reserves the right to change specifications without prior notice. All brand names and trademarks are property of Tel: 886-2-2219-9518 Fax: 886-2-2219-9528 their respective owners. Copyright © 2017 PLANET Technology Corp. All rights reserved. Email: sales@planet.com.tw www.planet.com.tw 5 Industrial 4-Port PoE Extender
