PoEスプリッター PLANET IPOE-171S

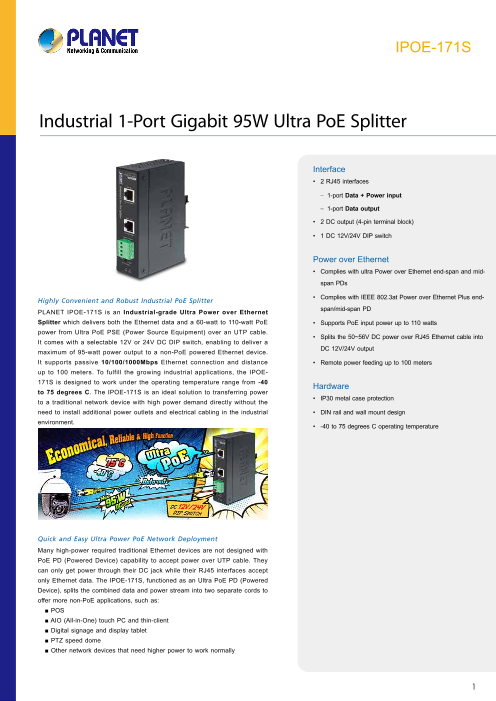

IPOE-171S Industrial 1-Port Gigabit 95W Ultra PoE Splitter Key FeatuInrteesrface • 2 RJ45 interfaces – 1-port Data + Power input – 1-port Data output • 2 DC output (4-pin terminal block) • 1 DC 12V/24V DIP switch Power over Ethernet • Complies with ultra Power over Ethernet end-span and mid- span PDs Highly Convenient and Robust Industrial PoE Splitter • Complies with IEEE 802.3at Power over Ethernet Plus end- PLANET IPOE-171S is an Industrial-grade Ultra Power over Ethernet span/mid-span PD Splitter which delivers both the Ethernet data and a 60-watt to 110-watt PoE • Supports PoE input power up to 110 watts power from Ultra PoE PSE (Power Source Equipment) over an UTP cable. • Splits the 50~56V DC power over RJ45 Ethernet cable into It comes with a selectable 12V or 24V DC DIP switch, enabling to deliver a maximum of 95-watt power output to a non-PoE powered Ethernet device. DC 12V/24V output It supports passive 10/100/1000Mbps Ethernet connection and distance • Remote power feeding up to 100 meters up to 100 meters. To fulfill the growing industrial applications, the IPOE- 171S is designed to work under the operating temperature range from -40 Hardware to 75 degrees C. The IPOE-171S is an ideal solution to transferring power to a traditional network device with high power demand directly without the • IP30 metal case protection need to install additional power outlets and electrical cabling in the industrial • DIN rail and wall mount design environment. • -40 to 75 degrees C operating temperature Quick and Easy Ultra Power PoE Network Deployment Many high-power required traditional Ethernet devices are not designed with PoE PD (Powered Device) capability to accept power over UTP cable. They can only get power through their DC jack while their RJ45 interfaces accept only Ethernet data. The IPOE-171S, functioned as an Ultra PoE PD (Powered Device), splits the combined data and power stream into two separate cords to offer more non-PoE applications, such as: ■ POS ■ AIO (All-in-One) touch PC and thin-client ■ Digital signage and display tablet ■ PTZ speed dome ■ Other network devices that need higher power to work normally Data Sheet 1 1

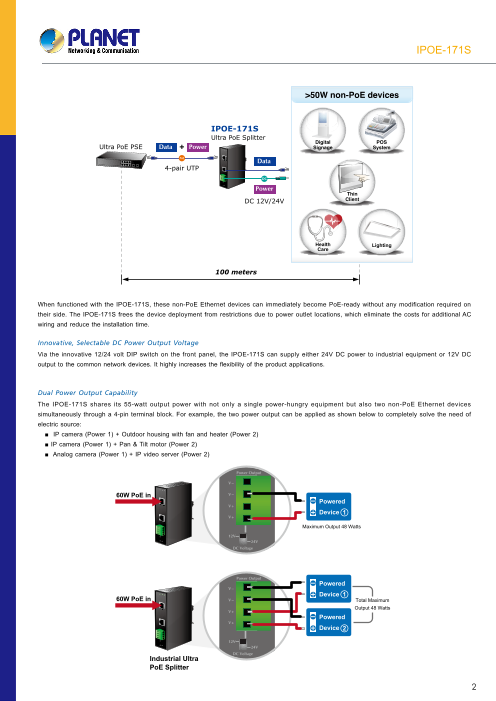

IPOE-171S >50W non-PoE devices IPOE-171S Ultra PoE Splitter Digital POS Ultra PoE PSE Data Power Signage System PoE Data 4-pair UTP DC Power Thin DC 12V/24V Client Health Lighting Care 100 meters When functioned with the IPOE-171S, these non-PoE Ethernet devices can immediately become PoE-ready without any modification required on their side. The IPOE-171S frees the device deployment from restrictions due to power outlet locations, which eliminate the costs for additional AC wiring and reduce the installation time. Innovative, Selectable DC Power Output Voltage Via the innovative 12/24 volt DIP switch on the front panel, the IPOE-171S can supply either 24V DC power to industrial equipment or 12V DC output to the common network devices. It highly increases the flexibility of the product applications. Dual Power Output Capability The IPOE-171S shares its 55-watt output power with not only a single power-hungry equipment but also two non-PoE Ethernet devices simultaneously through a 4-pin terminal block. For example, the two power output can be applied as shown below to completely solve the need of electric source: ■ IP camera (Power 1) + Outdoor housing with fan and heater (Power 2) ■ IP camera (Power 1) + Pan & Tilt motor (Power 2) ■ Analog camera (Power 1) + IP video server (Power 2) 60W PoE in Powered Device 1 Maximum Output 48 Watts Powered Device 1 60W PoE in Total Maximum Output 48 Watts Powered Device 2 Industrial Ultra PoE Splitter 2

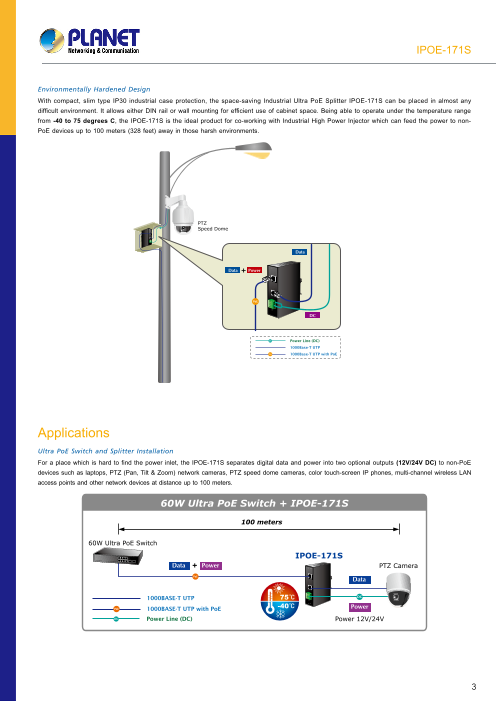

IPOE-171S Environmentally Hardened Design With compact, slim type IP30 industrial case protection, the space-saving Industrial Ultra PoE Splitter IPOE-171S can be placed in almost any difficult environment. It allows either DIN rail or wall mounting for efficient use of cabinet space. Being able to operate under the temperature range from -40 to 75 degrees C, the IPOE-171S is the ideal product for co-working with Industrial High Power Injector which can feed the power to non- PoE devices up to 100 meters (328 feet) away in those harsh environments. PTZ DC Speed Dome Data Data + Power PoE DC DC Power Line (DC) 1000Base-T UTP PoE 1000Base-T UTP with PoE Applications Ultra PoE Switch and Splitter Installation For a place which is hard to find the power inlet, the IPOE-171S separates digital data and power into two optional outputs (12V/24V DC) to non-PoE devices such as laptops, PTZ (Pan, Tilt & Zoom) network cameras, PTZ speed dome cameras, color touch-screen IP phones, multi-channel wireless LAN access points and other network devices at distance up to 100 meters. 60W Ultra PoE Switch + IPOE-171S 100 meters 60W Ultra PoE Switch IPOE-171S Data Power PTZ Camera PoE Data 1000BASE-T UTP 75 ℃ DC PoE 1000BASE-T UTP with PoE -40 ℃ Power DC Power Line (DC) Power 12V/24V 3

IPOE-171S Specifications Product IPOE-E174 Hardware Specifications 1 10/100/1000 BASE-T RJ45 PoE Input Port “PoE (Data + Power) In” 1 10/100/1000 BASE-T RJ45 Interface Data Output Port “Data Out” DC Out Plug Connector 1 removable 4-pin terminal block DIP Switch 12V DC/24V DC output voltage Power Ready Green 802.3at PoE+ In Green LED Indicator Ultra PoE or 802.3bt PoE in Green DC 12V Orange DC 24V Green Ultra PoE (60W/75W/95W) 4-pair UTP Cat5e, 6, up to 100m (328ft) Network Cable 802.3at PoE+ 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft) Data Rate 10/100/1000Mbps Dimensions (W x D x H) 32 x 87 x 135 mm Weight 425g Installation DIN rail/wall mountable Enclosure IP30 metal case Power Requirements 50 ~ 56V DC PoE 12V DC, 8A (max.) 110-watt PoE input: 24V DC, 4A (max.) Power Output (at 56V DC Input) 12V DC, 4.5A (max.) 75-watt PoE input: 24V DC, 2.3A (max.) System on with PoE input: 3.7 watts Ethernet full loading without DC output: 3.7 watts Power Consumption Full loading with maximum 12V DC, 4A output: 60.2 watts 110 watts Full loading with maximum 12V DC, 8A output: (110-watt PoE in) Power over Ethernet 802.3bt Type 3/Type 4 Power over Ethernet, PoE Standard 4-pair 802.3at PoE+ Power Output DC 12V/24V by DIP switch control end-span + mid-span PoE Power Supply Type end-span mid-span Power Pin Assignment 1/2 (+), 3/6 (-); 4/5 (+), 7/8 (-) or 1/2(-), 3/6(+); 4/5(+), 7/8(-) Standards Conformance IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet Standards Compliance IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3af Power over Ethernet Regulatory Compliance FCC Part 15 Class A, CE Environment Operating Temperature -40~ 75 degrees C Storage Temperature -40~ 85 degrees C Humidity 5 ~ 95% (non-condensing) 4

IPOE-171S Diagram Top View Side View Front View Side View Rear View PWR 30W 60W PoE Input PoE IN Mounting Kit 10/100/1000T Data Out DIN-Rail Kit 10/100/1000T Power Output V V V+ V+ 12V 24V DC Voltage 12V 24V Mounting Kit Dimensions ( unit = mm ) Ordering Information IPOE-171S Industrial 1-port Gigabit 95W Ultra PoE Splitter Related Products GS-4210-16UP4C 16-port 10/100/1000T Ultra PoE + 4-port Gigabit TP/SFP Combo Managed Switch GS-4210-24UP4C 24-port 10/100/1000T Ultra PoE + 4-port Gigabit TP/SFP Combo Managed Switch 8-Port 10/100/1000T Ultra PoE + 2-Port 10/100/1000T + 2-Port 1000X SFP Gigabit Ethernet Switch with LCD PoE GSW-1222VUP Monitor / 380W IGS-5225-4UP1T2S Industrial L2+ 4-Port 10/100/1000T Ultra PoE + 1-Port 10/100/1000T + 2-Port 100/1000X SFP Managed Switch POE-171 Single-port 10/100/1000Mbps Ultra PoE Injector (60 watts) POE-172 60-watt Ultra Power over Ethernet Injector POE-173 60-watt Ultra Power over Ethernet Injector UPOE-800G 8-Port Gigabit 60W Ultra PoE Managed Injector Hub (400W) UPOE-1600G 16-Port Gigabit 60W Ultra PoE Managed Injector Hub (600W) PLANET Technology Corporation 11F., No.96, Minquan Rd., Xindian Dist., New Taipei City IPOE-171S 231, Taiwan (R.O.C.) PLANET reserves the right to change specifications without prior notice. All brand names and trademarks are property of Tel: 886-2-2219-9518 Fax: 886-2-2219-9528 their respective owners. Copyright © 2017 PLANET Technology Corp. All rights reserved. Email: sales@planet.com.tw www.planet.com.tw 5 Industrial Ultra PoE Splitter
