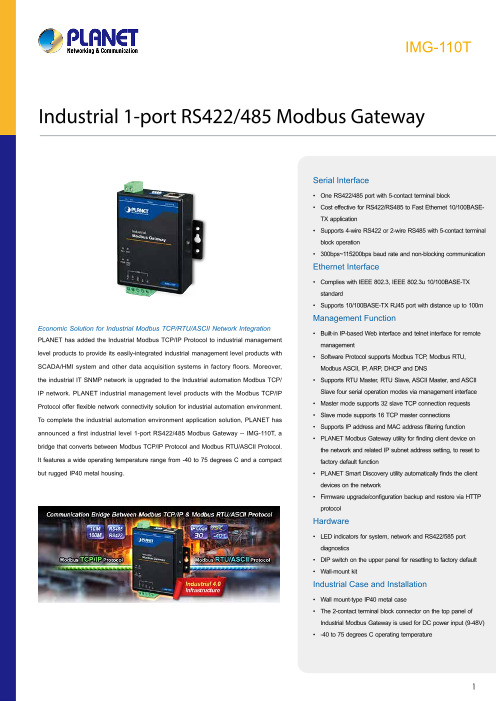

IMG-110T Industrial 1-port RS422/485 Modbus Gateway Serial Interface • One RS422/485 port with 5-contact terminal block • Cost effective for RS422/RS485 to Fast Ethernet 10/100BASE- TX application • Supports 4-wire RS422 or 2-wire RS485 with 5-contact terminal block operation • 300bps~115200bps baud rate and non-blocking communication Ethernet Interface • Complies with IEEE 802.3, IEEE 802.3u 10/100BASE-TX standard • Supports 10/100BASE-TX RJ45 port with distance up to 100m Management Function Economic Solution for Industrial Modbus TCP/RTU/ASCII Network Integration • Built-in IP-based Web interface and telnet interface for remote PLANET has added the Industrial Modbus TCP/IP Protocol to industrial management management level products to provide its easily-integrated industrial management level products with • Software Protocol supports Modbus TCP, Modbus RTU, SCADA/HMI system and other data acquisition systems in factory floors. Moreover, Modbus ASCII, IP, ARP, DHCP and DNS the industrial IT SNMP network is upgraded to the Industrial automation Modbus TCP/ • Supports RTU Master, RTU Slave, ASCII Master, and ASCII IP network. PLANET industrial management level products with the Modbus TCP/IP Slave four serial operation modes via management interface Protocol offer flexible network connectivity solution for industrial automation environment. • Master mode supports 32 slave TCP connection requests • Slave mode supports 16 TCP master connections To complete the industrial automation environment application solution, PLANET has • Supports IP address and MAC address filtering function announced a first industrial level 1-port RS422/485 Modbus Gateway -- IMG-110T, a • PLANET Modbus Gateway utility for finding client device on bridge that converts between Modbus TCP/IP Protocol and Modbus RTU/ASCII Protocol. the network and related IP subnet address setting, to reset to It features a wide operating temperature range from -40 to 75 degrees C and a compact factory default function but rugged IP40 metal housing. • PLANET Smart Discovery utility automatically finds the client devices on the network • Firmware upgrade/configuration backup and restore via HTTP protocol Hardware • LED indicators for system, network and RS422/585 port diagnostics • DIP switch on the upper panel for resetting to factory default • Wall-mount kit Industrial Case and Installation • Wall mount-type IP40 metal case • The 2-contact terminal block connector on the top panel of Industrial Modbus Gateway is used for DC power input (9-48V) • -40 to 75 degrees C operating temperature 1

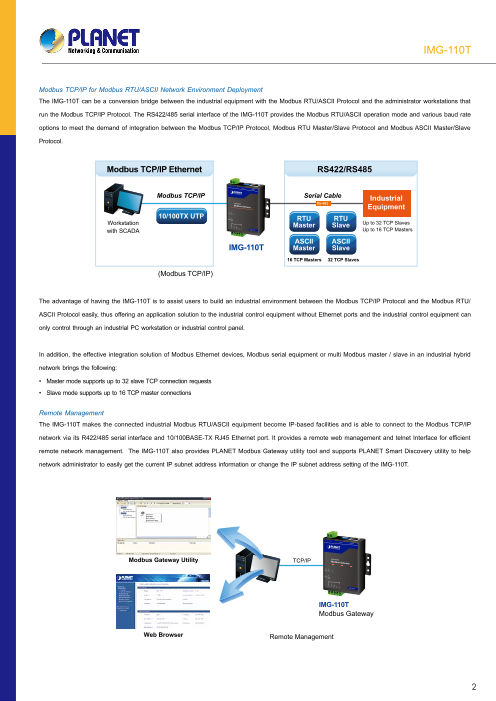

IMG-110T Modbus TCP/IP for Modbus RTU/ASCII Network Environment Deployment The IMG-110T can be a conversion bridge between the industrial equipment with the Modbus RTU/ASCII Protocol and the administrator workstations that run the Modbus TCP/IP Protocol. The RS422/485 serial interface of the IMG-110T provides the Modbus RTU/ASCII operation mode and various baud rate options to meet the demand of integration between the Modbus TCP/IP Protocol, Modbus RTU Master/Slave Protocol and Modbus ASCII Master/Slave Protocol. Modbus TCP/IP Ethernet RS422/RS485 Modbus TCP/IP Serial Cable Industrial RS-485 Equipment 10/100TX UTP RTU RTU Workstation Master Slave Up to 32 TCP Slaves with SCADA Up to 16 TCP Masters ASCII ASCII IMG-110T Master Slave 16 TCP Masters 32 TCP Slaves (Modbus TCP/IP) The advantage of having the IMG-110T is to assist users to build an industrial environment between the Modbus TCP/IP Protocol and the Modbus RTU/ ASCII Protocol easily, thus offering an application solution to the industrial control equipment without Ethernet ports and the industrial control equipment can only control through an industrial PC workstation or industrial control panel. In addition, the effective integration solution of Modbus Ethernet devices, Modbus serial equipment or multi Modbus master / slave in an industrial hybrid network brings the following: • Master mode supports up to 32 slave TCP connection requests • Slave mode supports up to 16 TCP master connections Remote Management The IMG-110T makes the connected industrial Modbus RTU/ASCII equipment become IP-based facilities and is able to connect to the Modbus TCP/IP network via its R422/485 serial interface and 10/100BASE-TX RJ45 Ethernet port. It provides a remote web management and telnet Interface for efficient remote network management. The IMG-110T also provides PLANET Modbus Gateway utility tool and supports PLANET Smart Discovery utility to help network administrator to easily get the current IP subnet address information or change the IP subnet address setting of the IMG-110T. Modbus Gateway Utility TCP/IP IMG-110T Modbus Gateway Web Browser Remote Management 2

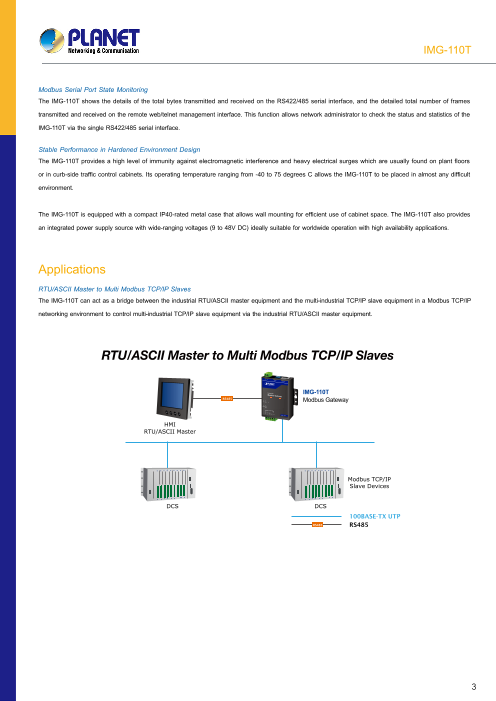

IMG-110T Modbus Serial Port State Monitoring The IMG-110T shows the details of the total bytes transmitted and received on the RS422/485 serial interface, and the detailed total number of frames transmitted and received on the remote web/telnet management interface. This function allows network administrator to check the status and statistics of the IMG-110T via the single RS422/485 serial interface. Stable Performance in Hardened Environment Design The IMG-110T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets. Its operating temperature ranging from -40 to 75 degrees C allows the IMG-110T to be placed in almost any difficult environment. The IMG-110T is equipped with a compact IP40-rated metal case that allows wall mounting for efficient use of cabinet space. The IMG-110T also provides an integrated power supply source with wide-ranging voltages (9 to 48V DC) ideally suitable for worldwide operation with high availability applications. Applications RTU/ASCII Master to Multi Modbus TCP/IP Slaves The IMG-110T can act as a bridge between the industrial RTU/ASCII master equipment and the multi-industrial TCP/IP slave equipment in a Modbus TCP/IP networking environment to control multi-industrial TCP/IP slave equipment via the industrial RTU/ASCII master equipment. RTU/ASCII Master to Multi Modbus TCP/IP Slaves IMG-110T RS485 Modbus Gateway HMI RTU/ASCII Master Modbus TCP/IP Slave Devices DCS DCS 100BASE-TX UTP RS485 RS485 3

IMG-110T Multi Modbus TCP/IP Master to RTU/ASCII Slaves The IMG-110T can operate as a bridge between the multi-industrial TCP/IP master equipment and the industrial RTU/ASCII slave equipment in a Modbus TCP/IP networking environment to control the industrial RTU/ASCII slave equipment via the multi-industrial TCP/IP master equipment. Multi Modbus TCP/IP Master to RTU/ASCII Slaves Host Computer Modbus TCP Master Devices Modbus TCP Master PLC IMG-110T IMG-110T Modbus Gateway Modbus Gateway RS485 RS485 RS485 RS485 Modbus/RTU Modbus/ASCII Slave Devices Flow Meters(Drive) Loop Controller, Power Measurement (up to 32 Devices) 100BASE-TX UTP RS485 RS485 4

IMG-110T Specifications Model IMG-110T Serial Port Interface RS422/ RS485 x 1 Connector 5-contact terminal block for RS422/RS485 Surge Protection 1KV Baud Rate (Data Rate) 300bps to 115200bps Data Bits 7, 8 Parity Type Odd, Even, None, Space, Mark Stop Bit 1, 2 Flow Control H/W, None Signals RS422 : Tx+, Tx-, GND, Rx+, Rx-RS485: Data A (+), GND, Data B (-) Distance RS422/RS485 for 20m transfer distance RTU Master/RTU Slave/ASCII Master/ASCII Slave Operation Mode Master mode: Supports up to 32 slave TCP connection requests Slave mode: Supports up to 16 TCP master connection requests Fast Ethernet Port IEEE 802.3 10BASE-T standard Standard IEEE 802.3u 100BASE-TX standard IEEE 802.3x Full-duplex flow control Connector RJ45 Distance 100 meters Hardware Copper Port 10/100BASE-T RJ45 TP x1, auto-MDI/MDI-X, auto-negotiation Serial Port RS422/RS485 x 1 DIP Switch Reset system to factory default System: Power x 1 LED Indicators 10/100BASE-TX Port: Link/Active x 1 RS422/RS485 Serial Port: TX (Transmit) x 1, RX (Receive) x 1 Remote Web Management Management Remote Telnet ManagementPLANET Modbus Gateway Utility PLANET Smart Discovery Utility RTU Master Operation Mode RTU SlaveASCII Master ASCII Slave Dimensions (W x D x H) 69 x 100 x 22 mm Weight 238g Power Input Connector 2-contact terminal block connector DC power (9-48V) * Power Consumption 1.61 watts/5.4BTU (max.) Installation Wall-mount kit Mechanical Metal Standards Conformance IEEE 802.3 10BASE-T standard Standards Compliance IEEE 802.3u 100BASE-TX standardIEEE 802.3x Full-duplex flow control EIA/TIA RS422/485 Regulatory Compliance FCC Part 15 Class B, CE IEC60068-2-32 (free fall) Stability Testing IEC60068-2-27 (shock) IEC60068-2-6 (vibration) Environment Temperature Operating: -40~75 degrees CStorage: -40~75 degrees C Humidity Operating: 5~95% (non-condensing)Storage: 5~95% (non-condensing) *: Please follow the DC power input symbol from the front panel of the IMG-110T -- insert positive DC power wire into V+, and negative DC power wire into V-. Otherwise, it will damage the device. 5

IMG-110T Dimensions 3.84 12 16.1 10.66 22 11 5.4 ∅3.7 ∅7 ∅3.4 ∅3.7 9.8 62 69 Dimensions ( unit = mm ) Ordering Information IMG-110T Industrial 1-port RS422/485 Modbus Gateway PLANET Technology Corporation 11F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, IMG-110T Taiwan (R.O.C.) PLANET reserves the right to change specifications without prior notice. All brand names and trademarks are property of Tel: 886-2-2219-9518 Fax: 886-2-2219-9528 their respective owners. Copyright © 2017 PLANET Technology Corp. All rights reserved. Email: sales@planet.com.tw www.planet.com.tw 6 50 ∅3.5 100 92 2.2 8.95 10.25 28.5 14 37.5 50 5.3 62.5 71.5 ON ECE 1 2 3 4 6.5∅
