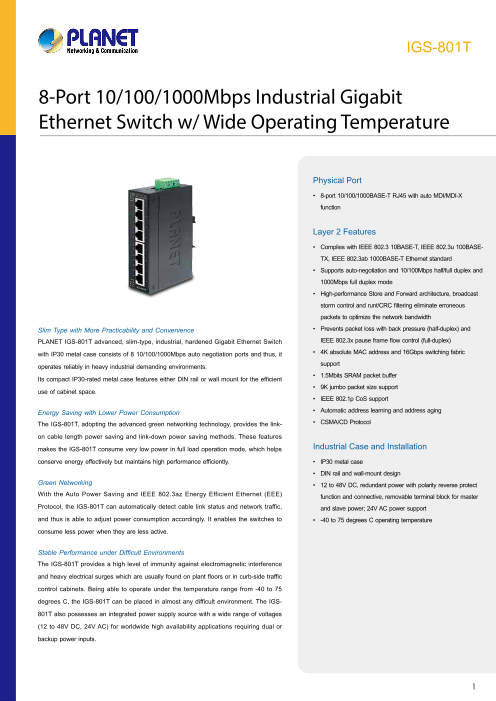

IGS-801T 8-Port 10/100/1000Mbps Industrial Gigabit Ethernet Switch w/ Wide Operating Temperature Physical Port • 8-port 10/100/1000BASE-T RJ45 with auto MDI/MDI-X function Layer 2 Features • Complies with IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE- TX, IEEE 802.3ab 1000BASE-T Ethernet standard • Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex mode • High-performance Store and Forward architecture, broadcast storm control and runt/CRC filtering eliminate erroneous packets to optimize the network bandwidth Slim Type with More Practicability and Convenience • Prevents packet loss with back pressure (half-duplex) and PLANET IGS-801T advanced, slim-type, industrial, hardened Gigabit Ethernet Switch IEEE 802.3x pause frame flow control (full-duplex) with IP30 metal case consists of 8 10/100/1000Mbps auto negotiation ports and thus, it • 4K absolute MAC address and 16Gbps switching fabric operates reliably in heavy industrial demanding environments. support Its compact IP30-rated metal case features either DIN rail or wall mount for the efficient • 1.5Mbits SRAM packet buffer • 9K jumbo packet size support use of cabinet space. • IEEE 802.1p CoS support Energy Saving with Lower Power Consumption • Automatic address learning and address aging The IGS-801T, adopting the advanced green networking technology, provides the link- • CSMA/CD Protocol on cable length power saving and link-down power saving methods. These features makes the IGS-801T consume very low power in full load operation mode, which helps Industrial Case and Installation conserve energy effectively but maintains high performance efficiently. • IP30 metal case • DIN rail and wall-mount design Green Networking • 12 to 48V DC, redundant power with polarity reverse protect With the Auto Power Saving and IEEE 802.3az Energy Efficient Ethernet (EEE) function and connective, removable terminal block for master Protocol, the IGS-801T can automatically detect cable link status and network traffic, and slave power; 24V AC power support and thus is able to adjust power consumption accordingly. It enables the switches to • -40 to 75 degrees C operating temperature consume less power when they are less active. Stable Performance under Difficult Environments The IGS-801T provides a high level of immunity against electromagnetic interference and heavy electrical surges which are usually found on plant floors or in curb-side traffic control cabinets. Being able to operate under the temperature range from -40 to 75 degrees C, the IGS-801T can be placed in almost any difficult environment. The IGS- 801T also possesses an integrated power supply source with a wide range of voltages (12 to 48V DC, 24V AC) for worldwide high availability applications requiring dual or backup power inputs. 1

IGS-801T IP camera IP camera Control Room IGS-801T Robotic Automation Robotic Automation System 1000Base-T UTP Robust Switch Performance The IGS-801T offers high-performance switch architecture. With the 8 10/100/1000Mbps Gigabit Ethernet ports providing non-blocking switch fabric and wire- speed throughput as high as 16Gbps and the 4K MAC address table, the IGS-801T can perform wire-speed packets transfer without risk of packet loss. The flow control function enables the IGS-801T to provide fast and reliable data transfer. The Gigabit port with 9K jumbo frame supported can handle extremely large amounts of data transmission in the industrial topology that forward data to central control room. Plug and Play All of the RJ45 copper interfaces in the IGS-801T support 10/100/1000Mbps auto negotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables. The standard auto-MDI/MDI-X support can detect the type of connection to any Ethernet device without requiring special straight or crossover cables. Applications Industrial Area Switch for Data Collection and Forwarding The IGS-801T’s IP30-rated metal case is particularly designed for most heavy industrial demanding environments, such as factories, harbors, warehouses, and more. When installed at these establishments, it can enhance the work performance of these establishments by speedily transferring incoming and outgoing data. Control Center Serial Device Server Internet IGS-801T Internet Camera IGS-801T Camera 100m Backbone Switch 100m Industrial 100m Serial IGS-801T Converter Internet Camera Industrial Serial I/O PLC Converter Harbor I/O Warehouse PLC I/O Internet Camera I/O Robot Robot 100BASE-TX UTP Factory 1000BASE-T UTP I/O DI/DO 2

IGS-801T Specifications Model IGS-801T Hardware Specifications 10/100/1000BASE-T Ports 8 Dimensions (W x D x H) 135 x 87 x 32 mm Weight 461g Power Requirements 12~48V DC, redundant power with polarity reverse protection function, 24V AC power support Power Consumption/ Dissipation 6.72 watts/23BTU Installation DIN rail kit and wall-mount ear Switch Specifications Switch Processing Scheme Store-and-Forward Address Table 4K Buffer 1.5Mbits SRAM packet buffer Flow Control Back pressure for half duplexIEEE 802.3x pause frame for full duplex Switch Fabric 16Gbps Throughput (packet per second) 11.9Mpps Jumbo Frame 9K 10/100/1000BASE-T: Network Cables Cat3, 4, 5, 5e, 6 UTP cable (100 meters, max.) EIA/TIA-568 100-ohm STP (100 meters, max.) Standards Conformance IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet Standards Compliance IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet Temperature Operating: -40~75 degrees CStorage: -40~75 degrees C Humidity Operating: 5% to 95%, Storage: 5% to 95% (non-condensing) Regulatory Compliance FCC Part 15 Class A, CE Ordering Information IGS-801T 8-port 10/100/1000Mbps Industrial Gigabit Ethernet Switch (-40~75 degrees C operating temperature) Related Products IGS-501T 8-port 10/100/1000T Industrial Gigabit Ethernet Switch (-40~75 degrees C operating temperature) IGS-801M 8-Port 10/100/1000T Managed Industrial Ethernet Switch (-40~75 degrees C operating temperature) PWR-40-24 40W 24V DC Single Output Industrial DIN Rail Power Supply (-20 ~ 70 degrees C) PWR-60-24 60W 24V DC Single Output Industrial DIN Rail Power Supply (-20 ~ 70 degrees C) PWR-75-24 75W 24V DC Single Output Industrial DIN Rail Power Supply (-10 ~ 60 degrees C) PLANET Technology Corporation 11F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231, IGS-801Tv4 Taiwan (R.O.C.) PLANET reserves the right to change specifications without prior notice. All brand names and trademarks are property of Tel: 886-2-2219-9518 Fax: 886-2-2219-9528 their respective owners. Copyright © 2016 PLANET Technology Corp. All rights reserved. Email: sales@planet.com.tw www.planet.com.tw 3
