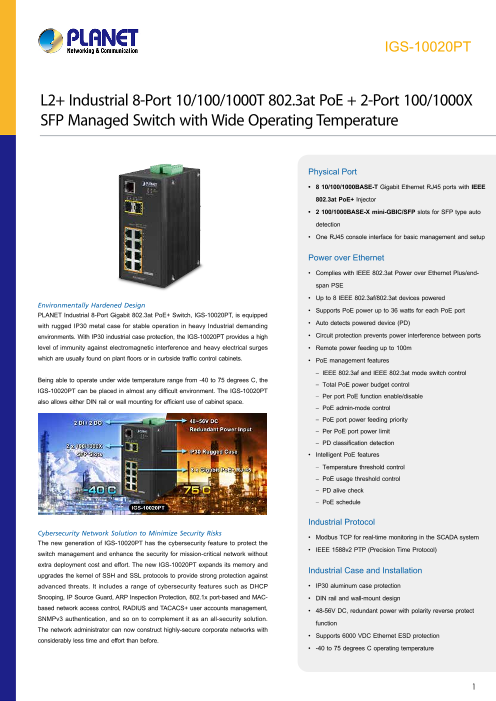

IGS-10020PT L2+ Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Managed Switch with Wide Operating Temperature Physical Port • 8 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector • 2 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection • One RJ45 console interface for basic management and setup Power over Ethernet • Complies with IEEE 802.3at Power over Ethernet Plus/end- span PSE • Up to 8 IEEE 802.3af/802.3at devices powered Environmentally Hardened Design • Supports PoE power up to 36 watts for each PoE port PLANET Industrial 8-Port Gigabit 802.3at PoE+ Switch, IGS-10020PT, is equipped with rugged IP30 metal case for stable operation in heavy Industrial demanding • Auto detects powered device (PD) environments. With IP30 industrial case protection, the IGS-10020PT provides a high • Circuit protection prevents power interference between ports level of immunity against electromagnetic interference and heavy electrical surges • Remote power feeding up to 100m which are usually found on plant floors or in curbside traffic control cabinets. • PoE management features – IEEE 802.3af and IEEE 802.3at mode switch control Being able to operate under wide temperature range from -40 to 75 degrees C, the – Total PoE power budget control IGS-10020PT can be placed in almost any difficult environment. The IGS-10020PT – Per port PoE function enable/disable also allows either DIN rail or wall mounting for efficient use of cabinet space. – PoE admin-mode control – PoE port power feeding priority – Per PoE port power limit – PD classification detection • Intelligent PoE features – Temperature threshold control – PoE usage threshold control – PD alive check – PoE schedule Industrial Protocol Cybersecurity Network Solution to Minimize Security Risks • Modbus TCP for real-time monitoring in the SCADA system The new generation of IGS-10020PT has the cybersecurity feature to protect the • IEEE 1588v2 PTP (Precision Time Protocol) switch management and enhance the security for mission-critical network without extra deployment cost and effort. The new IGS-10020PT expands its memory and Industrial Case and Installation upgrades the kernel of SSH and SSL protocols to provide strong protection against advanced threats. It includes a range of cybersecurity features such as DHCP • IP30 aluminum case protection Snooping, IP Source Guard, ARP Inspection Protection, 802.1x port-based and MAC- • DIN rail and wall-mount design based network access control, RADIUS and TACACS+ user accounts management, • 48-56V DC, redundant power with polarity reverse protect SNMPv3 authentication, and so on to complement it as an all-security solution. function The network administrator can now construct highly-secure corporate networks with • Supports 6000 VDC Ethernet ESD protection considerably less time and effort than before. • -40 to 75 degrees C operating temperature 1

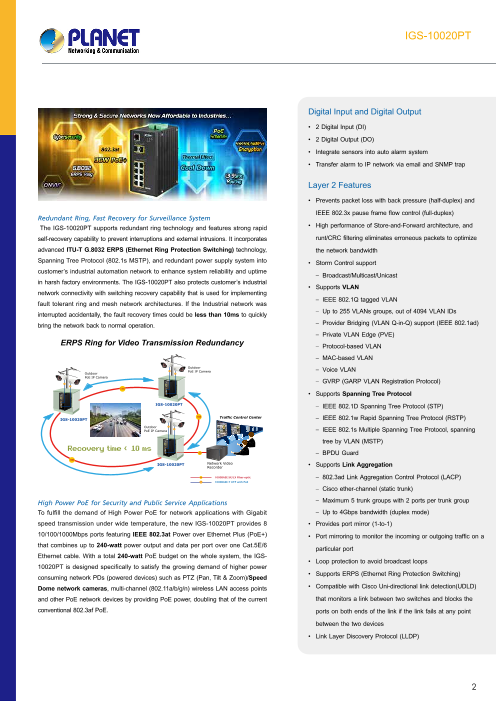

IGS-10020PT Digital Input and Digital Output • 2 Digital Input (DI) • 2 Digital Output (DO) • Integrate sensors into auto alarm system • Transfer alarm to IP network via email and SNMP trap Layer 2 Features • Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex) Redundant Ring, Fast Recovery for Surveillance System The IGS-10020PT supports redundant ring technology and features strong rapid • High performance of Store-and-Forward architecture, and self-recovery capability to prevent interruptions and external intrusions. It incorporates runt/CRC filtering eliminates erroneous packets to optimize advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, the network bandwidth Spanning Tree Protocol (802.1s MSTP), and redundant power supply system into • Storm Control support customer’s industrial automation network to enhance system reliability and uptime – Broadcast/Multicast/Unicast in harsh factory environments. The IGS-10020PT also protects customer’s industrial • Supports VLAN network connectivity with switching recovery capability that is used for implementing – IEEE 802.1Q tagged VLAN fault tolerant ring and mesh network architectures. If the Industrial network was interrupted accidentally, the fault recovery times could be less than 10ms to quickly – Up to 255 VLANs groups, out of 4094 VLAN IDs bring the network back to normal operation. – Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad) – Private VLAN Edge (PVE) ERPS Ring for Video Transmission Redundancy – Protocol-based VLAN – MAC-based VLAN Outdoor PoE PoE IP Camera – Voice VLAN Outdoor PoE PoE IP Camera – GVRP (GARP VLAN Registration Protocol) PoE PoE 1000 • Supports Spanning Tree Protocol IGS-10020PT – IEEE 802.1D Spanning Tree Protocol (STP) 1000 Traffic Control Center IGS-10020PT – IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) Outdoor PoE PoE PoE IP Camera – IEEE 802.1s Multiple Spanning Tree Protocol, spanning tree by VLAN (MSTP) Recovery time < 10 ms 1000 – BPDU Guard 1000 IGS-10020PT Network Video Recorder • Supports Link Aggregation 1000 1000BASE-SX/LX Fiber-optic – 802.3ad Link Aggregation Control Protocol (LACP) PoE 1000BASE-T UTP with PoE – Cisco ether-channel (static trunk) High Power PoE for Security and Public Service Applications – Maximum 5 trunk groups with 2 ports per trunk group To fulfill the demand of High Power PoE for network applications with Gigabit – Up to 4Gbps bandwidth (duplex mode) speed transmission under wide temperature, the new IGS-10020PT provides 8 • Provides port mirror (1-to-1) 10/100/1000Mbps ports featuring IEEE 802.3at Power over Ethernet Plus (PoE+) • Port mirroring to monitor the incoming or outgoing traffic on a that combines up to 240-watt power output and data per port over one Cat.5E/6 particular port Ethernet cable. With a total 240-watt PoE budget on the whole system, the IGS- • Loop protection to avoid broadcast loops 10020PT is designed specifically to satisfy the growing demand of higher power consuming network PDs (powered devices) such as PTZ (Pan, Tilt & Zoom)/Speed • Supports ERPS (Ethernet Ring Protection Switching) Dome network cameras, multi-channel (802.11a/b/g/n) wireless LAN access points • Compatible with Cisco Uni-directional link detection(UDLD) and other PoE network devices by providing PoE power, doubling that of the current that monitors a link between two switches and blocks the conventional 802.3af PoE. ports on both ends of the link if the link fails at any point between the two devices • Link Layer Discovery Protocol (LLDP) 2

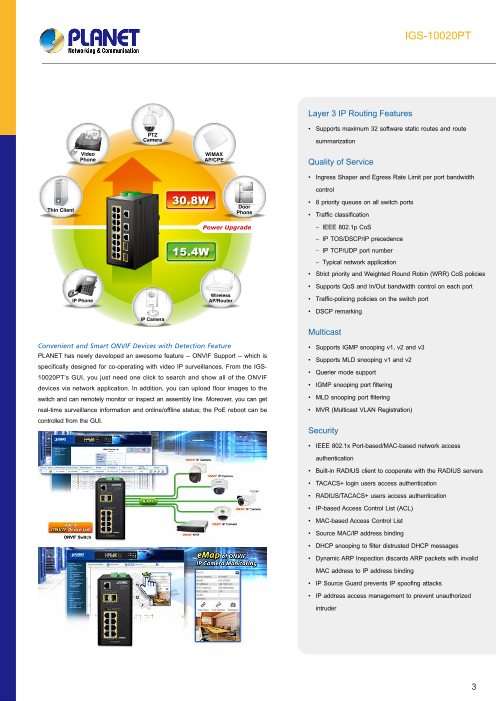

IGS-10020PT Layer 3 IP Routing Features • Supports maximum 32 software static routes and route PTZ Camera summarization Video WiMAX Phone AP/CPE Quality of Service • Ingress Shaper and Egress Rate Limit per port bandwidth control 30.8W • 8 priority queues on all switch ports Thin Client DoorPhone • Traffic classification Power Upgrade – IEEE 802.1p CoS – IP TOS/DSCP/IP precedence 15.4W – IP TCP/UDP port number – Typical network application • Strict priority and Weighted Round Robin (WRR) CoS policies • Supports QoS and In/Out bandwidth control on each port Wireless IP Phone AP/Router • Traffic-policing policies on the switch port • DSCP remarking IP Camera Multicast Convenient and Smart ONVIF Devices with Detection Feature • Supports IGMP snooping v1, v2 and v3 PLANET has newly developed an awesome feature -- ONVIF Support -- which is • Supports MLD snooping v1 and v2 specifically designed for co-operating with video IP surveillances. From the IGS- • Querier mode support 10020PT’s GUI, you just need one click to search and show all of the ONVIF devices via network application. In addition, you can upload floor images to the • IGMP snooping port filtering switch and can remotely monitor or inspect an assembly line. Moreover, you can get • MLD snooping port filtering real-time surveillance information and online/offline status; the PoE reboot can be • MVR (Multicast VLAN Registration) controlled from the GUI. Security • IEEE 802.1x Port-based/MAC-based network access authentication • Built-in RADIUS client to cooperate with the RADIUS servers • TACACS+ login users access authentication • RADIUS/TACACS+ users access authentication • IP-based Access Control List (ACL) • MAC-based Access Control List • Source MAC/IP address binding • DHCP snooping to filter distrusted DHCP messages • Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding • IP Source Guard prevents IP spoofing attacks • IP address access management to prevent unauthorized intruder 3

IGS-10020PT Intelligent Alive Check for Powered Device Management The IGS-10020PT PoE Switch can be configured to monitor connected PD’s status • Switch Management Interfaces in real time via ping action. Once the PD stops working and responding, the IGS- – Console/Telnet Command Line Interface 10020PT will recycle the PoE port power and bring the PD back to work. It also greatly enhances the reliability owing that the PoE port will reset the PD power, thus – Web switch management reducing administrator’s management burden. – SNMP v1 and v2c switch management – SSH/SSL and SNMP v3 secure access Step 1 Step 2 • Four RMON groups (history, statistics, alarms, and events) PT PoE Camera No Response......PD Status Good!! • IPv6 IP address/NTP/DNS management Ping Request • Built-in Trivial File Transfer Protocol (TFTP) client Ping Request Ping Echo • BOOTP and DHCP for IP address assignmentCheck alive status for 3 times • Firmware upload/download via HTTP/TFTP Step 3 Step 4 Alarm Notification • DHCP Relay and DHCP Option 82 PoE PD Alive!! PoE • DHCP Server ON OFF ON ON • User Privilege levels control Restart PoE device if without response • Network Time Protocol (NTP) • Link Layer Discovery Protocol (LLDP) PoE Schedule for Energy Saving • SFP-DDM (Digital Diagnostic Monitor) Under the trend of energy saving worldwide and contributing to environmental protection on the Earth, the IGS-10020PT can effectively control the power supply • Network Diagnositc besides its capability of giving high watts power. The built-in “PoE schedule” function – ICMPv6/ICMPv4 Remote Ping helps you to enable or disable PoE power feeding for each PoE port during specified – Cable diagnostic technology provides the mechanism to time intervals and it is a powerful function to help SMBs or enterprises save power detect and report potential cabling issues and money. • Reset button for system reboot or reset to factory default • PLANET Smart Discovery Utility for deployment management 8 AM 5 PM 5 PM 8 AM PoE PoE PoE PoE PoE PoE PoE PoE Power Power Power Power Power Power Power Power On On On On Off Off Off On 6 Watts 6 Watts 12 Watts 12 Watts 6 Watts 6 Watts 12 Watts 12 Watts Total Consumption: 36 watts / hr Save 24 watts / hr during off-business hours Total Saved = 10800watts / month PoE 1000BASE-TX UTP with PoE Digital Input and Digital Output for External Alarm The IGS-10020PT supports Digital Input and Digital Output on its front panel. This external alarm enables users to use Digital Input to detect and log external device status (such as door intrusion detector), and send event alarm to the administrators. The Digital Output could be used to alarm the administrators if the IGS-10020PT port shows link down, link up or power failure. 4

IGS-10020PT Digital Input Uplink I/O I/O I/O I/O Enclosure Enclosure SNMP Door Detector Door Detector TRAP (Door Closed) (Door Open) Mail SystemLog Security OK Alarm Warning Alarm Messaging Digital Output I/ I O/O I/ I O/O DC Power Failure RJ-45 Cable Fiber CableLink Down Link Down Layer 3 IPv4 and IPv6 Software VLAN Routing for Secure and Flexible Management To help customers stay on top of their businesses, the IGS-10020 series not only provides ultra high transmission performance and excellent Layer 2 technologies, but also IPv4/IPv6 software VLAN routing feature which allows to crossover different VLANs and different IP addresses for the purpose of having a highly secured, flexible management and simpler networking application. Robust Layer 2 Features The IGS-10020PT can be programmed for advanced switch management functions such as dynamic port link aggregation, Q-in-Q VLAN, private VLAN, Rapid Spanning Tree Protocol, Layer 2 to Layer 4 QoS, bandwidth control and IGMP snooping. The IGS-10020PT provides 802.1Q tagged VLAN, and the VLAN groups allowed will be maximally up to 255. Via aggregation of supporting ports, the IGS-10020PT allows the operation of a high-speed trunk combining multiple ports. It enables a maximum of up to 5 trunk groups with 8 ports per trunk group, and supports fail-over as well. Efficient Management For efficient management, the IGS-10020PT Managed Ethernet Switch is equipped with console, Web and SNMP management interfaces. With the built-in Web- based management interface, the IGS-10020PT offers an easy-to-use, platform-independent management and configuration facility. For text-based management, the IGS-10020PT can be accessed via Telnet and the console port. Moreover, it also offers secure remote management via any standard-based management software by supporting SNMPv3 connection which encrypts the packet content at each session. 01010101010110010101010100010101010 01010101010110010101010100010101010 01010101010110010101010100010101010 Computer SSL SNMPv3 SSH 5

IGS-10020PT Powerful Security The IGS-10020PT offers comprehensive Layer 2 to Layer 4 Access Control List (ACL) for enforcing security to the edge. It can be used to restrict network access by denying packets based on source and destination IP address, TCP/UDP ports or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy. The network administrators can now construct highly-secured corporate networks with considerably less time and effort than before. Modbus TCP Provides Flexible Network Connectivity for Factory Automation With the supported Modbus TCP/IP protocol, the IGS-10020PT can easily integrate with SCADA systems, HMI systems and other data acquisition systems in factory floors. It enables administrators to remotely monitor the industrial Ethernet switch’s operating information, port information and communication status, thus easily achieving enhanced monitoring and maintenance of the entire factory. 1588 Time Protocol for Industrial Computing Networks The IGS-10020PT is ideal for telecom and Carrier Ethernet applications, supporting MEF service delivery and timing over packet solutions for IEEE 1588 and synchronous Ethernet. Time Synchronization in Network IGS-10020PT Transparent Clock Grand Master Clock Slave Clock 1000 1000 1588 PTP 1588 PTP Base Station 1000 1000BASE-SX/LX Fiber-optic Flexibility and Extension Solution The two mini-GBIC slots built in the IGS-10020PT support dual speed, 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber- optic modules, meaning the administrator now can flexibly choose the suitable SFP transceiver according to not only the transmission distance but also the transmission speed required. The distance can be extended from 550 meters (multi-mode fiber) to 10/50/70/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions. 6

IGS-10020PT Applications Industrial Area Department/Workgroup PoE Switch Providing up to 8 PoE+, in-line power interfaces, the IGS-10020PT can easily build a power centrally controlled by IP phone system, IP camera system, or wireless AP group for Industrial network. For instance, 8 PoE IP cameras or wireless access points can be easily installed around the corner in the industrial environment for surveillance demands or for a wireless roaming network. Without the power-socket limitation, the IGS-10020PT makes the installation of IP cameras or wireless AP easier and more efficient. PoE+ PTZ Wireless AP VoIP Phone Speed Dome PoE PoE PoE 1000 Core Fiber Switch IGS-10020PT PoE PoE PoE |O|O| 1000 1000BASE-SX/LX Fiber-optic PoE 100BASE-TX UTP with PoE PoE 1000BASE-T UTP with PoE Serial Server Access Control IP Camera |O|O| Serial Line (RS-XXX) Security Gate High Power IP Surveillance and Wireless LAN Service in Public Transportation With IEEE 802.3at Power over Ethernet Plus standard, the IGS-10020PT can directly connect with any IEEE 802.3at end-nodes like PTZ (Pan, Tilt & Zoom) network cameras, PTZ speed dome cameras, color touch-screen Voice over IP (VoIP) telephones, and multi-channel wireless LAN access points. Wireless LAN would be more efficient for the transportation station to provide high speed and wide area Internet services for travelers. With the PoE wireless LAN structure, the transportation authority gains benefits from less cost while providing better Internet services in wider areas for the travelers. Perfect Integration Solution for Outdoor IP PoE Camera and NVR System The IGS-10020PT provides 8 10/100/1000Mbps 802.3at PoE+ ports and can offer sufficient PoE power to 8 PoE IP cameras at the same time. In addition, with the 2 100/1000BASE-X SFP interfaces, the IGS-10020PT can connect to core fiber switch and send video stream to NVR and monitoring center. Through the high-performance switch architecture, the IGS-10020PT facilitates the recorded video files from the 8 PoE IP cameras to be saved in the NVR systems. Furthermore, the NVR systems can be controlled and monitored both in the local LAN and the remote site via Internet. The IGS-10020PT undoubtedly brings an ideal secure surveillance system at a lower total cost. 550m / 10km / 120km Control Center 100m Fiber Switch PoE 1000 100m DC Data PoE Power 1000 1000BASE-SX/LX Fiber-optic DC 48~56V IGS-10020PT PoE 1000BASE-T UTP with PoE DC Power Line (DC) 7

IGS-10020PT Specifications Product IGS-10020PT Hardware Specifications Version 3 Copper Ports 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports 2 1000BASE-SX/LX/BX SFP interfaces (Port-9 and Port-10) SFP/mini-GBIC Slots Compatible with 100BASE-FX SFP PoE Injector Port 8 ports with 802.3at/af PoE injector function with Port-1 to Port-8 Console 1 x RJ45-to-RS232 serial port (115200, 8, N, 1) Switch Architecture Store-and-Forward Switch Fabric 20Gbps/non-blocking Throughput (packet per second) 14.8Mpps@ 64Bytes packet Address Table 8K entries, automatic source address learning and aging Shared Data Buffer 4Mbits IEEE 802.3x pause frame for full-duplex Flow Control Back pressure for half-duplex Jumbo Frame 9Kbytes < 5 sec: System reboot Reset Button > 5 sec: Factory default ESD Protection 6KV DC Enclosure IP30 aluminum case Installation DIN-rail kit and wall-mount kit Removable 6-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 Connector Removable 6-pin terminal block for DI/DO interface Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND Alarm One relay output for power failure. Alarm Relay current carry ability: 1A @ DC 24V 2 Digital Input (DI): Level 0: -24V~2.1V (±0.1V) Level 1: 2.1V~24V (±0.1V) DI/DO Input Load to 24V DC, 10mA max. 2 Digital Output (DO): Open collector to 24V DC, 100mA max. System: Power 1 (Green) Power 2 (Green) Fault Alarm (Red) Ring (Green) Ring Owner (Green) LED Indicator Per 10/100/1000T RJ45 Ports: PoE-in-Use (Orange) LNK/ACT (Green) Per SFP Interface: 1000 (Orange) LNK/ACT (Green) Dimensions (W x D x H) 72 x 107x 152 mm Weight 1032g Power Requirements DC 48V ~ 56V Power Consumption 207 watts/706BTU (Full loading with PoE function) Power Over Ethernet PoE Standard IEEE 802.3at Power over Ethernet Plus/PSE PoE Power Supply Type End-span Per port 54V DC, 350mA; max. 15.4 watts (IEEE 802.3af) PoE Power Output Per port 54V DC, 590mA; max. 36 watts (IEEE 802.3at) Power Pin Assignment 1/2(+), 3/6(-) PoE Power Budget 240W maximum (depending on power input) Max. Number of Class 2 PDs 8 Max. Number of Class 3 PDs 8 Max. Number of Class 4 PDs 8 Layer 2 Function Basic Management Interfaces Console; Telnet; Web browser; SNMP v1, v2c Secure Management Interfaces SSH, SSL, SNMP v3 Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Port Configuration Flow control disable/enable Power saving mode control 8

IGS-10020PT Port Status Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status TX/RX/both Port Mirroring 1 to 1 monitor 802.1Q tagged based VLAN, up to 255 VLAN groups Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN Registration) Up to 255 VLAN groups, out of 4094 VLAN IDs IEEE 802.3ad LACP/static trunk Link Aggregation Supports 5 trunk groups with 2 ports per trunk group Traffic classification based, strict priority and WRR 8-level priority for switching - Port number QoS - 802.1p priority - 802.1Q VLAN tag - DSCP/TOS field in IP packet IPv4 IGMP (v1/v2/V3) snooping, up to 255 multicast groups IGMP Snooping IPv4 IGMP querier mode support IPv6 MLD (v1/v2) snooping, up to 255 multicast groups MLD Snooping IPv6 MLD querier mode support IP-based ACL/MAC-based ACL Access Control List Up to 123 entries Per port bandwidth control Bandwidth Control Ingress: 500Kb~1000Mbps Egress: 500Kb~1000Mbps RFC-1213 MIB-II IF-MIB RFC-1493 Bridge MIB RFC-1643 Ethernet MIB RFC-2863 Interface MIB RFC-2665 Ether-Like MIB RFC-2819 RMON MIB (Group 1, 2, 3 and 9) SNMP MIBs RFC-2737 Entity MIB RFC-2618 RADIUS Client MIB RFC-2933 IGMP-STD-MIB RFC3411 SNMP-Frameworks-MIB IEEE 802.1X PAE LLDP MAU-MIB Layer 3 Function IP Interfaces Max. 8 VLAN interfaces Routing Table Max. 32 routing entries IPv4 software static routing Routing Protocols IPv6 software static routing Standards Conformance Regulatory Compliance FCC Part 15 Class A, CE IEC60068-2-32 (free fall) Stability Testing IEC60068-2-27 (shock) IEC60068-2-6 (vibration) IEEE 802.3 10BASE-T IEEE 802.1ab LLDP IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3af Power over Ethernet IEEE 802.3z Gigabit SX/LX IEEE 802.3at Power over Ethernet Plus IEEE 802.3ab Gigabit 1000T IEEE 1588 PTPv2 IEEE 802.3x flow control and back pressure RFC 768 UDP IEEE 802.3ad port trunk with LACP RFC 793 TFTP Standards Compliance IEEE 802.1D Spanning Tree Protocol RFC 791 IP IEEE 802.1w Rapid Spanning Tree Protocol RFC 792 ICMP IEEE 802.1s Multiple Spanning Tree Protocol RFC 2068 HTTP IEEE 802.1p Class of Service RFC 1112 IGMP v1 IEEE 802.1Q VLAN tagging RFC 2236 IGMP v2 IEEE 802.1ad Q-in-Q VLAN stacking ITU G.8032 ERPS Ring IEEE 802.1x Port Authentication Network Control 9

IGS-10020PT Environment Operating Temperature -40 ~ 75 degrees C Storage Temperature -40 ~ 85 degrees C Humidity 5 ~ 95% (non-condensing) Ordering Information IGS-10020PT Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Managed Switch with Wide Operating Temperature Related Products IGS-10020HPT L2+ Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Managed Ethernet Switch (-40~75 degrees C) L2+ Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T + 2-Port 100/1000X SFP Managed EthernetSwitch IGS-5225-8P2T2S (-40~75 degrees C) IGS-5225-8P4S L2+ Industrial 8-Port 10/100/1000T 802.3at PoE + 4-Port 100/1000X SFP Managed Ethernet Switch (-40~75 degrees C) L3 Industrial 8-Port 10/100/1000T 802.3at PoE + 4-Port 100/1000X SFP + 2-Port 10G SFP+ Managed Ethernet Switch IGS-5225-8P2S2X (-40~75 degrees C) Available Modules for IGS-10020PT 10Gigabit Ethernet Transceiver (10GBASE-X SFP+) MGB-GT SFP-Port 1000BASE-T Module MGB-SX SFP-Port 1000BASE-SX mini-GBIC module - 550m MGB-SX2 SFP-Port 1000BASE-SX mini-GBIC module - 2km MGB-LX SFP-Port 1000BASE-LX mini-GBIC module - 10km MGB-L40 SFP-Port 1000BASE-LX mini-GBIC module - 40km MGB-L80 SFP-Port 1000BASE-LX mini-GBIC module - 80km MGB-L120 SFP-Port 1000BASE-LX mini-GBIC module - 120km MGB-LA10 SFP-Port 1000BASE-LX (WDM,TX:1310nm) mini-GBIC module - 10km MGB-LB10 SFP-Port 1000BASE-LX (WDM,TX:1550nm) mini-GBIC module - 10km MGB-LA20 SFP-Port 1000BASE-LX (WDM,TX:1310nm) mini-GBIC module - 20km MGB-LB20 SFP-Port 1000BASE-LX (WDM,TX:1550nm) mini-GBIC module - 20km MGB-LA40 SFP-Port 1000BASE-LX (WDM,TX:1310nm) mini-GBIC module - 40km MGB-LB40 SFP-Port 1000BASE-LX (WDM,TX:1550nm) mini-GBIC module - 40km MGB-TSX SFP-Port 1000BASE-SX mini-GBIC module - 550m (-40 ~ 75 degrees C) MGB-TLX SFP-Port 1000BASE-LX mini-GBIC module - 10km (-40 ~ 75 degrees C) MGB-TL40 SFP-Port 1000BASE-LX mini-GBIC module - 40km (-40 ~ 75 degrees C) MGB-TL80 SFP-Port 1000BASE-LX mini-GBIC module - 80km (-40 ~ 75 degrees C) 100Mbps SFP transceiver modules MFB-FX SFP-Port 100BASE-FX Transceiver (1310nm) - 2km MFB-F20 SFP-Port 100BASE-FX Transceiver (1310nm) - 20km MFB-F40 SFP-Port 100BASE-FX Transceiver (1310nm) - 40km MFB-F60 SFP-Port 100BASE-FX Transceiver (1310nm) - 60km MFB-FA20 SFP-Port 100BASE-BX Transceiver (WDM,TX:1310nm) - 20km MFB-FB20 SFP-Port 100BASE-BX Transceiver (WDM,TX:1550nm) - 20km MFB-TFX SFP-Port 100BASE-FX Transceiver (1310nm) - 2km (-40 ~ 75 degrees C) MFB-TF20 SFP-Port 100BASE-FX Transceiver (1310nm) - 20km (-40 ~ 75 degrees C) PLANET Technology Corporation 11F., No.96, Minquan Rd., Xindian Dist., New Taipei City IGS-10020PT 231, Taiwan (R.O.C.) PLANET reserves the right to change specifications without prior notice. All brand names and trademarks are property of Tel: 886-2-2219-9518 Fax: 886-2-2219-9528 their respective owners. Copyright © 2018 PLANET Technology Corp. All rights reserved. Email: sales@planet.com.tw www.planet.com.tw 10
