マシン・工場・ビルオートメーション向け小型PC
特長
■幅199×高さ63.4×奥行232ｍｍ 2.92リットル
■第3世代 ソケットrPGA988B Core i シリーズ mobile CPU (最大2.8GHz)
■ファンレス動作
■DDR3 SO-DIMM 最大8GB
■動作温度 0～45℃
仕様
■CPU 第3世代 ソケットrPGA988B Core i シリーズ mobile (最大2.8GHz)
■メモリ DDR3 SO-DIMM x 2（最大8GB）
■CPUボード MI970VF
■ハードディスク 2.5" 産業用 SATA HDD 100GB x 1
■Ｉ／Ｏコネクタ
G-LAN x 2
USB2.0 x 6, USB3.0 x 2
COM x 2
DVI-I , DVI-D
オーディオ Mic/Line in/Line out,SPDIF
■入力電源 ACアダプタ 120W
■ケース アルミニウム製(通気孔有）
■寸法/重量 199mm x 63.4mm x 232mm
■動作温度 0～45℃
このカタログについて
| ドキュメント名 | ファンレス組込みPC IBASE AMI200-970 |
|---|---|
| ドキュメント種別 | 製品カタログ |
| ファイルサイズ | 556.5Kb |
| 登録カテゴリ | |
| 取り扱い企業 | サンテックス株式会社 (この企業の取り扱いカタログ一覧) |
この企業の関連カタログ
このカタログの内容

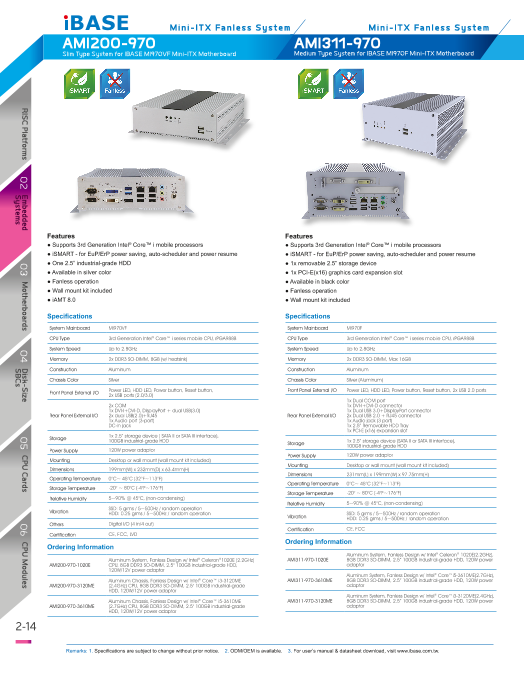

Page1
Mini-ITX Fanless System Mini-ITX Fanless System
AMI200-970 AMI311-970
Slim Type System for IBASE MI970VF Mini-ITX Motherboard Medium Type System for IBASE MI970F Mini-ITX Motherboard
Features Features
● Supports 3rd Generation Intel® Core™ i mobile processors ● Supports 3rd Generation Intel® Core™ i mobile processors
● iSMART - for EuP/ErP power saving, auto-scheduler and power resume ● iSMART - for EuP/ErP power saving, auto-scheduler and power resume
● One 2.5” industrial-grade HDD ● 1x removable 2.5” storage device
● Available in silver color ● 1x PCI-E(x16) graphics card expansion slot
● Fanless operation ● Available in black color
● Wall mount kit included ● Fanless operation
● iAMT 8.0 ● Wall mount kit included
Specifications Specifications
System Mainboard MI970VF System Mainboard MI970F
CPU Type 3rd Generation Intel® Core™ i series mobile CPU, rPGA988B CPU Type 3rd Generation Intel® Core™ i series mobile CPU, rPGA988B
System Speed Up to 2.8GHz System Speed Up to 2.8GHz
Memory 2x DDR3 SO-DIMM, 8GB (w/ heatsink) Memory 2x DDR3 SO-DIMM, Max 16GB
Construction Aluminum Construction Aluminum
Chassis Color Silver Chassis Color Silver (Aluminum)
Front Panel External I/O Power LED, HDD LED, Power button, Reset button, Front Panel External I/O Power LED, HDD LED, Power button, Reset button, 2x USB 2.0 ports2x USB ports (2.0/3.0)
1x Dual COM port
2x COM 1x DVI-I+DVI-D connector
1x DVI-I+DVI-D, DisplayPort + dual USB(3.0) 1x Dual USB 3.0+DisplayPort connector
Rear Panel External I/O 2x dual USB(2.0)+RJ45 Rear Panel External I/O 2x Dual USB 2.0 + RJ45 connector
1x Audio port (3-port) 1x Audio jack (3 port)
DC-in jack 1x 2.5” Removable HDD Tray
1x PCI-E (x16) expansion slot
Storage 1x 2.5” storage device ( SATA II or SATA III interface), 100GB industrial-grade HDD Storage 1x 2.5” storage device (SATA II or SATA III interface), 100GB industrial-grade HDD
Power Supply 120W power adaptor
Power Supply 120W power adaptor
Mounting Desktop or wall mount (wall mount kit included)
Mounting Desktop or wall mount (wall mount kit included)
Dimensions 199mm(W) x 232mm(D) x 63.4mm(H)
Dimensions 231mm(L) x 199mm(W) x 97.75mm(H)
Operating Temperature 0°C~ 45°C (32°F~113°F)
Operating Temperature 0°C~ 45°C (32°F~113°F)
Storage Temperature -20° ~ 80°C (-4°F~176°F)
Storage Temperature -20° ~ 80°C (-4°F~176°F)
Relative Humidity 5~90% @ 45°C, (non-condensing)
Relative Humidity 5~90% @ 45°C, (non-condensing)
SSD: 5 grms / 5~500Hz / random operation
Vibration HDD: 0.25 grms / 5~500Hz / random operation SSD: 5 grms / 5~500Hz / random operation
Vibration HDD: 0.25 grms / 5~500Hz / random operation
Others Digital I/O (4 in/4 out)
Certification CE, FCC
Certification CE, FCC, LVD
Ordering Information
Ordering Information
Aluminum System, Fanless Design w/ Intel® Celeron® 1020E(2.2GHz),
Aluminum System, Fanless Design w/ Intel® Celeron®1020E (2.2GHz) AMI311-970-1020E 8GB DDR3 SO-DIMM, 2.5” 100GB industrial-grade HDD, 120W power
AMI200-970-1020E CPU, 8GB DDR3 SO-DIMM, 2.5" 100GB industrial-grade HDD, adaptor
120W/12V power adaptor
Aluminum System, Fanless Design w/ Intel® Core™i5-3610ME(2.7GHz),
Aluminum Chassis, Fanless Design w/ Intel® Core™ i3-3120ME AMI311-970-3610ME 8GB DDR3 SO-DIMM, 2.5” 100GB industrial-grade HDD, 120W power
AMI200-970-3120ME (2.4GHz) CPU, 8GB DDR3 SO-DIMM, 2.5" 100GB industrial-grade adaptor
HDD, 120W/12V power adaptor
Aluminum System, Fanless Design w/ Intel® Core™i3-3120ME(2.4GHz),
Aluminum Chassis, Fanless Design w/ Intel® Core™ i5-3610ME AMI311-970-3120ME 8GB DDR3 SO-DIMM, 2.5” 100GB industrial-grade HDD, 120W power
AMI200-970-3610ME (2.7GHz) CPU, 8GB DDR3 SO-DIMM, 2.5" 100GB industrial-grade adaptor
HDD, 120W/12V power adaptor
2-14
Remarks: 1. Specifications are subject to change without prior notice. 2. ODM/OEM is available. 3. For user’s manual & datasheet download, visit www.ibase.com.tw.
