組込システム向 Atom x7-E3950/x5-E3930/Pentium N4200/Celeron N3350 CPU搭載
特長
■幅160×高さ44×奥行110ｍｍ 0.77リットル
■Atom x7-E3950/x5-E3930/ Pentium N4200/ Celeron N3350 CPU
■ファンレス動作
■DDR3L SO-DIMM 最大 8GB
■拡張温度対応 -40℃～70℃(EシリーズCPU)/-20℃～60℃(NシリーズCPU)
■DVI-I,DP出力
■Mini PCI-E x1, 2230 M.2 E-Key x1, 3042 M.2 B-Key x1
■mSATA x1, 2242 M.2 B-Key x1
仕様
■CPU：Atom x7-E3950/x5-E3930/ Pentium N4200/ Celeron N3350
■メモリ： DDR3L-1866 SO-DIMM x 1 (最大8GB)
■ハードディスク： mSATA x 1, 2242 M.2 B-Key x 1
■拡張スロット：Mini PCI-E[x1] x 2
■Ｉ／Ｏコネクタ：
Mini PCI-E x 1, 2230 M.2 E-Key x 1, 3042 M.2 B-Key x 1
G-LAN x 2(RJ-45),USB3.0 x 4(背面),RS-422/485 x 2(D-Sub9)(側面),DVI-I x 1, DisplayPort x 1(背面),GPIO(4-in & 4-out) x 1
オーディオ Line out(側面)
■入力電源： DC 9～36V
■ケース： アルミニウム、鉄製
■寸法： 160mm(W) x 44mm(H) x 110mm(D)
■動作温度： 20～60℃(Nシリーズ CPU)/-40～70℃(Atom Eシリーズ CPU)
このカタログについて
| ドキュメント名 | 組込みPC IBASE AGS100 |
|---|---|
| ドキュメント種別 | 製品カタログ |
| ファイルサイズ | 980Kb |
| 登録カテゴリ | |
| 取り扱い企業 | サンテックス株式会社 (この企業の取り扱いカタログ一覧) |
この企業の関連カタログ
このカタログの内容

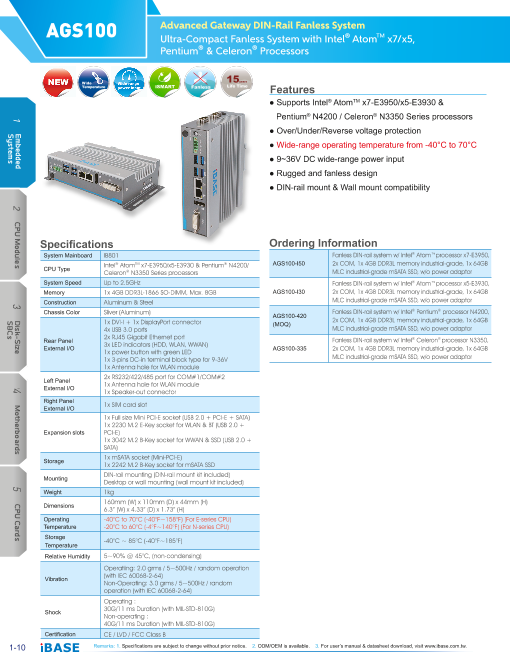

Page1
AGS100 Advanced Gateway DIN-Rail Fanless SystemUltra-Compact Fanless System with Intel® AtomTM x7/x5,
Pentium® & Celeron® Processors
Wide 15years
Temperature iSMART Fanless Life Time Features
● Supports Intel® AtomTM x7-E3950/x5-E3930 &
Pentium® N4200 / Celeron® N3350 Series processors
● Over/Under/Reverse voltage protection
● Wide-range operating temperature from -40°C to 70°C
● 9~36V DC wide-range power input
● Rugged and fanless design
● DIN-rail mount & Wall mount compatibility
Specifications Ordering Information
System Mainboard IB801 Fanless DIN-rail system w/ Intel® Atom™processor x7-E3950,
Intel® AtomTM x7-E3950/x5-E3930 & Pentium® N4200/ AGS100-I50 2x COM, 1x 4GB DDR3L memory industrial-grade, 1x 64GB CPU Type
Celeron® N3350 Series processors MLC industrial-grade mSATA SSD, w/o power adaptor
System Speed Up to 2.5GHz Fanless DIN-rail system w/ Intel® Atom™processor x5-E3930,
Memory 1x 4GB DDR3L-1866 SO-DIMM, Max. 8GB AGS100-I30 2x COM, 1x 4GB DDR3L memory industrial-grade, 1x 64GB
Construction Aluminum & Steel MLC industrial-grade mSATA SSD, w/o power adaptor
Chassis Color Sliver (Aluminum) Fanless DIN-rail system w/ Intel® Pentium® processor N4200, AGS100-420
1x DVI-I + 1x DisplayPort connector 2x COM, 1x 4GB DDR3L memory industrial-grade, 1x 64GB (MOQ)
4x USB 3.0 ports MLC industrial-grade mSATA SSD, w/o power adaptor
Rear Panel 2x RJ45 Gigabit Ethernet port Fanless DIN-rail system w/ Intel® Celeron® processor N3350,
External I/O 3x LED indicators (HDD, WLAN, WWAN) AGS100-335
1x power button with green LED 2x COM, 1x 4GB DDR3L memory industrial-grade, 1x 64GB
1x 3-pins DC-in terminal block type for 9-36V MLC industrial-grade mSATA SSD, w/o power adaptor
1x Antenna hole for WLAN module
Left Panel 2x RS232/422/485 port for COM#1/COM#2
External I/O 1x Antenna hole for WLAN module
1x Speaker-out connector
Right Panel
External I/O 1x SIM card slot
1x Full size Mini PCI-E socket (USB 2.0 + PCI-E + SATA)
1x 2230 M.2 E-Key socket for WLAN & BT (USB 2.0 +
Expansion slots PCI-E)
1x 3042 M.2 B-Key socket for WWAN & SSD (USB 2.0 +
SATA)
Storage 1x mSATA socket (Mini-PCI-E)
1x 2242 M.2 B-Key socket for mSATA SSD
Mounting DIN-rail mounting (DIN-rail mount kit included)
Desktop or wall mounting (wall mount kit included)
Weight 1kg
Dimensions 160mm (W) x 110mm (D) x 44mm (H)
6.3” (W) x 4.33” (D) x 1.73” (H)
Operating -40°C to 70°C (-40°F~158°F) (For E-series CPU)
Temperature -20°C to 60°C (-4°F~140°F) (For N-series CPU)
Storage
-40°C ~ 85°C (-40°F~185°F)
Temperature
Relative Humidity 5~90% @ 45°C, (non-condensing)
Operatiing: 2.0 grms / 5~500Hz / random operation
Vibration (with IEC 60068-2-64)
Non-Operating: 3.0 grms / 5~500Hz / random
operation (with IEC 60068-2-64)
Operating :
Shock 30G/11 ms Duration (with MIL-STD-810G)
Non-operating :
40G/11 ms Duration (with MIL-STD-810G)
Certification CE / LVD / FCC Class B
11-1-100 Remarks: 1. 2. ODM/OEM is available. 3. Remarks: 1. 2. ODM/OEM is available. 3.
01 Embedded 02 CPU Module s 03 Disk-Size 04 Motherboards 05 CPU Cards
Systems SBCs
Page2
AGS100 Advanced Gateway DIN-Rail Fanless SystemUltra-Compact Fanless System with Intel® AtomTM x7/x5,
Pentium® & Celeron® Processors
Intel® Entry Processor Ultra Low Power Reference Table
® ® ® ®
Intel Pentium Processors - Intel Celeron Processors - ®
Intel Atom™ Processors - 14nm Apollo-Lake-I SoC Platform
14 nm Apollo-Lake SoC Platform 14 nm Apollo-Lake SoC Platform
Processor Number
N4200 N3350 x7-E3950 x5-E3940 x5-E3930
Base Freq (GHz) 1.1 1.1 1.6 1.6 1.3
®
Intel Turbo Boost
2.5 2.4 2.0 1.8 1.8
Technology 2.0 (GHz)
Last Level Cache 2M 2M 2M 2M 2M
Cores/Threads 4/4 2/2 4/4 4/4 2/2
Memory Speed (DDR3L) 1866 1600 1866 1866 1866
TDP 6W 6W 12W 9.5W 6.5W
DIN-rail Mounting
Dimensions and Drawing
188
4
50
110 100
50
176
44
160
44 49
Remarks: 1. 2. ODM/OEM is available. 3. Remarks: 1. 2. ODM/OEM is available. 3. 11-1-11
