組込みシステム向け、第7/6世代 Core i7/i5/i3 CPU搭載可能、ファンレス組込みPC
特長
■幅275×高さ70×奥行140ｍｍ 2.7リットル
■第7/6世代Core i Desktop CPU, ファンレス動作
■DDR4-2133 SO-DIMM 最大 32GB
■DVI-I x1,DP x1出力
■2.5" SATA HDD x1, mSATA x1
■iSMART,iAMT(11.6)
■堅牢、耐振動、ケーブルレス構造
■リモート電源SW
仕様
■CPU：ソケットLGA1151 第7/6世代Core i7/i5/i3 Desktop
■チップセット：Q170PCH
■メモリ：4GB DDR4-2133 SO-DIMM x2 (最大32GB)
■CPUボード：MB300
■ハードディスク ：mSATA x1, 2.5" HDD x1
■拡張スロット：Mini PCI-E x1
■Ｉ／Ｏコネクタ：
G-LAN x2
USB3.0 x4, USB2.0 x2
RS-232 x1, RS-422/485 x1
DVI-I x1, DP x1
オーディオ Line out
■入力電源：DC 12～24V
■ケース：アルミニウム、鉄製
■寸法：275mm(W) x 70mm(H) x 140mm(D)
■動作温度：-10～60℃(気流有)/-10～50℃
■認証：CE, LVD, FCC Class B
このカタログについて
| ドキュメント名 | ファンレス組込みPC IBASE AMS300 |
|---|---|
| ドキュメント種別 | 製品カタログ |
| ファイルサイズ | 1Mb |
| 登録カテゴリ | |
| 取り扱い企業 | サンテックス株式会社 (この企業の取り扱いカタログ一覧) |
この企業の関連カタログ
このカタログの内容

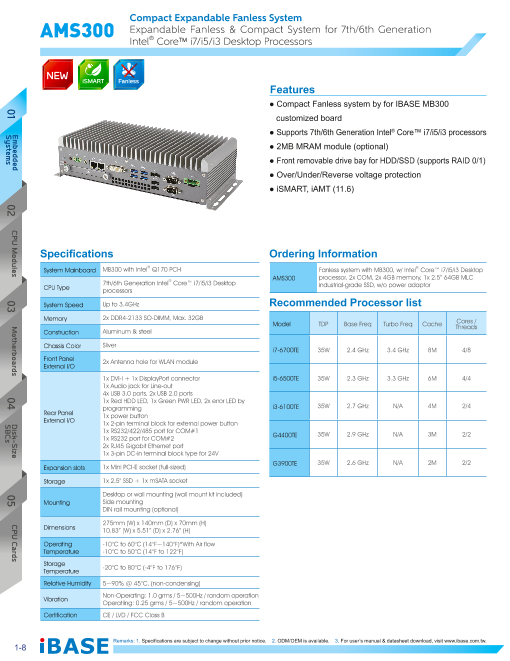

Page1
Compact Expandable Fanless System
AMS300 Expandable Fanless & Compact System for 7th/6th Generation
Intel® Core™ i7/i5/i3 Desktop Processors
NEW
iSMART Fanless
Features
● Compact Fanless system by for IBASE MB300
customized board
● Supports 7th/6th Generation Intel® Core™ i7/i5/i3 processors
● 2MB MRAM module (optional)
● Front removable drive bay for HDD/SSD (supports RAID 0/1)
● Over/Under/Reverse voltage protection
● iSMART, iAMT (11.6)
Specifications Ordering Information
System Mainboard MB300 with Intel
® Q170 PCH Fanless system with MB300, w/ Intel® Core™ i7/i5/i3 Desktop
AMS300 processor, 2x COM, 2x 4GB memory, 1x 2.5” 64GB MLC
7th/6th Generation Intel® Core™ i7/i5/i3 Desktop
CPU Type industrial-grade SSD, w/o power adaptorprocessors
System Speed Up to 3.4GHz Recommended Processor list
Memory 2x DDR4-2133 SO-DIMM, Max. 32GB
Model TDP Base Freq Turbo Freq Cache Cores / Threads
Construction Aluminum & steel
Chassis Color Sliver
i7-6700TE 35W 2.4 GHz 3.4 GHz 8M 4/8
Front Panel 2x Antenna hole for WLAN module
External I/O
1x DVI-I + 1x DisplayPort connector i5-6500TE 35W 2.3 GHz 3.3 GHz 6M 4/4
1x Audio jack for Line-out
4x USB 3.0 ports, 2x USB 2.0 ports
1x Red HDD LED, 1x Green PWR LED, 2x error LED by
programming i3-6100TE 35W 2.7 GHz N/A 4M 2/4
Rear Panel 1x power button
External I/O 1x 2-pin terminal block for external power button
1x RS232/422/485 port for COM#1
1x RS232 port for COM#2 G4400TE
35W 2.9 GHz N/A 3M 2/2
2x RJ45 Gigabit Ethernet port
1x 3-pin DC-in terminal block type for 24V
35W 2.6 GHz N/A 2M 2/2
Expansion slots 1x Mini PCI-E socket (full-sized)
G3900TE
Storage 1x 2.5" SSD + 1x mSATA socket
Desktop or wall mounting (wall mount kit included)
Mounting Side mounting
DIN rail mounting (optional)
275mm (W) x 140mm (D) x 70mm (H)
Dimensions 10.83” (W) x 5.51” (D) x 2.76” (H)
Operating -10°C to 60°C (14°F~140°F)*With Air flow
Temperature -10°C to 50°C (14°F to 122°F)
Storage
Temperature -20°C to 80°C (-4°F to 176°F)
Relative Humidity 5~90% @ 45°C, (non-condensing)
Vibration Non-Operating: 1.0 grms / 5~500Hz / random operationOperatiing: 0.25 grms / 5~500Hz / random operation
Certification CE / LVD / FCC Class B
Remarks: 1. Specifications are subject to change without prior notice. 2. ODM/OEM is available. 3. For user’s manual & datasheet download, visit www.ibase.com.tw.
1-8
01 Embedded 0022 CPU Modules 03 Motherboards 04 Disk-Size CPU CardsSystems SBCs 05
Page2
Compact Expandable Fanless System
AMS300 Expandable Fanless & Compact System for 7th/6th Generation
Intel® Core™ i7/i5/i3 Desktop Processors
Features of New Automation Box PC
Based on Compact
Onboard
7th/6th Gen Intel® CPU &
diagnostics LED
(35W TDP) Fanless
Supports different type of Front-accessible
2MB NVRAM
Fieldbus through expansion drive bay
(Optional)
(AMS301) (support RAID 0/1) 20
Wallmount,
Remote Power button 24V input voltage
Desktop or DIN
for remote access (power protection)
mounting
Flexible Mounting
Side Mounting DIN Rail Mounting
Dimensions and Drawing
305
4.20
61.50
123
290
275
70 76
Remarks: 1. Specifications are subject to change without prior notice. 2. ODM/OEM is available. 3. For user’s manual & datasheet download, visit www.ibase.com.tw.
1-9
140
