組込みPC IBASE CSB110-905

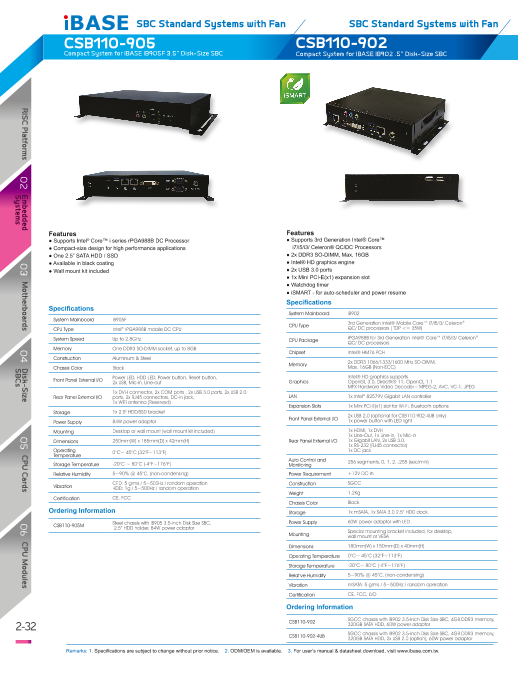

SBC Standard Systems with Fan SBC Standard Systems with Fan CSB110-905 CSB110-902 Compact System for IBASE IB905F 3.5” Disk-Size SBC Compact System for IBASE IB902 .5” Disk-Size SBC Features Features ● Supports Intel® Core™ i series rPGA988B DC Processor ● Supports 3rd Generation Intel® Core™ ● Compact-size design for high performance applications i7/i5/i3/ Celeron® QC/DC Processors ● One 2.5” SATA HDD / SSD ● 2x DDR3 SO-DIMM, Max. 16GB ● Available in black coating ● Intel® HD graphics engine ● Wall mount kit included ● 2x USB 3.0 ports ● 1x Mini PCI-E(x1) expansion slot ● Watchdog timer ● iSMART - for auto-scheduler and power resume Specifications Specifications System Mainboard IB902 System Mainboard IB905F CPU Type 3rd Generation Intel® Mobile Core™ i7/i5/i3/ Celeron ® CPU Type Intel® rPGA988B mobile DC CPU QC/ DC processors ( TDP <= 35W) System Speed Up to 2.8GHz CPU Package rPGA988B for 3rd Generation Intel® Core™ i7/i5/i3/ Celeron ® QC/ DC processors Memory One DDR3 SO-DIMM socket, up to 8GB Chipset Intel® HM76 PCH Construction Aluminum & Steel Memory 2x DDR3 1066/1333/1600 MHz SO-DIMM, Chassis Color Black Max. 16GB (Non-ECC) Intel® HD graphics supports Front Panel External I/O Power LED, HDD LED, Power button, Reset button, 2x USB, Mic-in, Line-out Graphics OpenGL 3.0, DirectX® 11, OpenCL 1.1 MFX Hardware Video Decoder – MPEG-2, AVC, VC-1, JPEG 1x DVI-I connector, 2x COM ports , 2x USB 3.0 ports, 2x USB 2.0 Rear Panel External I/O ports, 2x RJ45 connectors, DC-in jack, LAN 1x Intel® 82579V Gigabit LAN controller 1x WiFi antenna (Reserved) Expansion Slots 1x Mini PCI-E(x1) slot for Wi-Fi, Bluetooth options Storage 1x 2.5" HDD/SSD bracket 2x USB 2.0 (optional for CSB110-902-4UB only) Power Supply 84W power adaptor Front Panel External I/O 1x power button with LED light Mounting Desktop or wall mount (wall mount kit included) 1x HDMI, 1x DVI-I 1x Line-Out, 1x Line-In, 1x Mic-In Dimensions 250mm(W) x 185mm(D) x 42mm(H) Rear Panel External I/O 1x Gigabit LAN, 2x USB 3.0, 1x RS-232 (RJ45 connector) Operating 0°C~ 45°C (32°F~113°F) 1x DC jack Temperature Auto Control and Storage Temperature -20°C ~ 80°C (-4°F~176°F) 256 segments, 0, 1, 2...255 (sec/min)Monitoring Relative Humidity 5~90% @ 45°C, (non-condensing) Power Requirement +12V DC-in CFD: 5 grms / 5~500Hz / random operation Construction SGCCVibration HDD: 1g / 5~500Hz / random operation Weight 1.2Kg Certification CE, FCC Chassis Color Black Ordering Information Storage 1x mSATA, 1x SATA 3.0 2.5” HDD dock Steel chassis with IB905 3.5-inch Disk Size SBC, Power Supply 60W power adaptor with LEDCSB110-905M 2.5” HDD holder, 84W power adaptor Special mounting bracket included, for desktop, Mounting wall mount or VESA Dimensions 180mm(W) x 150mm(D) x 40mm(H) Operating Temperature 0°C~ 45°C (32°F~113°F) Storage Temperature -20°C~ 80°C (-4°F~176°F) Relative Humidity 5~90% @ 45°C, (non-condensing) Vibration mSATA: 5 grms / 5~500Hz / random operation Certification CE, FCC, LVD Ordering Information CSB110-902 SGCC chassis with IB902 3.5-inch Disk Size SBC, 4GB DDR3 memory, 320GB SATA HDD, 60W power adaptor 2-32 CSB110-902-4UB SGCC chassis with IB902 3.5-inch Disk Size SBC, 4GB DDR3 memory, 320GB SATA HDD, 2x USB 2.0 (option), 60W power adaptor Remarks: 1. Specifications are subject to change without prior notice. 2. ODM/OEM is available. 3. For user’s manual & datasheet download, visit www.ibase.com.tw. 01 RISC Platforms 02 Embedded 03 Motherboards 04 Disk-Size 05 CPU Cards 06 CPU Modules Systems SBCs
