組込みシステム向け、第7/6世代 Core i7/i5/i3 CPU搭載可能、ファンレス組込みPC
特長
■幅275×高さ117×奥行140ｍｍ 4.5リットル
■第7/6世代Core i Desktop CPU, ファンレス動作
■DDR4-2133 SO-DIMM 最大 32GB
■DVI-I x1,DP x1出力
■Mini PCI-E x4(PROFIBUSモジュールx3搭載可能)
■2.5" SATA HDD x2, mSATA x1
■iSMART,iAMT(11.6)
■堅牢、耐振動、ケーブルレス構造
■リモート電源SW
仕様
■CPU：ソケットLGA1151 第7/6世代Core i7/i5/i3 Desktop
■チップセット：Q170PCH
■メモリ：4GB DDR4-2133 SO-DIMM x2 (最大32GB)
■CPUボード：MB300
■ハードディスク ：mSATA x1, 2.5" HDD x2
■拡張スロット：Mini PCI-E x4(PROFIBUSモジュール x3)
■Ｉ／Ｏコネクタ：
G-LAN x2
USB3.0 x4, USB2.0 x2
RS-232 x1, RS-422/485 x1
DVI-I x1, DP x1
オーディオ Line out
■入力電源：DC 12～24V
■ケース：アルミニウム、鉄製
■寸法：275mm(W) x 117mm(H) x 140mm(D)
■動作温度：-10～60℃(気流有)/-10～50℃
■認証：CE, LVD, FCC Class B
このカタログについて
| ドキュメント名 | ファンレス組込みPC IBASE AMS301 |
|---|---|
| ドキュメント種別 | 製品カタログ |
| ファイルサイズ | 1.5Mb |
| 登録カテゴリ | |
| 取り扱い企業 | サンテックス株式会社 (この企業の取り扱いカタログ一覧) |
この企業の関連カタログ
このカタログの内容

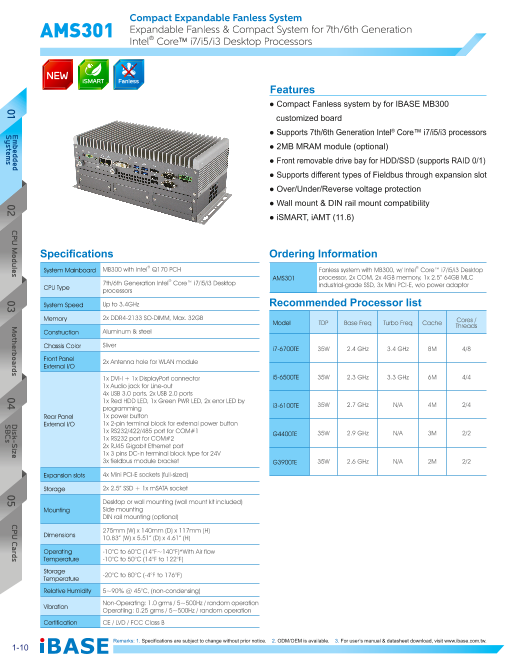

Page1
Compact Expandable Fanless System
AMS301 Expandable Fanless & Compact System for 7th/6th Generation
Intel® Core™ i7/i5/i3 Desktop Processors
NEW
iSMART Fanless
Features
● Compact Fanless system by for IBASE MB300
customized board
● Supports 7th/6th Generation Intel® Core™ i7/i5/i3 processors
● 2MB MRAM module (optional)
● Front removable drive bay for HDD/SSD (supports RAID 0/1)
● Supports different types of Fieldbus through expansion slot
● Over/Under/Reverse voltage protection
● Wall mount & DIN rail mount compatibility
● iSMART, iAMT (11.6)
Specifications Ordering Information
®
System Mainboard MB300 with Intel Q170 PCH Fanless system with MB300, w/ Intel® Core™ i7/i5/i3 Desktop
® AMS301 processor, 2x COM, 2x 4GB memory, 1x 2.5” 64GB MLC 7th/6th Generation Intel Core™ i7/i5/i3 Desktop
CPU Type industrial-grade SSD, 3x Mini PCI-E, w/o power adaptorprocessors
System Speed Up to 3.4GHz Recommended Processor list
Memory 2x DDR4-2133 SO-DIMM, Max. 32GB
Model TDP Base Freq Turbo Freq Cache Cores / Threads
Construction Aluminum & steel
Chassis Color Sliver i7-6700TE 35W 2.4 GHz 3.4 GHz 8M 4/8
Front Panel 2x Antenna hole for WLAN module
External I/O
1x DVI-I + 1x DisplayPort connector i5-6500TE 35W 2.3 GHz 3.3 GHz 6M 4/4
1x Audio jack for Line-out
4x USB 3.0 ports, 2x USB 2.0 ports
1x Red HDD LED, 1x Green PWR LED, 2x error LED by
programming i3-6100TE 35W 2.7 GHz N/A 4M 2/4
Rear Panel 1x power button
External I/O 1x 2-pin terminal block for external power button
1x RS232/422/485 port for COM#1 G4400TE 35W 2.9 GHz N/A 3M 2/2
1x RS232 port for COM#2
2x RJ45 Gigabit Ethernet port
1x 3 pins DC-in terminal block type for 24V
3x fieldbus module bracket G3900TE 35W 2.6 GHz N/A 2M 2/2
Expansion slots 4x Mini PCI-E sockets (full-sized)
Storage 2x 2.5” SSD + 1x mSATA socket
Desktop or wall mounting (wall mount kit included)
Mounting Side mounting
DIN rail mounting (optional)
275mm (W) x 140mm (D) x 117mm (H)
Dimensions 10.83” (W) x 5.51” (D) x 4.61” (H)
Operating -10°C to 60°C (14°F~140°F)*With Air flow
Temperature -10°C to 50°C (14°F to 122°F)
Storage
Temperature -20°C to 80°C (-4°F to 176°F)
Relative Humidity 5~90% @ 45°C, (non-condensing)
Vibration Non-Operating: 1.0 grms / 5~500Hz / random operationOperatiing: 0.25 grms / 5~500Hz / random operation
Certification CE / LVD / FCC Class B
Remarks: 1. Specifications are subject to change without prior notice. 2. ODM/OEM is available. 3. For user’s manual & datasheet download, visit www.ibase.com.tw.
1-10
01 Embedded 0022 CPU Modules 03 Motherboards 04 Disk-Size CPU CardsSystems SBCs 05
Page2
Compact Expandable Fanless System
AMS301 Expandable Fanless & Compact System for 7th/6th Generation
Intel® Core™ i7/i5/i3 Desktop Processors
Expansion Cards Flexible Mounting
IP301 Side Mounting
COM
(TX, RX only)
Fan
0
Mini PCI-E DIN Rail Mounting 2
Field Bus Adaptor thru Mini PCI-E
PROFINET module PROFIBUS module
Dimensions and Drawing
Remarks: 1. Specifications are subject to change without prior notice. 2. ODM/OEM is available. 3. For user’s manual & datasheet download, visit www.ibase.com.tw.
1-11
01 Embedded 02 CPU Modules 03 Motherboards 04 Disk-Size 05 CPU Cards
Systems SBCs
