ファンレス組込みPC AAEON AEC-6967

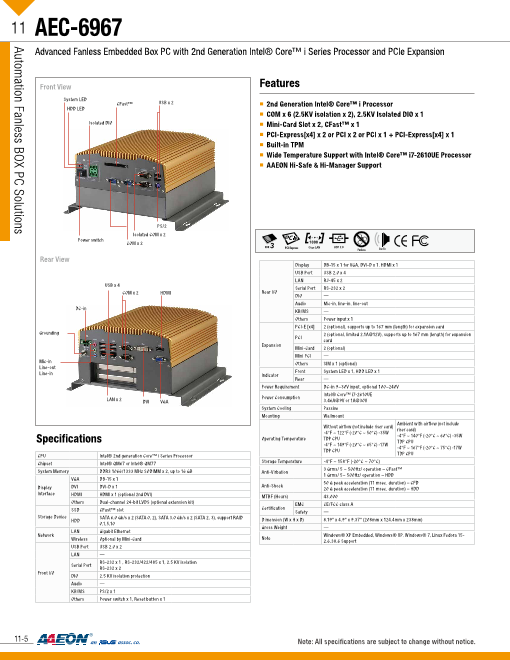

11 AEC-6967 Advanced Fanless Embedded Box PC with 2nd Generation Intel® Core™ i Series Processor and PCIe Expansion Front View Features System LED CFast™ USB x 2 ■■ 2nd Generation Intel® Core™ i Processor HDD LED ■■ COM x 6 (2.5KV isolation x 2), 2.5KV Isolated DIO x 1 Isolated DIO ■■Mini-Card Slot x 2, CFast™ x 1 ■■ PCI-Express[x4] x 2 or PCI x 2 or PCI x 1 + PCI-Express[x4] x 1 ■■ Built-in TPM ■■Wide Temperature Support with Intel® Core™ i7-2610UE Processor ■■ AAEON Hi-Safe & Hi-Manager Support PS/2 Isolated COM x 2 Power switch COM x 2 DDR 3 Fanless Rear View Display DB-15 x 1 for VGA, DVI-D x 1, HDMI x 1 USB Port USB 2.0 x 4 LAN RJ-45 x 2 USB x 4 Serial Port RS-232 x 2 COM x 2 HDMI Rear I/O DIO — Audio Mic-in, line-in, line-out DC-in KB/MS — Others Power input x 1 PCI-E [x4] 2 (optional), supports up to 167 mm (length) for expansion card Grounding 2 (optional, limited 2.1A@12V), supports up to 167 mm (length) for expansion PCI card Expansion Mini-Card 2 (optional) Mini PCI — Mic-in Others SIM x 1 (optional) Line-out Line-in Front System LED x 1, HDD LED x 1Indicator Rear — Power Requirement DC-in 9~30V input, optional 100~240V Intel® Core™ i7-2610UE LAN x 2 Power ConsumptionDVI VGA 3.46A@9V or 1A@30V System Cooling Passive Mounting Wallmount Ambient with airflow (not include Without airflow (not include riser card) riser card) -4°F ~ 122°F (-20°C ~ 50°C) -35W Specifications -4°F ~ 140°F (-20°C ~ 60°C) -35W Operating Temperature TDP CPU TDP CPU -4°F ~ 149°F (-20°C ~ 65°C) -17W -4°F ~ 167°F (-20°C ~ 75°C) -17W TDP CPU CPU Intel® 2nd generation Core™ i Series Processor TDP CPU Chipset Intel® QM67 or Intel® QM77 Storage Temperature -4°F ~ 158°F (-20°C ~ 70°C) System Memory DDR3 1066/1333 MHz SODIMM x 2, up to 16 GB 3 Grms/ 5 ~ 500Hz/ operation – CFast™ Anti-Virbation 1 Grms/ 5~ 500Hz/ operation – HDD VGA DB-15 x 1 50 G peak acceleration (11 msec. duration) – CFD Display DVI DVI-D x 1 Anti-Shock 20 G peak acceleration (11 msec. duration) – HDD Interface HDMI HDMI x 1 (optional 2nd DVI) MTBF (Hours) 43,000 Others Dual-channel 24-bit LVDS (optional extension kit) EMC CE/FCC class A SSD CFast™ slot Certification Safety — Storage Device SATA 6.0 Gb/s x 2 (SATA 0, 2), SATA 3.0 Gb/s x 2 (SATA 2, 3), support RAID HDD Dimension (W x H x D) 8.19" x 4.9" x 9.37" (208mm x 124.4mm x 238mm) 0,1,5,10 Gross Weight — LAN Gigabit Ethernet Network Windows® XP Embedded, Windows® XP, Windows® 7, Linux Fedora 15- Wireless Optional by Mini-Card Note 2.6.38.6 Support USB Port USB 2.0 x 2 LAN — RS-232 x 1 , RS-232/422/485 x 1, 2.5 KV isolation Serial Port RS-232 x 2 Front I/O DIO 2.5 KV isolation protection Audio — KB/MS PS/2 x 1 Others Power switch x 1, Reset button x 1 11-5 Note: All specifications are subject to change without notice. Automation Fanless BOX PC Solutions

AEC-6967 Dimension Unit: mm Isolation DIO COM USB Audio USB USB COM DVI HDMI Reset HDD CFast SYS DC IN DC 9~30V PS2 LAN LAN COM VGA Grounding Ordering Information Isolated Isolated Part Number CPU RAM LAN USB RS-232 Isolated DIO Storage Display Expansion Mounting Power Temp. RS-232 RS-232/422/485 HDMI x 1 PCI x 1 Intel® Core™ i7-2610UE - CFast™ kit x 1 AEC-6967-A1-1110 4 GB 2 6 4 1 1 8 Channels DVI x 1 PCIe x 1 Wallmount 9-30V -20°C ~ 65°C (w/o air) 1.5 GHz HDD kit x 1 VGA x 1 Mini-Card x 2 HDMI x 1 Intel® Core™ i7-2610UE - CFast™ kit x 1 PCI x 2 AEC-6967-A2-1110 4 GB 2 6 4 1 1 8 Channels DVI x 1 Wallmount 9-30V -20°C ~ 65°C (w/o air) 1.5 GHz HDD kit x 1 Mini-Card x 2 VGA x 1 HDMI x 1 PCI x 1 Intel® Core™ i3-2310E - CFast™ kit x 1 AEC-6967-A3-1110 4 GB 2 6 4 1 1 8 Channels DVI x 1 PCIe x 1 Wallmount 9-30V -20°C ~ 50°C (w/o air) 2.1 GHz HDD kit x 1 VGA x 1 Mini-Card x 2 HDMI x 1 Intel® Core™ i3-2310E - CFast™ kit x 1 PCI x 2 AEC-6967-A4-1110 4 GB 2 6 4 1 1 8 Channels DVI x 1 Wallmount 9-30V -20°C ~ 50°C (w/o air) 2.1 GHz HDD kit x 1 Mini-Card x 2 VGA x 1 HDMI x 1 Intel® Core™ i7-2610UE - CFast™ kit x 1 PCIe x 2 AEC-6967-A5-1110 4 GB 2 6 4 1 1 8 Channels DVI x 1 Wallmount 9-30V -20°C ~ 50°C (w/o air) 1.5 GHz HDD kit x 1 Mini-Card x 2 VGA x 1 Packing List Optional Accessories • Phoenix Power Connector x 1 • 1255901202 • M3 x 4mm Screw x 4 Power Adapter (120W), Output: DC 19V • 6# -32 x 10mm Screw x 6 • 1255900841 • Wallmount Bracket x 2 Power Adapter (84W), Output: DC 12V • Product DVD • 1702031802 • AEC-6967 Power Cord (US Type) • 1702031803 Power Cord (European Type) • 170203180E Power Cord (Japanese Type) • 9741696701 I/O Dust Cover Kit • 9741696702 2nd 2.5" SATA HDD Kit Note: All specifications are subject to change without notice. www.aaeon.com 11-6
