デジタルサイネージ向け、第6世代 Core i7-6822EQ搭載、HD Graphics 530、ファンレス動作
特長
■幅215.6×高さ40×奥行215.6ｍｍ 1.86リットル
■第6世代 Core i7-6822EQ CPU,ファンレス
■iAMT(11.0), TPM1.2, vPro
■2x DDR4-2133 メモリ 32GB対応
■HD Graphics 530
■1x HDMI2.0(4K対応) + 2x HDMI1.4(4K対応)
■iSMART auto-scheduler,power resume
仕様
■CPU/チップセット：第6世代 Core i7-6822EQ 2GHz(最大2.8GHz) / HM170/QM170 PCH
■メモリ：DDR4-2133 SO-DIMM x 2(最大32GB)
■CPUボード：MBD623
■グラフィックス：HD Graphics 530
■ハードディスク：M.2 B key(3042) x 1, M.2 M key(2280) x 1, 2.5" SATA HDD/SSD x 1
■拡張スロット：Mini PCIe[x1] x 1
■I/Oコネクタ：10/100/1000 Base-T x 1(RJ-45), USB3.0 x 2, USB2.0 x 2
HDMI2.0(4K対応) x 1, HDMI1.4(4K対応) x 2, RS-232 x 1(RJ-45), オーディオ Mic in, Line out
■入力電源：12VDC 84W ACアダプタ
■ケース：アルミニウム + SGCC
■寸法/重量：215.6mm(W) x 40mm(H) x 215.6mm(D) / 2.4Kg
■動作温度： 0～45℃
このカタログについて
| ドキュメント名 | 組込みPC IBASE SI-623-N |
|---|---|
| ドキュメント種別 | 製品カタログ |
| ファイルサイズ | 532.9Kb |
| 登録カテゴリ | |
| 取り扱い企業 | サンテックス株式会社 (この企業の取り扱いカタログ一覧) |
この企業の関連カタログ
このカタログの内容

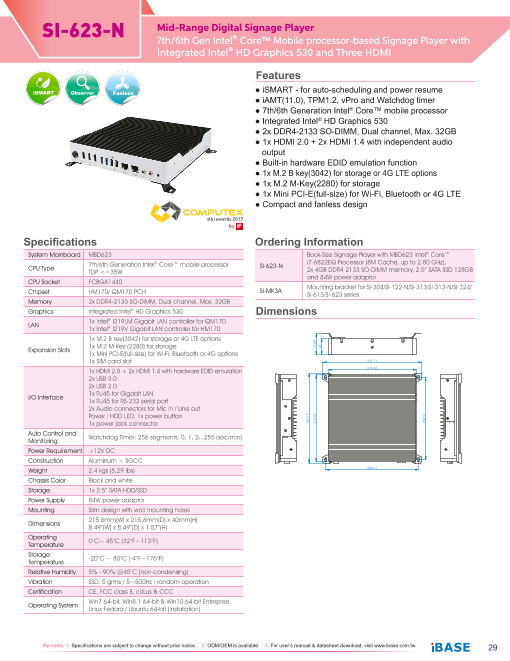

Page1
SI-623-N Mid-Range Digital Signage Player
7th/6th Gen Intel® Core™ Mobile processor-based Signage Player with
Integrated Intel® HD Graphics 530 and Three HDMI
Features
iSMART Observer Fanless ● iSMART - for auto-scheduling and power resume
● iAMT(11.0), TPM1.2, vPro and Watchdog timer
● 7th/6th Generation Intel® Core™ mobile processor
● Integrated Intel® HD Graphics 530
● 2x DDR4-2133 SO-DIMM, Dual channel, Max. 32GB
● 1x HDMI 2.0 + 2x HDMI 1.4 with independent audio
output
● Built-in hardware EDID emulation function
● 1x M.2 B key(3042) for storage or 4G LTE options
● 1x M.2 M-Key(2280) for storage
● 1x Mini PCI-E(full-size) for Wi-Fi, Bluetooth or 4G LTE
● Compact and fanless design
Specifications Ordering Information
System Mainboard MBD623 Book-Size Signage Player with MBD623 Intel® Core™
7th/6th Generation Intel® Core™ mobile processor SI-623-N i7-6822EQ Processor (8M Cache, up to 2.80 GHz), CPU Type TDP <=35W 2x 4GB DDR4 2133 SO-DIMM memory, 2.5” SATA SSD 128GB
and 84W power adaptor
CPU Socket FCBGA1440
Chipset HM170/ QM170 PCH SI-MK3A
Mounting bracket for SI-304/SI-122-N/SI-313/SI-313-N/SI-324/
SI-613/SI-623 series
Memory 2x DDR4-2133 SO-DIMM, Dual channel, Max. 32GB
Graphics Integrated Intel® HD Graphics 530 Dimensions
1x Intel® I219LM Gigabit LAN controller for QM170 LAN 1x Intel® I219V Gigabit LAN controller for HM170
1x M.2 B key(3042) for storage or 4G LTE options
Expansion Slots 1x M.2 M-Key (2280) for storage 1x Mini PCI-E(full-size) for Wi-Fi, Bluetooth or 4G options
1x SIM card slot 241.11
215.60
1x HDMI 2.0 + 2x HDMI 1.4 with hardware EDID emulation
2x USB 3.0
2x USB 2.0
1x RJ45 for Gigabit LAN
I/O Interface 1x RJ45 for RS-232 serial port
2x Audio connectors for Mic in / Line out
Power / HDD LED, 1x power button
1x power jack connector
Auto Control and
Monitoring Watchdog Timer: 256 segments, 0, 1, 2...255 (sec/min)
Power Requirement +12V DC
Construction Aluminum + SGCC
Weight 2.4 kgs (5.29 lbs) 226.91
Chassis Color Black and white
Storage 1x 2.5” SATA HDD/SSD
Power Supply 84W power adaptor 100
Mounting Slim design with wall mounting holes
Dimensions 215.6mm(W) x 215.6mm(D) x 40mm(H) 8.49”(W) x 8.49”(D) x 1.57”(H)
Operating
Temperature 0°C~ 45°C (32°F~113°F)
Storage
Temperature -20°C ~ 80°C (-4°F~176°F)
Relative Humidity 5%~90% @45°C (non-condensing)
Vibration SSD: 5 grms / 5~500Hz / random operation
Certification CE, FCC class B, cULus & CCC
Operating System Win7 64-bit, Win8.1 64-bit & Win10 64-bit Enterprise,Linux Fedora / Ubuntu 64-bit (Installation)
Remarks: 1. 2. ODM/OEM is available. 3. Remarks: 1. 2. ODM/OEM is available. 3. 29
221.17
215.60 51.89
100 40
204.37
