BOXER シリーズ 小型組込みシステム向け、第6世代 Core i3-6100U/Celeron 3955U搭載
特長
■幅69×高さ183×奥行155ｍｍ １．９６リットル
■Core i3-6100U 2.3GHz / Celeron 3955U 2GHz CPU ファンレス
■4 COM / 4 USB3.0 / 2 GbE
■VGA, HDMI出力
■動作温度 -20～60℃ (気流有)
■耐振動 3grms
仕様
■CPU ：Core i3-6100U 2.3GHz / Celeron 3955U 2GHz CPUファンレス
■メモリ：DDR4-2133 SODIMM x 1, 最大16GB
■ストレージ：2.5インチ SATA HDD/SSD x 1
■拡張スロット：Full-size mini Card x 2(内mSATA x 1)
■Ｉ／Ｏコネクタ：10/100/1000Base-TX x 2 (RJ-45),USB3.0 x 4,RS-232/422/485 x 4 (RJ-45),HDMI x 1,VGA x 1
■入力電源：DC入力 9V～30V
■ケース：アルミ合金製
■寸法：69(W) x 183(H) x 155(D)mm / 1.8kg
■動作温度：-20～60℃(気流有)
■耐振動：3grms
■認証：CE/FCC ClassA
■対応OS：Windows 7(32/64 bit), 8.1/10(64 bit), Linux
このカタログについて
| ドキュメント名 | ファンレス組込みPC AAEON BOXER-6750 |
|---|---|
| ドキュメント種別 | 製品カタログ |
| ファイルサイズ | 375.2Kb |
| 登録カテゴリ | |
| 取り扱い企業 | サンテックス株式会社 (この企業の取り扱いカタログ一覧) |
この企業の関連カタログ
このカタログの内容

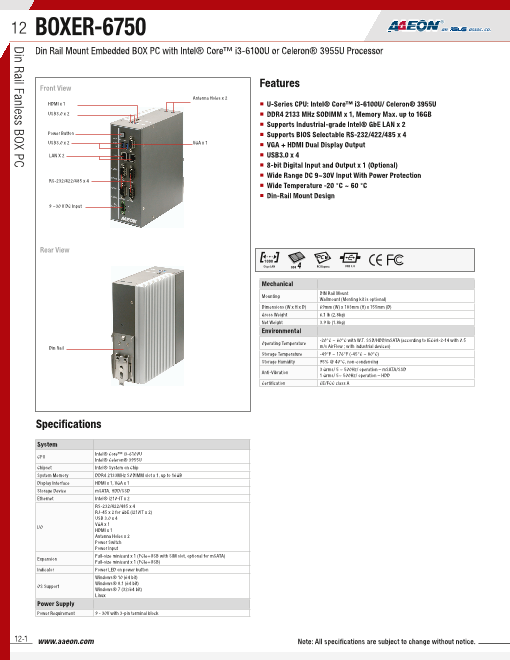

Page1
